1 hour ago, juliankaye said:

How do I turn this graphic into an outline without having to trace it:

Use another app.

All 3 1.10.8, & all 3 V2.6 Mac apps; 2020 iMac 27"; 3.8GHz i7, Radeon Pro 5700, 32GB RAM; macOS 10.15.7
A
ll 3 V2 apps for iPad; 6th Generation iPad 32 GB; Apple Pencil; iPadOS 15.7

Posted

What I mean is there is no auto-trace function in any Affinity app.

There have been many topics discussing the alternatives -- just use the search box at the top of the page to find a sample of them.

All 3 1.10.8, & all 3 V2.6 Mac apps; 2020 iMac 27"; 3.8GHz i7, Radeon Pro 5700, 32GB RAM; macOS 10.15.7
A
ll 3 V2 apps for iPad; 6th Generation iPad 32 GB; Apple Pencil; iPadOS 15.7

Posted

Neither of the Affinity apps has automatic tracing capabilities. So, you either have to do it manually or search for a third party app (there are quite some threads with suggestions for vectorising and tracing apps/websites in this forums).

»There are three responses to a piece of design: yes, no, and wow. Wow is the one to aim for.«
Milton Glaser (1929 - 2020)

Posted
4 hours ago, juliankaye said:

Like what app? that's not helpful at all.

You could use the free vector graphics software Inkscape for it. In most things, it is not as good as Affinity Designer, I think, but it has Autotracing (menu "Path" > "Trace Bitmap"). And that works pretty good.

Be aware to download it from inkscape.org, because there are many fake websites on the net that spread malware (like audacity.de for example - the original site in this case is audacityteam.org). inkscape.org is the original site. You can usually control that by taking a look at the Wikipedia.

Posted

To do this in Affinity you have to use one of the tools that will create curves such as the pen tool in both Affinity Photo and Affinity Designer, this would be tedious on a shape like this so using a third-party trace app is quicker and easier, you can then tweak the result to suit your expectations.

@v_kyr Kindly made this list of alternatives...

Some desktop app tools

Some online tracing tools:



iMac 27" 2019 Sequoia 15.0 (24A335), iMac 27" Affinity Designer, Photo & Publisher V1 & V2, Adobe, Inkscape, Vectorstyler, Blender, C4D, Sketchup + more... XP-Pen Artist-22E, - iPad Pro 12.9
B| (Please refrain from licking the screen while using this forum)

Affinity Help - Affinity Desktop Tutorials - Feedback - FAQ - most asked questions

Posted

The partial tools overview list @firstdefence showed, can be seen here (note that the list is incomplete, there are of course overall more tools available than I listed) ...

An adapted Java based freeware Delineate GUI app for accessing/using the "potrace & autotrace" tracers (Win/Mac/Linux) can be found here in forums resources section:

☛ Affinity Designer 1.10.8 ◆ Affinity Photo 1.10.8 ◆ Affinity Publisher 1.10.8 ◆ OSX El Capitan
☛ Affinity V2.3 apps ◆ MacOS Sonoma 14.2 ◆ iPad OS 17.2

Posted

There is also an app called VectorStyler that has quite a nice Image trace feature and you can copy and paste the result into Affinity apps.


iMac 27" 2019 Sequoia 15.0 (24A335), iMac 27" Affinity Designer, Photo & Publisher V1 & V2, Adobe, Inkscape, Vectorstyler, Blender, C4D, Sketchup + more... XP-Pen Artist-22E, - iPad Pro 12.9
B| (Please refrain from licking the screen while using this forum)

Affinity Help - Affinity Desktop Tutorials - Feedback - FAQ - most asked questions

Posted



6 hours ago, juliankaye said:

How do I turn this graphic into an outline without having to trace it:

I'm probably misunderstanding this, but the question was about turning the graphic into an outline without tracing it, rather than turning it into a vector. If this is the case, then (in Photo) you can just use "Filter" - "Detect" - "Detect Edges", then invert the image.


Acer XC-895 Core i5-10400 Hexa-core 2.90 GHz : 32GB RAM : Intel UHD Graphics 630 – Windows 11 Home - Affinity Publisher, Photo & Designer, v2
(As I am a Windows user, any answers/comments I contribute may not apply to Mac or iPad.)

Posted

I had a go at this with your image using Affinity Photo and came up with the following:

  • Apply a High-Pass Live Filter to the original - Radius 0 px, Monochrome unchecked, Blend Mode = Negation

This gave an image mostly mid-grey but with edges, including much of the outer circle, much brighter.

  • Merged the image layer with the live filter layer to give a pixel layer
  • Applied a Threhold Adjustment Layer to that pixel layer, with the threshold value nudged up minimally to 51% from 50%, Blend Mode = Normal

This gave an image almost entirely Black but with white outline edges.




Posted

If you don't need a vector curve but you do want a nice crisp image of the outline:

In Affinity Photo:

Use the Flood Select Tool. Uncheck Contiguous in the toolbar and click in the white area of the image.

Go to the Select menu and choose Outline. Set the width to whatever you need. I chose 2px, centred.

With the selection boundary ("marching ants") still active, from the Layer menu choose New Fill Layer.

Set the colour of the fill layer to black.

In the Layers panel, temporarily hide the original pixel layer and from the Select menu choose deselect:

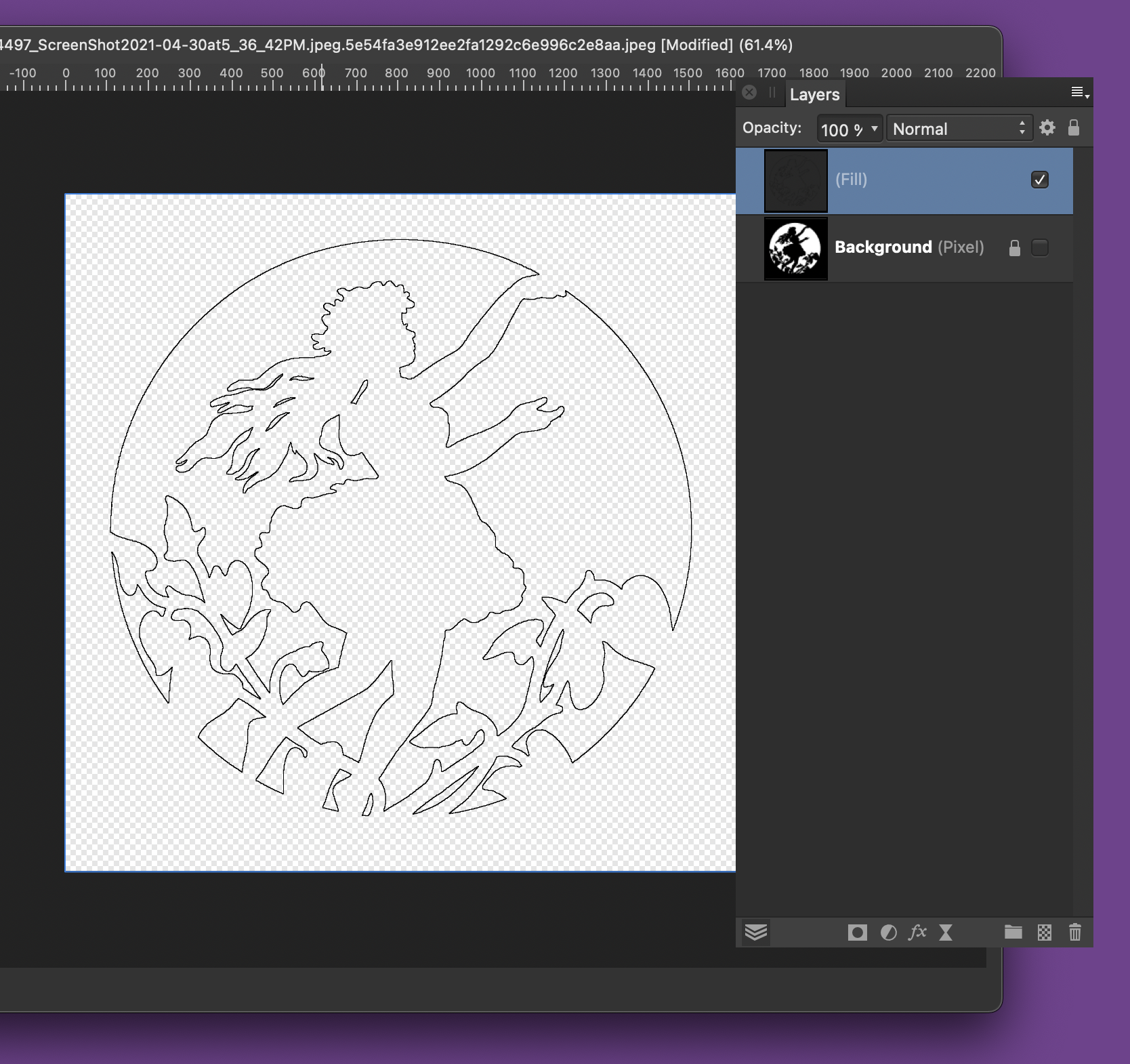

1628188379_Screenshot2021-05-03at09_11_39.thumb.png.7368f8ad009db6d49f03eb45a7cb2c63.png

Choosing a wider Outline and then smoothing the selection before filling will stand up to more magnification. Mine is fine at 100% but the hard edge is stepped if you go much higher.

The outline can be any colour you like, the Fill layer can be rasterised for compositing.

@GarryP beat me to it!





outline.afphoto

Affinity Photo 2.6.3,  Affinity Designer 2.6.3 Affinity Publisher 2.6.3, Mac OSX 15.5, 2018 MacBook Pro 15" Intel.

Posted
50 minutes ago, firstdefence said:

There is also an app called VectorStyler that has quite a nice Image trace feature and you can copy and paste the result into Affinity apps.



That is an impressive piece of software.

Posted
41 minutes ago, Gremriel said:

That is an impressive piece of software.

It can be glitchy at the moment because it's beta but it has some nifty features as well as the image trace, certainly one to keep an eye on.

iMac 27" 2019 Sequoia 15.0 (24A335), iMac 27" Affinity Designer, Photo & Publisher V1 & V2, Adobe, Inkscape, Vectorstyler, Blender, C4D, Sketchup + more... XP-Pen Artist-22E, - iPad Pro 12.9
B| (Please refrain from licking the screen while using this forum)

Affinity Help - Affinity Desktop Tutorials - Feedback - FAQ - most asked questions

Posted

I would have thought this type of image would be used for crafting, maybe @juliankaye can expand on the reason for the request.

iMac 27" 2019 Sequoia 15.0 (24A335), iMac 27" Affinity Designer, Photo & Publisher V1 & V2, Adobe, Inkscape, Vectorstyler, Blender, C4D, Sketchup + more... XP-Pen Artist-22E, - iPad Pro 12.9
B| (Please refrain from licking the screen while using this forum)

Affinity Help - Affinity Desktop Tutorials - Feedback - FAQ - most asked questions

Posted

I recently came across another (currently) free tool for Mac, iPad and iPhone users - it's called Vectornator and one of its functions is an autotrace tool.  The sample below was produced using the default settings and the default fills and strokes quickly restyled by me.

vn quick conversion.svg

Before you go getting too excited, it seems to require Big Sur for the current version (v4), though they do have a legacy version that works with Catalina available according to the "Why can't I download Vectornator on my Mac?" item in their FAQ.

—— Gary ——

Photo/Designer/Publisher: Affinity Store, v2.6.n release (and, since I have the space, the last v1 versions too).

Mac mini (M1, 2020), 16GB/2TB, macOS Sequoia
iPad Pro (M4) 13", 1TB, Apple Pencil Pro, iPadOS 18
MacBook Pro (Intel), macOS Sequoia
Windows 10 via VMware Fusion

Posted
1 hour ago, GaryLearnTech said:

I recently came across another (currently) free tool for Mac, iPad and iPhone users - it's called Vectornator and one of its functions is an autotrace tool.



Alfred spacer.png
Affinity Designer/Photo/Publisher 2 for Windows • Windows 10 Home/Pro
Affinity Designer/Photo/Publisher 2 for iPad • iPadOS 17.5.1 (iPad 7th gen)

Posted

@Alfred Yeah, I did a quick forum search before posting so I knew it wasn't new around here (not really surprising, since it's now at v4).  I only went ahead since it wasn't mentioned in @v_kyr's list posted higher up here by @firstdefence.

—— Gary ——

Photo/Designer/Publisher: Affinity Store, v2.6.n release (and, since I have the space, the last v1 versions too).

Mac mini (M1, 2020), 16GB/2TB, macOS Sequoia
iPad Pro (M4) 13", 1TB, Apple Pencil Pro, iPadOS 18
MacBook Pro (Intel), macOS Sequoia
Windows 10 via VMware Fusion

Posted

I’ve just discovered that what was Imaengine is now Vector Q, but the original Imaengine is back as a separate ‘legacy’ app. There’s also a simpler app, Vinilo, from the same developer.

Alfred spacer.png
Affinity Designer/Photo/Publisher 2 for Windows • Windows 10 Home/Pro
Affinity Designer/Photo/Publisher 2 for iPad • iPadOS 17.5.1 (iPad 7th gen)
