Pete G Posted July 19, 2019 Posted July 19, 2019 The histogram in both the Photo and Develop Persona is blue where I would expect it to be white. The individual RGB channels all display properly but where they overlap the histogram is blue. I have version 1.7.1.404 and have just downloaded it. Any ideas why it's like this? It's not really useable as it is. KLE-France 1 Quote
walt.farrell Posted July 19, 2019 Posted July 19, 2019 In 1.7 Serif changed the histogram color that is used for (I think) overall luminance from White to Blue. As far as I know they have never explained why, but it seems to have been intentional. Pete G 1 Quote -- Walt Designer, Photo, and Publisher V1 and V2 at latest retail and beta releases PC: Desktop: Windows 11 Pro 23H2, 64GB memory, AMD Ryzen 9 5900 12-Core @ 3.00 GHz, NVIDIA GeForce RTX 3090 Laptop: Windows 11 Pro 23H2, 32GB memory, Intel Core i7-10750H @ 2.60GHz, Intel UHD Graphics Comet Lake GT2 and NVIDIA GeForce RTX 3070 Laptop GPU. Laptop 2: Windows 11 Pro 24H2, 16GB memory, Snapdragon(R) X Elite - X1E80100 - Qualcomm(R) Oryon(TM) 12 Core CPU 4.01 GHz, Qualcomm(R) Adreno(TM) X1-85 GPU iPad: iPad Pro M1, 12.9": iPadOS 18.5, Apple Pencil 2, Magic Keyboard Mac: 2023 M2 MacBook Air 15", 16GB memory, macOS Sequoia 15.5
Pete G Posted July 20, 2019 Author Posted July 20, 2019 Thanks. I didn't realise that. There doesn't seem to be a way to change it back again. Which is a shame because it's really not easy to distinguish from the B channel histogram. Quote
firstdefence Posted July 20, 2019 Posted July 20, 2019 Would love to hear an explanation, sounds more like a cockup than a conscious choice, either way I'm all ears... Quote iMac 27" 2019 Sequoia 15.0 (24A335), iMac 27" Affinity Designer, Photo & Publisher V1 & V2, Adobe, Inkscape, Vectorstyler, Blender, C4D, Sketchup + more... XP-Pen Artist-22E, - iPad Pro 12.9 (Please refrain from licking the screen while using this forum) Affinity Help - Affinity Desktop Tutorials - Feedback - FAQ - most asked questions
Dan C Posted July 20, 2019 Posted July 20, 2019 This was an intended change for 1.7, however we've raised it as a potential issue with our developers after a few users - such as yourself - have expressed that they aren't a fan of the change. Personally I prefer a white overlay, the developers have commented on the report stating the reason for this was the white overlay confused certain users or they requested the colour to be changed. Of course it is impossible to please everyone, but we're still looking at other options for how to improve this in the future. Quote
Alfred Posted July 20, 2019 Posted July 20, 2019 26 minutes ago, Dan C said: Of course it is impossible to please everyone Couldn’t there be a checkbox for this, or a Preferences setting? Quote Alfred Affinity Designer/Photo/Publisher 2 for Windows • Windows 10 Home/Pro Affinity Designer/Photo/Publisher 2 for iPad • iPadOS 17.5.1 (iPad 7th gen)
Dan C Posted July 20, 2019 Posted July 20, 2019 This is one of the suggestions in the dev thread, and IMO one of the best options we could implement. Unfortunately I don't have the final say here, but I'll certainly make sure your voice is heard Alfred 1 Quote
walt.farrell Posted July 20, 2019 Posted July 20, 2019 @Dan C: If it is going to remain as a blue overlay, the documentation team should fix the images in the Help, which currently show the old version: Also, the Help should explain what that overlay is, whichever color it remains. Currently it does not mention it. Quote -- Walt Designer, Photo, and Publisher V1 and V2 at latest retail and beta releases PC: Desktop: Windows 11 Pro 23H2, 64GB memory, AMD Ryzen 9 5900 12-Core @ 3.00 GHz, NVIDIA GeForce RTX 3090 Laptop: Windows 11 Pro 23H2, 32GB memory, Intel Core i7-10750H @ 2.60GHz, Intel UHD Graphics Comet Lake GT2 and NVIDIA GeForce RTX 3070 Laptop GPU. Laptop 2: Windows 11 Pro 24H2, 16GB memory, Snapdragon(R) X Elite - X1E80100 - Qualcomm(R) Oryon(TM) 12 Core CPU 4.01 GHz, Qualcomm(R) Adreno(TM) X1-85 GPU iPad: iPad Pro M1, 12.9": iPadOS 18.5, Apple Pencil 2, Magic Keyboard Mac: 2023 M2 MacBook Air 15", 16GB memory, macOS Sequoia 15.5
Dan C Posted July 20, 2019 Posted July 20, 2019 8 minutes ago, walt.farrell said: the documentation team should fix the images in the Help, which currently show the old version Thanks Walt, this has already been raised in the development log, they've confirmed they'll change this once we have a final decision. 8 minutes ago, walt.farrell said: the Help should explain what that overlay is, whichever color it remains. Currently it does not mention it. Good point, I'll raise this with the team, thanks walt.farrell 1 Quote
Adam 005 Posted August 13, 2019 Posted August 13, 2019 Omg after pulling my hair out over the poor histogram in the older versions now I can barely under stand or read this new blue version. Can this be sorted in any way? Quote
Dan C Posted August 14, 2019 Posted August 14, 2019 Hi Adam 005, Welcome to the forums There's no option to change the current histogram, although this is still being looked at by our developers. Quote
Adam 005 Posted August 14, 2019 Posted August 14, 2019 10 hours ago, Dan C said: Hi Adam 005, Welcome to the forums There's no option to change the current histogram, although this is still being looked at by our developers. So to clear up my confusion is the bit that's now blue what would have been white previously. Quote
walt.farrell Posted August 14, 2019 Posted August 14, 2019 1 hour ago, Adam 005 said: So to clear up my confusion is the bit that's now blue what would have been white previously. Yes. Quote -- Walt Designer, Photo, and Publisher V1 and V2 at latest retail and beta releases PC: Desktop: Windows 11 Pro 23H2, 64GB memory, AMD Ryzen 9 5900 12-Core @ 3.00 GHz, NVIDIA GeForce RTX 3090 Laptop: Windows 11 Pro 23H2, 32GB memory, Intel Core i7-10750H @ 2.60GHz, Intel UHD Graphics Comet Lake GT2 and NVIDIA GeForce RTX 3070 Laptop GPU. Laptop 2: Windows 11 Pro 24H2, 16GB memory, Snapdragon(R) X Elite - X1E80100 - Qualcomm(R) Oryon(TM) 12 Core CPU 4.01 GHz, Qualcomm(R) Adreno(TM) X1-85 GPU iPad: iPad Pro M1, 12.9": iPadOS 18.5, Apple Pencil 2, Magic Keyboard Mac: 2023 M2 MacBook Air 15", 16GB memory, macOS Sequoia 15.5
Jaff25 Posted September 10, 2019 Posted September 10, 2019 I don't know if Serif already make a decision on the histogram color. But I vote to change it back to white, it is very dificult for me to see the blue histogram. White was much easier on the eyes. Quote
0Kami Posted October 6, 2019 Posted October 6, 2019 I just downloaded the latest version and the histogram is still blue ... maybe the developers (as compared to photographers/photo editors?) will change it back to white (or maybe a light gray?) with the next update. We can hope. Quote
walt.farrell Posted October 6, 2019 Posted October 6, 2019 18 minutes ago, 0Kami said: I just downloaded the latest version and the histogram is still blue . That's what you should have expected, as none of the betas had it changed, nor did the Release Notes indicate it was changed. Quote -- Walt Designer, Photo, and Publisher V1 and V2 at latest retail and beta releases PC: Desktop: Windows 11 Pro 23H2, 64GB memory, AMD Ryzen 9 5900 12-Core @ 3.00 GHz, NVIDIA GeForce RTX 3090 Laptop: Windows 11 Pro 23H2, 32GB memory, Intel Core i7-10750H @ 2.60GHz, Intel UHD Graphics Comet Lake GT2 and NVIDIA GeForce RTX 3070 Laptop GPU. Laptop 2: Windows 11 Pro 24H2, 16GB memory, Snapdragon(R) X Elite - X1E80100 - Qualcomm(R) Oryon(TM) 12 Core CPU 4.01 GHz, Qualcomm(R) Adreno(TM) X1-85 GPU iPad: iPad Pro M1, 12.9": iPadOS 18.5, Apple Pencil 2, Magic Keyboard Mac: 2023 M2 MacBook Air 15", 16GB memory, macOS Sequoia 15.5
Staff James Ritson Posted October 6, 2019 Staff Posted October 6, 2019 The reason it was changed from white to blue, I believe, is because users were mistaking it for a representation of luminosity—it’s not. It’s describing the addition of the three separate red, green and blue histograms (or the overlap, if you like). If it was a luminosity histogram, the result would often look very different to the RGB histogram since it’s calculated from a weighted average of each pixel's RGB data with more precedence given to the green channel. As an alternative for the time being, I could suggest trying the intensity waveform found on the Scope panel—this gives you a plot of the luminance values independent of any colour information within the document/image. Quote @JamesR_Affinity for Affinity resources and more Official Affinity Photo tutorials
0Kami Posted October 6, 2019 Posted October 6, 2019 James Ritson, thank you for the explanation of why it may have been changed. However, why did the developers use a shade of blue (which already appears on the histogram) rather than a grey (if some people found white confusing)? I believe most people's issue is with the visual user interface aspect of the blue color rather any "help" the blue color might suggest/offer for it's meaning or use. And, although I appreciate your suggestion of using the waveform . . . wow, apparently my mind doesn't work on that level of perception. At any rate, I love your videos. They are always well-presented and informative. Thank you. PS - Please keep the videos coming!!!!! Quote
Staff James Ritson Posted October 6, 2019 Staff Posted October 6, 2019 1 hour ago, 0Kami said: James Ritson, thank you for the explanation of why it may have been changed. However, why did the developers use a shade of blue (which already appears on the histogram) rather than a grey (if some people found white confusing)? I believe most people's issue is with the visual user interface aspect of the blue color rather any "help" the blue color might suggest/offer for it's meaning or use. And, although I appreciate your suggestion of using the waveform . . . wow, apparently my mind doesn't work on that level of perception. At any rate, I love your videos. They are always well-presented and informative. Thank you. PS - Please keep the videos coming!!!!! Hi 0Kami, I think in this instance even grey would have been misleading. A possible alternative approach which we've discussed is to represent the additive secondary colours (yellow, cyan and magenta) where the channels overlap rather than the singular blue. Regarding the waveform, it's not too dissimilar so don't be put off! Look at it vertically rather than horizontally: the bottom represents 0 IRE (pure black) and the top represents 100 IRE (pure white). You can easily see how brightness is distributed horizontally across your document/image and whether it's clipped. Thanks for your comment on the videos. It's been busy recently and production of new videos has taken a back seat, but hopefully that's going to change soon! Quote @JamesR_Affinity for Affinity resources and more Official Affinity Photo tutorials
R C-R Posted October 6, 2019 Posted October 6, 2019 4 hours ago, James Ritson said: A possible alternative approach which we've discussed is to represent the additive secondary colours (yellow, cyan and magenta) where the channels overlap rather than the singular blue. What about just a thick line rather than a filled in curve? Quote All 3 1.10.8, & all 3 V2.6 Mac apps; 2020 iMac 27"; 3.8GHz i7, Radeon Pro 5700, 32GB RAM; macOS 10.15.7 All 3 V2 apps for iPad; 6th Generation iPad 32 GB; Apple Pencil; iPadOS 15.7
Greyfox Posted October 6, 2019 Posted October 6, 2019 5 hours ago, James Ritson said: A possible alternative approach which we've discussed is to represent the additive secondary colours (yellow, cyan and magenta) where the channels overlap rather than the singular blue. In the v1.7.3.481 Help file, the Histogram is shown with only 3 overlapping translucent colors for the RGB channels. The actual Histogram seems to have two tones for each of the RGB channels, plus either one or two tones for the "overlap" graph. For me there are just too many colors crowded into such a small area. I would prefer to see it like it is in the help file, without the two toning, I'm not sure how much benefit there is having the additional "overlap" graph, but if it is thought to be really necessary I would prefer it to be a single sharp line in a color that is a clear contrast to the RGB channel colors Alfred 1 Quote Intel i7-10700 Gen10 CPU, 32GB RAM, Geforce GTX 1660 OC 6GB Windows 10 Pro 22H2, 1x 1TB M.2 NVMe, 1 x 2TB M.2 NVMe. Affinity APh, APu, ADe

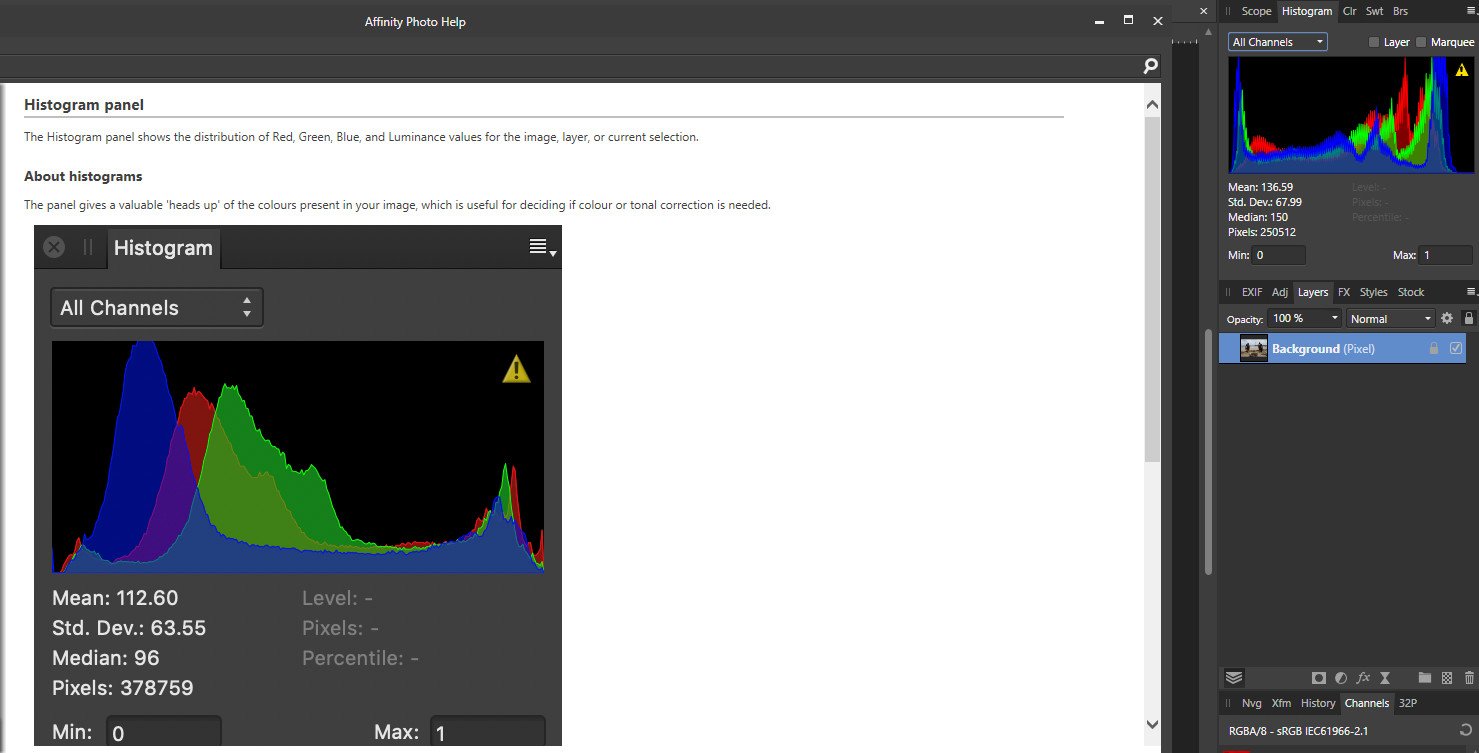

walt.farrell Posted October 6, 2019 Posted October 6, 2019 In Photo 1.7.3.481 (and 1.8.0.486 beta) on Windows the Histogram Panel Help still shows: I've complained before that if they're going to leave it blue in the product they need to fix that Help example. Quote -- Walt Designer, Photo, and Publisher V1 and V2 at latest retail and beta releases PC: Desktop: Windows 11 Pro 23H2, 64GB memory, AMD Ryzen 9 5900 12-Core @ 3.00 GHz, NVIDIA GeForce RTX 3090 Laptop: Windows 11 Pro 23H2, 32GB memory, Intel Core i7-10750H @ 2.60GHz, Intel UHD Graphics Comet Lake GT2 and NVIDIA GeForce RTX 3070 Laptop GPU. Laptop 2: Windows 11 Pro 24H2, 16GB memory, Snapdragon(R) X Elite - X1E80100 - Qualcomm(R) Oryon(TM) 12 Core CPU 4.01 GHz, Qualcomm(R) Adreno(TM) X1-85 GPU iPad: iPad Pro M1, 12.9": iPadOS 18.5, Apple Pencil 2, Magic Keyboard Mac: 2023 M2 MacBook Air 15", 16GB memory, macOS Sequoia 15.5
Greyfox Posted October 6, 2019 Posted October 6, 2019 11 minutes ago, walt.farrell said: In Photo 1.7.3.481 (and 1.8.0.486 beta) on Windows the Histogram Panel Help still shows: How very strange. I'm definitely on released version 1.7.3.481, but the histogram in the help file is as per the screen shot in my previous post, without the white graph you show in yours. How can that happen? Quote Intel i7-10700 Gen10 CPU, 32GB RAM, Geforce GTX 1660 OC 6GB Windows 10 Pro 22H2, 1x 1TB M.2 NVMe, 1 x 2TB M.2 NVMe. Affinity APh, APu, ADe
walt.farrell Posted October 7, 2019 Posted October 7, 2019 27 minutes ago, Greyfox said: How very strange. I'm definitely on released version 1.7.3.481, but the histogram in the help file is as per the screen shot in my previous post, without the white graph you show in yours. How can that happen? That's an excellent question, especially as it seems you're also on Windows. The shape of the Histogram you show from the Help is also completely different from mine. Quote -- Walt Designer, Photo, and Publisher V1 and V2 at latest retail and beta releases PC: Desktop: Windows 11 Pro 23H2, 64GB memory, AMD Ryzen 9 5900 12-Core @ 3.00 GHz, NVIDIA GeForce RTX 3090 Laptop: Windows 11 Pro 23H2, 32GB memory, Intel Core i7-10750H @ 2.60GHz, Intel UHD Graphics Comet Lake GT2 and NVIDIA GeForce RTX 3070 Laptop GPU. Laptop 2: Windows 11 Pro 24H2, 16GB memory, Snapdragon(R) X Elite - X1E80100 - Qualcomm(R) Oryon(TM) 12 Core CPU 4.01 GHz, Qualcomm(R) Adreno(TM) X1-85 GPU iPad: iPad Pro M1, 12.9": iPadOS 18.5, Apple Pencil 2, Magic Keyboard Mac: 2023 M2 MacBook Air 15", 16GB memory, macOS Sequoia 15.5
Alfred Posted October 7, 2019 Posted October 7, 2019 59 minutes ago, Greyfox said: How very strange. I'm definitely on released version 1.7.3.481, but the histogram in the help file is as per the screen shot in my previous post, without the white graph you show in yours. How can that happen? It seems to depend on the interface language. If I switch from UK English to US English I get @walt.farrell's version of the histogram. walt.farrell 1 Quote Alfred Affinity Designer/Photo/Publisher 2 for Windows • Windows 10 Home/Pro Affinity Designer/Photo/Publisher 2 for iPad • iPadOS 17.5.1 (iPad 7th gen)
