 I'm trying to learn Affinity Photo with a view to replacing my Adobe stuff but am struggling I've watched as many tutorials as I can without falling asleep ( a problem I have) and cannot find an answer as to why my skies are magenta.

Nor can I find a dropper tool to set a white balance. (I know I can use the sliders but that isn't what I want.)


Screenshots  of same unadjusted file opened in Affinity Photo and in Lightroom Classic



Screenshot 2022-04-17 at 17.22.01.png

Screenshot 2022-04-17 at 18.02.54.png

Edited by hypnoswan
Link to comment
Share on other sites

Are these RAW format photos or something else? If RAW, which kind?

Affinity Photo 1.10.5, Affinity Designer 1.10.5, Affinity Publisher 1.10.5;  2020 iMac 27"; 3.8GHz i7, Radeon Pro 5700, 32GB RAM; macOS 10.15.7
Affinity Photo
1.10.5.280 & Affinity Designer 1.10.5 for iPad; 6th Generation iPad 32 GB; Apple Pencil; iPadOS 15.7

Link to comment
Share on other sites

11 hours ago, hypnoswan said:

Screenshots  of same unadjusted file opened in Affinity Photo and in Lightroom Classic

I think there have been some previous reports of this problem. Can you upload that sample RAW file to see if it is the same issue?

Link to comment
Share on other sites

Open one of the RAW files and click on the assistant icon assistantoptions.png.925fe89bb305d735d4f06b89d95d0443.png and try changing the Raw Engine from Serif Labs to Apple (Core Image Raw), also see if the Tone Curve set to Take no action helps or exacerbates the issue.


Also mention the camera and lens used.



iMac 27" Late 2019 Fully Loaded and running Monterey 12.6.1, iMac 27" Late 2013 running Catalina 10.15.7 - Affinity Designer, Photo & Publisher V1 & V2, Adobe, Inkscape, Blender, C4D, Sketchup + more... XP-Pen Artist-22E, - iPad Pro 12.9 B|

Affinity Help - Affinity Desktop Tutorials - Feedback - FAQ - most asked questions

Link to comment
Share on other sites

Thanks First defence I tried the RAW engine first and that made no difference but changing the tone curve to take no action did make a difference, however the image still looks a bit flat and underexposed compared to other editors  (ACR, LR, RawPower). RawPower version (no adjustments) attached for comparison1274251932_Screenshot2022-04-18at12_53_32.thumb.png.be29895afd5e1d374d41807bfb5756e7.png

RAW POWER.png

Link to comment
Share on other sites

Thanks for all the suggestions: I. did try the white balance tool ( once I found it thanks!) to no avail, the magenta cast, though slightly mitigated, persisted.

by all means I can upload it but will I be able to upload a 50+MP file here?


IT is a Canon RAW  CR2 file (Canon 5DsR). Lens Canon 16-35 f4L IS

Screenshot 2022-04-18 at 12.59.17.png

Link to comment
Share on other sites

50MB isn't that much, I've uploaded videos three times as big. 🙃

iMac 27" Late 2019 Fully Loaded and running Monterey 12.6.1, iMac 27" Late 2013 running Catalina 10.15.7 - Affinity Designer, Photo & Publisher V1 & V2, Adobe, Inkscape, Blender, C4D, Sketchup + more... XP-Pen Artist-22E, - iPad Pro 12.9 B|

Affinity Help - Affinity Desktop Tutorials - Feedback - FAQ - most asked questions

Link to comment
Share on other sites

6 hours ago, hypnoswan said:

by all means I can upload it but will I be able to upload a 50+MP file here?



2 hours ago, firstdefence said:

50MB isn't that much, I've uploaded videos three times as big. 🙃

MegaPixels are not MegaBytes.

Mac Pro (Late 2013) Mac OS 11.7.1
Affinity Designer 2.0.0 | Affinity Photo 2.0.0 | Affinity Publisher 2.0.0 | Beta versions as they appear.

I have never mastered color management, period, so I cannot help with that.

Link to comment
Share on other sites

16 minutes ago, Old Bruce said:



MegaPixels are not MegaBytes.

Force of habit, my head has prick-dick-tive text. 😁

iMac 27" Late 2019 Fully Loaded and running Monterey 12.6.1, iMac 27" Late 2013 running Catalina 10.15.7 - Affinity Designer, Photo & Publisher V1 & V2, Adobe, Inkscape, Blender, C4D, Sketchup + more... XP-Pen Artist-22E, - iPad Pro 12.9 B|

Affinity Help - Affinity Desktop Tutorials - Feedback - FAQ - most asked questions

Link to comment
Share on other sites

1 hour ago, Lisbon said:

Hi @hypnoswan

Hope you dont mind me trying to fix the problem in Photo Persona.


Don't mind at all Lisbon, its more that Im puzzled why it happens in the first place..it only happens in Affinity , none of the other editing programs. It seems lies starting with a handicap to start isn't the best option. Also I very curious to know why it does this

Link to comment
Share on other sites

I think a lot of RAW editors have a recipe to get you started and some are better than others, I use Nikons NEF RAW files and although they look a little flat to start with I can get them something like in a short space of time with Affinity Photo, I never have issues with wrong colours. It must be something to do with how Affinity Photo reads the CR2 RAW data, it would be nice if Affinity commented on this as CR2 is not a new format and am I right in thinking the CR2 RAW is TiFF based.

Out of curiosity what happens if you use Adobe DNG Converter to convert the CR2 to a DNG RAW file and then open the DNG in Affinity Photos Develop Persona?

iMac 27" Late 2019 Fully Loaded and running Monterey 12.6.1, iMac 27" Late 2013 running Catalina 10.15.7 - Affinity Designer, Photo & Publisher V1 & V2, Adobe, Inkscape, Blender, C4D, Sketchup + more... XP-Pen Artist-22E, - iPad Pro 12.9 B|

Affinity Help - Affinity Desktop Tutorials - Feedback - FAQ - most asked questions

Link to comment
Share on other sites

1 hour ago, hypnoswan said:

...its more that Im puzzled why it happens in the first place...

I dont have an answer for this problem either, but I found something that I found strange.

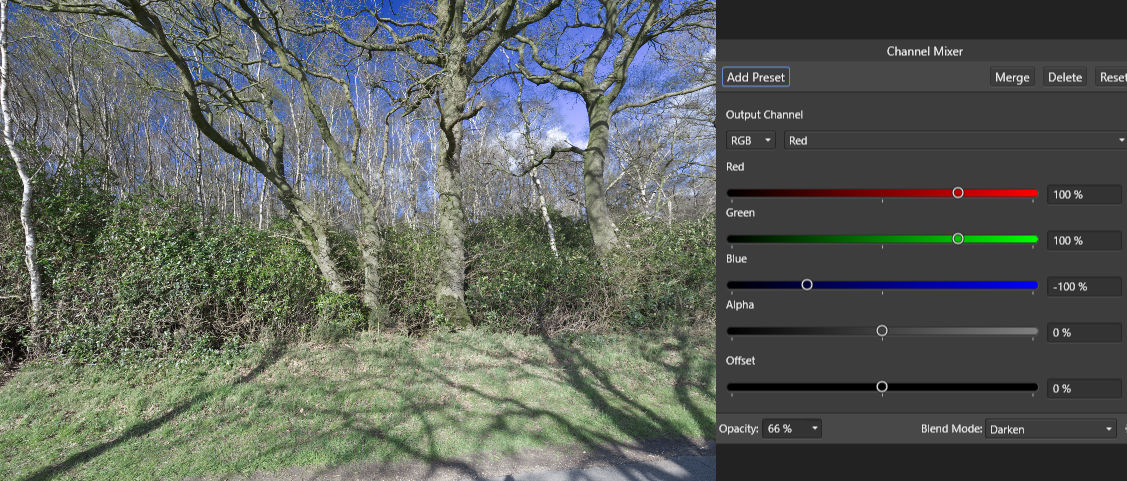

I took some samples where the magenta is more noticeable (Sky) and found that the values of green and blue are almost the same in Affinity and Lightroom.
When comparing the two images, Affinity versus Lightroom, it seems to me that there is a problem with the red channel.
This is why i used a channel mixer to modify the red channel.

Link to comment
Share on other sites

It's a known problem for APh with Canon cr2 & 3 RAW images, see related ...

... though I thought it has been said that they partly fixed that problem, which seems however not to be the case for the RAWs of all Canon cams here.

☛ Affinity Designer 1.10.5 ◆ Affinity Photo 1.10.5 ◆ OSX El Capitan

Link to comment
Share on other sites

2 hours ago, firstdefence said:

... on this as CR2 is not a new format and am I right in thinking the CR2 RAW is TiFF based.

I can tell you at least, that nearly every cams RAW format once upon a time in the one or other way originated from the TIFF file format.

☛ Affinity Designer 1.10.5 ◆ Affinity Photo 1.10.5 ◆ OSX El Capitan

Link to comment
Share on other sites

.CR2 test file for reference. Downloaded from DPReview: https://www.imaging-resource.com/PRODS/canon-1dx/canon-1dxA7.HTM

E1DXLL0000507.CR2

iMac 27" Late 2019 Fully Loaded and running Monterey 12.6.1, iMac 27" Late 2013 running Catalina 10.15.7 - Affinity Designer, Photo & Publisher V1 & V2, Adobe, Inkscape, Blender, C4D, Sketchup + more... XP-Pen Artist-22E, - iPad Pro 12.9 B|

Affinity Help - Affinity Desktop Tutorials - Feedback - FAQ - most asked questions

Link to comment
Share on other sites

35 minutes ago, firstdefence said:

.CR2 test file for reference. ...

I think in this case it's better to download then RAW samples of the "Canon 5DSR" the OP has instead those of an Canon 1dx.

A quick test with this .cr2 RAW ...

... looked OK so far though ...




☛ Affinity Designer 1.10.5 ◆ Affinity Photo 1.10.5 ◆ OSX El Capitan

Link to comment
Share on other sites

I’ve not had this problem with any other editing program on any of my 80,000 CR2 files so it seems the problem lies with Affinity.

sadly I don’t have the time or patience to compensate for Affinities failings. Hopefully however there will be a fix and then I can take a another shot at ditching Adobe

Link to comment
Share on other sites

7 minutes ago, hypnoswan said:

I’ve not had this problem with any other editing program on any of my 80,000 CR2 files so it seems the problem lies with Affinity.

You maybe can provide one of your RAWs here as an sample attachment for tryouts.

☛ Affinity Designer 1.10.5 ◆ Affinity Photo 1.10.5 ◆ OSX El Capitan

Link to comment
Share on other sites

Here's how your Canon cr2 RAW looks for me in the APh Develop Persona (as default without applying anything to it, under MacOS Catalina with the Serif libraw based RAW engine) and when exported as an JPG file ...



I already thought something like this! -- Which MacOS and Affinity Photo versions do you actually use on your side?

☛ Affinity Designer 1.10.5 ◆ Affinity Photo 1.10.5 ◆ OSX El Capitan

Link to comment
Share on other sites

3 minutes ago, Claudio60 said:

Just opened your photo in AP (I'm on Windows) and the colors are ok, but the image lacks in details

On my Mac, I can duplicate that if in the Develop Assistant I change the Tone curve setting from Apply tone curve to Take no action.

If I leave it set to apply the curve I get the same result as @v_kyr posted.

Affinity Photo 1.10.5, Affinity Designer 1.10.5, Affinity Publisher 1.10.5;  2020 iMac 27"; 3.8GHz i7, Radeon Pro 5700, 32GB RAM; macOS 10.15.7
Affinity Photo
1.10.5.280 & Affinity Designer 1.10.5 for iPad; 6th Generation iPad 32 GB; Apple Pencil; iPadOS 15.7
