requiredusage Posted May 21, 2019 Share Posted May 21, 2019 I am currently running the trials of affinity photo/designer/publisher and am trying to create text where the text itself is "see through" and shows the background image while the text box has a background color highlighting the text. (Something like the attached image which was not created via the Affinity programs.) In Designer, I was able to do what I wanted but could not change the opacity of the background textbox so I moved to Publisher. There I was able to change the opacity of background how I wanted it but could not figure out a way to change the opacity of the text itself to be gone so I could have "see through" text (I did this in Designer by using stroke and setting text opacity to none). In Publisher, the text was not "see through" but had the background color of the text fill I chose. Is it possible to do what I want using the Affinity programs? Am I just not taking the best approach to get there? Quote Link to comment Share on other sites More sharing options...
Fixx Posted May 21, 2019 Share Posted May 21, 2019 I would make a copy of background layer and mask it with text object. Quote Link to comment Share on other sites More sharing options...
Staff Dan C Posted May 21, 2019 Staff Share Posted May 21, 2019 Hi requiredusage, Welcome to the forums This is possible in any Affinity app, using the Combine Boolean operation. I've created a quick video showing this below, after loading my background I created a white semi-transparent rectangle then typed my text above this. I then converted my text to curves and Ungrouped the auto-created group in the Layers studio. I selected the recently created rectangle, along with the aforementioned curves and used Layer>Geometry>Combine. This created one curves object that is semi-transparent, with the wording 'cut out' to be transparent. I hope this helps! Transparent Text.mp4 Alfred 1 Quote Please note - I am currently out of the office for a short while whilst recovering from surgery (nothing serious!), therefore will not be available on the Forums during this time. Should you require a response from the team in a thread I have previously replied in - please Create a New Thread and our team will be sure to reply as soon as possible. Many thanks! Link to comment Share on other sites More sharing options...
requiredusage Posted May 21, 2019 Author Share Posted May 21, 2019 Thank you very much! I am a hobbyist coming from GIMP who can only rely on Google to help me get to where I want and I don't always have the correct language to help me find what I want to do in searches. I think picking up all the Affinity set will be a good fit for me. As a side note, if I buy now (ver. 1.6) will I need to purchase the ver. 1.7 update later? Should I wait for 1.7 before buying? Again thank you both! Quote Link to comment Share on other sites More sharing options...
jmwellborn Posted May 21, 2019 Share Posted May 21, 2019 5 minutes ago, requiredusage said: As a side note, if I buy now (ver. 1.6) will I need to purchase the ver. 1.7 update later? Should I wait for 1.7 before buying? Both Photo and Designer will update without charge to their respective v. 1.7, when ready. Publisher is now a free beta v. 1.7. When it is ready for retail, you will need to buy it. Quote 24" iMAC Apple M1 chip, 8-core CPU, 8-core GPU, 16 GB unified memory, 1 TB SSD storage, Ventura 13.6. Photo, Publisher, Designer 1.10.5, and 2.3. MacBook Pro 13" 2020, Apple M1 chip, 16GB unified memory, 256GB SSD storage, Ventura 13.6. Publisher, Photo, Designer 1.10.5, and 2.1.1. iPad Pro 12.9 2020 (4th Gen. IOS 16.6.1); Apple pencil. Wired and bluetooth mice and keyboards. Link to comment Share on other sites More sharing options...
Staff MEB Posted May 21, 2019 Staff Share Posted May 21, 2019 Hi requiredusage, Welcome to Affinity Forums All minor updates (1.7, 1.8 etc) are free, so no you don't have to pay again to update to version 1.7. Only major updates (v1 to v2 etc) are paid. Quote A Guide to Learning Affinity Software Link to comment Share on other sites More sharing options...
lepr Posted May 21, 2019 Share Posted May 21, 2019 . Mark Oehlschlager and Dan C 1 1 Quote Link to comment Share on other sites More sharing options...

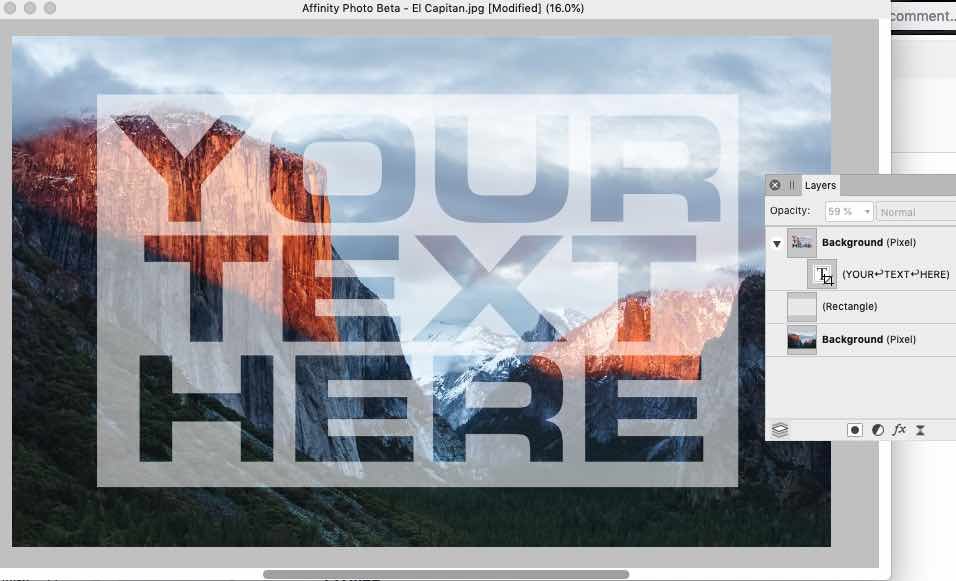

Fixx Posted May 22, 2019 Share Posted May 22, 2019 22 hours ago, Fixx said: I would make a copy of background layer and mask it with text object. Like this. No need for booleans. Quote Link to comment Share on other sites More sharing options...
lepr Posted May 22, 2019 Share Posted May 22, 2019 . Quote Link to comment Share on other sites More sharing options...
