mimimia Posted December 18, 2023 Posted December 18, 2023 I've created a document with 500 pages that only contain some text (aprox. 10 sentences on every page) and some simple forms that I created inside the Publisher. The seize of the document is 630MB !! There are NO graphics, NO links whatsoever in the document. When exporting the document to PDF, the seize is nearly the same. The dpi is only 72 - doesn't make any sense? I'm using the V2 on my MacBook Pro with Sonoma. Can anyone help me? Thanks! Quote
Pšenda Posted December 18, 2023 Posted December 18, 2023 Example? (one page with some text and "some simple form" + export settings). Quote Affinity Store (MSI/EXE): Affinity Suite (ADe, APh, APu) 2.5.7.2948 (Retail) Dell OptiPlex 7060, i5-8500 3.00 GHz, 16 GB, Intel UHD Graphics 630, Dell P2417H 1920 x 1080, Windows 11 Pro, Version 24H2, Build 26100.2605. Dell Latitude E5570, i5-6440HQ 2.60 GHz, 8 GB, Intel HD Graphics 530, 1920 x 1080, Windows 11 Pro, Version 24H2, Build 26100.2605. Intel NUC5PGYH, Pentium N3700 2.40 GHz, 8 GB, Intel HD Graphics, EIZO EV2456 1920 x 1200, Windows 10 Pro, Version 21H1, Build 19043.2130.
Hangman Posted December 18, 2023 Posted December 18, 2023 Hi @mimimia and welcome to the forums, If you save your file using a different name, close it, re-open it, and re-export it, are you seeing the same file sizes? If so, try rebooting your Mac and see if the same file sizes are still shown... Based on your description I created a 500-page, A4 Publisher document and it's 135KB, exported it is 1.3MB so @Pšenda suggests I think we would likely need to see either the complete Publisher file or at least a few typical pages that include both a standard text page and pages including a form... Quote Affinity Designer 2.6.3 | Affinity Photo 2.6.3 | Affinity Publisher 2.6.3 MacBook Pro M3 Max, 36 GB Unified Memory, macOS Sonoma 14.6.1, Magic Mouse HP ENVY x360, 8 GB RAM, AMD Ryzen 5 2500U, Windows 10 Home, Logitech Mouse
Pšenda Posted December 18, 2023 Posted December 18, 2023 3 minutes ago, Hangman said: likely need to see either the complete Publisher file The 630 MB put me off this requirement a bit 🙂 Quote Affinity Store (MSI/EXE): Affinity Suite (ADe, APh, APu) 2.5.7.2948 (Retail) Dell OptiPlex 7060, i5-8500 3.00 GHz, 16 GB, Intel UHD Graphics 630, Dell P2417H 1920 x 1080, Windows 11 Pro, Version 24H2, Build 26100.2605. Dell Latitude E5570, i5-6440HQ 2.60 GHz, 8 GB, Intel HD Graphics 530, 1920 x 1080, Windows 11 Pro, Version 24H2, Build 26100.2605. Intel NUC5PGYH, Pentium N3700 2.40 GHz, 8 GB, Intel HD Graphics, EIZO EV2456 1920 x 1200, Windows 10 Pro, Version 21H1, Build 19043.2130.
Hangman Posted December 18, 2023 Posted December 18, 2023 7 minutes ago, Pšenda said: The 630 MB put me off this requirement a bit 🙂 I only suggested that to rule out something on a particular page that could be causing an issue as 630 MB seems somewhat excessive based on the description... Quote Affinity Designer 2.6.3 | Affinity Photo 2.6.3 | Affinity Publisher 2.6.3 MacBook Pro M3 Max, 36 GB Unified Memory, macOS Sonoma 14.6.1, Magic Mouse HP ENVY x360, 8 GB RAM, AMD Ryzen 5 2500U, Windows 10 Home, Logitech Mouse
Old Bruce Posted December 18, 2023 Posted December 18, 2023 2 minutes ago, Hangman said: I only suggested that to rule out something on a particular page that could be causing an issue as 630 MB seems somewhat excessive based on the description... 30 minutes ago, mimimia said: some simple forms Some "simple forms" could well be the problem. Quote Mac Pro (Late 2013) Mac OS 12.7.6 Affinity Designer 2.6.0 | Affinity Photo 2.6.0 | Affinity Publisher 2.6.0 | Beta versions as they appear. I have never mastered color management, period, so I cannot help with that.
MikeTO Posted December 18, 2023 Posted December 18, 2023 Also please ensure that you have not selected File > Save History with Document. Using this command will cause your file sizes to increase dramatically. Quote Download a free PDF manual for Affinity Publisher 2.6 Download a quick reference chart for Affinity's Special Characters Affinity 2.6 for macOS Sequoia 15.5, MacBook Pro (M4 Pro) and iPad Air (M2)

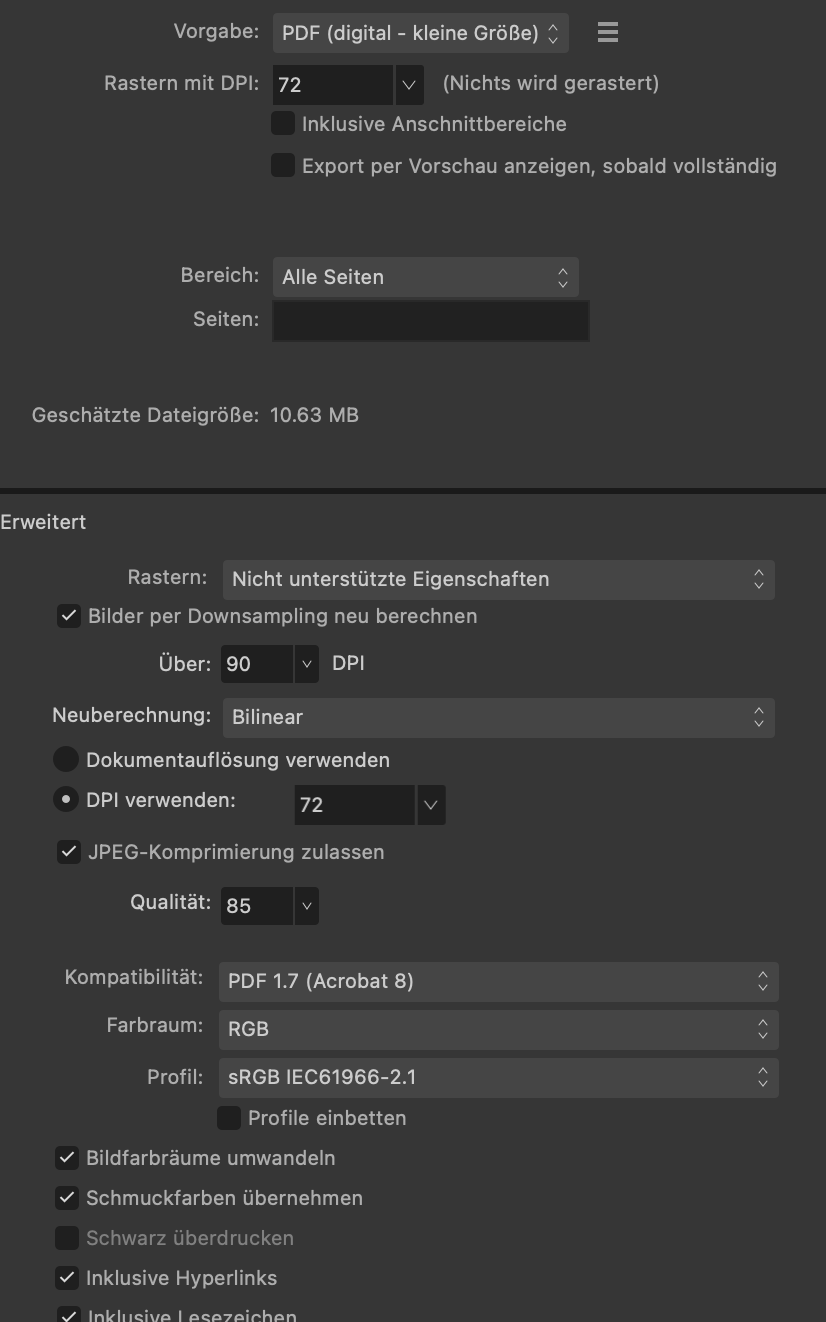

mimimia Posted January 10, 2024 Author Posted January 10, 2024 Thank you all for your ideas! Attached you find a small version of the document - 18 pages and 19 MB. I'm new to Publisher - maybe I underestimated the size of the forms? I also attached my export settings, but they are in German, sorry about that. 3_4.afpub Quote
thomaso Posted January 10, 2024 Posted January 10, 2024 1 hour ago, mimimia said: Attached you find a small version of the document - 18 pages and 19 MB. Could you also upload the exported PDF (10 MB). I can't open V2 but I am curious what elements do cause that size in particular if no images are used and nothing gets rasterized (as your export dialog says). For your .afpub size you could try this: Create a new document of same page size and colour & choose menu Document > Add Pages From File to import the entire affected afpub & Save As. Quote • MacBookPro Retina 15" | macOS 10.14.6 | Eizo 27" | Affinity V1 • iPad 10.Gen. | iOS 18.5. | Affinity V2.6
R C-R Posted January 11, 2024 Posted January 11, 2024 Just guessing but consider the numbers in circles at the top left of pages beginning on page 5. Each of them includes a group with a huge number of curves in it (over 1200 for the first one!!!) so that is probably responsible for much of the excess size. Quote All 3 1.10.8, & all 3 V2.6 Mac apps; 2020 iMac 27"; 3.8GHz i7, Radeon Pro 5700, 32GB RAM; macOS 10.15.7 All 3 V2 apps for iPad; 6th Generation iPad 32 GB; Apple Pencil; iPadOS 15.7
Pšenda Posted January 11, 2024 Posted January 11, 2024 (edited) 40 minutes ago, R C-R said: huge number of curves ... yes, this "simple form" (page 2) contain cca 80000 curves, with very complex shape. Document size after delete page 2: Edited January 11, 2024 by Pšenda loukash 1 Quote Affinity Store (MSI/EXE): Affinity Suite (ADe, APh, APu) 2.5.7.2948 (Retail) Dell OptiPlex 7060, i5-8500 3.00 GHz, 16 GB, Intel UHD Graphics 630, Dell P2417H 1920 x 1080, Windows 11 Pro, Version 24H2, Build 26100.2605. Dell Latitude E5570, i5-6440HQ 2.60 GHz, 8 GB, Intel HD Graphics 530, 1920 x 1080, Windows 11 Pro, Version 24H2, Build 26100.2605. Intel NUC5PGYH, Pentium N3700 2.40 GHz, 8 GB, Intel HD Graphics, EIZO EV2456 1920 x 1200, Windows 10 Pro, Version 21H1, Build 19043.2130.
thomaso Posted January 11, 2024 Posted January 11, 2024 46 minutes ago, R C-R said: huge number of curves @mimimia, this means you can reduce the .afpub and the exported .PDF file sizes massively by rasterizing those Group layers that contain the vectorized illustrations. When doing this you might consider to increase the document resolution first, e.g. to 300 dpi, to maintain the image quality in a resolution which would work for print, too. Since the elements have quite small dimensions a higher resolution wouldn't result in a remarkable larger file size towards your current 72 dpi but in a sharper contour. If wanted you then could convert the rasterized illustrations to layers of type "Image" which enables you to place the items linked resources. Finally you could replace each of them with instances of just a few linked image files. For colour variations you don't necessarily need to have the image files in different colours but could alternatively apply an adjustment layer (e.g. HSL, Recolour) to achieve a wanted colour for each element. Quote • MacBookPro Retina 15" | macOS 10.14.6 | Eizo 27" | Affinity V1 • iPad 10.Gen. | iOS 18.5. | Affinity V2.6
Pšenda Posted January 11, 2024 Posted January 11, 2024 (edited) 7 hours ago, thomaso said: Since the elements have quite small dimensions I would be quite interested in who and for what purpose created this extremely complex, yet on the display and after printing invisible (indiscernible to the eyes) structure. The only possibility is that it is coded secret information - for example plans for the production of a superluminal rocket 🙂 I think that visually the same impression (even with better readability of the digits) would be made by a simple colored circle with a spherical gradient. Edited January 11, 2024 by Pšenda loukash 1 Quote Affinity Store (MSI/EXE): Affinity Suite (ADe, APh, APu) 2.5.7.2948 (Retail) Dell OptiPlex 7060, i5-8500 3.00 GHz, 16 GB, Intel UHD Graphics 630, Dell P2417H 1920 x 1080, Windows 11 Pro, Version 24H2, Build 26100.2605. Dell Latitude E5570, i5-6440HQ 2.60 GHz, 8 GB, Intel HD Graphics 530, 1920 x 1080, Windows 11 Pro, Version 24H2, Build 26100.2605. Intel NUC5PGYH, Pentium N3700 2.40 GHz, 8 GB, Intel HD Graphics, EIZO EV2456 1920 x 1200, Windows 10 Pro, Version 21H1, Build 19043.2130.
thomaso Posted January 11, 2024 Posted January 11, 2024 5 hours ago, Pšenda said: a spherical gradient While I still see the textured element as more artistic/creative than a technical gradient even in the small size, I rather wonder for what goal the (apparently) scanned watercolour illustration got vectorized at all: Even if printed in 3x3 metres for a school wall for instance, an upscaled, resampled raster image would appear more 'natural' (closer to watercolour) than the vectorized data with its hard-edged sub-shapes, visible already in the 10-15 cm size of @Pšenda's screenshot. (… while in an upscaled pixel image any hidden message could still get placed in a tiny font size;) Quote • MacBookPro Retina 15" | macOS 10.14.6 | Eizo 27" | Affinity V1 • iPad 10.Gen. | iOS 18.5. | Affinity V2.6
mimimia Posted January 11, 2024 Author Posted January 11, 2024 Thank you so much for all your help! I'm gonna try and find out, if one of the ideas will make a difference. I downloaded the illustration on freepik and it came like this - I dont' know if there's a hidden message The document would definitely also work with a colored circle, I just like the illustration better. But if I can't manage downsizing the document, I will probably try it. Quote
Pšenda Posted January 11, 2024 Posted January 11, 2024 1 hour ago, mimimia said: I just like the illustration better Just consider the fact that due to its use there is a significant deterioration in the readability of the numbers indicated on it - the number in certain places merges with the bright parts of the illustration. Quote Affinity Store (MSI/EXE): Affinity Suite (ADe, APh, APu) 2.5.7.2948 (Retail) Dell OptiPlex 7060, i5-8500 3.00 GHz, 16 GB, Intel UHD Graphics 630, Dell P2417H 1920 x 1080, Windows 11 Pro, Version 24H2, Build 26100.2605. Dell Latitude E5570, i5-6440HQ 2.60 GHz, 8 GB, Intel HD Graphics 530, 1920 x 1080, Windows 11 Pro, Version 24H2, Build 26100.2605. Intel NUC5PGYH, Pentium N3700 2.40 GHz, 8 GB, Intel HD Graphics, EIZO EV2456 1920 x 1200, Windows 10 Pro, Version 21H1, Build 19043.2130.
thomaso Posted January 11, 2024 Posted January 11, 2024 2 hours ago, mimimia said: I downloaded the illustration on freepik and it came like this If you would have just placed it as 'Image' or 'Document' resource without opening it (= accessing it as a 'Group' layer this way) you could now replace the vectorized version with a pixel version by just 1 click for all instances in this .afpub. Quote • MacBookPro Retina 15" | macOS 10.14.6 | Eizo 27" | Affinity V1 • iPad 10.Gen. | iOS 18.5. | Affinity V2.6
