NotMyFault

Recommended Posts

Hi,

this has maybe been reported before, I can't find the old post right now.

If you have a display capable to display 10 bit (or 12 bit), you clearly want to use this in Photo.

Unfortunately, while being capable to crate such documents correctly, the rendering to the display is always limited to 8 bit color depth.

Only when you switch to RBG/32 and EDR mode, Photo is able to render more than 8 bit color depth to the display.

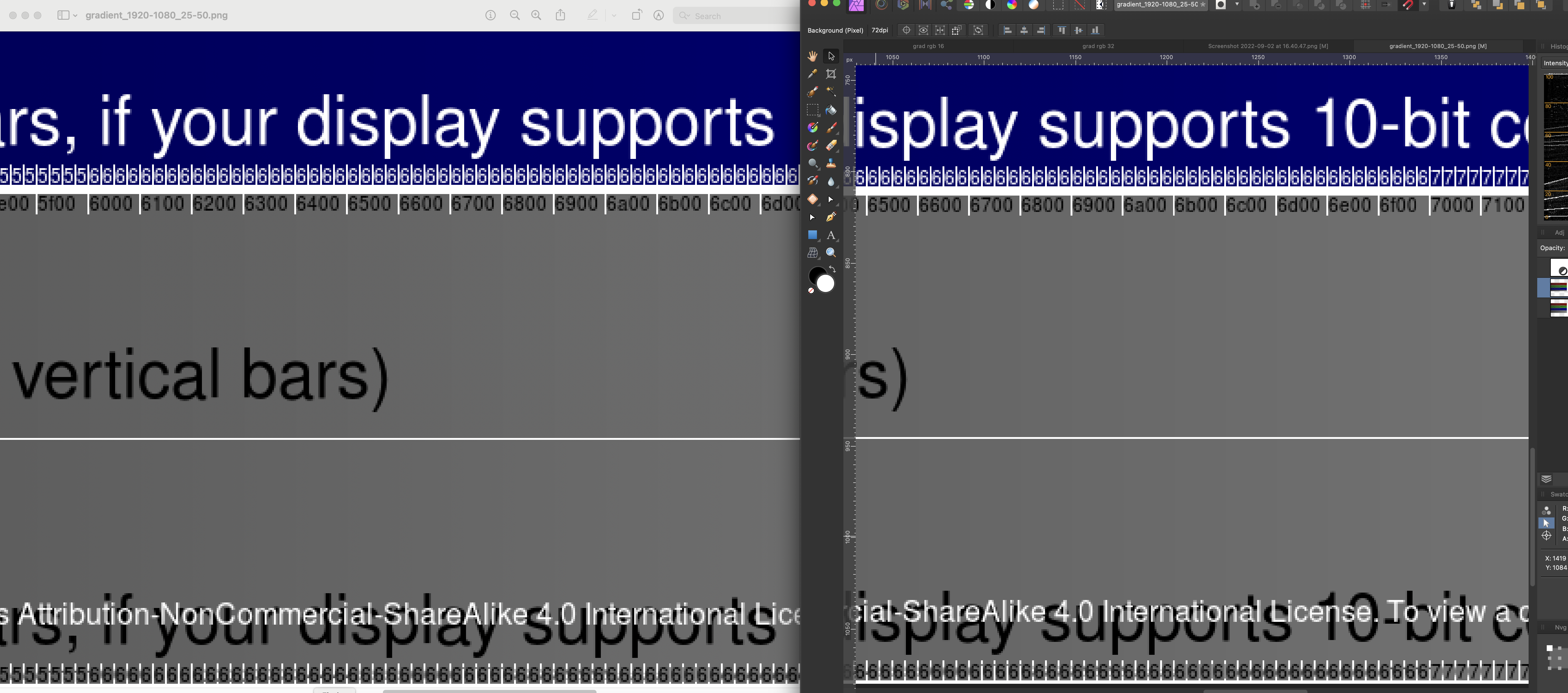

The screenshots (from M1 Mac mini with 10 bit capable display) shows the issue by comparing Mac Preview and Photo showing the identical test image.Test file:

https://raw.githubusercontent.com/jursonovicst/gradient/master/test_sequences/1920x1080/gradient_1920-1080_25-50.png

Screenshot 2022-09-02 at 16.54.54.png

Mac mini M1 A2348

LG34WK950U-W, calibrated to DCI-P3 with LG Calibration Studio / Spider 5

iPad Air Gen 5 (2022) A2589

Special interest into procedural texture filter, edit alpha channel, RGB/16 and RGB/32 color formats, stacking, finding root causes for misbehaving files, finding creative solutions for unsolvable tasks, finding bugs in Apps.



Link to comment
Share on other sites

please find a even more convincing example below.

I made 3 copies of the file in RBG 8 / 16 / 32 bit.

Then, I exported a PNG version directly from photo.

Note that the 32 bit version exports to a 16 bit PNG, but it uses a linear gamma, so the grey color differs fro the other examples.

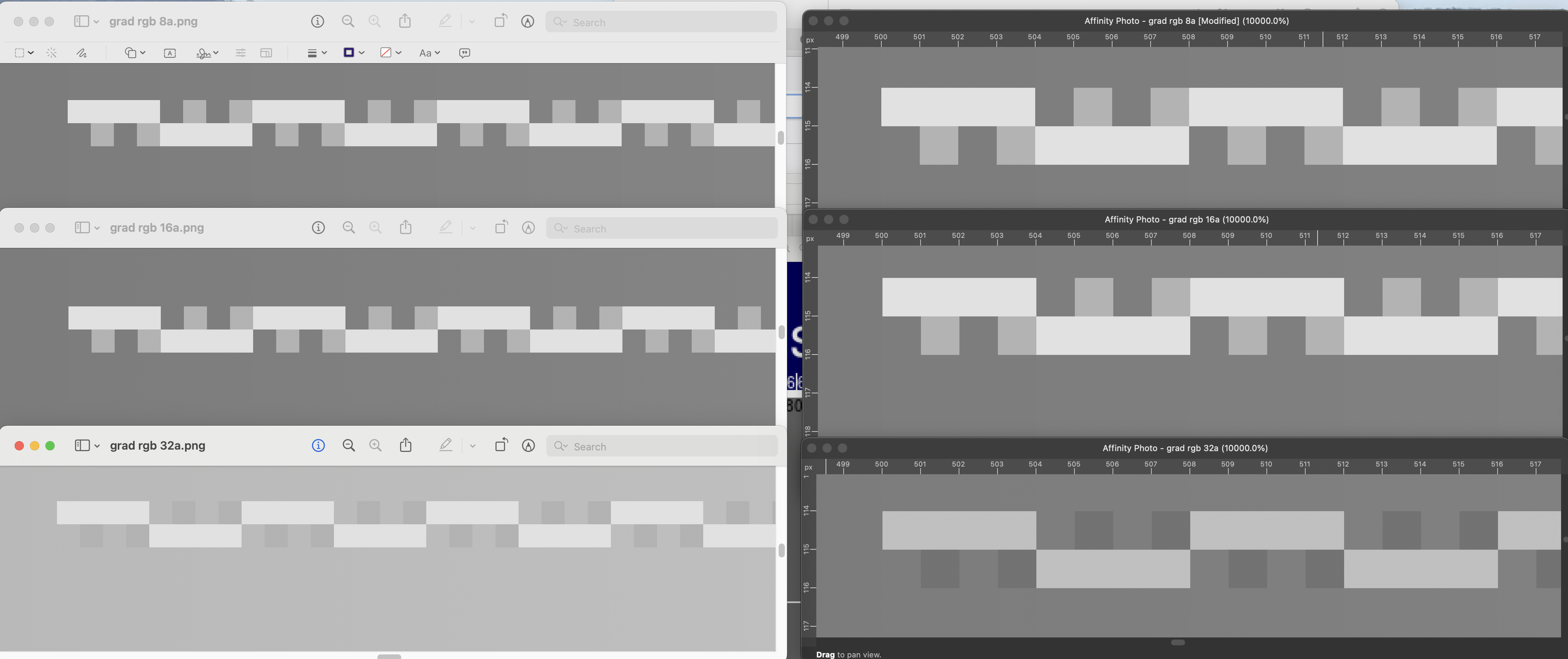

Then again, I opened the PNG files in parallel to the 3 afphoto files and made a screenshot:

610183627_Screenshot2022-09-03at14_08_40.thumb.png.a3eade01c058a72d5e8ad53434c622c1.png

Imported this screenshot again into Photo, added a curves adjustment to boost the contrast around the visible mid-grey tone.

Now you can clearly see that Preview renders 16 bit PNG with all 10-bit color depth, whereas Photo only renders 8-bit color depth.

1101319858_Screenshot2022-09-03at14_15_14.thumb.png.632d2ead4bd1ea829ec27ffe1d5a8f0f.png

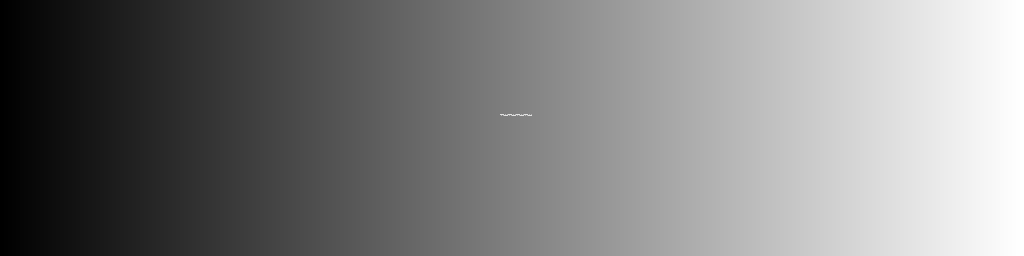

grad rgb 8a.png

grad rgb 16a.png

grad rgb 32a.png

grad rgb 8a.afphoto grad rgb 16a.afphoto grad rgb 32a.afphoto

Mac mini M1 A2348

LG34WK950U-W, calibrated to DCI-P3 with LG Calibration Studio / Spider 5

iPad Air Gen 5 (2022) A2589

Special interest into procedural texture filter, edit alpha channel, RGB/16 and RGB/32 color formats, stacking, finding root causes for misbehaving files, finding creative solutions for unsolvable tasks, finding bugs in Apps.



Link to comment
Share on other sites

To answer some possible questions:

  • Preferences->Dither gradients has no impact. The gradient was created by a procedural texture filter, not by a gradient fill.
  • I strongly assume this impacts all platforms (Windows, MacOS, iPad OS)
  • this never worked in any Version of Photo since about 1.5. I use 10bit capable displays since 2009, and a 16bit capable Scanner since 2003. it is a real pity that Affinity does not allow to utilise this essential functionality. Going to RGB/32 is no suitable workaround, because of 2x storage, linear gamma issues, unavailability of many live filters.
  • Will try again with HW acceleration inactive.

Mac mini M1 A2348

LG34WK950U-W, calibrated to DCI-P3 with LG Calibration Studio / Spider 5

iPad Air Gen 5 (2022) A2589

Special interest into procedural texture filter, edit alpha channel, RGB/16 and RGB/32 color formats, stacking, finding root causes for misbehaving files, finding creative solutions for unsolvable tasks, finding bugs in Apps.



Link to comment
Share on other sites

This question probably wont make any sense but here goes.

Isn't the 8 bit preview intentional in order to improve the system performance?

If im not mistaken even photoshop is limited to 8 bit previews. Only recently, they added an option to improve previews in 16-bit documents.


Link to comment
Share on other sites

1 hour ago, Lisbon said:

This question probably wont make any sense but here goes.

Isn't the 8 bit preview intentional in order to improve the system performance?

If im not mistaken even photoshop is limited to 8 bit previews. Only recently, they added an option to improve previews in 16-bit documents.


Well - My old PC (2018)  and current M1 Mac are perfectly capable to render RGB/32 documents in Photo with higher bit depth, and ok performance

I don't need an App which renders a document fast but wrong. I need an App which renders the document correct, in best possible performance.



I always hated disliked jpeg images for visible banding in smooth blue sky caused by the 8 bit limit. Unfortunately Apple still creates 8-bit only in HEIF, whereas Canon / Sony create files with more bit depth. And I hate dislike Affinity to enforce dithering on those self-limited 8 bit gradients (even in RGB/16 documents.

Mac mini M1 A2348

LG34WK950U-W, calibrated to DCI-P3 with LG Calibration Studio / Spider 5

iPad Air Gen 5 (2022) A2589

Special interest into procedural texture filter, edit alpha channel, RGB/16 and RGB/32 color formats, stacking, finding root causes for misbehaving files, finding creative solutions for unsolvable tasks, finding bugs in Apps.



Link to comment
Share on other sites

Bump - any comments from mods?

Mac mini M1 A2348

LG34WK950U-W, calibrated to DCI-P3 with LG Calibration Studio / Spider 5

iPad Air Gen 5 (2022) A2589

Special interest into procedural texture filter, edit alpha channel, RGB/16 and RGB/32 color formats, stacking, finding root causes for misbehaving files, finding creative solutions for unsolvable tasks, finding bugs in Apps.



Link to comment
Share on other sites

  • Staff

Hi @NotMyFault,

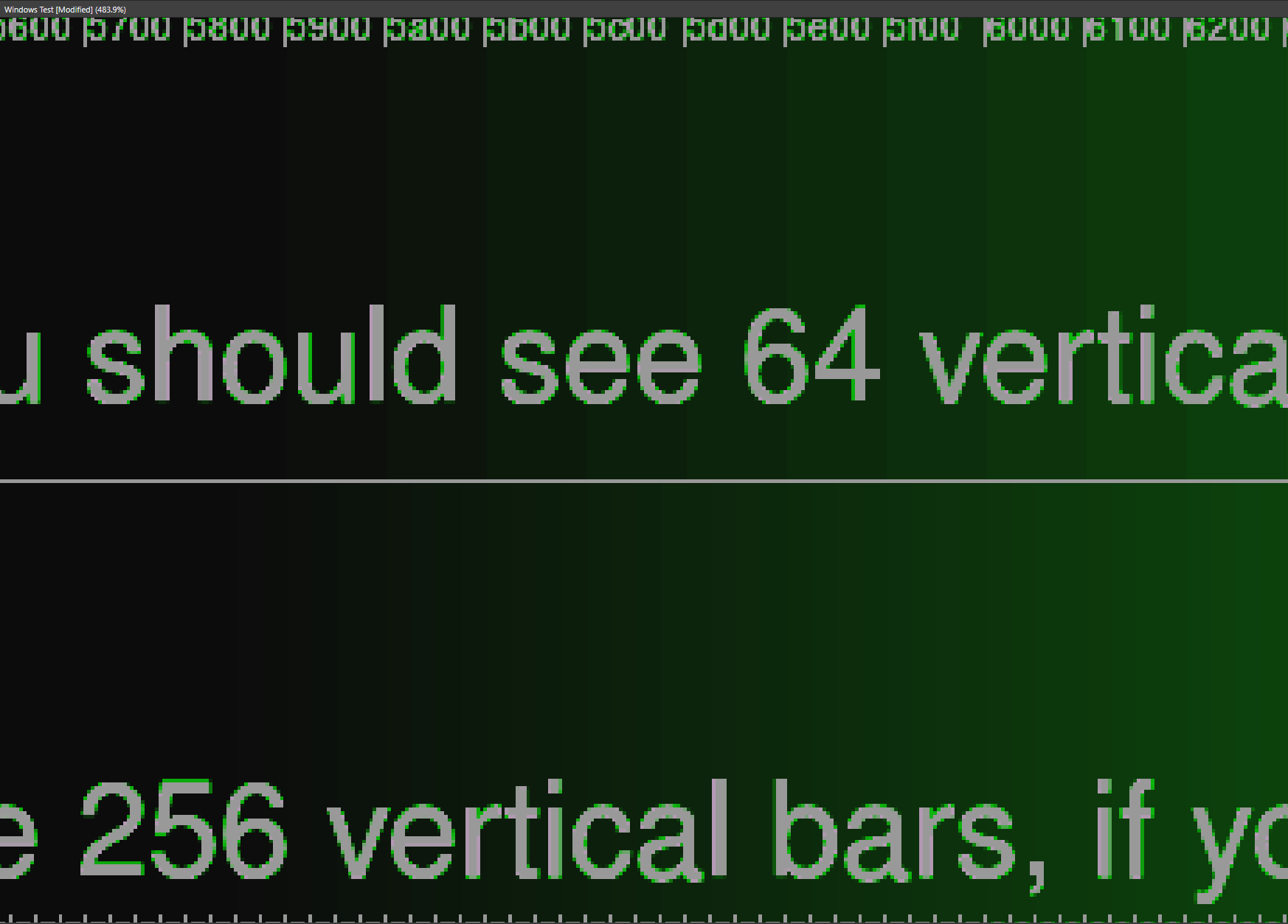

Going back to the original gradient image I've been able to see a clear difference between the 8 and 10 bit gradients with the addition of a curves adjustment on a 10 bit display within APhoto, as there are four bars for every one. If you open the attached file on your side is this the same for you?
