Selecting specific layers from a Designer document placed in Publisher


Recommended Posts

10 hours ago, LEB said:

Is there a way to select the layers in a Designer document (or a layered PDF) that are visible when placed in a Publisher document?

Yes, it is possible in APub to select specific layers to be shown from a placed ADe document.
For linked/placed documents there is a "Layers:" drop-down in the context menu that will allow you to select the desired specific Layers.

Worth to notice:

  • Placed documents offer also "Page Box" option on the context toolbar to choose how the page displays (e.g., with/without bleed, objects only).
  • A file's embedded colour profile will always be converted to the Affinity document's current working space.

Below is a screenshot of the context menu for linked documents with highlighted "Layers:" drop-down that does exactly what you're asking for.


Link to comment
Share on other sites

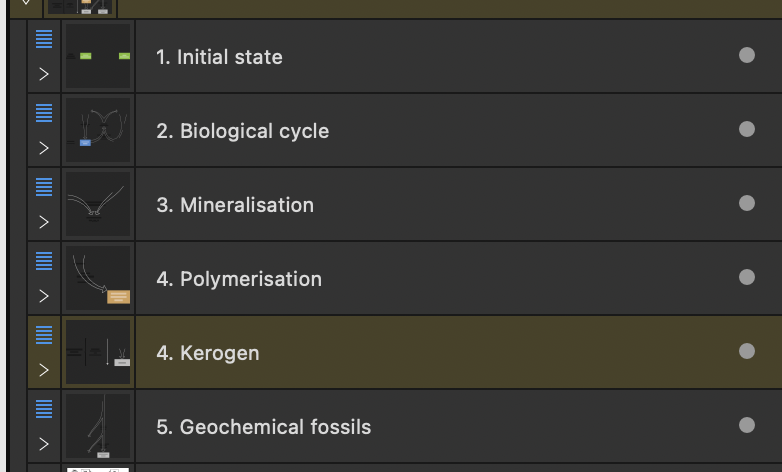

I am confused because what I am seeing is the list of art boards and not the list of layers.

I would like to use it to show the gradual construction of a single graphic, with boxes and connections appearing gradually, and not separate areas (art boards) of a single document.

What am I doing wrong?

Thank you for your help.

Capture d’écran 2024-03-24 à 11.47.26.png

Link to comment
Share on other sites

2 minutes ago, LEB said:

I am confused because what I am seeing is the list of art boards and not the list of layers.

The function works with Layers (capital L, e.g., created via Layer > New Layer in Designer), not other kinds of layers.

-- Walt
Designer, Photo, and Publisher V1 and V2 at latest retail and beta releases
PC:
    Desktop:  Windows 11 Pro 23H2, 64GB memory, AMD Ryzen 9 5900 12-Core @ 3.00 GHz, NVIDIA GeForce RTX 3090

    Laptop:  Windows 11 Pro 23H2, 32GB memory, Intel Core i7-10750H @ 2.60GHz, Intel UHD Graphics Comet Lake GT2 and NVIDIA GeForce RTX 3070 Laptop GPU.
    Laptop 2: Windows 11 Pro 24H2,  16GB memory, Snapdragon(R) X Elite - X1E80100 - Qualcomm(R) Oryon(TM) 12 Core CPU 4.01 GHz, Qualcomm(R) Adreno(TM) X1-85 GPU
iPad:  iPad Pro M1, 12.9": iPadOS 18.1, Apple Pencil 2, Magic Keyboard
Mac:  2023 M2 MacBook Air 15", 16GB memory, macOS Sequoia 15.0.1

Link to comment
Share on other sites

45 minutes ago, walt.farrell said:

The function works with Layers (capital L, e.g., created via Layer > New Layer in Designer), not other kinds of layers.



5 minutes ago, LEB said:

😮

I completely ignored this difference.

Thank you!


Unfortunately, this is an extremely common source of confusion! 👎

Alfred spacer.png
Affinity Designer/Photo/Publisher 2 for Windows • Windows 10 Home/Pro
Affinity Designer/Photo/Publisher 2 for iPad • iPadOS 17.5.1 (iPad 7th gen)

Link to comment
Share on other sites

6 minutes ago, LEB said:

In the FR version of the app, both have exactly the same name (Calques).

That’s interesting. I wonder why!

It’s only to be expected in the DE version, since nouns in German always have initial capitals, but I’m a little surprised that the FR version has « calques » with an initial capital in both cases.

Alfred spacer.png
Affinity Designer/Photo/Publisher 2 for Windows • Windows 10 Home/Pro
Affinity Designer/Photo/Publisher 2 for iPad • iPadOS 17.5.1 (iPad 7th gen)

Link to comment
Share on other sites
