abra100pro Posted February 14, 2023 Posted February 14, 2023 left: Affinity canvas, right PDF in Preview – the arrows seem to become expanded (same look as when I expand stroke in AD😞 Update: I found out that it had to do with Mitre 1.5 - I set it to 1 and that did the trick (1 is much better in many cases, btw.) But I still consider it a bug. Quote
abra100pro Posted February 14, 2023 Author Posted February 14, 2023 Dear Serif I find myself strongly remembered of my last days at Adobe – I am really not sure whether V2 is ready for productional work (though: I feel like having an answer) I spent 16hrs on a design that I found many flaws and bugs while making – some of them I have reported, but not all. Now, I have come to export my work only to find that in a pure verctor based work some areas (the ones with warping in it) are pixelated in the EPS and PDF exports. They are not usable and I have no clue how I can send this work to the customer, now. I know that bashing around in forums is not a good solution for anything. But on the other hand I feel let down, not knowing how I can hold my deadline not to mention my time/money-ratio. Clueless... Quote
MickRose Posted February 14, 2023 Posted February 14, 2023 Hi @abra100pro it looks like there is some transparency in your document, and I wonder if that is causing the problem with rasterization. Have you tried different PDF settings? Perhaps you could upload a file containing some of your document (where the problem persists) so people can have a look and try to find out why the rasterization is happening. Quote Windows 10 Pro, I5 3.3G PC 16G RAM
abra100pro Posted February 14, 2023 Author Posted February 14, 2023 @MickRose Sure, gladly. You find the file attached. 2301 Mobi Wappen Forum.afdesign Quote
loukash Posted February 14, 2023 Posted February 14, 2023 Don't use layers/objects as masks. Clip instead. (Muss leider grad aus dem Haus, sonst würde ich es etwas genauer anschauen und erklären.) Quote MacBookAir 15": MacOS Ventura > Affinity v1, v2, v2 beta // MacBookPro 15" mid-2012: MacOS El Capitan > Affinity v1 / MacOS Catalina > Affinity v1, v2, v2 beta // iPad 8th: iPadOS 16 > Affinity v2
abra100pro Posted March 8, 2023 Author Posted March 8, 2023 Clipping a warped group leads to a warping of the clip-element itself. I think that is not the solution or did I oversee something? Quote
abra100pro Posted March 30, 2023 Author Posted March 30, 2023 I really consider this a bug and would appreciate a confirmation. In the meantime I deconstruced the warp and made every single line by hand – that's not the idea. Quote
walt.farrell Posted March 30, 2023 Posted March 30, 2023 1 hour ago, abra100pro said: I really consider this a bug and would appreciate a confirmation. It does have a bug tag assigned, so you could click on that and see what other topics have the same tag, which might help for your confirmation: https://forum.affinity.serif.com/index.php?/search/&tags=AFD-5520 Quote -- Walt Designer, Photo, and Publisher V1 and V2 at latest retail and beta releases PC: Desktop: Windows 11 Pro 23H2, 64GB memory, AMD Ryzen 9 5900 12-Core @ 3.00 GHz, NVIDIA GeForce RTX 3090 Laptop: Windows 11 Pro 23H2, 32GB memory, Intel Core i7-10750H @ 2.60GHz, Intel UHD Graphics Comet Lake GT2 and NVIDIA GeForce RTX 3070 Laptop GPU. Laptop 2: Windows 11 Pro 24H2, 16GB memory, Snapdragon(R) X Elite - X1E80100 - Qualcomm(R) Oryon(TM) 12 Core CPU 4.01 GHz, Qualcomm(R) Adreno(TM) X1-85 GPU iPad: iPad Pro M1, 12.9": iPadOS 18.3.1, Apple Pencil 2, Magic Keyboard Mac: 2023 M2 MacBook Air 15", 16GB memory, macOS Sequoia 15.0.1
abra100pro Posted March 30, 2023 Author Posted March 30, 2023 Thanks @walt.farrell for the info, you refer to the grey tag bubble underneath the topic title, I guess? Good to know. Quote
walt.farrell Posted March 30, 2023 Posted March 30, 2023 4 hours ago, abra100pro said: you refer to the grey tag bubble underneath the topic title, I guess? Yes. Quote -- Walt Designer, Photo, and Publisher V1 and V2 at latest retail and beta releases PC: Desktop: Windows 11 Pro 23H2, 64GB memory, AMD Ryzen 9 5900 12-Core @ 3.00 GHz, NVIDIA GeForce RTX 3090 Laptop: Windows 11 Pro 23H2, 32GB memory, Intel Core i7-10750H @ 2.60GHz, Intel UHD Graphics Comet Lake GT2 and NVIDIA GeForce RTX 3070 Laptop GPU. Laptop 2: Windows 11 Pro 24H2, 16GB memory, Snapdragon(R) X Elite - X1E80100 - Qualcomm(R) Oryon(TM) 12 Core CPU 4.01 GHz, Qualcomm(R) Adreno(TM) X1-85 GPU iPad: iPad Pro M1, 12.9": iPadOS 18.3.1, Apple Pencil 2, Magic Keyboard Mac: 2023 M2 MacBook Air 15", 16GB memory, macOS Sequoia 15.0.1
lepr Posted April 1, 2023 Posted April 1, 2023 On 3/8/2023 at 9:59 AM, abra100pro said: Clipping a warped group leads to a warping of the clip-element itself. I think that is not the solution or did I oversee something? I see a vector mask on a Warp Group gets warped and that does seem wrong. However, if you clip a Warp Group, the clipping object does not get warped. See attached screenshot of clipping with an Ellipse. Quote
Staff Affinity Info Bot Posted May 16, 2024 Staff Posted May 16, 2024 The issue "Mitre value seems to incorrectly affect curves with pressure and a Round Join" (REF: AF-3081) has been fixed by the developers in internal build "2.5.0.2463". This fix should soon be available as a customer beta and is planned for inclusion in the next customer release. Customer beta builds are announced here and you can participate by following these instructions. If you still experience this problem once you are using that build version (or later) please reply to this thread including @Affinity Info Bot to notify us. abra100pro 1 Quote

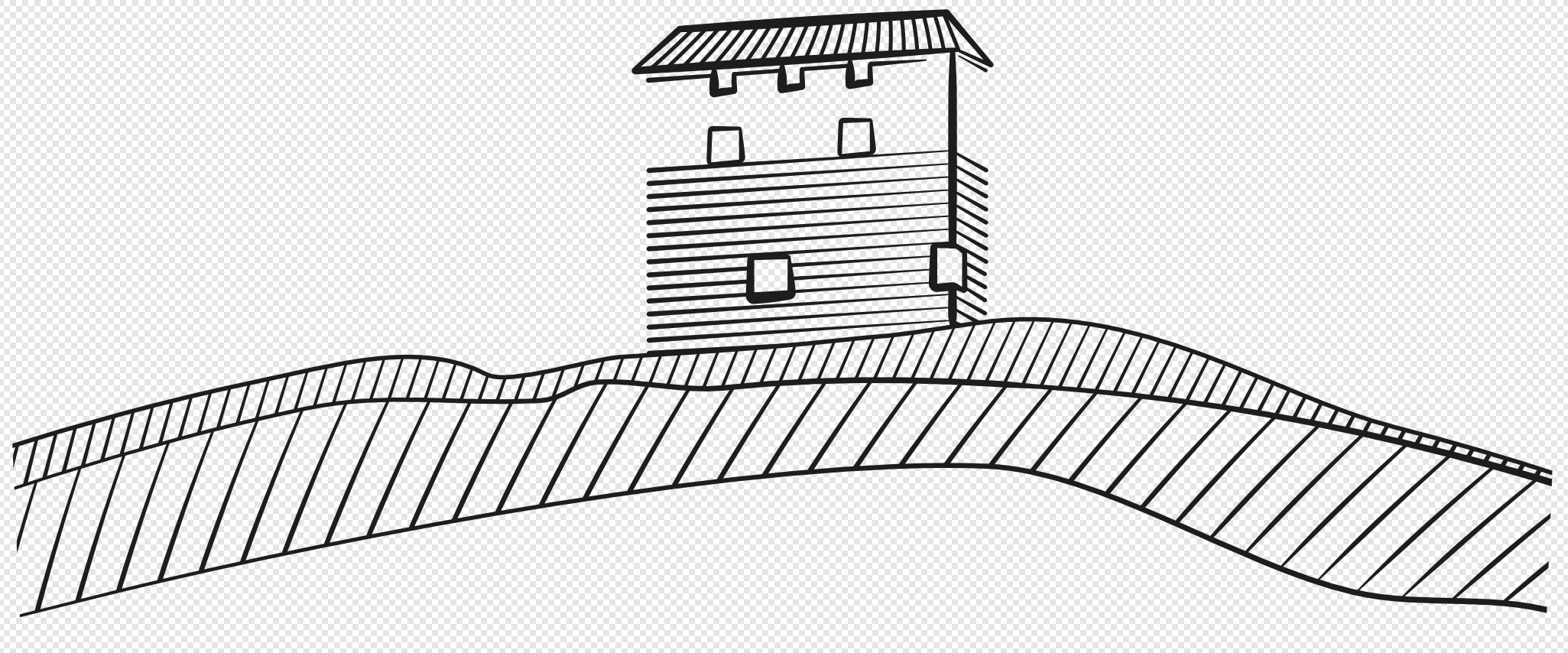

abra100pro Posted May 27, 2024 Author Posted May 27, 2024 Hmm, or maybe not – I downloaded the afdesign above and opened it in 2.5 and exported it. Please see screenshots of look in AD and the PDF. Quote
