Copy of Live Perspective layer is different from the original


Recommended Posts

I'm not sure whether to report this as a Photo bug or a Designer bug.  I found it using Designer, but it looks to come from Photo.

For a drawing in Designer I needed several circles drawn in 3 point perspective.  So I drew a cube in perspective then drew a circle and converted it to curves.  Then chose Edit in Photo, created a live perspective of the circle so that it just fit in one face of the cube.  Then moved back to Edit in Designer.


I then made a copy (cmd+c and cmd+v).  Much to my surprise the bounding box and image of the original circle was in the same location, but the perspective was smaller and offset considerably.  I changed the color to blue just to keep track of circles.


The Transform panel shows them as being in the same location.  1151714411_ScreenShot2022-08-09at9_56_13AM.png.86bb572d7890d123ff7046fd174ab3a7.png

In order to get the copy to pretty much equal the original I had to make the bounding box much larger, add some angle to it and move it over.

1199913406_ScreenShot2022-08-09at10_58_00AM.thumb.png.fd67f97f5e3dff636e132fa1be17a966.png771865902_ScreenShot2022-08-09at10_30_35AM.png.b81b9910e40248e91514b344b1abd191.png

I tired it again, making the new copy purple/pink.

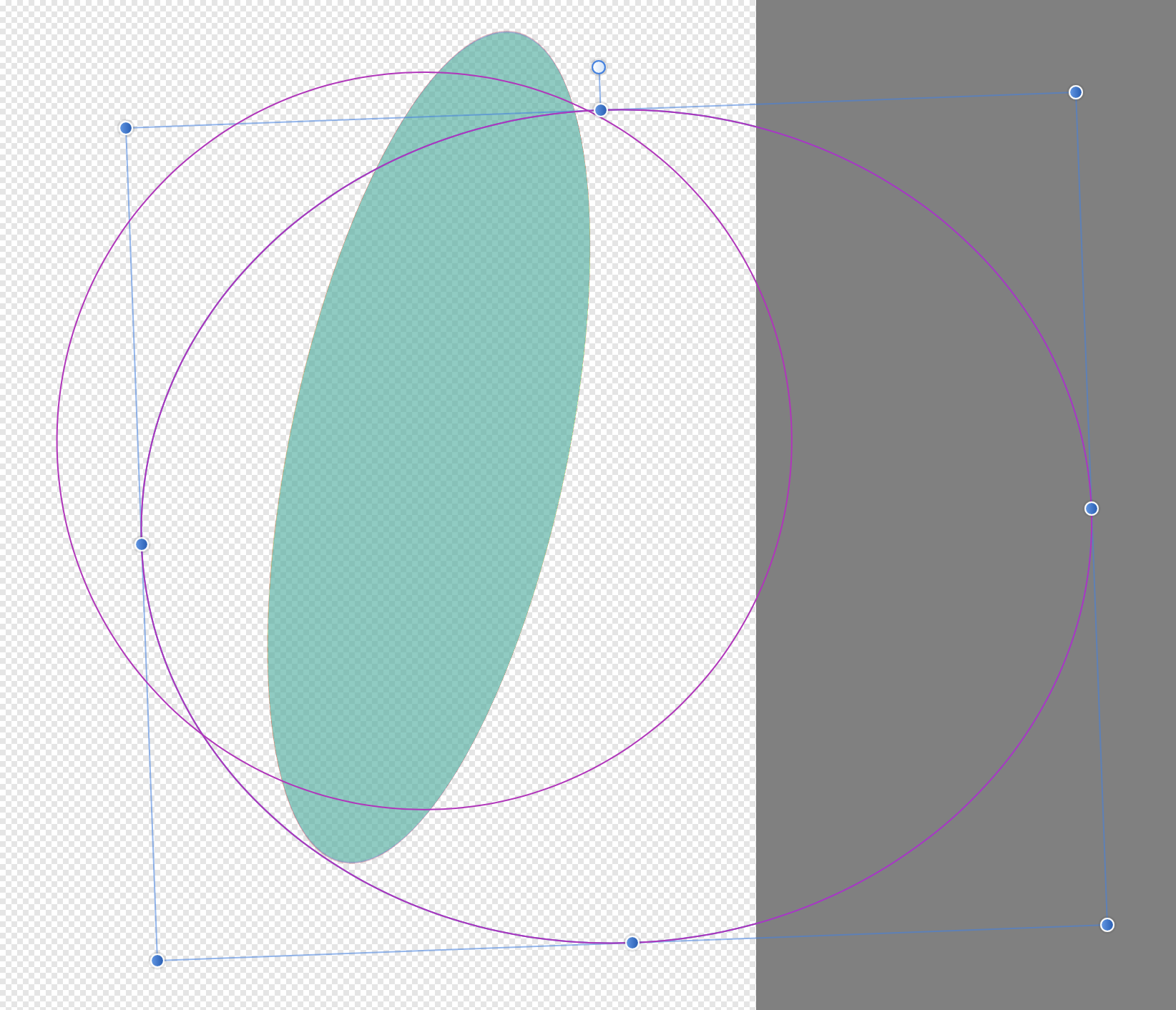

199793556_ScreenShot2022-08-09at9_58_00AM.thumb.png.e55b69362c9ee1d916cc76d9c8508f10.png

Again the bounding box and circle's image was the same location as the layer copied, but the perspective was offset, smaller and slightly rotated.

I found I got the same results in Photo.  But if I created a new live perspective from a copy of the circle then the results were the same.  Shouldn't each copy of a perspective be the same?

Cube temp2.afdesign

I'm running the latest released versions of Designer (1.10.5) and Photo (1.10.5) on a iMac (Retina 5K, 27-inch, 2020) with Monterey version 12.5.

I do find that if I make multiple copies of the original they are all offset, shrunk and twisted the same.

iMac (27-inch, Late 2009) with macOS Sierra
