Angelos58 Posted May 6, 2019 Share Posted May 6, 2019 Is there a way to hide only a segment of a path, make it invisible or ...? Quote Link to comment Share on other sites More sharing options...
v_kyr Posted May 6, 2019 Share Posted May 6, 2019 Try masking or clipping. Quote ☛ Affinity Designer 1.10.8 ◆ Affinity Photo 1.10.8 ◆ Affinity Publisher 1.10.8 ◆ OSX El Capitan ☛ Affinity V2.3 apps ◆ MacOS Sonoma 14.2 ◆ iPad OS 17.2 Link to comment Share on other sites More sharing options...
Angelos58 Posted May 6, 2019 Author Share Posted May 6, 2019 7 minutes ago, v_kyr said: Try masking or clipping. Thank you for answer. The segment is necessary because is a closed path, but I want to make it invisible. I’m very sorry but didn’t understand how masking or clipping. could you help me? Quote Link to comment Share on other sites More sharing options...

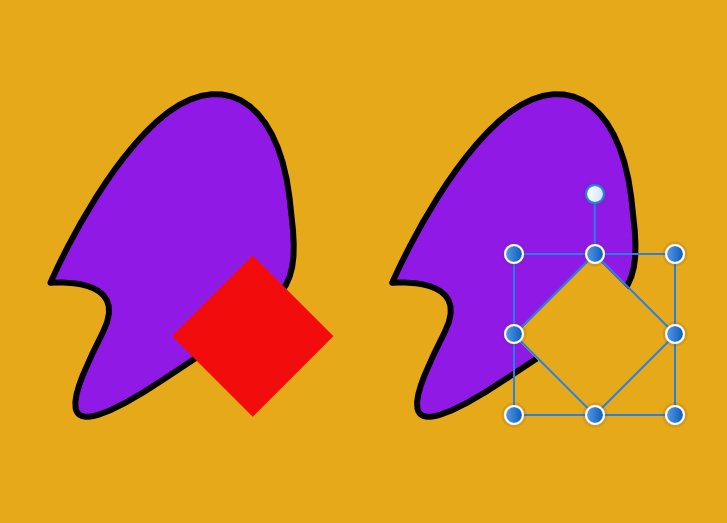

Alfred Posted May 6, 2019 Share Posted May 6, 2019 There’s no need for masking or clipping in this case. Just apply the ‘Erase’ blend mode to the upper shape. Quote Alfred Affinity Designer/Photo/Publisher 2 for Windows • Windows 10 Home/Pro Affinity Designer/Photo/Publisher 2 for iPad • iPadOS 17.4.1 (iPad 7th gen) Link to comment Share on other sites More sharing options...
Angelos58 Posted May 6, 2019 Author Share Posted May 6, 2019 Thank you Alfred, but I want to hide only the segment. Quote Link to comment Share on other sites More sharing options...
Angelos58 Posted May 6, 2019 Author Share Posted May 6, 2019 Quote Link to comment Share on other sites More sharing options...
Pariah73 Posted May 6, 2019 Share Posted May 6, 2019 select your objects, and hold Alt and click on Add. Those segments will still be editable. As a side note: Using Erase mode will rasterize the result, which may not be desirable. Quote Link to comment Share on other sites More sharing options...
Angelos58 Posted May 6, 2019 Author Share Posted May 6, 2019 11 minutes ago, Pariah73 said: select your objects, and hold Alt and click on Add. Those segments will still be editable. As a side note: Using Erase mode will rasterize the result, which may not be desirable. I’m on iPad and I want a vectorial draw. Quote Link to comment Share on other sites More sharing options...
Pariah73 Posted May 6, 2019 Share Posted May 6, 2019 1 minute ago, Angelos58 said: I’m on iPad and I want a vectorial draw. I'm not sure where the options are on an ipad but as far as i know the process remains the same. Alt + Left Click on Add. Definitely don't use the erase layer mode then. Quote Link to comment Share on other sites More sharing options...
Alfred Posted May 6, 2019 Share Posted May 6, 2019 1 hour ago, Pariah73 said: I'm not sure where the options are on an ipad but as far as i know the process remains the same. Alt + Left Click on Add. Definitely don't use the erase layer mode then. There is no Option/Alt key on the iPad. To create a Compound object you need to ‘long-press’ on the chosen Geometry menu option. Pariah73 1 Quote Alfred Affinity Designer/Photo/Publisher 2 for Windows • Windows 10 Home/Pro Affinity Designer/Photo/Publisher 2 for iPad • iPadOS 17.4.1 (iPad 7th gen) Link to comment Share on other sites More sharing options...
DM1 Posted May 7, 2019 Share Posted May 7, 2019 If you use add to combine them you will lose the lines in the middle too. Another option is to break the nodes on the ends, delete lines you don’t want and reconnect nodes. Quote M1 IPad Air 10.9/256GB lpadOS 17.1.1 Apple Pencil (2nd gen). Affinity Photo 1.10.5 Affinity Design 1.10.5 Affinity Publisher 2, Affinity Designer 2, Affinity Photo 2 and betas. Official Online iPad Help documents (multi-lingual) here: https://affinity.https://affinity.help/ Link to comment Share on other sites More sharing options...

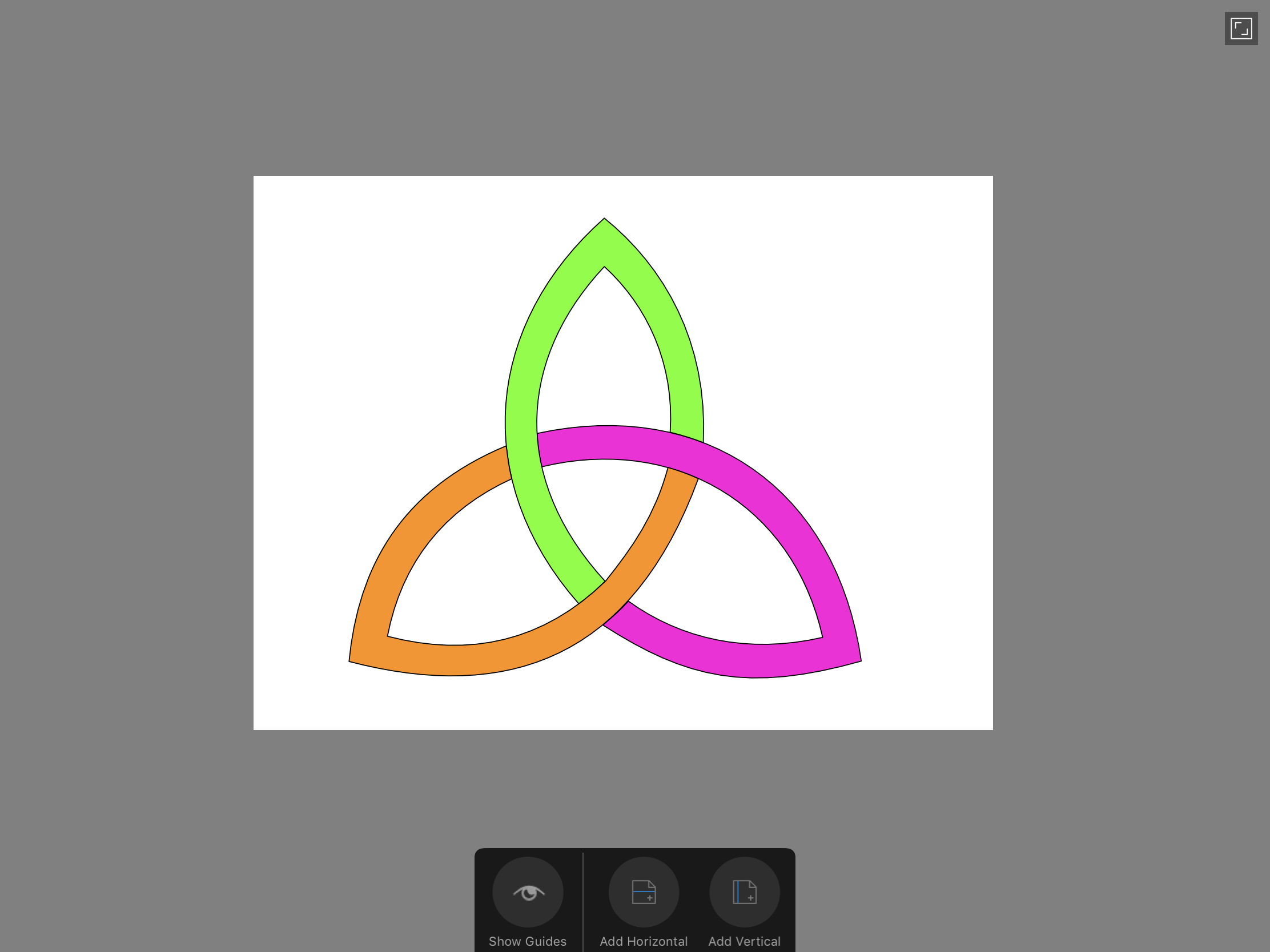

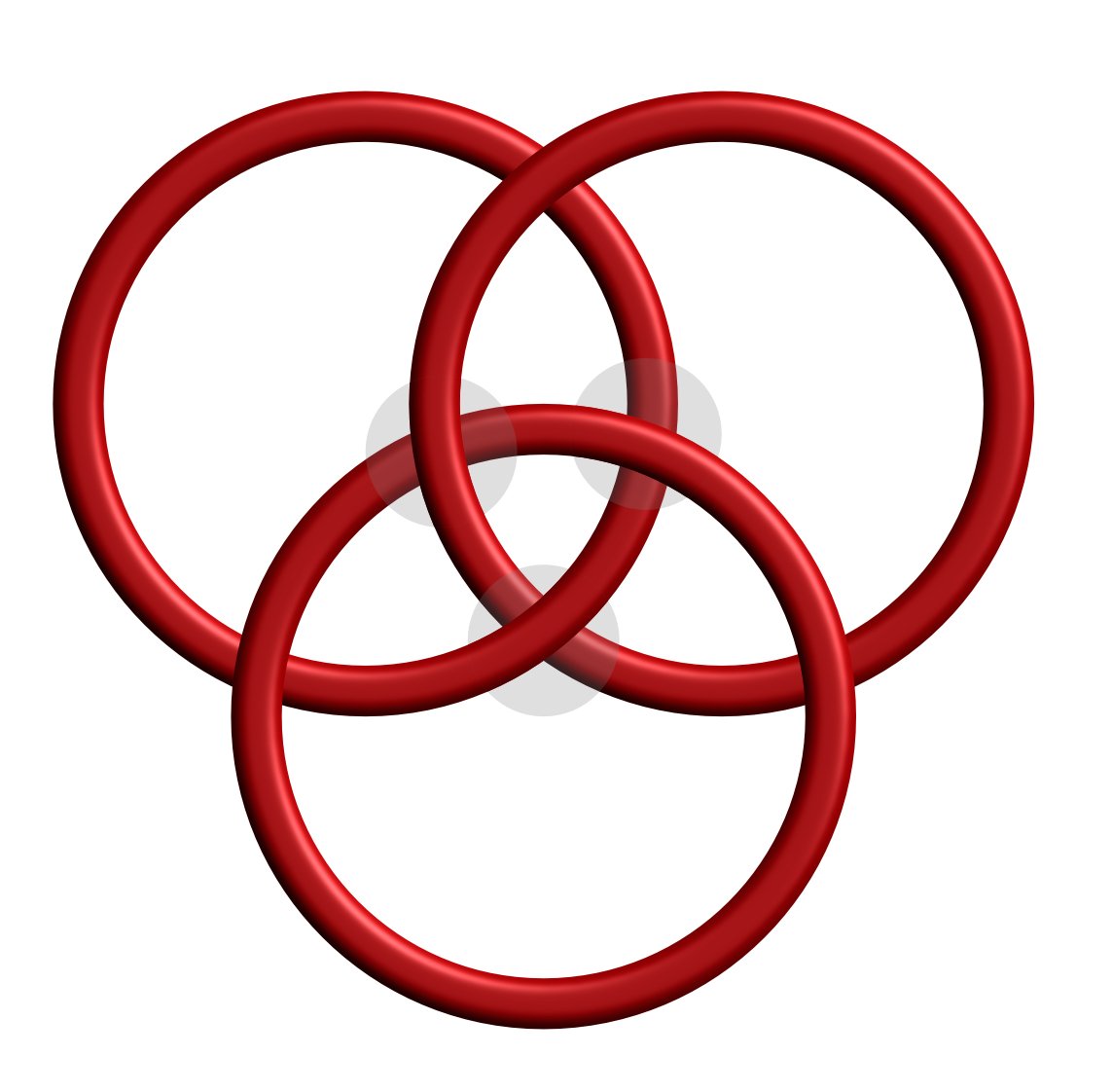

Alfred Posted May 7, 2019 Share Posted May 7, 2019 If you can confirm that the result below is what you want, I’ll try to work out the best way to describe what I did! Quote Alfred Affinity Designer/Photo/Publisher 2 for Windows • Windows 10 Home/Pro Affinity Designer/Photo/Publisher 2 for iPad • iPadOS 17.4.1 (iPad 7th gen) Link to comment Share on other sites More sharing options...

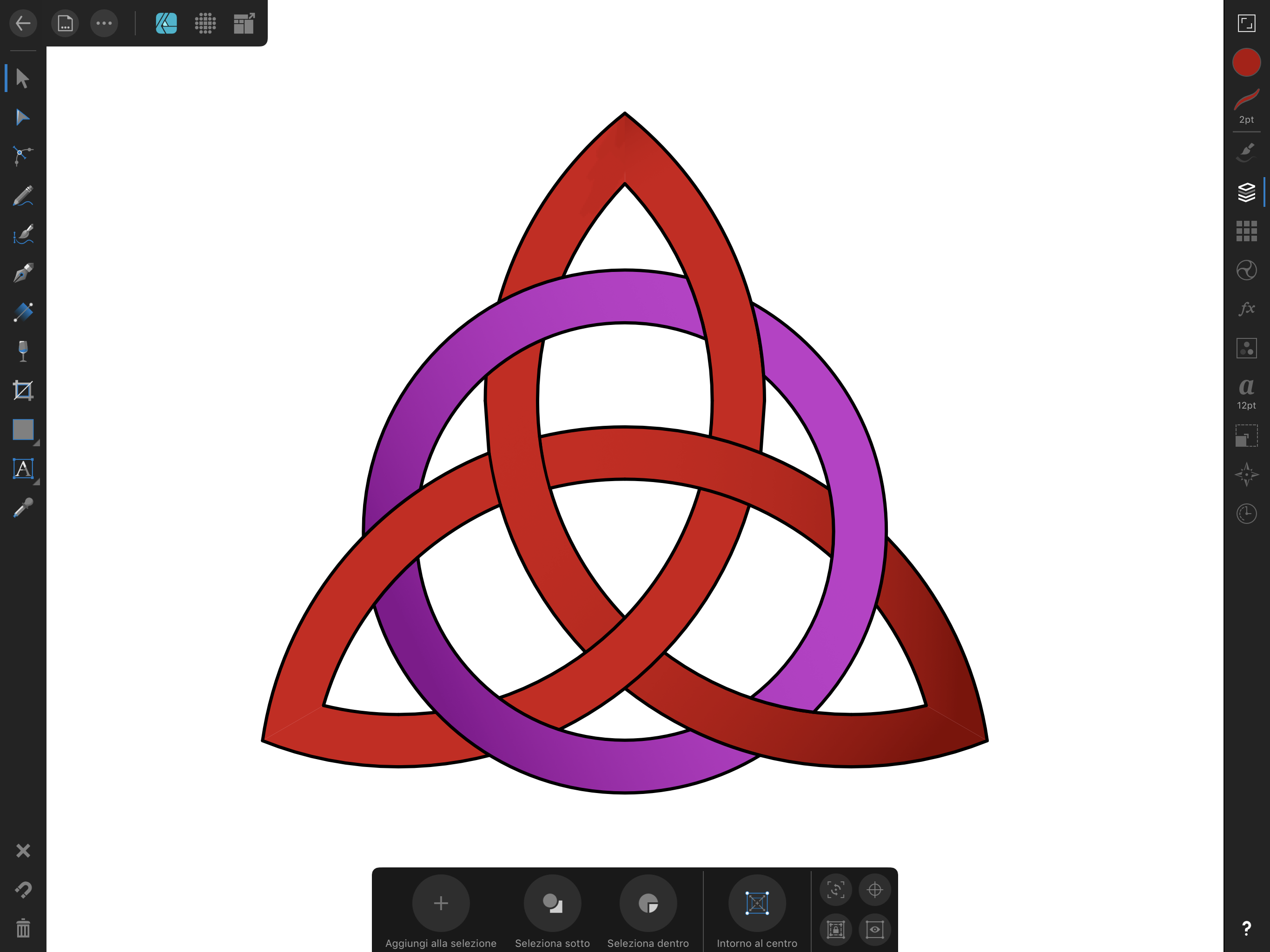

DM1 Posted May 7, 2019 Share Posted May 7, 2019 Like this? Quote M1 IPad Air 10.9/256GB lpadOS 17.1.1 Apple Pencil (2nd gen). Affinity Photo 1.10.5 Affinity Design 1.10.5 Affinity Publisher 2, Affinity Designer 2, Affinity Photo 2 and betas. Official Online iPad Help documents (multi-lingual) here: https://affinity.https://affinity.help/ Link to comment Share on other sites More sharing options...
Angelos58 Posted May 7, 2019 Author Share Posted May 7, 2019 Thank you Alfred and DM1. Yes it is, both. at moment I duplicate all and in the first copy make the strokes invisible and the fill colored, in the second copy I’ve opened the path and eliminate all fill and maintained only the strokes I need. Quote Link to comment Share on other sites More sharing options...

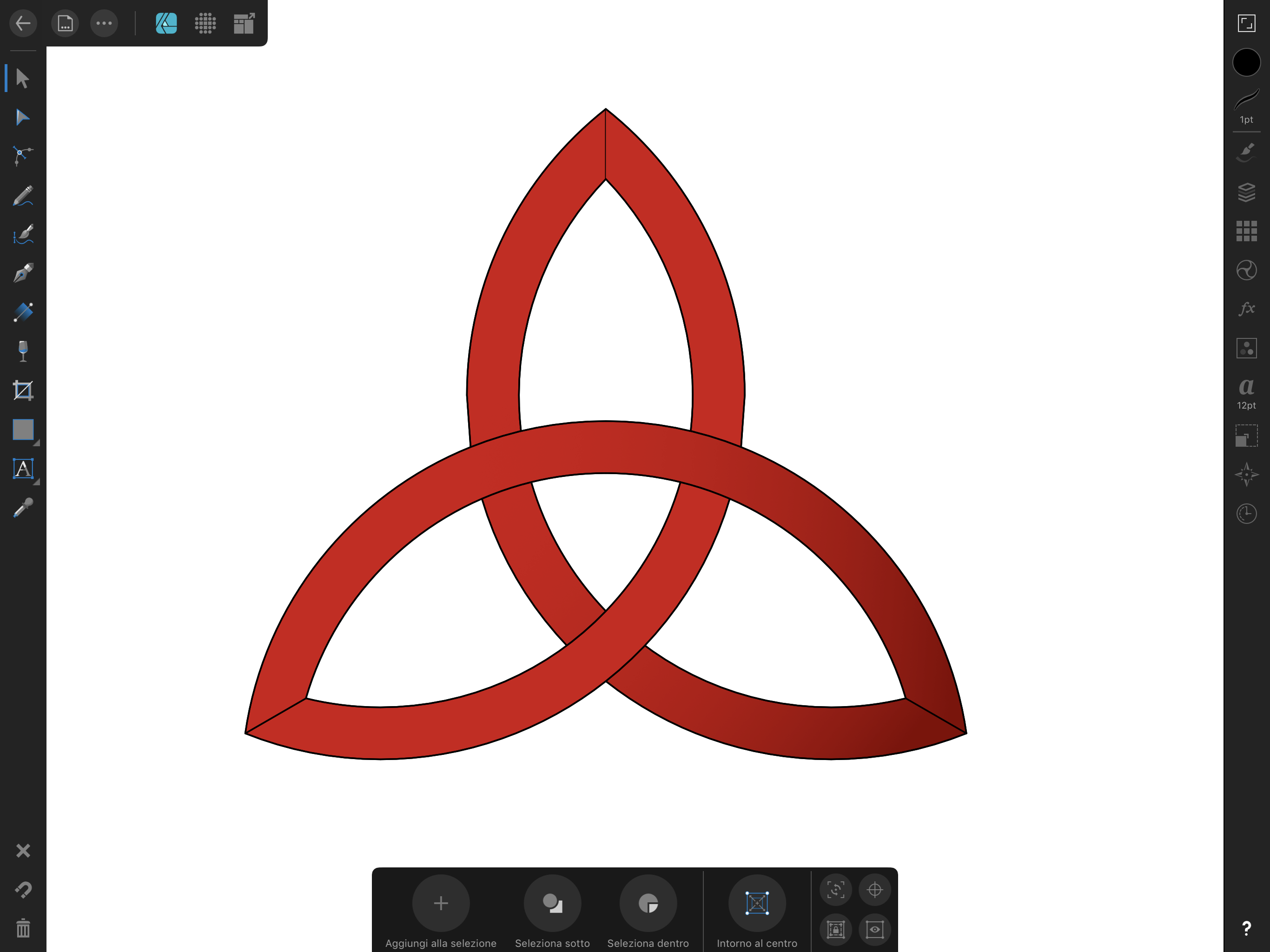

DM1 Posted May 7, 2019 Share Posted May 7, 2019 Not sure how Alfred achieved his but I just drew a shape for each colour. Quote M1 IPad Air 10.9/256GB lpadOS 17.1.1 Apple Pencil (2nd gen). Affinity Photo 1.10.5 Affinity Design 1.10.5 Affinity Publisher 2, Affinity Designer 2, Affinity Photo 2 and betas. Official Online iPad Help documents (multi-lingual) here: https://affinity.https://affinity.help/ Link to comment Share on other sites More sharing options...
Alfred Posted May 7, 2019 Share Posted May 7, 2019 I’ve attached a copy of a *.afdesign file saved with history. Make sure you have the Layers Studio visible and the Node Tool selected as you step through the history so that you can understand what I did. Celtic-knot.afdesign Angelos58 1 Quote Alfred Affinity Designer/Photo/Publisher 2 for Windows • Windows 10 Home/Pro Affinity Designer/Photo/Publisher 2 for iPad • iPadOS 17.4.1 (iPad 7th gen) Link to comment Share on other sites More sharing options...
Angelos58 Posted May 7, 2019 Author Share Posted May 7, 2019 Thank you again, Alfred Alfred 1 Quote Link to comment Share on other sites More sharing options...
Angelos58 Posted May 7, 2019 Author Share Posted May 7, 2019 2 hours ago, Alfred said: I’ve attached a copy of a *.afdesign file saved with history. Make sure you have the Layers Studio visible and the Node Tool selected as you step through the history so that you can understand what I did. Celtic-knot.afdesign Alfred, I didn’t understand exactly how do you use the gray circle for masking. I use a way maybe more hard. Could you explain it to me, please? Quote Link to comment Share on other sites More sharing options...
Alfred Posted May 7, 2019 Share Posted May 7, 2019 34 minutes ago, Angelos58 said: Alfred, I didn’t understand exactly how do you use the gray circle for masking. I use a way maybe more hard. Could you explain it to me, please? Maybe this brief video will help, Angelo. Please let me know if it still isn’t clear! 08EE386D-9DBC-407B-BCBF-65BF8954FC2A.MOV Angelos58 and DM1 1 1 Quote Alfred Affinity Designer/Photo/Publisher 2 for Windows • Windows 10 Home/Pro Affinity Designer/Photo/Publisher 2 for iPad • iPadOS 17.4.1 (iPad 7th gen) Link to comment Share on other sites More sharing options...
Angelos58 Posted May 7, 2019 Author Share Posted May 7, 2019 Thank you Alfred, very clear. But then do you have to setting no fill and no stroke for the gray circle? Quote Link to comment Share on other sites More sharing options...
Alfred Posted May 7, 2019 Share Posted May 7, 2019 1 hour ago, Angelos58 said: But then do you have to setting no fill and no stroke for the gray circle? Yes, you do. You don’t have that problem if you use masking (dropping the filled circle onto the thumbnail of the donut) instead of nesting (dropping the donut on the right of the circle layer as shown in my video clip) or if you use @DM1’s method of creating separate shapes, but nesting is the only method which works correctly if you want to use 3D or other effects. Angelos58 1 Quote Alfred Affinity Designer/Photo/Publisher 2 for Windows • Windows 10 Home/Pro Affinity Designer/Photo/Publisher 2 for iPad • iPadOS 17.4.1 (iPad 7th gen) Link to comment Share on other sites More sharing options...
