@owenr i think you might have answered another issue i had. why the invert selection didn't seem to do anything, or had strange results. i assumed it would take the artboard as the perimeter of the inverted selection, but creating the box is a doh! moment for me.. thanks for giving me the nudge i needed there.



yes, clearly i have a much more complex shape i am working on so need the 'vector mask inversion toggle' you speak of. sounds perfect. hadn't realised it wasn't there.. that explains my problem.



i'll try your divide (and conquer) solution on my complex shape and see if that gets me closer to what i want. Which is basically the transparent bits of my vector being opaque and vice versa.

Share this post


Link to post
Share on other sites

@Phoxy Design

It looks like your black shape has a very large stroke applied to it which is not subtracted in the Subtract operation

Try it with a black shape that has a (black) fill but no stroke


Due to the fact that Boris Johnson is now our Prime Minister, punctuation, spelling and grammar will never be worried about ever again.  We now have far bigger problems to be worried about.

Share this post


Link to post
Share on other sites

@carl123 that's it! needs to be a fill rather than a stroke.. genius! thank you.



@owenr your trick also worked, i use divide and then deleted the outer bits i don't want and am left with the filled in bits that were transparent.



Thanks guys. that will do me for now. Yours and everyone's excellent help is VERY much appreciated. I love this software (although I still have an illustrator licence as there are still features that haven't made it to designer yet, image trace and smart vector objects being my big ones) but really support the idea of affinity stuff. i prefer working in affinity than adobe as it's way quicker and there are some amazing extra things that adobe stuff cant do. And it's a much cleaner interface.. the price is silly cheap too but i expect that will creep up over time, which is fair i think.. just pelase no subscription.



i am excited to see how it develops over the years and cant wait for the iPad app of designer. What Adobe Draw is missing is a vector pen tool so if the designer app has a vector sketch (pencil and brush) tools and a vector drawing pen AND the seamless switching between it and the desktop versions it will be BLISS!



Cheers, and enjoy the rest of your Sunday.



Phil

Share this post


Link to post
Share on other sites





1 hour ago, Phoxy Design said:

@h_d



i tried that, and it didn't work. see video and result image when i did what you said:



cheers.

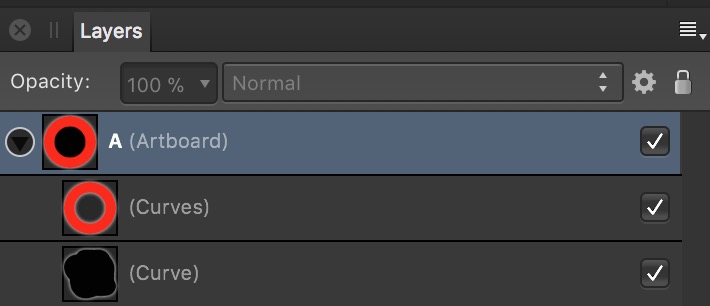

You've got the layers nested - they need to be separate, one above the other.



5aae58e7f1915_ScreenShot2018-03-18at12_17_25.png.7b52c979e5fd790ce1a0f624f7e6c6e0.png


Affinity Photo 1.8.1,  Affinity Designer 1.8.1, Affinity Publisher 1.8.1, Mac OSX 10.15, 2018 MacBook Pro 15"

Betas as they happen...

Share this post


Link to post
Share on other sites

Should work the same way, artboard or no





5aae5c531555b_ScreenShot2018-03-18at12_31_39.png.84620e7b35312f5234d075509b6f776d.png:



5aae5c837b18c_ScreenShot2018-03-18at12_32_49.png.305606aa05fa9d9e3252b7496d429c29.png










Affinity Photo 1.8.1,  Affinity Designer 1.8.1, Affinity Publisher 1.8.1, Mac OSX 10.15, 2018 MacBook Pro 15"

Betas as they happen...

Share this post


Link to post
Share on other sites

Hi Phoxy Design,

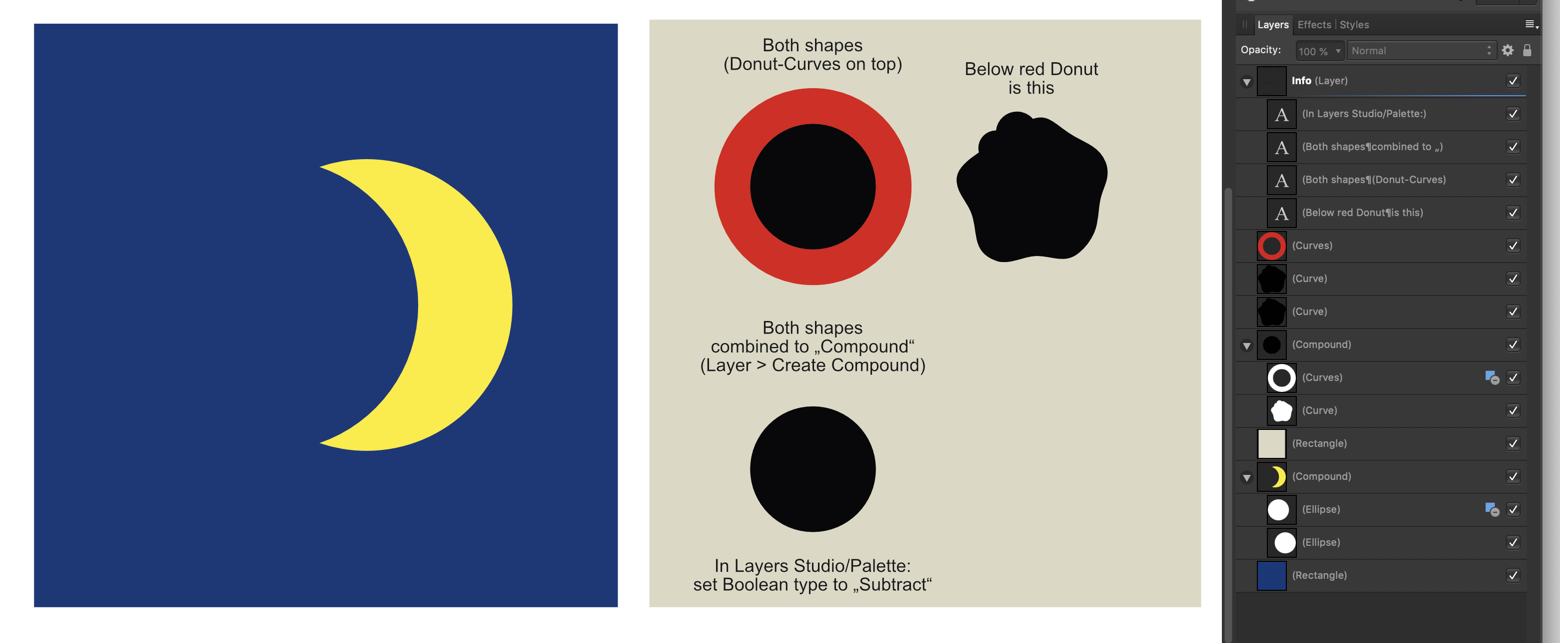

This cannot be done because you can only use the filled are of the red shape to mask other objects. The circular area inside the "inner circle" of the red shape doesn't belong to the shape itself so it can't  be used to mask anything unless you create an "inverted shape" of the red shape performing a subtract from a rectangle as @owenr suggested. Another process you can try although i don't know if it's aplicable to your work/project is to simply change the Blend Mode of the red shape to Erase (on the top of the Layers panel). If you want it to affect just a specific number of shapes, group it with these shapes otherwise it will be used to erase everything that's below it.

Share this post


Link to post
Share on other sites

Ah your black shape is constructed in a different way to mine - you have a very broad stroke round yours and no fill. This is what happens if I reduce the weight of the stroke:



5aae5e369d6ef_ScreenShot2018-03-18at12_40_06.png.8dab3983222e99841f337ba9a9127ac4.png







Try drawing a simple shape, no stroke, just a fill:





5aae5faaea922_ScreenShot2018-03-18at12_46_13.png.b4fe1ca6c94372bc63a87eda0b83dd10.png














Affinity Photo 1.8.1,  Affinity Designer 1.8.1, Affinity Publisher 1.8.1, Mac OSX 10.15, 2018 MacBook Pro 15"

Betas as they happen...

Share this post


Link to post
Share on other sites

@MEB thanks, that works well too. might there be a future release that addresses the inability to invert selection using the artboard as the boundary without having to create the rectangle behind?



@h_d yes the fill rather than the stroke was the reason i was getting stuck. very good to know this for future stuff.





Share this post


Link to post
Share on other sites
