hunter_sk Posted June 22 Share Posted June 22 (edited) Problem description: Curve end is drawn with an "overshoot", when pressure is set to some non default values. Application: Designer 2.5.2 Platform: Windows 10 Reproducable: Yes, from new document HW Acceleration: OFF, (ON = not supported) Reproduce steps: Create an V shaped line as on followed picture. More sharp the V shape is, more noticable the overshoot is. Set curve Miter to some higher value, like 20 or so. Edit curve pressure. Any slight change will do. Curve end is drawn with an "overshoot" as showed on picture Edited June 22 by hunter_sk Quote Link to comment Share on other sites More sharing options...
KarlLegion Posted June 22 Share Posted June 22 I can reproduce the issue on Windows 11. HW Acceleration on. And something weird happened when the mitre value and angle are changed. It's not just an redraw issue, the expanded stroke proved that. Recording 2024-06-21 225406.mp4 hunter_sk 1 Quote Link to comment Share on other sites More sharing options...

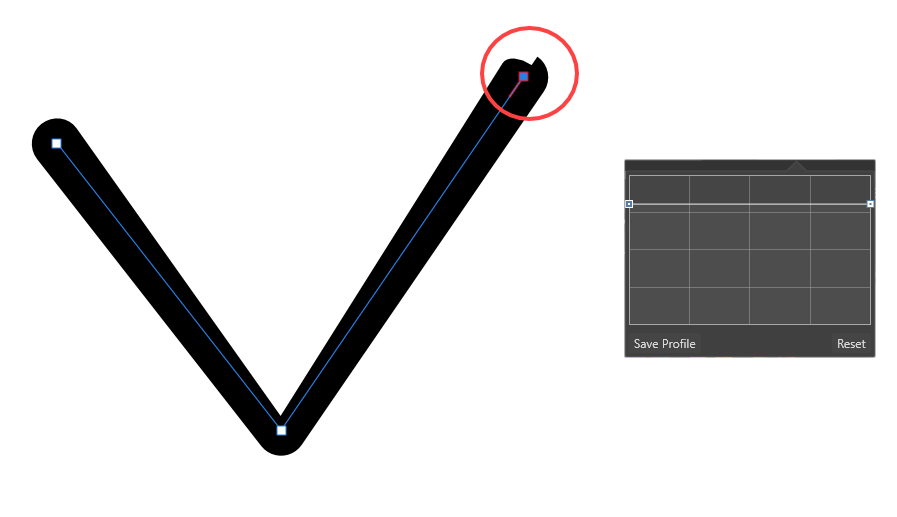

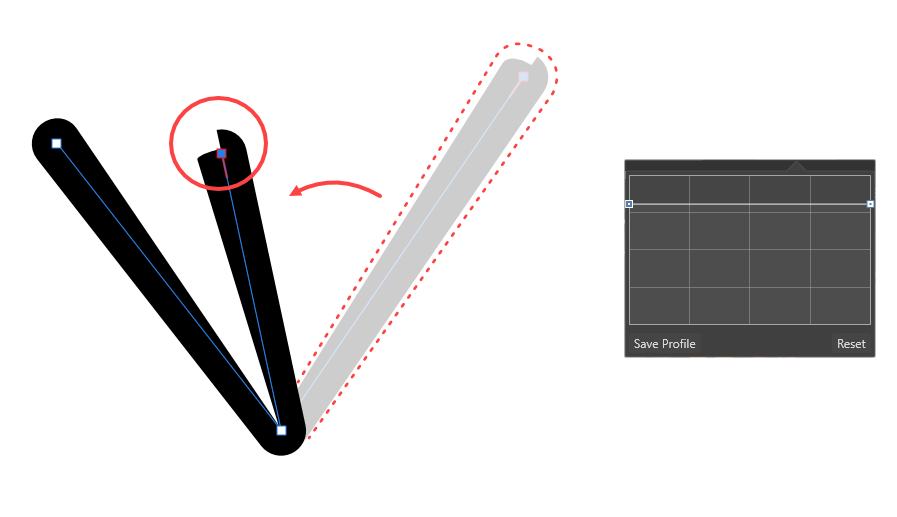

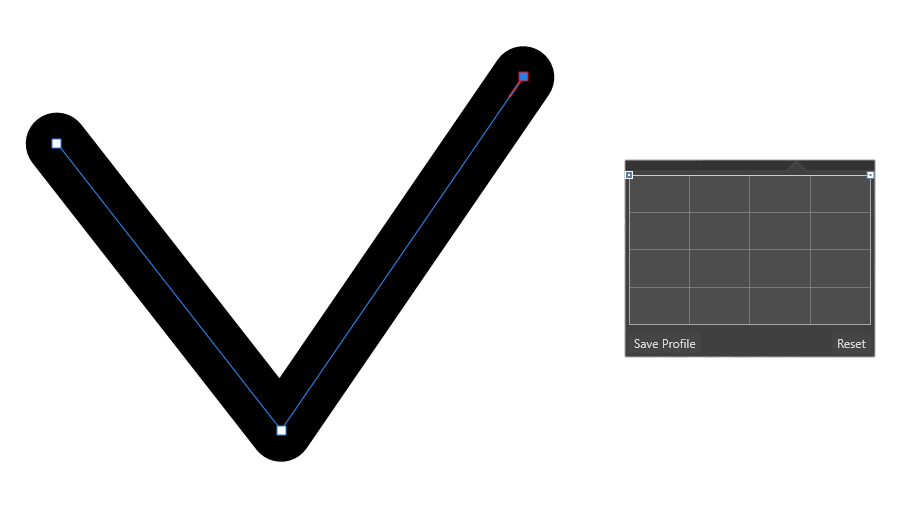

bbrother Posted June 22 Share Posted June 22 @KarlLegion Same here, even with the default Miter = 1.5. I'm attaching the file so this can be investigated → ADe_pressure_affects_round-cap_geometry.afdesign Screenshot 1↓ - initial state Screenshot 2↓ - slightly changed pressure destroys the geometry of the round cap Screenshot 3↓ – modification of the curve / even greater deterioration of the geometry of the round cap hunter_sk 1 Quote "The only ways to avoid bugs and the time spent on fixing them are to write better code" — bbrother. Link to comment Share on other sites More sharing options...
Staff DWright Posted June 24 Staff Share Posted June 24 I have tested this in the new 2.5.3 update and I am not able to replicate this issue with this version. Return and bbrother 2 Quote Link to comment Share on other sites More sharing options...
hunter_sk Posted June 24 Author Share Posted June 24 (edited) 3 hours ago, DWright said: I have tested this in the new 2.5.3 update and I am not able to replicate this issue with this version. Unfortunately also in version 2.5.3 is this problem still replicable on my machine. By the way, the step 3 is important. Can you post a video? Just curious how this could be that different on other system. Edited June 24 by hunter_sk Old Bruce, Return and bbrother 3 Quote Link to comment Share on other sites More sharing options...
Old Bruce Posted June 24 Share Posted June 24 Still happens here on Mac OS with 2.5.3 Quote Mac Pro (Late 2013) Mac OS 12.7.6 Affinity Designer 2.5.5 | Affinity Photo 2.5.5 | Affinity Publisher 2.5.5 | Beta versions as they appear. I have never mastered color management, period, so I cannot help with that. Link to comment Share on other sites More sharing options...
bbrother Posted June 24 Share Posted June 24 @DWright I can't belive that you can't reproduce it. See the video below (ADe v2.5.3). The pressure algorithm is weak. What's even weaker is that the Stroke Width tool uses this weak algorithm.👎 ADe_pressure-bug.mp4 Quote "The only ways to avoid bugs and the time spent on fixing them are to write better code" — bbrother. Link to comment Share on other sites More sharing options...
