DarkClown Posted December 27, 2023 Posted December 27, 2023 As you can see in the attached screenshot the object size of the frame within the document I'd like to export is 400x100px (Layer "Exportbereich"). Line width of this simple rectangle is 0pt. The export dialog is set to "selected area" (Bereich der Auswahl) but it tells me it would like to export 401x101 pixel. I don't understand why. And final export size is actually 401x101!. Problem is: for Webdesign I need 400x100 and not a pixel more. Of course I can define the export size precisely in the export dialog but in that case I have no control where the single pixel is cut of exactly. As well the export dialog window displays "119%" - something I don't understand as well. Maybe someone has an explanation. Cheers, Timo Quote i7-12700KF, 3.60 GHz, 32GB RAM, SSD, NVIDIA GeForce RTX 3070, Wacom Intuos 4 Tablet, Windows 11 Pro - AP, AD and APublisher V1 and V2https://www.timobierbaum.com
walt.farrell Posted December 27, 2023 Posted December 27, 2023 Your X and Y coordinates for the object are not integers. Move the object so it properly aligns to the pixel grid. Quote -- Walt Designer, Photo, and Publisher V1 and V2 at latest retail and beta releases PC: Desktop: Windows 11 Pro 23H2, 64GB memory, AMD Ryzen 9 5900 12-Core @ 3.00 GHz, NVIDIA GeForce RTX 3090 Laptop: Windows 11 Pro 23H2, 32GB memory, Intel Core i7-10750H @ 2.60GHz, Intel UHD Graphics Comet Lake GT2 and NVIDIA GeForce RTX 3070 Laptop GPU. Laptop 2: Windows 11 Pro 24H2, 16GB memory, Snapdragon(R) X Elite - X1E80100 - Qualcomm(R) Oryon(TM) 12 Core CPU 4.01 GHz, Qualcomm(R) Adreno(TM) X1-85 GPU iPad: iPad Pro M1, 12.9": iPadOS 18.5, Apple Pencil 2, Magic Keyboard Mac: 2023 M2 MacBook Air 15", 16GB memory, macOS Sequoia 15.4
DarkClown Posted December 27, 2023 Author Posted December 27, 2023 18 minutes ago, walt.farrell said: Your X and Y coordinates for the object are not integers. Move the object so it properly aligns to the pixel grid. Good point .... I'll align the rectangle. Any idea for the 119%? Quote i7-12700KF, 3.60 GHz, 32GB RAM, SSD, NVIDIA GeForce RTX 3070, Wacom Intuos 4 Tablet, Windows 11 Pro - AP, AD and APublisher V1 and V2https://www.timobierbaum.com
walt.farrell Posted December 27, 2023 Posted December 27, 2023 That should just be the zoom level of the Preview image. DarkClown 1 Quote -- Walt Designer, Photo, and Publisher V1 and V2 at latest retail and beta releases PC: Desktop: Windows 11 Pro 23H2, 64GB memory, AMD Ryzen 9 5900 12-Core @ 3.00 GHz, NVIDIA GeForce RTX 3090 Laptop: Windows 11 Pro 23H2, 32GB memory, Intel Core i7-10750H @ 2.60GHz, Intel UHD Graphics Comet Lake GT2 and NVIDIA GeForce RTX 3070 Laptop GPU. Laptop 2: Windows 11 Pro 24H2, 16GB memory, Snapdragon(R) X Elite - X1E80100 - Qualcomm(R) Oryon(TM) 12 Core CPU 4.01 GHz, Qualcomm(R) Adreno(TM) X1-85 GPU iPad: iPad Pro M1, 12.9": iPadOS 18.5, Apple Pencil 2, Magic Keyboard Mac: 2023 M2 MacBook Air 15", 16GB memory, macOS Sequoia 15.4
bbrother Posted December 28, 2023 Posted December 28, 2023 8 hours ago, DarkClown said: As well the export dialog window displays "119%" - something I don't understand as well. Maybe someone has an explanation. When launched, the export panel initially adjusts the artwork preview size so it will fit in it's own window. Something like "Zoom to fit" but in preview space. walt.farrell 1 Quote
DarkClown Posted December 28, 2023 Author Posted December 28, 2023 Thx everybody for the reasonable explanation! Quote i7-12700KF, 3.60 GHz, 32GB RAM, SSD, NVIDIA GeForce RTX 3070, Wacom Intuos 4 Tablet, Windows 11 Pro - AP, AD and APublisher V1 and V2https://www.timobierbaum.com

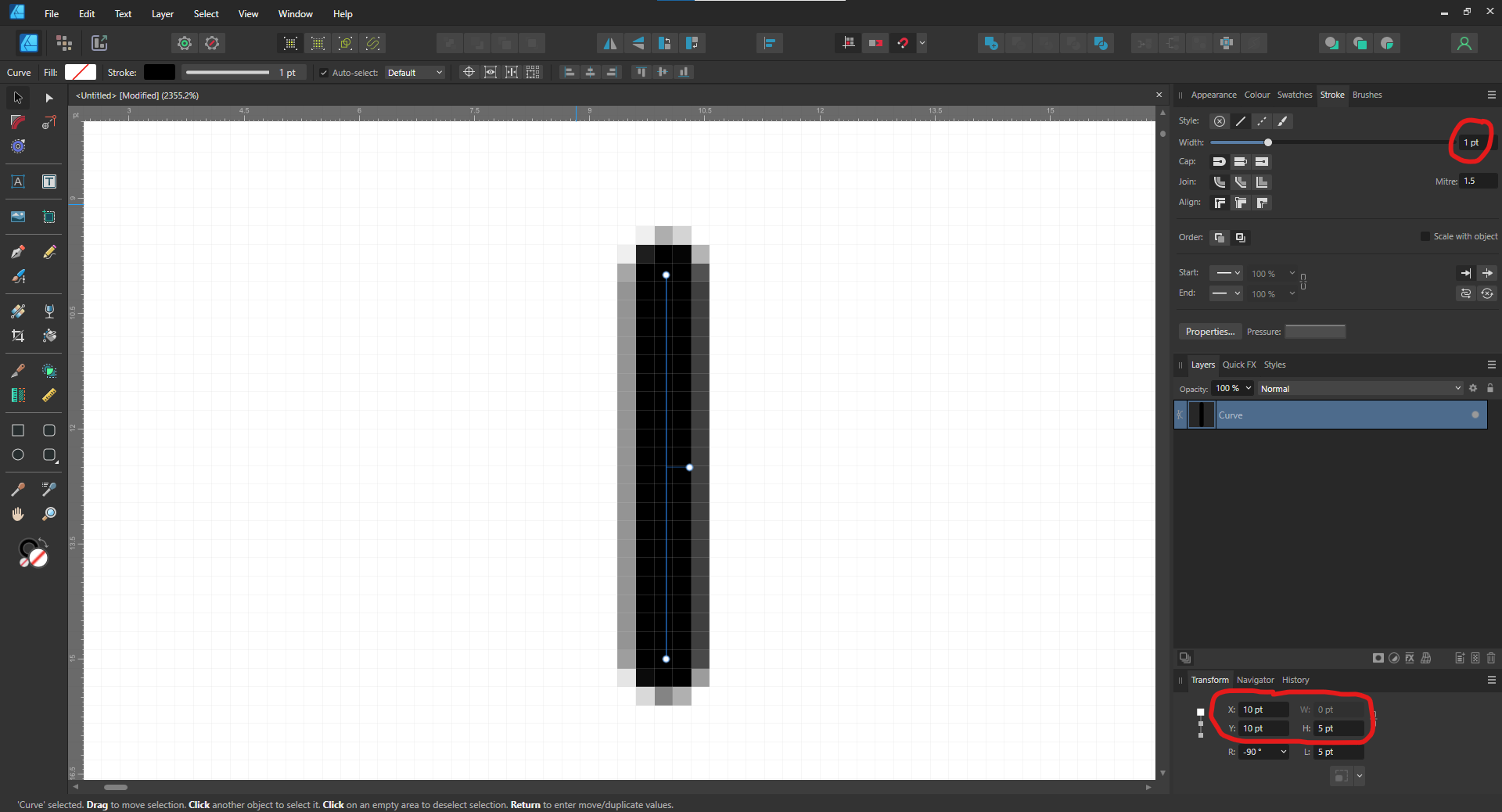

GarryP Posted December 28, 2023 Posted December 28, 2023 (edited) A possible additional issue here could be that your document units are in Points (see the Transform Panel) but you are exporting with dimensions measured in Pixels (see the Export Dialog). If you know you want pixel-perfect exports then I would recommend using a document UOM of Pixels so you can more easily make sure that everything is nicely aligned to the pixel grid. See attached example where my line is aligned to integer points and is of an integer point width but, when I show the Pixel Grid and view the document in Pixel View Mode, you can see that nothing is ‘nicely aligned’. Edited December 28, 2023 by GarryP Added example. walt.farrell 1 Quote
bbrother Posted December 28, 2023 Posted December 28, 2023 5 hours ago, GarryP said: A possible additional issue here could be that your document units are in Points If you create a document with dpi set to 72, this should not be a problem because then 1pt = 1px. Quote
