iMac1943 Posted March 27, 2023 Posted March 27, 2023 A friend took a photo of an artwork he made on a white paper. As you see the paper is grey. I tried several adjustments in Affinity Photo but I am not satisfied of the result. The background is still not white. So I'm asking here for advice. Thanks for answering! Luc Quote
walt.farrell Posted March 27, 2023 Posted March 27, 2023 I don't have an answer for you, but I think part of your problem will be that the lighting was uneven, which will make an accurate color correction more difficult. Quote -- Walt Designer, Photo, and Publisher V1 and V2 at latest retail and beta releases PC: Desktop: Windows 11 Pro 23H2, 64GB memory, AMD Ryzen 9 5900 12-Core @ 3.00 GHz, NVIDIA GeForce RTX 3090 Laptop: Windows 11 Pro 23H2, 32GB memory, Intel Core i7-10750H @ 2.60GHz, Intel UHD Graphics Comet Lake GT2 and NVIDIA GeForce RTX 3070 Laptop GPU. Laptop 2: Windows 11 Pro 24H2, 16GB memory, Snapdragon(R) X Elite - X1E80100 - Qualcomm(R) Oryon(TM) 12 Core CPU 4.01 GHz, Qualcomm(R) Adreno(TM) X1-85 GPU iPad: iPad Pro M1, 12.9": iPadOS 18.3.1, Apple Pencil 2, Magic Keyboard Mac: 2023 M2 MacBook Air 15", 16GB memory, macOS Sequoia 15.0.1
iMac1943 Posted March 27, 2023 Author Posted March 27, 2023 You are right. So you think, Walt, I will not be able to correct this with Affinity? Quote
walt.farrell Posted March 27, 2023 Posted March 27, 2023 I think it will be difficult. It might be possible, but I'm not sure how to do it. Someone else more skilled than I with color correction may know how to do it. Quote -- Walt Designer, Photo, and Publisher V1 and V2 at latest retail and beta releases PC: Desktop: Windows 11 Pro 23H2, 64GB memory, AMD Ryzen 9 5900 12-Core @ 3.00 GHz, NVIDIA GeForce RTX 3090 Laptop: Windows 11 Pro 23H2, 32GB memory, Intel Core i7-10750H @ 2.60GHz, Intel UHD Graphics Comet Lake GT2 and NVIDIA GeForce RTX 3070 Laptop GPU. Laptop 2: Windows 11 Pro 24H2, 16GB memory, Snapdragon(R) X Elite - X1E80100 - Qualcomm(R) Oryon(TM) 12 Core CPU 4.01 GHz, Qualcomm(R) Adreno(TM) X1-85 GPU iPad: iPad Pro M1, 12.9": iPadOS 18.3.1, Apple Pencil 2, Magic Keyboard Mac: 2023 M2 MacBook Air 15", 16GB memory, macOS Sequoia 15.0.1

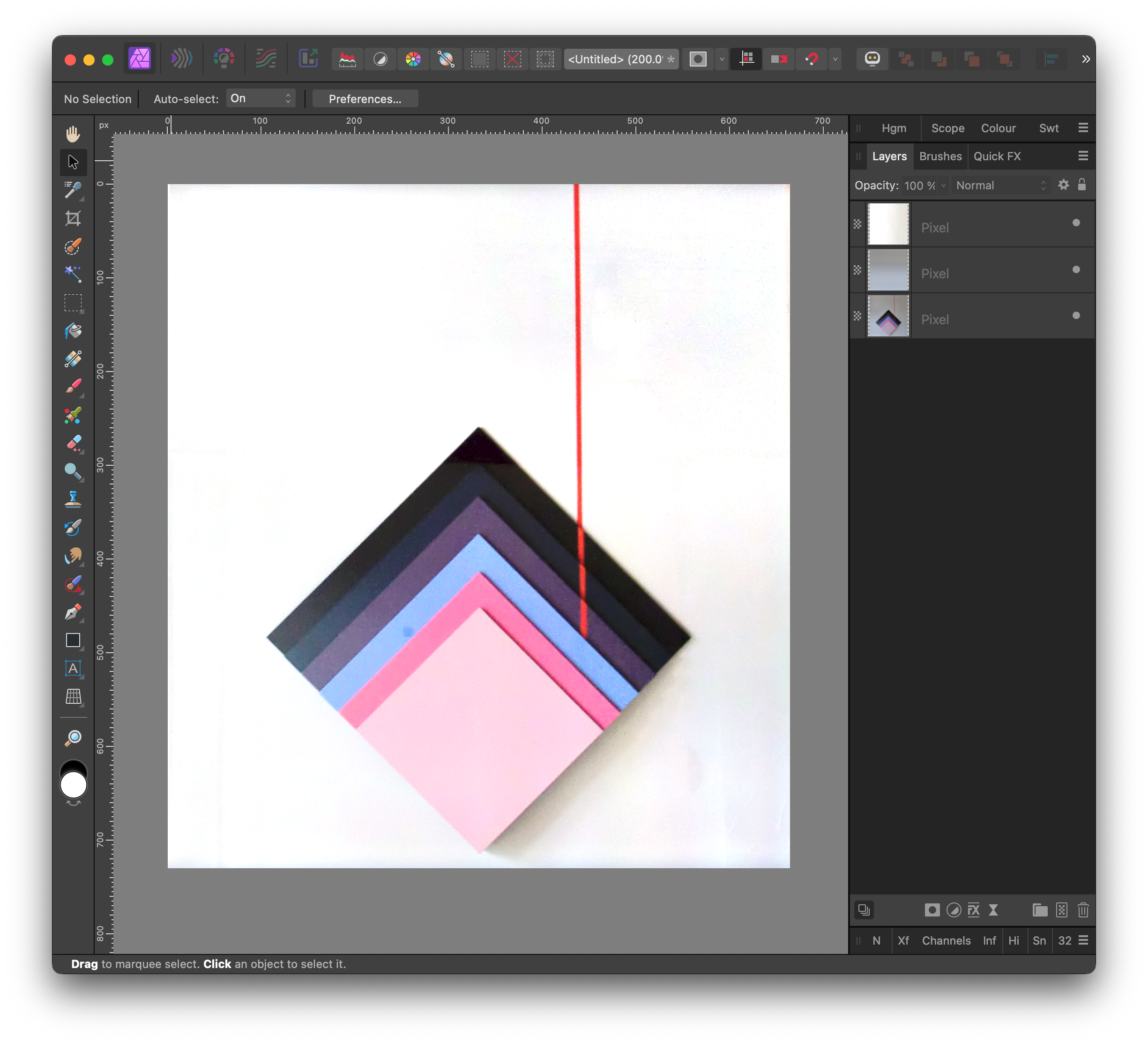

v_kyr Posted March 27, 2023 Posted March 27, 2023 27 minutes ago, iMac1943 said: You are right. So you think, Walt, I will not be able to correct this with Affinity? Well with some better WB function you can get it overall whiter, though when making the whole image entirely whiter here (so not just the background and thus all of the image) then all rect colors will be of course influenced too and so then outshine too! - You may have to seperate the main image from the background (... replace the background, as far as those rect colors by themself have been correctly exposered). Above you can see that the lighting was pretty uneven distributed and crappy! - Let's add, that I'm not sure if it is overall worth the effords for such a bad shot, but that's what you have to decide. Quote ☛ Affinity Designer 1.10.8 ◆ Affinity Photo 1.10.8 ◆ Affinity Publisher 1.10.8 ◆ OSX El Capitan ☛ Affinity V2.3 apps ◆ MacOS Sonoma 14.2 ◆ iPad OS 17.2
walt.farrell Posted March 27, 2023 Posted March 27, 2023 26 minutes ago, v_kyr said: You may have to seperate the main image from the background (... replace the background, as far as those rect colors by themself have been correctly exposered). Doesn't the uneven condition of the background indicate that the rectangle colors will also have been unevenly exposed? In that case, any simple WB function probably can't properly correct any of them. Quote -- Walt Designer, Photo, and Publisher V1 and V2 at latest retail and beta releases PC: Desktop: Windows 11 Pro 23H2, 64GB memory, AMD Ryzen 9 5900 12-Core @ 3.00 GHz, NVIDIA GeForce RTX 3090 Laptop: Windows 11 Pro 23H2, 32GB memory, Intel Core i7-10750H @ 2.60GHz, Intel UHD Graphics Comet Lake GT2 and NVIDIA GeForce RTX 3070 Laptop GPU. Laptop 2: Windows 11 Pro 24H2, 16GB memory, Snapdragon(R) X Elite - X1E80100 - Qualcomm(R) Oryon(TM) 12 Core CPU 4.01 GHz, Qualcomm(R) Adreno(TM) X1-85 GPU iPad: iPad Pro M1, 12.9": iPadOS 18.3.1, Apple Pencil 2, Magic Keyboard Mac: 2023 M2 MacBook Air 15", 16GB memory, macOS Sequoia 15.0.1
iMac1943 Posted March 27, 2023 Author Posted March 27, 2023 This is artwork and I know from experience that taking a photo of an artwork must be done in a studio with the correct light . The camera has to be set to the correct temperature. Which has not been done here. What not is (correct light) cannot been added. I think affinity cannot solve this. Quote
v_kyr Posted March 27, 2023 Posted March 27, 2023 43 minutes ago, walt.farrell said: Doesn't the uneven condition of the background indicate that the rectangle colors will also have been unevenly exposed? In that case, any simple WB function probably can't properly correct any of them. Of course it can't the whole, thus I also said reworking just the background to be even. And further then, if the colors of that artwork are known (if you have that in front and can see how it normally looks) one can tweak these seperately (accordingly) to be also more even. - But as initially said, the Q is if it's overall worth the effords here, as that shot is a pretty bad one either way. 29 minutes ago, iMac1943 said: This is artwork and I know from experience that taking a photo of an artwork must be done in a studio with the correct light . The camera has to be set to the correct temperature. Which has not been done here. What not is (correct light) cannot been added. I think affinity cannot solve this. Well what I wonder is, if you already know all that why did you then asked for advice here for that (bad) shot, instead of telling your friend to try to take some much better shot? - BTW it doesn't have to be a full blown studio here, some much cheaper fotobox with some adaptable lighting capabilities, where that artwork would fit in, would do it too here. - So something like these things here (there are a bunch of such product fotography boxes in various sizes and lightings) ... Quote ☛ Affinity Designer 1.10.8 ◆ Affinity Photo 1.10.8 ◆ Affinity Publisher 1.10.8 ◆ OSX El Capitan ☛ Affinity V2.3 apps ◆ MacOS Sonoma 14.2 ◆ iPad OS 17.2
lepr Posted March 27, 2023 Posted March 27, 2023 Needs some blemishes removed, but is this what you are looking for? Quote

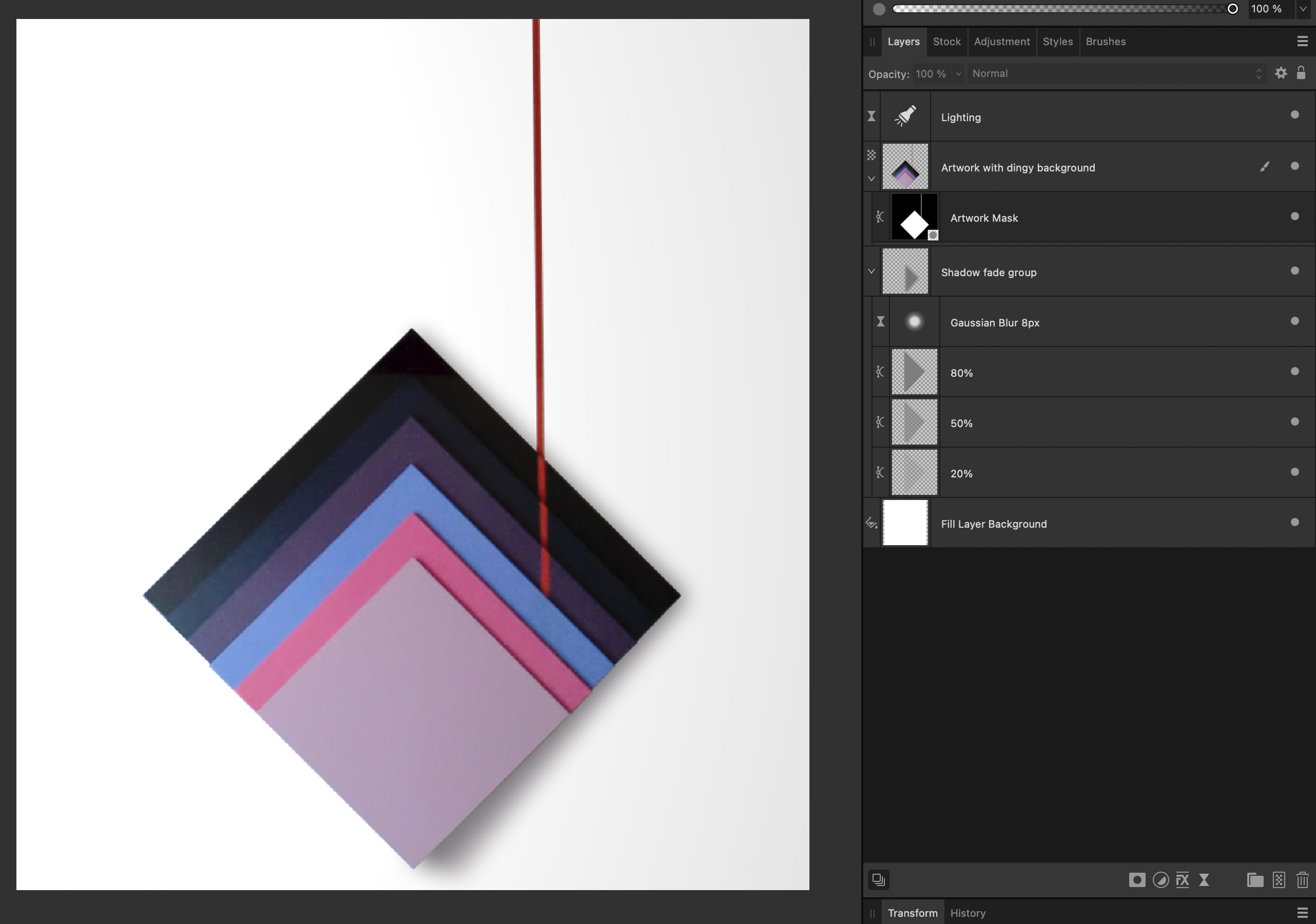

firstdefence Posted March 28, 2023 Posted March 28, 2023 Masking is probably the only way to get a clean background. Everything can be edited and tweaked White BG for artwork.afphoto If the background is a bit sterile you could also add a bit of side light to tie in with the shadows, subtle but to the eye if feels more correct. Quote iMac 27" 2019 Sequoia 15.0 (24A335), iMac 27" Affinity Designer, Photo & Publisher V1 & V2, Adobe, Inkscape, Vectorstyler, Blender, C4D, Sketchup + more... XP-Pen Artist-22E, - iPad Pro 12.9 (Please refrain from licking the screen while using this forum) Affinity Help - Affinity Desktop Tutorials - Feedback - FAQ - most asked questions
iMac1943 Posted March 28, 2023 Author Posted March 28, 2023 I'll try this. I'll let you know. thank you!!! Quote
lepr Posted March 28, 2023 Posted March 28, 2023 2 hours ago, iMac1943 said: Yes! How did you do that? I'll explain later. Too busy for the next few hours. (No masks were involved, though.) Quote
iMac1943 Posted March 28, 2023 Author Posted March 28, 2023 fine! Thank you. And take your time! Kind regards, Luc Quote
lepr Posted March 28, 2023 Posted March 28, 2023 Luc, attached is a document with saved history so you can rewind then step through it. Essentially, there are two gradients set to Divide mode to counteract the distinct vertical warm to cool cast and the slight horizontal light to dark cast. The first gradient layer is made by horizontally stretching a duplicate of a quite narrow column from near the left edge of the base image then giving it a 5px gaussian blur and setting blend mode to Divide. The second gradient layer is made by vertically stretching a duplicate (Copy Merged, Paste) of a quite narrow row from near the top edge of the composite image then giving it a 5px gaussian blur and setting blend mode to Divide. Before stretching, the Clone Brush Tool was used to remove red ribbon from that layer. 1002159622.afphoto walt.farrell and iMac1943 1 1 Quote
iMac1943 Posted March 28, 2023 Author Posted March 28, 2023 I cannot open your photo. I have Affinity Photo 1.10.6 Quote
iMac1943 Posted March 28, 2023 Author Posted March 28, 2023 I work on a iMac. Is there an upgrade for Affinity Photo? I have the 3 Affinity's since the very beginning. Quote
iMac1943 Posted March 28, 2023 Author Posted March 28, 2023 I don't have version 2 of the Affinity programs. Quote

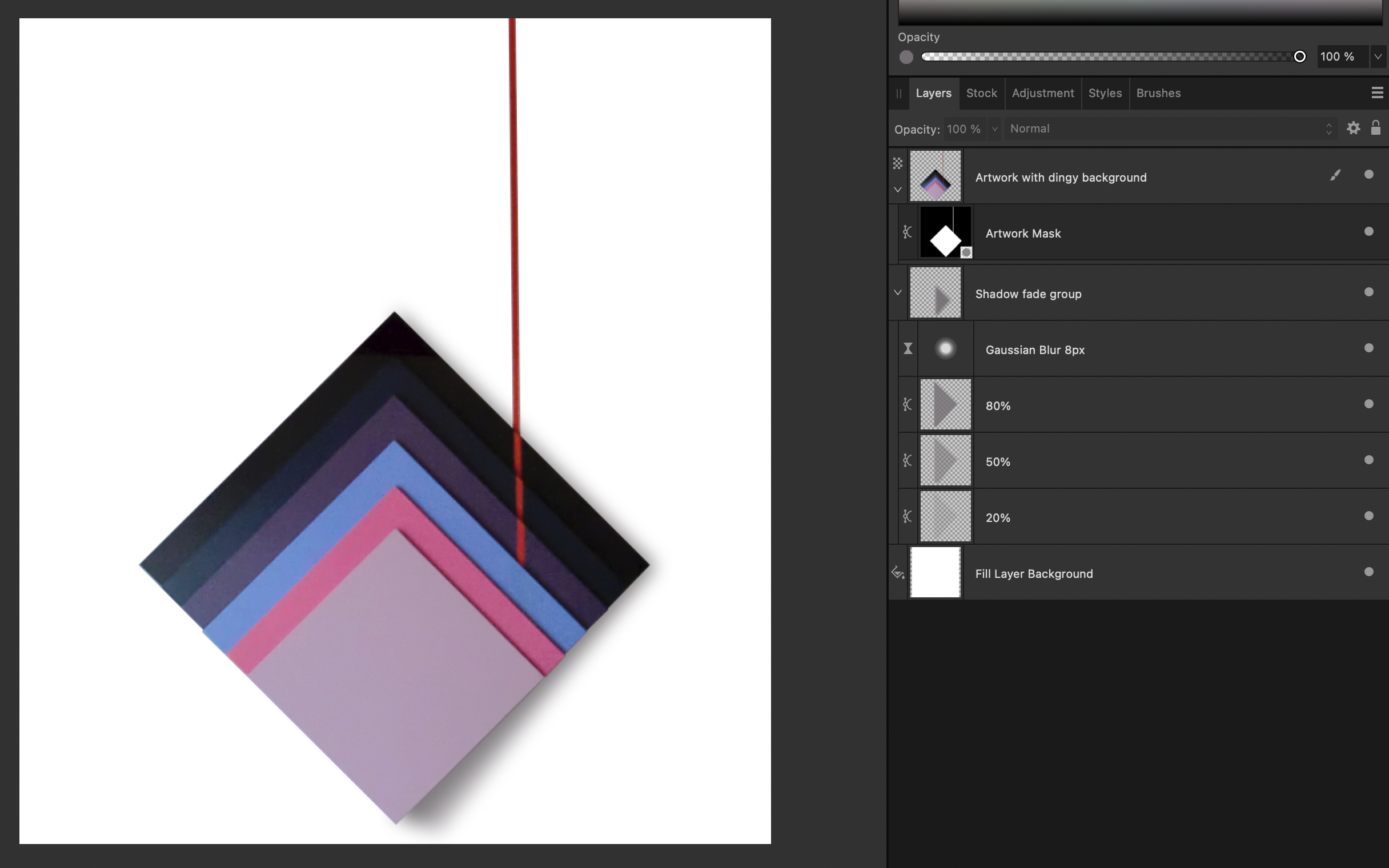

firstdefence Posted March 28, 2023 Posted March 28, 2023 18 minutes ago, iMac1943 said: I don't have version 2 of the Affinity programs. This is for Affinity Photo v1: Background fix for AP V1.afphoto same fix as "" posted, just copied the layers over to an Affinity Photo v1 document. Quote iMac 27" 2019 Sequoia 15.0 (24A335), iMac 27" Affinity Designer, Photo & Publisher V1 & V2, Adobe, Inkscape, Vectorstyler, Blender, C4D, Sketchup + more... XP-Pen Artist-22E, - iPad Pro 12.9 (Please refrain from licking the screen while using this forum) Affinity Help - Affinity Desktop Tutorials - Feedback - FAQ - most asked questions
lepr Posted March 28, 2023 Posted March 28, 2023 29 minutes ago, iMac1943 said: I work on a iMac. Is there an upgrade for Affinity Photo? I have the 3 Affinity's since the very beginning. Yes, 2.0.4 plus there is the 2.1 beta when you have upgraded. If you're upgrading all three apps, get the Universal Licence - that gives you a licence for all 3 apps on all 3 platforms. Quote
iMac1943 Posted March 28, 2023 Author Posted March 28, 2023 Thank you all. You all are a great help. Quote
iMac1943 Posted March 29, 2023 Author Posted March 29, 2023 11 hours ago, firstdefence said: This is for Affinity Photo v1: Background fix for AP V1.afphoto same fix as "" posted, just copied the layers over to an Affinity Photo v1 document. This is perfect! Thank you firstdefence for your help! firstdefence 1 Quote
