Looking for creative solution

[chocomel]

Hey friends of Affinity Designer,

I need to create an icon with a very complicated structure. This is the structure I need to simplify and put in a circle:

Do you have any idea about which steps I have to take?

Thank you for your help!

~Jessie



[Guest]

Hello chocomel,

I don't know if this is right for you because the structure will not be simplified....
You can draw a circle over the photo on the area you want to keep, then in the layers panel, move the circle to the right of the photo thumbnail until you get a vertical blue rectangle to the right of the thumbnail.

[chocomel]

Hey reglico,

thank you so far.

I forgot to mention, that the final Icon has to be a vector shape at the end.



[Guest]

You can convert the photo to curves ("Layer", "Convert to curves"), draw the circle over it (Transparent and without contour), then do a Boolean operation "Divide". Then select the top and bottom layers in the layer panel and delete them. There remains the circle filled with the structure. If you use the "Node" tool you can change the shape without touching the filling.

[John Rostron]

Photo cannot create vector icons such as you want. However, it can create patterns which could then be submitted to a pixel-to-vector program. Could I suggest that you start by creating a Perlin Noise image (Filters > Noise > Perlin Noise ) This creates a fuzzy pattern, but you can convert this to one with discrete levels, or even just black-and-white.

Perlin Noise is a tricky thing. I had trouble producing it. My eventual method was:

Quote

I have got it to work, by what can only be described as a circuitous route. From my blank layer, I created an empty Levels Adjustment layer, then Merged visible. This created a pixel layer which responded to the Perlin Noise filter as expected

If you think that this could be useful to you, let me know and I will try and produce a tutorial.

John

[gdenby]

Hi, chocomel,

Do you mean you want everything to be a vector representation of the odd slice thingy? BTW, what is that?

[firstdefence]

Did a trace and got this: Red wafer thingy.svg

[v_kyr]

If the source image would be higher resolution, tracing would give better results here.

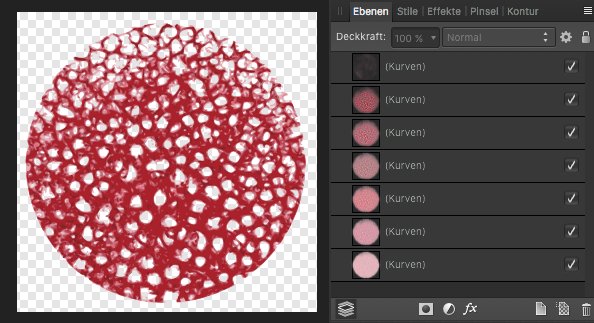

• traced.afdesign
• structure.svg

[gdenby]

A result from running the sample image thru A-Photo to clean it up some. Then a trace in Inkscape. Then some color work back in AD. The resulting vector file was quite large, 4+ Mb, so offering a visual only.
