I'm having a problem with shapes in Affinity Designer. Whenever I snap two shapes together there will be a line between those shapes. It is visible in Affinity Designer itself and on the exported images. I tried to make a pattern with symbols and the problem also occurs. I've searched the forum and internet to solve this problem, but there isn't one that works for me. From what I'm getting this is a bug in the software that's been in Affinity Designer for years now. When will this be solved? I expected that V2 would have dealt with the problem but it didn't unfortunately.


Posted

This might help.



Mac mini M1 A2348 | MBP M3

Windows 11 - AMD Ryzen 9 5900x - 32 GB RAM - Nvidia GTX 1080

LG34WK950U-W, calibrated to DCI-P3 with LG Calibration Studio / Spider 5 | Dell 27“ 4K

iPad Air Gen 5 (2022) A2589

Special interest into procedural texture filter, edit alpha channel, RGB/16 and RGB/32 color formats, stacking, finding root causes for misbehaving files, finding creative solutions for unsolvable tasks, finding bugs in Apps.

I use iPad screenshots and videos even in the Desktop section of the forum when I expect no relevant difference.



Posted

You can avoid the issue, but this requires very careful planning and execution:

  • Use pixel view to inspect if seams are visible
  • use transform panel, with decimal digits set to 6, to inspect position, and size to be integer (not fractional)
  • Use helper rectangles to perfectly cut off layers at integer boundaries (by masking or clipping)
  • Activate snapping, force pixel alignment, deactivate move by whole pixels
  • carefully inspect nested layers: every level must be pixel-aligned.



Mac mini M1 A2348 | MBP M3

Windows 11 - AMD Ryzen 9 5900x - 32 GB RAM - Nvidia GTX 1080

LG34WK950U-W, calibrated to DCI-P3 with LG Calibration Studio / Spider 5 | Dell 27“ 4K

iPad Air Gen 5 (2022) A2589

Special interest into procedural texture filter, edit alpha channel, RGB/16 and RGB/32 color formats, stacking, finding root causes for misbehaving files, finding creative solutions for unsolvable tasks, finding bugs in Apps.

I use iPad screenshots and videos even in the Desktop section of the forum when I expect no relevant difference.



Posted

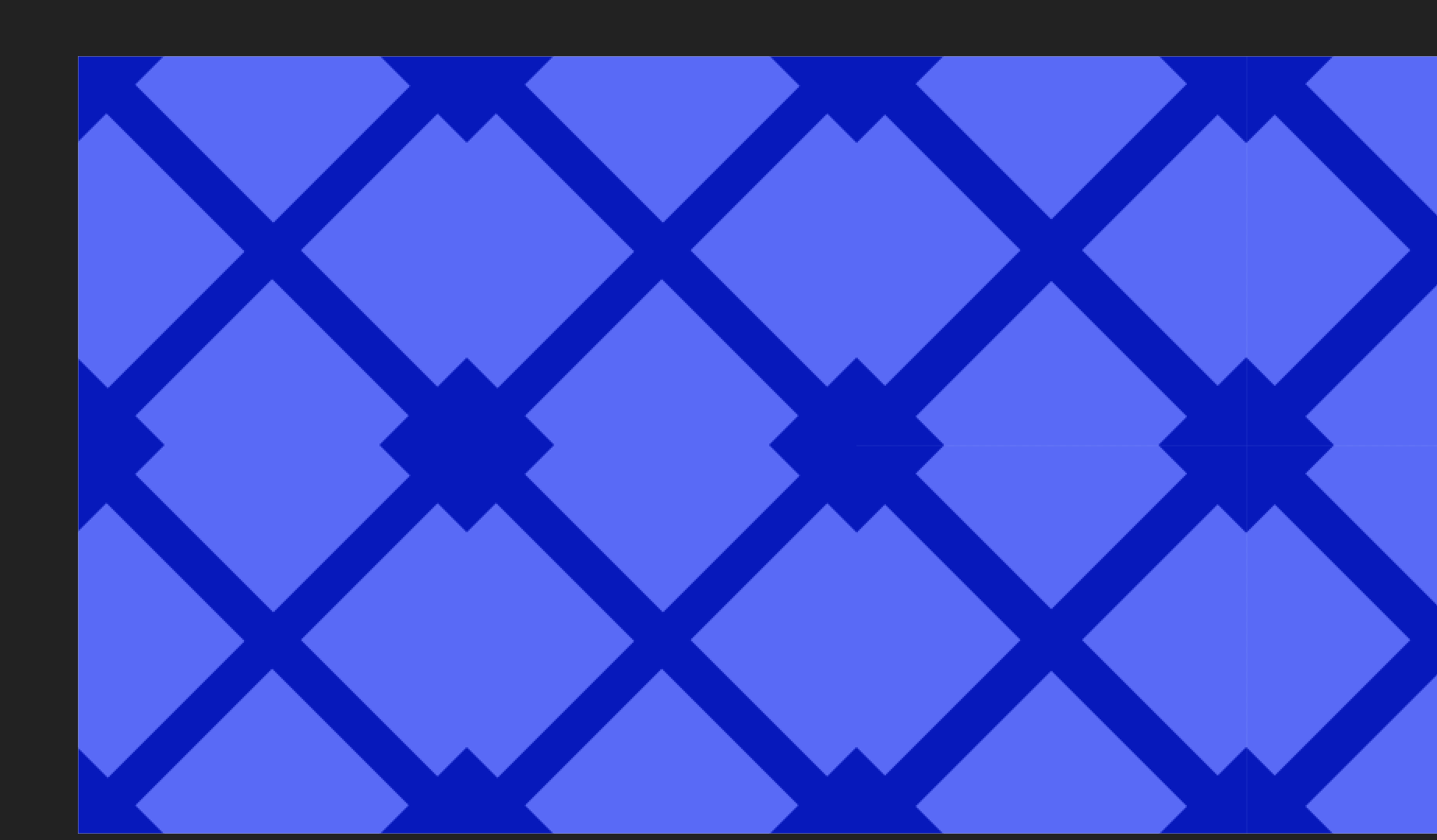

left: seamless. right: your version.
