pburki Posted December 1, 2022 Posted December 1, 2022 Hello, I have problems opening .svg files with Affinity Designer 2: the opened file does not correspond to the preview. This is the file opened with a browser: This is the file opened in Affinity Designer 2: Thanks Philippe Quote
Arakel Posted December 1, 2022 Posted December 1, 2022 Would it be possible to upload the orignal svg file? Quote
pburki Posted December 1, 2022 Author Posted December 1, 2022 Here it is Thanks Philippe 2022-11-30 Icon_V3.svg Quote
Arakel Posted December 1, 2022 Posted December 1, 2022 (edited) It seems to be a bug. The shape is there but not the fill. The fill is defined as a pattern and not applied to the shapes. All other tools and apps I use can display this file correctly except SVG See & Affinity. EDIT: by the way, Windows 10 Edited December 1, 2022 by Arakel Add OS-Info Quote

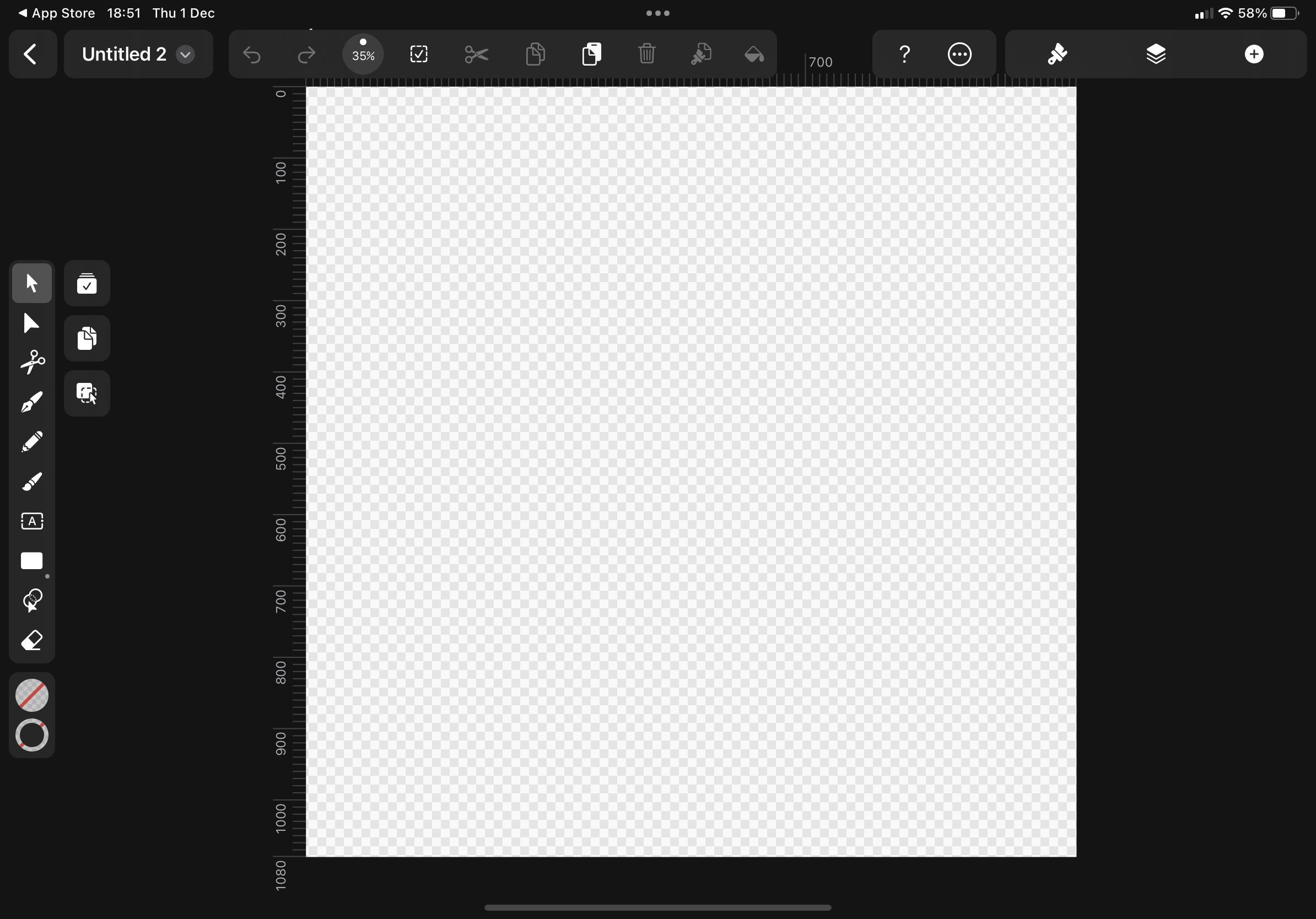

Paul Mudditt Posted December 1, 2022 Posted December 1, 2022 This is how this opens in vectornator so a problem with the SVG file, I guess whatever fill was applied was not supported by SVG. Make sure you select rasterise unsupported features if it was exported from Designer. Quote Affinity Photo, Designer, Publisher 1.10 and 2.6 on macOS 15.4 Beta Sequoia on M1 Mac Mini 16GB 1TB Affinity Photo, Designer, Publisher 1.10 and 2.6 on Windows 10 Pro. (revived !) Affinity Photo, Designer, Publisher 2.6 on M1 iPad Pro 11” on iPadOS beta 18.4 Recommended Fan based Affinity Support Groups on Facebook https://www.facebook.com/groups/AffinityForiPad https://www.facebook.com/groups/AffinityPhoto/ https://www.facebook.com/groups/affinityphotoastrophotography The hardest link to find https://affinity.help Mud’s Macros Library:- https://forum.affinity.serif.com/index.php?/topic/156842-muds-macros-v11-library-content-aware-move-added/
Arakel Posted December 1, 2022 Posted December 1, 2022 19 minutes ago, Paul Mudditt said: This is how this opens in vectornator so a problem with the SVG file, I guess whatever fill was applied was not supported by SVG. Make sure you select rasterise unsupported features if it was exported from Designer. As far as I understand, the file was generated by another application. It may even have been handwritten as source code. Open the file with a text editor, the <style> block is correct. The pattern as far as I understand it too. Maybe the "fill: url(...)" is outside of the SVG specification, I'm not that deep into the topic. All the programs I've opened the file with display it correctly, just not SVG See and Affinity. I guess Serif will take a look. Paul Mudditt 1 Quote
Paul Mudditt Posted December 1, 2022 Posted December 1, 2022 3 minutes ago, Arakel said: As far as I understand, the file was generated by another application. It may even have been handwritten as source code. Open the file with a text editor, the <style> block is correct. The pattern as far as I understand it too. Maybe the "fill: url(...)" is outside of the SVG specification, I'm not that deep into the topic. All the programs I've opened the file with display it correctly, just not SVG See and Affinity. I guess Serif will take a look. Which programs (not browsers) were able to open the file “correctly”? Quote Affinity Photo, Designer, Publisher 1.10 and 2.6 on macOS 15.4 Beta Sequoia on M1 Mac Mini 16GB 1TB Affinity Photo, Designer, Publisher 1.10 and 2.6 on Windows 10 Pro. (revived !) Affinity Photo, Designer, Publisher 2.6 on M1 iPad Pro 11” on iPadOS beta 18.4 Recommended Fan based Affinity Support Groups on Facebook https://www.facebook.com/groups/AffinityForiPad https://www.facebook.com/groups/AffinityPhoto/ https://www.facebook.com/groups/affinityphotoastrophotography The hardest link to find https://affinity.help Mud’s Macros Library:- https://forum.affinity.serif.com/index.php?/topic/156842-muds-macros-v11-library-content-aware-move-added/
Paul Mudditt Posted December 1, 2022 Posted December 1, 2022 Vector Q gave an error message on import, so again I state the SVG is invalid. Quote Affinity Photo, Designer, Publisher 1.10 and 2.6 on macOS 15.4 Beta Sequoia on M1 Mac Mini 16GB 1TB Affinity Photo, Designer, Publisher 1.10 and 2.6 on Windows 10 Pro. (revived !) Affinity Photo, Designer, Publisher 2.6 on M1 iPad Pro 11” on iPadOS beta 18.4 Recommended Fan based Affinity Support Groups on Facebook https://www.facebook.com/groups/AffinityForiPad https://www.facebook.com/groups/AffinityPhoto/ https://www.facebook.com/groups/affinityphotoastrophotography The hardest link to find https://affinity.help Mud’s Macros Library:- https://forum.affinity.serif.com/index.php?/topic/156842-muds-macros-v11-library-content-aware-move-added/
Arakel Posted December 1, 2022 Posted December 1, 2022 (edited) 4 minutes ago, Paul Mudditt said: Which programs (not browsers) were able to open the file “correctly”? Inkscape and PhotoLine does correctly. LibreOffice Draw showed the fill but with black as background. Edited December 1, 2022 by Arakel typo Quote
Paul Mudditt Posted December 1, 2022 Posted December 1, 2022 Ok, eventually found an app that tries to open it, Amadine, but it doesn’t look like your image. Quote Affinity Photo, Designer, Publisher 1.10 and 2.6 on macOS 15.4 Beta Sequoia on M1 Mac Mini 16GB 1TB Affinity Photo, Designer, Publisher 1.10 and 2.6 on Windows 10 Pro. (revived !) Affinity Photo, Designer, Publisher 2.6 on M1 iPad Pro 11” on iPadOS beta 18.4 Recommended Fan based Affinity Support Groups on Facebook https://www.facebook.com/groups/AffinityForiPad https://www.facebook.com/groups/AffinityPhoto/ https://www.facebook.com/groups/affinityphotoastrophotography The hardest link to find https://affinity.help Mud’s Macros Library:- https://forum.affinity.serif.com/index.php?/topic/156842-muds-macros-v11-library-content-aware-move-added/
Arakel Posted December 1, 2022 Posted December 1, 2022 It seems you don't believe me. 😏 I think the file is outside of the SVG standard, but if others can interpret the file correctly ... Quote
Paul Mudditt Posted December 1, 2022 Posted December 1, 2022 Hmmm shapes are there and a fill can be added Original <?xml version="1.0" encoding="UTF-8"?> <svg id="Livello_1" data-name="Livello 1" xmlns="http://www.w3.org/2000/svg" xmlns:xlink="http://www.w3.org/1999/xlink" viewBox="0 0 1080 1080"> <defs> <style> .cls-1 { fill: none; } .cls-2 { fill: #6d534d; } .cls-3 { fill: url(#Nuovo_campione_pattern_3); } </style> <pattern id="Nuovo_campione_pattern_3" data-name="Nuovo campione pattern 3" x="0" y="0" width="7.09" height="7.09" patternTransform="translate(-17.53 -9150.25) rotate(127.26) scale(2.83)" patternUnits="userSpaceOnUse" viewBox="0 0 7.09 7.09"> <g> <rect class="cls-1" width="7.09" height="7.09"/> <circle class="cls-2" cx="-1.16" cy="3.54" r="1.98"/> <circle class="cls-2" cx="5.93" cy="3.54" r="1.98"/> </g> </pattern> </defs> <circle class="cls-3" cx="540" cy="363.7" r="270.37"/> <path class="cls-3" d="M684.85,634.95c-41.87,26.62-91.56,42.05-144.85,42.05s-102.98-15.43-144.85-42.05c-196.61,13.13-352.03,176.74-352.03,376.67v68.38h993.76v-68.38c0-199.94-155.42-363.55-352.03-376.67Z"/> </svg> Designer export with fill added <?xml version="1.0" encoding="UTF-8" standalone="no"?> <!DOCTYPE svg PUBLIC "-//W3C//DTD SVG 1.1//EN" "http://www.w3.org/Graphics/SVG/1.1/DTD/svg11.dtd"> <svg width="100%" height="100%" viewBox="0 0 1080 1080" version="1.1" xmlns="http://www.w3.org/2000/svg" xmlns:xlink="http://www.w3.org/1999/xlink" xml:space="preserve" xmlns:serif="http://www.serif.com/" style="fill-rule:evenodd;clip-rule:evenodd;stroke-linejoin:round;stroke-miterlimit:2;"> <circle cx="540" cy="363.7" r="270.37" style="fill:rgb(153,91,180);"/> <path d="M684.85,634.95C642.98,661.57 593.29,677 540,677C486.71,677 437.02,661.57 395.15,634.95C198.54,648.08 43.12,811.69 43.12,1011.62L43.12,1080L1036.88,1080L1036.88,1011.62C1036.88,811.68 881.46,648.07 684.85,634.95Z" style="fill:rgb(153,91,180);fill-rule:nonzero;"/> </svg> Ok, I’m no XML expert but I agree with you there is a problem with the software that created the SVG. But perhaps a Dev will have time to look at this when the Op adds how they are creating the SVG. Quote Affinity Photo, Designer, Publisher 1.10 and 2.6 on macOS 15.4 Beta Sequoia on M1 Mac Mini 16GB 1TB Affinity Photo, Designer, Publisher 1.10 and 2.6 on Windows 10 Pro. (revived !) Affinity Photo, Designer, Publisher 2.6 on M1 iPad Pro 11” on iPadOS beta 18.4 Recommended Fan based Affinity Support Groups on Facebook https://www.facebook.com/groups/AffinityForiPad https://www.facebook.com/groups/AffinityPhoto/ https://www.facebook.com/groups/affinityphotoastrophotography The hardest link to find https://affinity.help Mud’s Macros Library:- https://forum.affinity.serif.com/index.php?/topic/156842-muds-macros-v11-library-content-aware-move-added/
Paul Mudditt Posted December 1, 2022 Posted December 1, 2022 I was hoping the Op might respond, thank you for your comments. Quote Affinity Photo, Designer, Publisher 1.10 and 2.6 on macOS 15.4 Beta Sequoia on M1 Mac Mini 16GB 1TB Affinity Photo, Designer, Publisher 1.10 and 2.6 on Windows 10 Pro. (revived !) Affinity Photo, Designer, Publisher 2.6 on M1 iPad Pro 11” on iPadOS beta 18.4 Recommended Fan based Affinity Support Groups on Facebook https://www.facebook.com/groups/AffinityForiPad https://www.facebook.com/groups/AffinityPhoto/ https://www.facebook.com/groups/affinityphotoastrophotography The hardest link to find https://affinity.help Mud’s Macros Library:- https://forum.affinity.serif.com/index.php?/topic/156842-muds-macros-v11-library-content-aware-move-added/
pburki Posted December 2, 2022 Author Posted December 2, 2022 I believe the file was created and exported from Adobe Illustrator, but will need to check with the graphic designer who created the file. Thanks Philippe Quote
Hangman Posted December 2, 2022 Posted December 2, 2022 The issue opening the file in Affinity Designer is that the SVG file uses Styles which are not currently supported in the Affinity Suite. The file itself references an Illustrator Pattern Swatch, fill: url(#Nuovo_campione_pattern_3); Removing the Syle from the SVG file will allow you to see the basic shapes... If the graphic designer who created it can provide the pattern itself ideally as a vector file, you could use it to create your own bitmap fill (depending on how and where the file is designed to be used) or create your own like in the quick attached sample... Note: The bitmap pattern in the attached sample is only 72dpi but again depending on the end use for the file, could be a higher resolution. 2022-11-30 Icon_V3.svgDotty Man.afdesignDotty Man.svg Quote Affinity Designer 2.6.3 | Affinity Photo 2.6.3 | Affinity Publisher 2.6.3 MacBook Pro M3 Max, 36 GB Unified Memory, macOS Sonoma 14.6.1, Magic Mouse HP ENVY x360, 8 GB RAM, AMD Ryzen 5 2500U, Windows 10 Home, Logitech Mouse
Arakel Posted December 2, 2022 Posted December 2, 2022 This is strange, Serif Draw Plus X8 can do vector fills. (But opens this svg also with black fill) @pburki If you need a scalable version, please find it attached. 2022-11-30 Icon_V3.afdesign Quote
Hangman Posted December 2, 2022 Posted December 2, 2022 You could equally just add the dot pattern as a vector clipping path instead of applying them as a bitmap fill... Dotty Man v2.afdesignDotty Man v2.svg Quote Affinity Designer 2.6.3 | Affinity Photo 2.6.3 | Affinity Publisher 2.6.3 MacBook Pro M3 Max, 36 GB Unified Memory, macOS Sonoma 14.6.1, Magic Mouse HP ENVY x360, 8 GB RAM, AMD Ryzen 5 2500U, Windows 10 Home, Logitech Mouse
