Renaki_022 Posted October 28, 2020 Share Posted October 28, 2020 Hello everybody... I would like to mix two colors in Affinity Publisher or Affinity Photo... For example yellow and blue and be able to see at the intersection of this two blocs, the color green ... what should I do? Thanks rené Quote Link to comment Share on other sites More sharing options...
Renaki_022 Posted October 28, 2020 Author Share Posted October 28, 2020 ... like this style, see the attached file... thanks rené Quote Link to comment Share on other sites More sharing options...

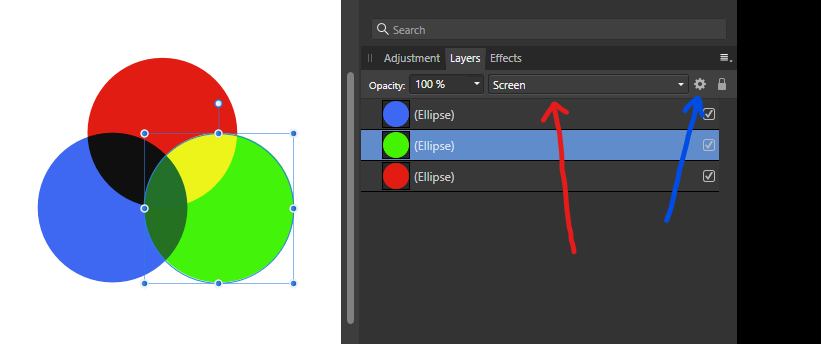

GarryP Posted October 29, 2020 Share Posted October 29, 2020 You can use Blend Modes to mix colours (red arrow in attached image). You can also change the Blend Ranges/Options to adjust what happens (blue arrow). The Help will tell you how to use both. Quote Link to comment Share on other sites More sharing options...
Renaki_022 Posted October 29, 2020 Author Share Posted October 29, 2020 Thank You very much Garry... I have search a lot of time... Ufffh... renek Quote Link to comment Share on other sites More sharing options...
firstdefence Posted October 29, 2020 Share Posted October 29, 2020 Mixing colours really depends on the specific colours selected so a strong blue like RGB 0,0,255 will dominate a strong yellow RGB 255,255,0 and you will probably end up with grey, but RGB 0,128,255 and RGB 255,255,0 will get you a green, so mixing colours isn’t as generic as blue + yellow = green See image below... Strong blue vs lighter blue, both blended with a strong yellow. …and blended with the smudge tool (B) A few online colour mixers to play with... https://trycolors.com https://colordesigner.io/color-mixer Quote iMac 27" 2019 Somona 14.3.1, iMac 27" Affinity Designer, Photo & Publisher V1 & V2, Adobe, Inkscape, Vectorstyler, Blender, C4D, Sketchup + more... XP-Pen Artist-22E, - iPad Pro 12.9 (Please refrain from licking the screen while using this forum) Affinity Help - Affinity Desktop Tutorials - Feedback - FAQ - most asked questions Link to comment Share on other sites More sharing options...
walt.farrell Posted October 29, 2020 Share Posted October 29, 2020 3 hours ago, GarryP said: You can use Blend Modes to mix colours (red arrow in attached image). Yes, but the effect seems rather random (to me) and if you're expecting something specific like yellow + blue = green it may take some experimenting. For example, for yellow + blue = green the Vivid Light blend mode kind of works. But for yellow + red = orange you need Average to get a result kind of like you want. Quote -- Walt Designer, Photo, and Publisher V1 and V2 at latest retail and beta releases PC: Desktop: Windows 11 Pro, version 23H2, 64GB memory, AMD Ryzen 9 5900 12-Core @ 3.00 GHz, NVIDIA GeForce RTX 3090 Laptop: Windows 11 Pro, version 23H2, 32GB memory, Intel Core i7-10750H @ 2.60GHz, Intel UHD Graphics Comet Lake GT2 and NVIDIA GeForce RTX 3070 Laptop GPU. iPad: iPad Pro M1, 12.9": iPadOS 17.4.1, Apple Pencil 2, Magic Keyboard Mac: 2023 M2 MacBook Air 15", 16GB memory, macOS Sonoma 14.4.1 Link to comment Share on other sites More sharing options...
h_d Posted October 29, 2020 Share Posted October 29, 2020 Red, blue and yellow, as in @Renaki_022's example, are primary colours in terms of pigments and painting on paper, but not on computer screens. On computer and TV screens, based on the light receptors in the human eye, the primary colours (aka additive primaries) are red, blue and green, as in @GarryP's example. (The subtractive primaries cyan, magenta and yellow are used for colour printing - along with black.) Colour theory is a huge subject, but basically mixing colours on a computer screen doesn't work in the same way as it does on paper, and the only way to achieve the 'on paper' colour wheel in the OP's request is most likely going to be to create a complex shape with a separate fill for each segment. (Try mixing yellow and blue on screen to achieve green, for example, using any blend mode.) Quote Affinity Photo 2.0.3, Affinity Designer 2.0.3, Affinity Publisher 2.0.3, Mac OSX 13, 2018 MacBook Pro 15" Intel. Link to comment Share on other sites More sharing options...
walt.farrell Posted October 29, 2020 Share Posted October 29, 2020 2 minutes ago, h_d said: Try mixing yellow and blue on screen to achieve green, for example, using any blend mode. Vivid Light is as close as you'll get, and it is a green, though perhaps not the right green Quote -- Walt Designer, Photo, and Publisher V1 and V2 at latest retail and beta releases PC: Desktop: Windows 11 Pro, version 23H2, 64GB memory, AMD Ryzen 9 5900 12-Core @ 3.00 GHz, NVIDIA GeForce RTX 3090 Laptop: Windows 11 Pro, version 23H2, 32GB memory, Intel Core i7-10750H @ 2.60GHz, Intel UHD Graphics Comet Lake GT2 and NVIDIA GeForce RTX 3070 Laptop GPU. iPad: iPad Pro M1, 12.9": iPadOS 17.4.1, Apple Pencil 2, Magic Keyboard Mac: 2023 M2 MacBook Air 15", 16GB memory, macOS Sonoma 14.4.1 Link to comment Share on other sites More sharing options...
h_d Posted October 29, 2020 Share Posted October 29, 2020 Out of interest how are you achieving that Walt? I get this (with both yellow above blue and blue above yellow), top layer set to Vivid Light, bottom layer set to Normal in both cases: (Affinity Photo Beta for Mac 1.9.0.199) Quote Affinity Photo 2.0.3, Affinity Designer 2.0.3, Affinity Publisher 2.0.3, Mac OSX 13, 2018 MacBook Pro 15" Intel. Link to comment Share on other sites More sharing options...
Renaki_022 Posted October 29, 2020 Author Share Posted October 29, 2020 Thank's to everybody... Interesting sujet... renek Quote Link to comment Share on other sites More sharing options...
walt.farrell Posted October 29, 2020 Share Posted October 29, 2020 6 hours ago, h_d said: Out of interest how are you achieving that Walt? Just like you did, though perhaps with different Blue and Yellow. I'm using an RGB document, so I just chose approximate colors from the color wheel. Quote -- Walt Designer, Photo, and Publisher V1 and V2 at latest retail and beta releases PC: Desktop: Windows 11 Pro, version 23H2, 64GB memory, AMD Ryzen 9 5900 12-Core @ 3.00 GHz, NVIDIA GeForce RTX 3090 Laptop: Windows 11 Pro, version 23H2, 32GB memory, Intel Core i7-10750H @ 2.60GHz, Intel UHD Graphics Comet Lake GT2 and NVIDIA GeForce RTX 3070 Laptop GPU. iPad: iPad Pro M1, 12.9": iPadOS 17.4.1, Apple Pencil 2, Magic Keyboard Mac: 2023 M2 MacBook Air 15", 16GB memory, macOS Sonoma 14.4.1 Link to comment Share on other sites More sharing options...
