Strokes get converted to curves AD-> PDF


Recommended Posts

I'm exporting AD document to PDF. I need to be able to preserve the strokes editable- however, when opened in Illustrator, the strokes have been converted to fills? See attached screenshots The same problen when exporting to SVG- the strokes get converted.

EDIT: I found solution to this in case someone else runs into this problem: when the stroke is set to other than 'Center', it will fill the stroke when exporting.

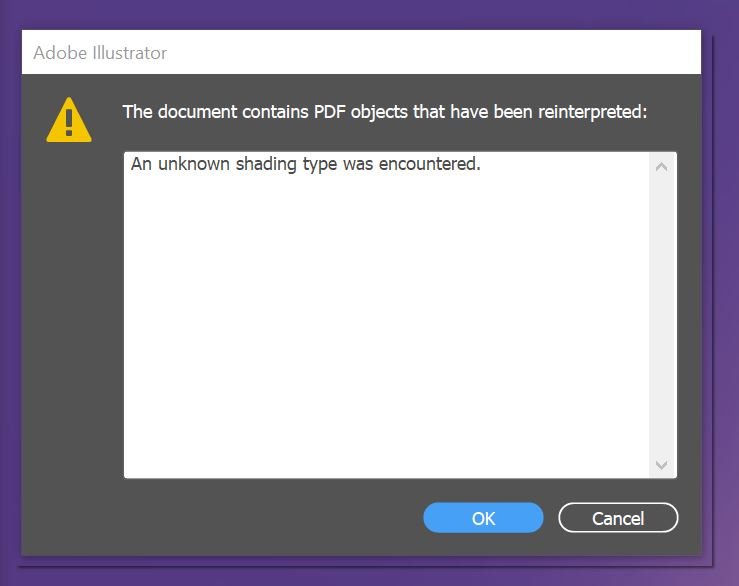

AD.jpgAD File:AI.pngPDF in AI




Link to comment
Share on other sites

Was it the stroke alignment that was causing the problem? ears.gif

Alfred spacer.png
Affinity Designer/Photo/Publisher for Windows 1.10 • Windows 10 Home/Pro
Affinity Photo for iPad 1.10 • Designer for iPad 1.10 • iPadOS 15.6.1 (iPad Air 2)

Link to comment
Share on other sites

2 hours ago, Skin85 said:

EDIT: I found solution to this in case someone else runs into this problem: when the stroke is set to other than 'Center', it will fill the stroke when exporting.

So centre lined it see's it as a stroke, inner or outer it interprets it as a fill.

iMac 27" Late 2019 Fully Loaded and running Monterey 12.6.1, iMac 27" Late 2013 running Catalina 10.15.7 - Affinity Designer, Photo & Publisher V1 & V2, Adobe, Inkscape, Blender, C4D, Sketchup + more... XP-Pen Artist-22E, - iPad Pro 12.9 B|

Affinity Help - Affinity Desktop Tutorials - Feedback - FAQ - most asked questions

Link to comment
Share on other sites

Ta muchly, Dex. I didn’t see the OP’s edit to the ... er ... OP. 9_9

Alfred spacer.png
Affinity Designer/Photo/Publisher for Windows 1.10 • Windows 10 Home/Pro
Affinity Photo for iPad 1.10 • Designer for iPad 1.10 • iPadOS 15.6.1 (iPad Air 2)

Link to comment
Share on other sites

Ive tried every PDF export including Advanced features checked and all interpret an inner and outer stroke as a fill, so it effectively expands the stroke.
