Several objects on the same layer?


Recommended Posts

You can use Layer layers. They are similar to grouping the items, containers for several 'layers'.

Mac Pro (Late 2013) Mac OS 12.7.6
Affinity Designer 2.5.5 | Affinity Photo 2.5.5 | Affinity Publisher 2.5.5 | Beta versions as they appear.

I have never mastered color management, period, so I cannot help with that.

Link to comment
Share on other sites

It was and, I assume it still is, possible in Illustrator to draw multiple items on a layer and easily move items to other layers. Not a great implementation of layers in Affinity - Version 1. But, oh well, It's just a different way of working to a similar end with a different means. I wonder if this is because of patent issues with Adobe. LOL, I remember when Adobe first introduced layers. It was one of the greatest features ever in my opinion.

Affinity Photo and Design V1. Windows 10 Pro 64-bit. Dell Precision 7710 laptop. Intel Core i7. RAM 32GB. NVIDIA Quadro M4000M.

Link to comment
Share on other sites

2 hours ago, Sven007 said:

I don't remember if this was possible in Illustrator, but is it possible in Designer to create several object on the same layer?

54 minutes ago, henryanthony said:

I assume it still is, possible in Illustrator to draw multiple items on a layer and easily move items to other layers.

It is not quite clear what "item" you have in mind with "draw multiple items" and what with "layer".

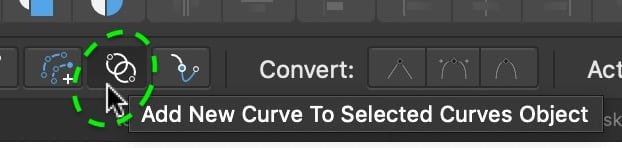

In addition to @Old Bruce's hint about the layer type "Layer" that may contain all sorts of layer types or "items", you can create multiple lines/strokes/curves on one layer if you activate the option in the Context Toolbar:

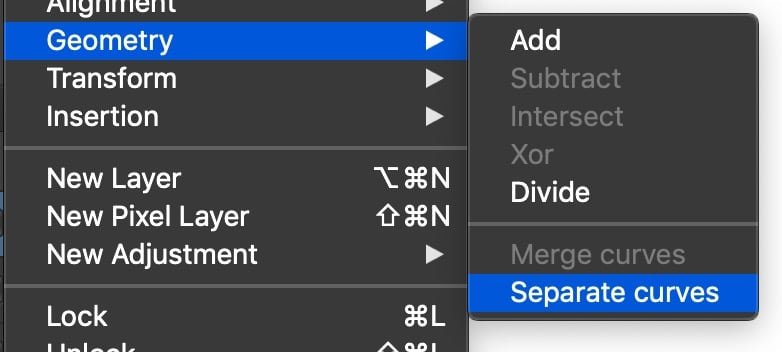

… and you can separate such a "Curves" object into several layers with the menu option Layer -> Geometry -> Separate Curves:

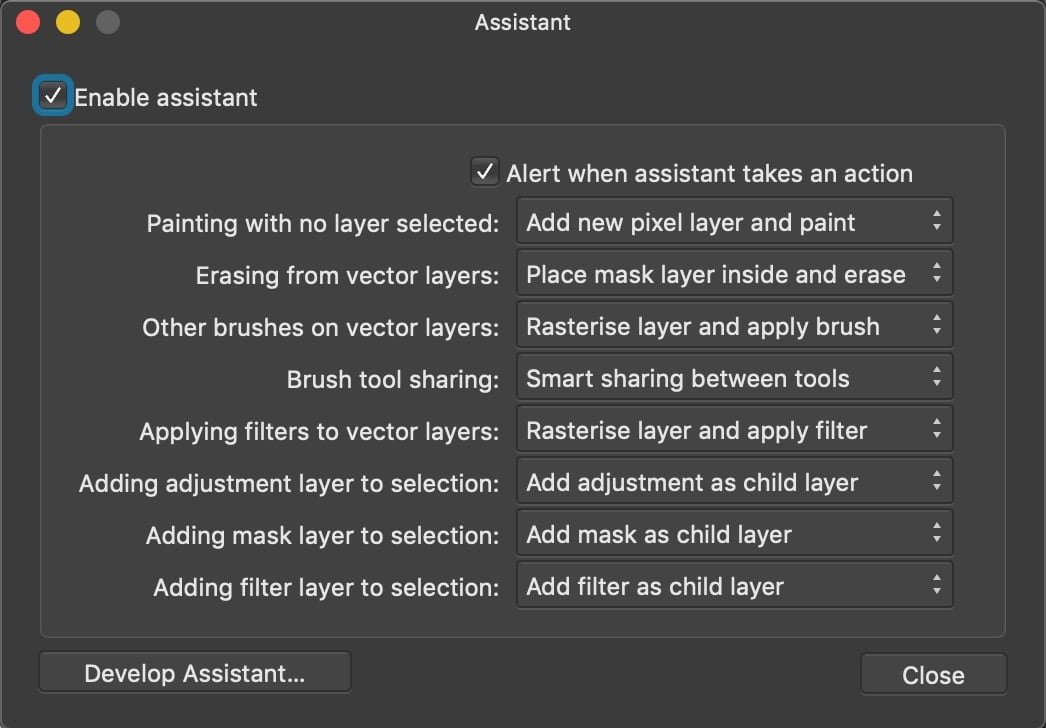

In AD + APh you have an Assistent window to set your preferences for certain actions within the Layers panel when creating new items:


macOS 10.14.6 | MacBookPro Retina 15" | Eizo 27" | Affinity V1

Link to comment
Share on other sites

@thomaso By "items" I mean things that can be created by the program such as lines (paths/curves), polygons, text, etc., and imported images.

Thanks for the enlightenment. Clearly, I refer to my experience with older versions of Illustrator and try to use AD to reproduce that experience. From your comments I see there is a greater depth of organization - and functionality - in AD than that I have come to understand as yet. Fortunately, my limited knowledge has been enough to use AD to my advantage and get the work done that I need.

There is so much more to discover!

Affinity Photo and Design V1. Windows 10 Pro 64-bit. Dell Precision 7710 laptop. Intel Core i7. RAM 32GB. NVIDIA Quadro M4000M.
