Hi

AD

I need a pointy end to a stroked path rather than a rounded or square. Any thoughts.

It works with a corner but not a curve.

I could convert to a corner but that would mean redrawing my beautiful curves.

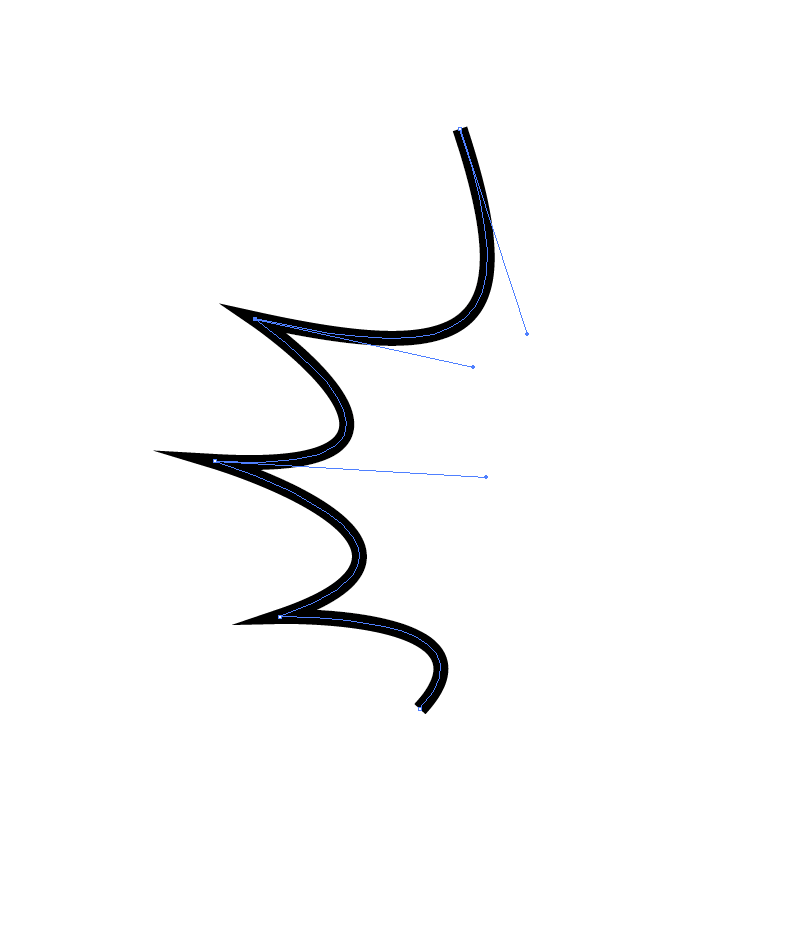

2nd image is what happens in AI as an option.

Screenshot 2020-11-08 at 12.18.34.png

Screen Shot 2020-11-08 at 12.34.12.png

Posted

You could probably do what you want with arrowheads if they were actually drawn at the end of a curve rather than just before the end, as they are now.

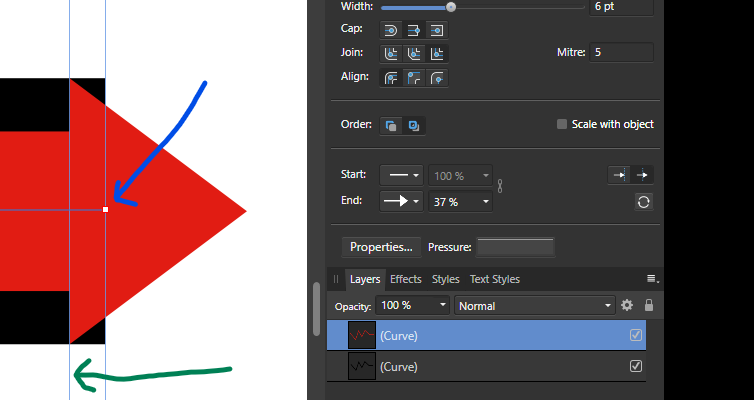

Note my attached image where the blue arrow shows the end of the red and black curves and the green arrow shows where the arrow head is drawn from (not what we see in the icon on the right where the head seems to be really at the end).

As it is I can't think of a way to do what you want without modifying the curve in an unwanted manner.

Screenshot 2020-11-08 124320.png

Posted

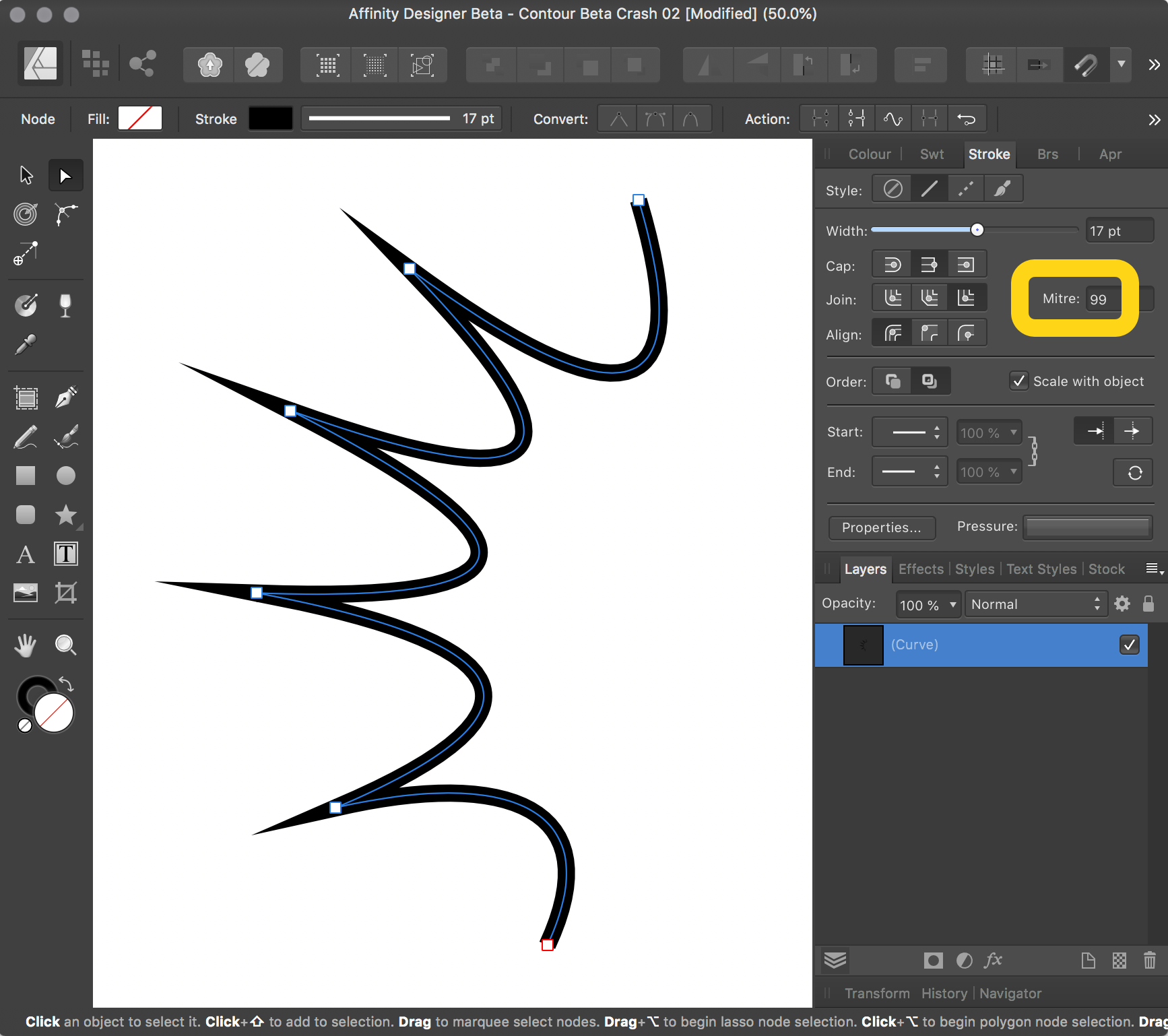

I think you want to play around with the Mitre: values.


Mac Pro (Late 2013) Mac OS 12.7.6
Affinity Designer 2.6.0 | Affinity Photo 2.6.0 | Affinity Publisher 2.6.0 | Beta versions as they appear.

I have never mastered color management, period, so I cannot help with that.

Posted
1 minute ago, Old Bruce said:

I think you want to play around with the Mitre: values.


Thank you - it had to be there somewhere :D
