How can I print or generate a pdf with 100% black


Recommended Posts

Hello,

I'm getting to know publisher and have worked with InDesign so far. How can I print a text 100% black with publisher or export it as a PDF? No matter how I set the font color, in Acrobat I am always told that the font is rasterized in CMYK.

Greetings

Jürgen





Link to comment
Share on other sites

Exporting to PDF should be possible, if you have a CMYK document and the pdf export is set to the same colour space there shouldn't be an issue. I don't have Publisher, but I can get 100%k black into a pdf from Designer no problem. Check your export settings are not switching to rgb.

You cannot print directly to a printer with 100%k - the print data is sent in rgb only. The best you can hope for is that your print driver has a way to force blacks to be "k only".

Link to comment
Share on other sites

4 hours ago, Jiorgos said:

Hello,

I'm getting to know publisher and have worked with InDesign so far. How can I print a text 100% black with publisher or export it as a PDF? No matter how I set the font color, in Acrobat I am always told that the font is rasterized in CMYK.

Greetings

Jürgen





I am guessing you are setting your documents up with RGB colour mode selected, this may be on by default and something you are just not looking at. There is no trick to getting 100% CMYK. Make sure your document colour mode is set to CMYK. In your file make sure the black is 100% K in the CMYK sliders. Export (make sure it is not converting to RGB). I used the PDF for print default, changed nothing else and exported. PDF came out as it should with black being 100% K.






Link to comment
Share on other sites

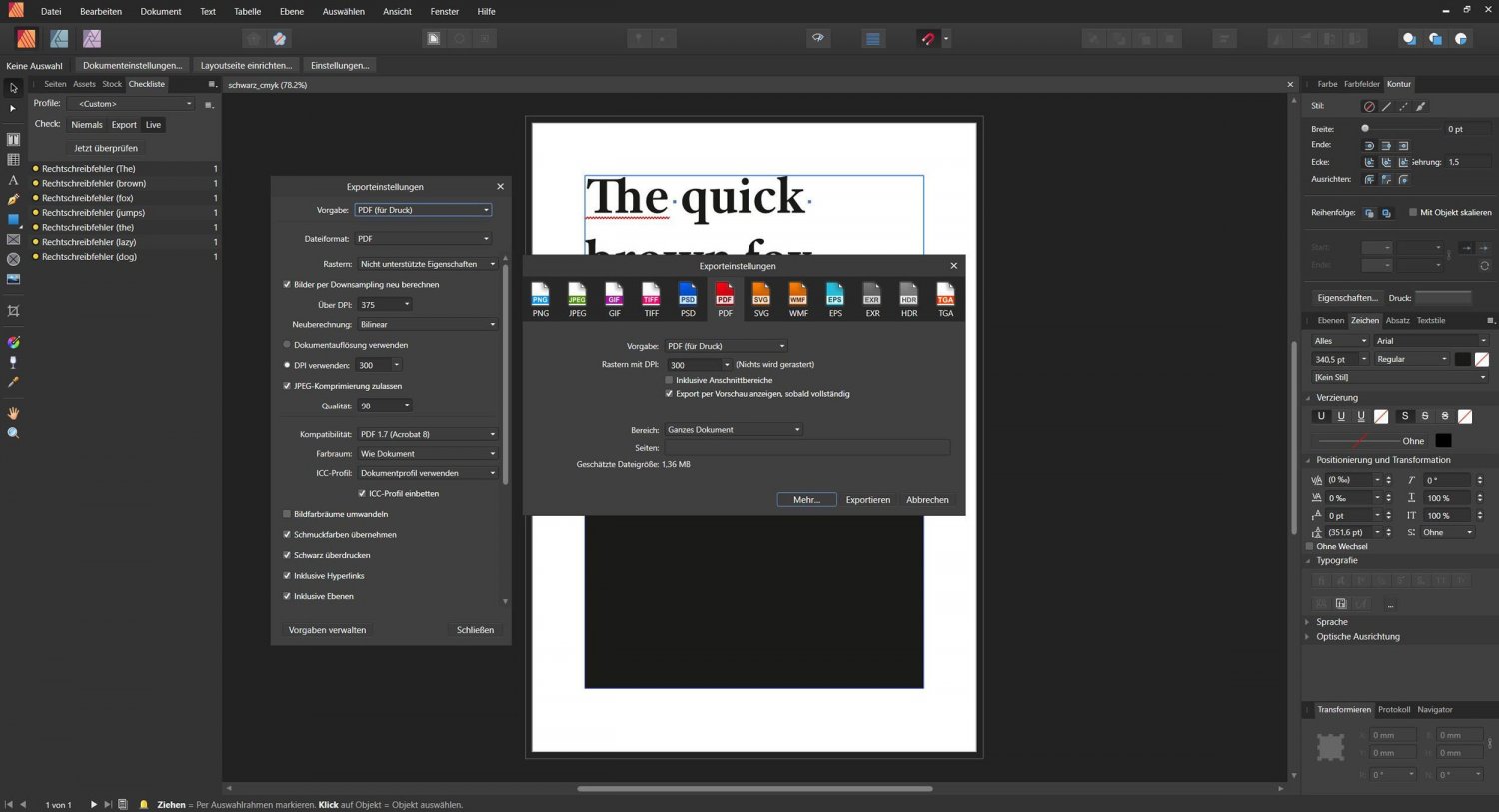

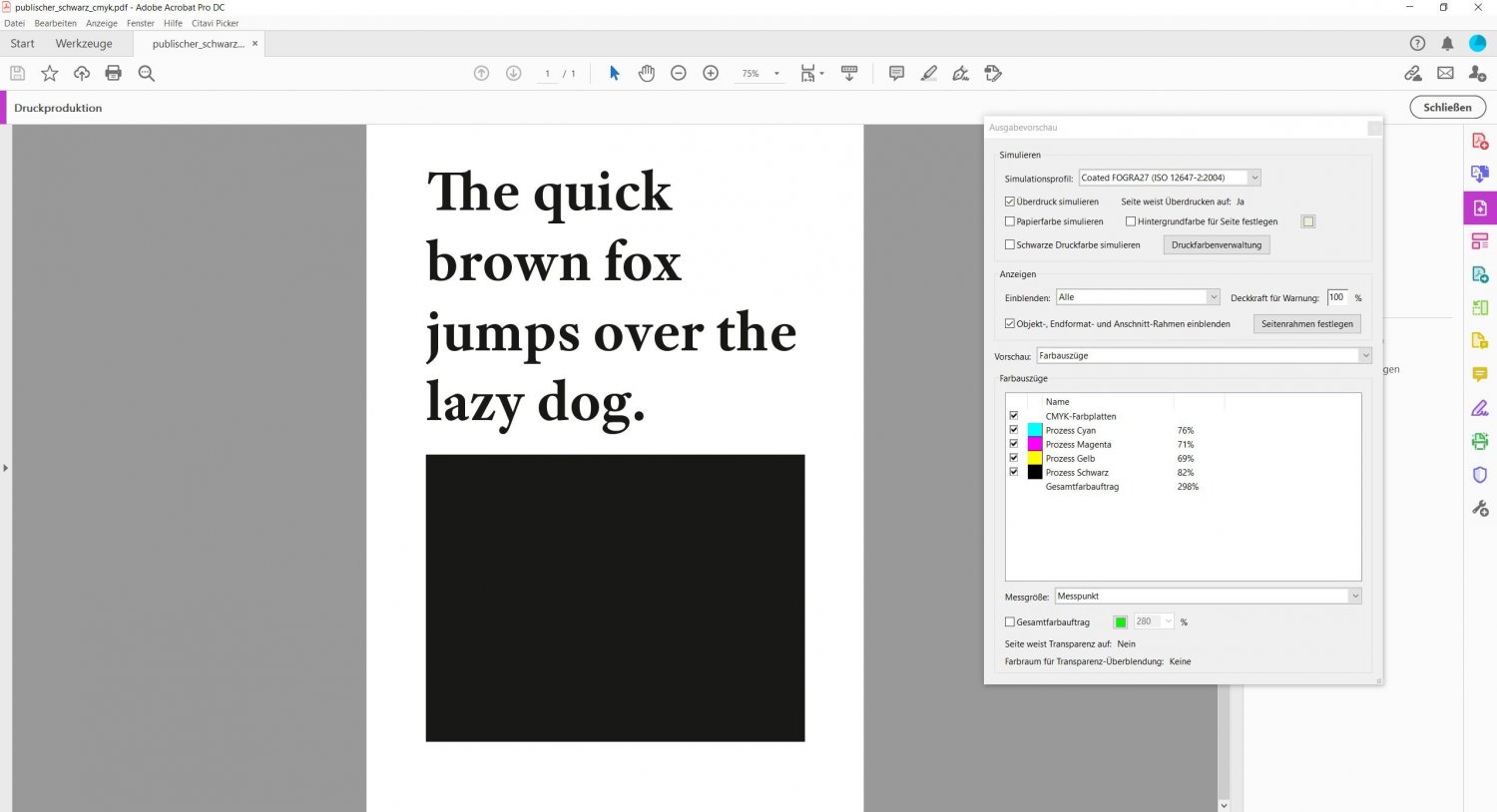

Since I mostly work on books, I basically proceed as described. So I work with a CMYK color profile and export the whole thing as a print PDF. Unfortunately, the result is disappointing, as the screenshot below shows. No 100% black is produced, neither in the color field nor in the writing.


Link to comment
Share on other sites

34 minutes ago, Jiorgos said:

Since I mostly work on books, I basically proceed as described. So I work with a CMYK color profile and export the whole thing as a print PDF. Unfortunately, the result is disappointing, as the screenshot below shows. No 100% black is produced, neither in the color field nor in the writing.

The trick with Affinity is to have an end to end CMYK workflow to retain 100% K so just make sure if your documents colour profile (say iso300 coated v2)  follows every stage, so when creating a PDF prob best to go for PDF/X 1a 2003 or PDF/X 4 and make sure the profile is set to document profile which is the standard then hopefully your 100% k will show correct in Acrobat

The same goes for printing to a Postcript printer or a software RIP if you're printing to a modern inkjet - just make sure the colour profile in your print dialog is the same as the document


Mac Pro Cheese-grater (Early 2009) 2.93 GHz 6-Core Intel Xeon 48 GB 1333 MHz DDR3 ECC Ram, Sapphire Pulse Radeon RX 580 8GB GDDR5, Ugee 19" Graphics Tablet Monitor Triple boot via OCLP 1.2.1 - Mac OS Monterey 12.7.1, Sonoma 14.1.1 and Mojave 10.14.6

Affinity Publisher, Designer and Photo 1.10.5 - 2.2.1

www.bingercreative.co.uk











Link to comment
Share on other sites

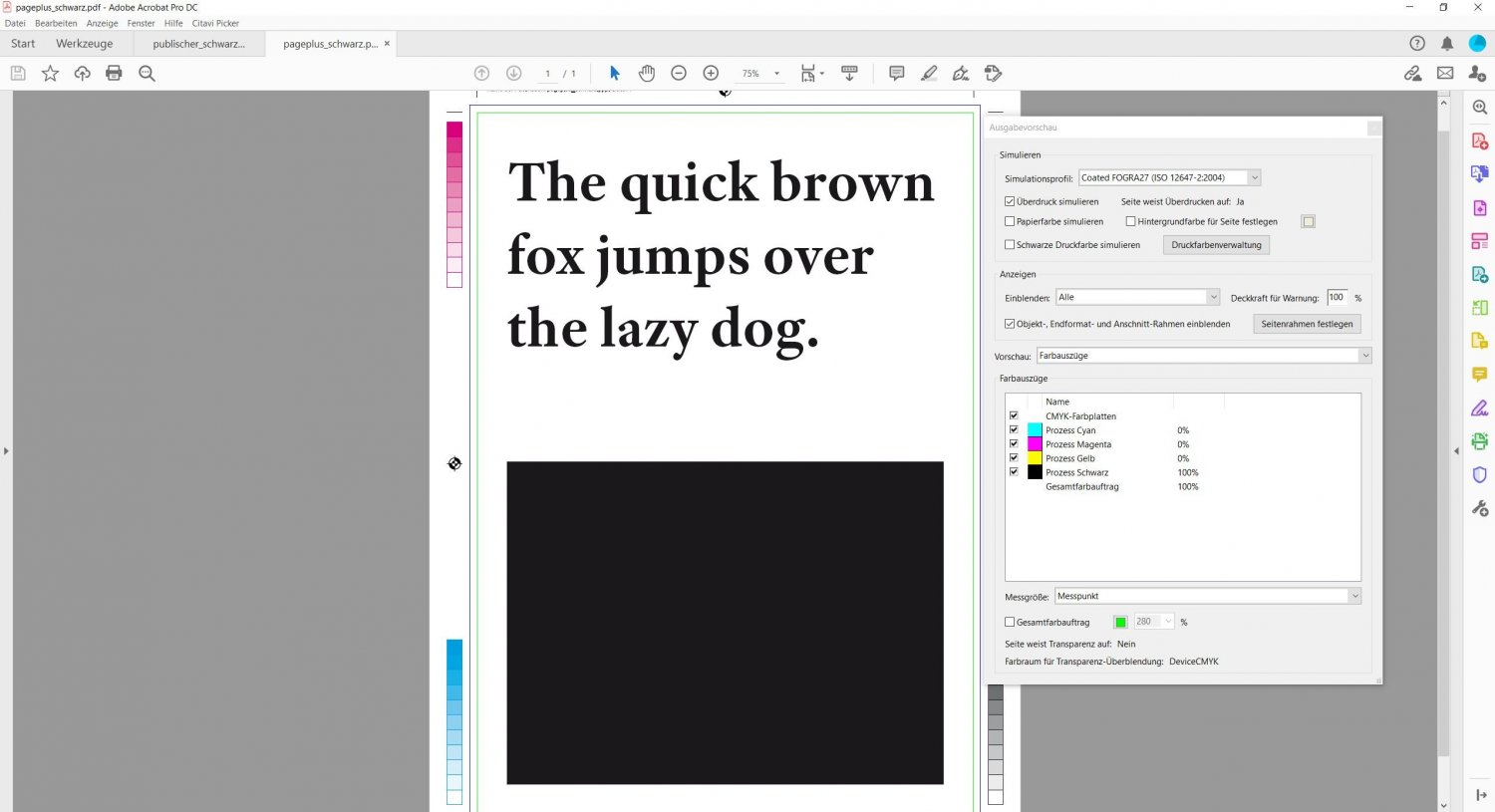

The profile settings for export correspond to those of the document. But it is curious that the correct PDF export with 100% black only works with PDF/X-1a:2003, PDF/X-3:2003 or PDF/X-4. When I use PDF 1.4, 1.5, 1.6 or 1.7 I get the wrong result. This is different with PagePlus, because the correct export also works with PDF 1.4 etc.

Thanks for the helpful response.

Edited by Jiorgos
Link to comment
Share on other sites

1 hour ago, Jiorgos said:

Since I mostly work on books, I basically proceed as described. So I work with a CMYK color profile and export the whole thing as a print PDF. Unfortunately, the result is disappointing, as the screenshot below shows. No 100% black is produced, neither in the color field nor in the writing.

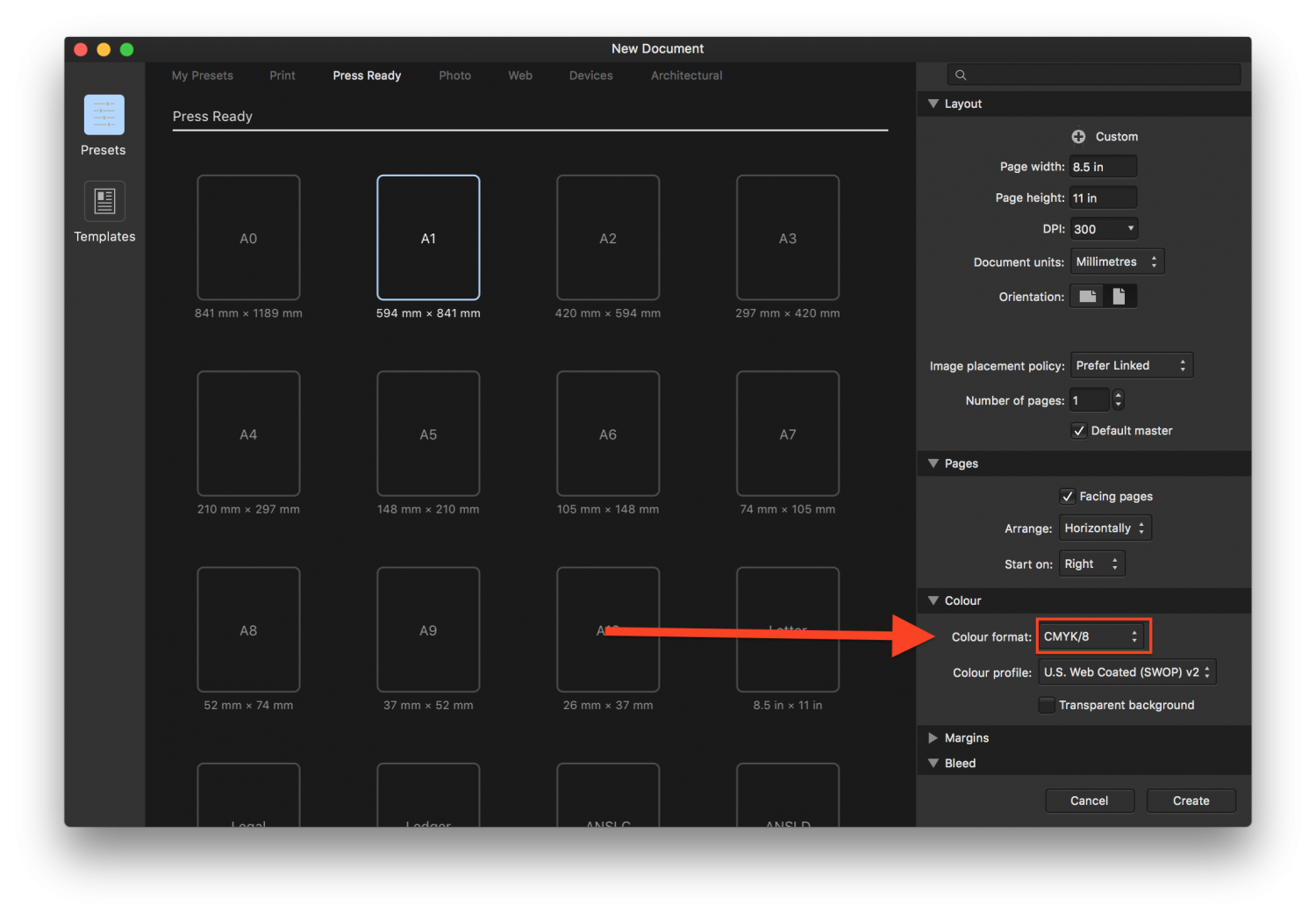

What we are not seeing is your document colour mode setup. If it is set as RGB, which I am imagining it is, you are going to get this mix when viewing in Acrobat and anywhere. Also, Acrobat shows a CMYK value even if it is an RGB image. You can narrow down the colours and say show only what is RGB in the document.



Screen Shot 2020-06-22 at 2.36.52 PM.png

Link to comment
Share on other sites

15 hours ago, Jiorgos said:

No matter how I set the font color,

What ways did you try? There is actually only 1 way to set the font color for this approach: pure 100 K only.
Can you show a screenshot of your selected text + Colours + Swatches + Layers Panel?

macOS 10.14.6 | MacBookPro Retina 15" | Eizo 27" | Affinity V1 only

Link to comment
Share on other sites

7 hours ago, Lagarto said:

Affinity apps do not support sending the printer CMYK data

Yes it does but it's not great - simple pages should be fine and retain all CMYK values - but the trick is to manually select your documents colour profile in your print dialog, if you leave it to auto it sends RGB, even to a PS laser or software RIP,  but for a complex page with layer FX, gradients, it can mess up the CMYK values of a gradient of say a solid Cyan to white so the cyan may have a dot of magenta and yellow whereas other, non-gradient cyans on the page remain solid - Affinity can sometimes pre-rasterise vectors before it hits a Postscript rip so all your nice sharp vectors and fonts look all raggy - best option at the moment is to print from Acrobat

Below are magnified scans of print examples printed to a Xerox Phaser 6180DN which is pretty good at press proofing - the Pub SMG01 colour bar prints great on a page that just contains text and photos, all nice sharp vectors and fonts, but as soon as you add a graphic element to the page with a gradient the print output from Pub loses it's sharpness and looks pre-rasterised, although is still CMYK whereas the solid CMYK gradients loses its colour accuracy on the same page - yet output the same page to PDF/X and print from Acrobat and all elements print as they should


Screenshot 2020-06-21 at 08.20.36.png

Screenshot 2020-06-21 at 08.19.56.png

Screenshot 2020-06-21 at 08.17.45.png

  •


Mac Pro Cheese-grater (Early 2009) 2.93 GHz 6-Core Intel Xeon 48 GB 1333 MHz DDR3 ECC Ram, Sapphire Pulse Radeon RX 580 8GB GDDR5, Ugee 19" Graphics Tablet Monitor Triple boot via OCLP 1.2.1 - Mac OS Monterey 12.7.1, Sonoma 14.1.1 and Mojave 10.14.6

Affinity Publisher, Designer and Photo 1.10.5 - 2.2.1

www.bingercreative.co.uk











Link to comment
Share on other sites

10 hours ago, Jiorgos said:

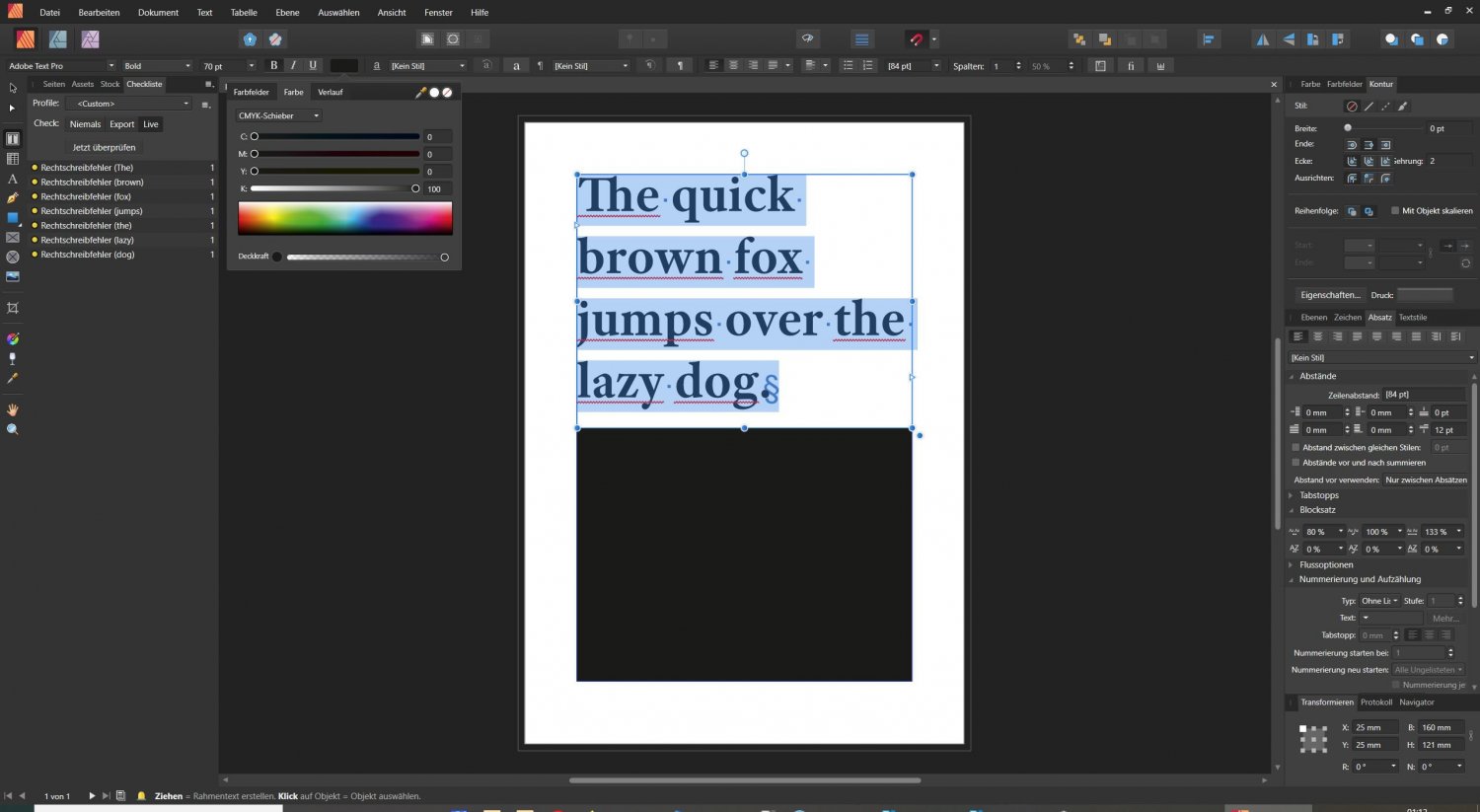

As you know, the font color can be set directly via the toolbar or via the format template.

Ah, yes, you can set 100 K for text at different spots in the UI (I thought you meant different ways to define 100 K).

14 hours ago, Jiorgos said:

If I export the file with PDF/X-1a:2003, PDF/X-3:2003 or PDF/X-4 I get 100% K. When I use PDF 1.4, 1.5, 1.6 or 1.7 black is rasterized in CMYK .

In my experience it used to be impossible for PDF if exported in other versions than PDF/X but got improved in an app update.

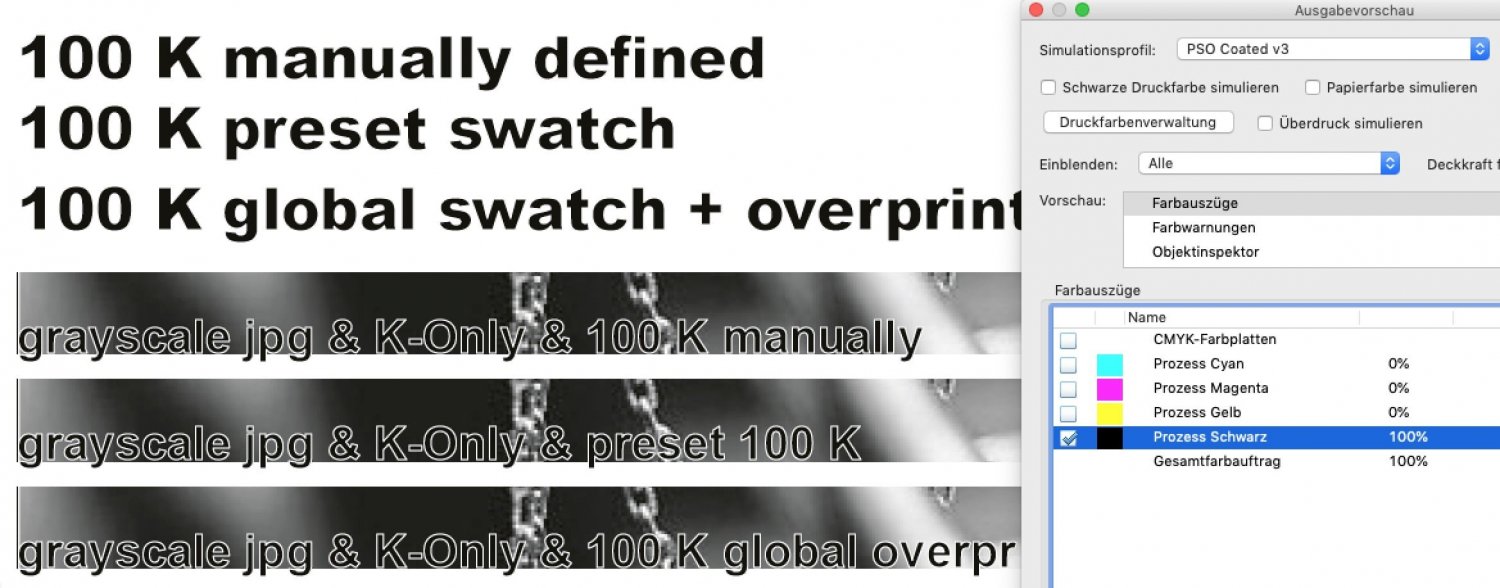

For instance this PDF was exported with the default preset "for print", exported as PDF v.1.7., here all text results in 100 K:

v183 text as 100 K.pdf


macOS 10.14.6 | MacBookPro Retina 15" | Eizo 27" | Affinity V1 only

Link to comment
Share on other sites

2 minutes ago, Lagarto said:

I have not noticed any improvement here. As long as profile is embedded and the "wrong" profile is used in the viewer, you'll get incorrect readings.

Yes, that behavior was not improved yet. I referred to a different issue: in earlier APub versions a pure black always got exported as CMYK, both for text and grayscale images. Then, as far I remember, the additional 100 K 'button' in the Swatches Panel + the additional "K Only" button in the Toolbar were implemented which enabled at least with the initial PDF profile as viewing profile text remained as 100 K.

I agree, the issue you mention is quite disturbing, in particular for formerly users of InDesign, where you don't need to have to export with an "output intent" (PDF / X) but also get the resulting PDF appear correct for other exported PDF versions. (as if ID would, different to Affinity, make use of a specific spot inside the PDF to place an additional info but not being the "output intent" explicitly)

macOS 10.14.6 | MacBookPro Retina 15" | Eizo 27" | Affinity V1 only

Link to comment
Share on other sites

Really have no idea how you are not getting 100% K in a PDF file. I set up this file in 2 mins and exported to PDF. K is 100%. No CMYK makeup.

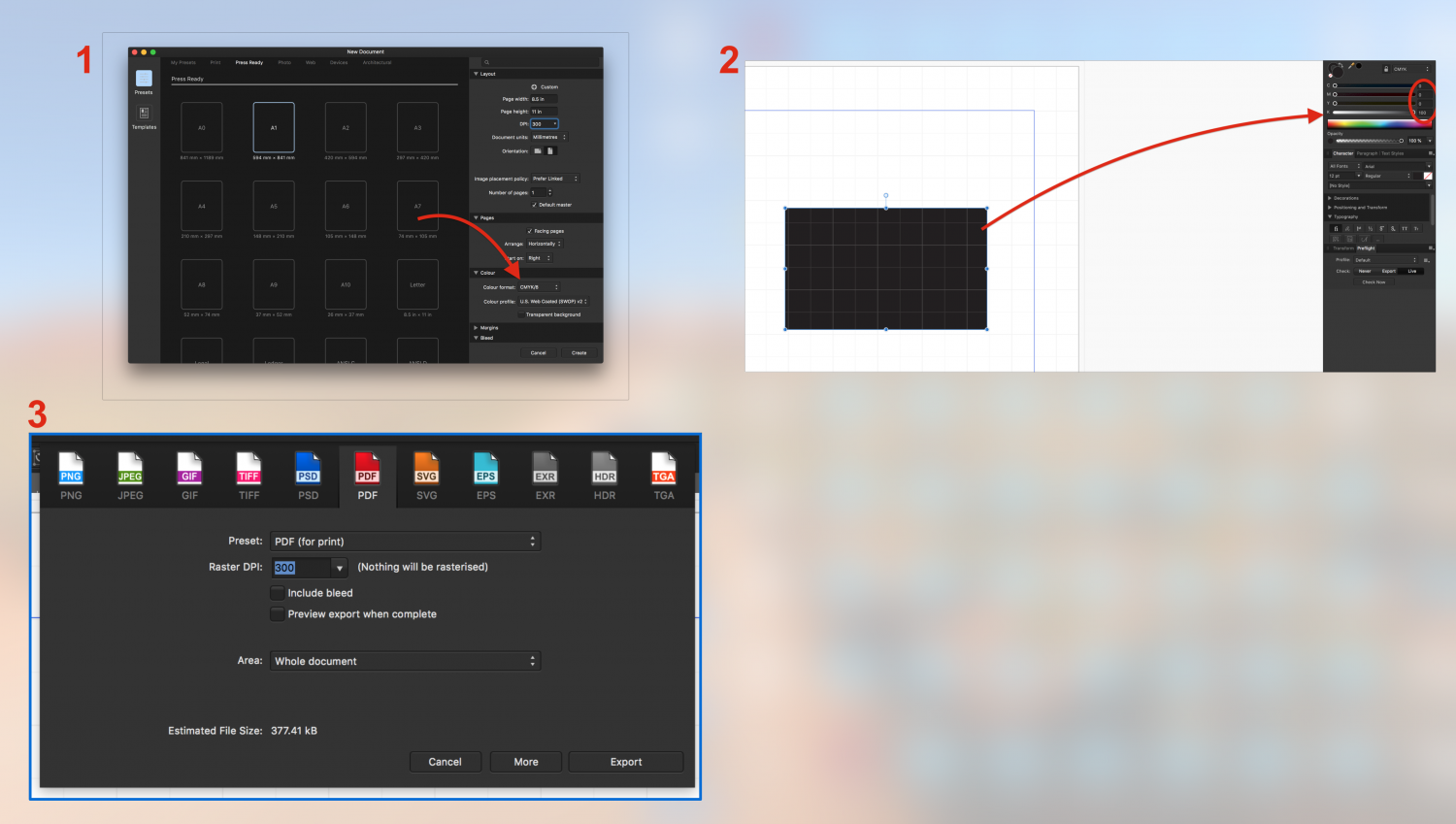

Again as I posted before I made a new document with CMYK colour mode. Typed my text, made my black box. Set to 100% K in the slider. Export to PDF with "PDF for print" default option. I did not change anything in the more section. PDF is 100% K. Am I missing something here?

100 K.pdf 100 K.zip

Link to comment
Share on other sites
