Skewed Vector objects redraw bug Designer 1.7.0.9

Recommended Posts

With the Stroke width set high enough (16 points in this case) and the object Skewed I get an obvious redraw graphics glitch. But only with Round Cap or Butt Cap not with Square Cap.
Further to this is the odd fact that there is no problem with any end cap used so long as Align Outside is used, this however causes a different glitch.
Rotation has no problems just Skew.
bug 02.afdesign

See what happens with the different end cap choices and inside outside centre alignment.

1087889120_ScreenShot2019-04-15at10_02_24AM.thumb.png.7c33cd39d29d8c08b9ff16c3f9b0fc97.pngbug 02.afdesign


MacBook Pro (13-inch, Mid 2012) Mac OS 10.12.6 || Mac Pro (Late 2013) Mac OS 10.14.5

Affinity Designer 1.7.3 | Affinity Photo 1.7.3 | Affinity Publisher 1.7.3 | Affinity Designer Beta 1.7.x.x | Affinity Photo Beta 1.7.x.x | Affinity Publisher Beta 1.7.x.x

Share this post


Link to post
Share on other sites

Hi Old Bruce,

Did you attach the wrong screenshot? Are you referring to the artefacts that are left when you keep moving the shear back and forwards?

Share this post


Link to post
Share on other sites
45 minutes ago, Sean P said:

Hi Old Bruce,

Did you attach the wrong screenshot? Are you referring to the artefacts that are left when you keep moving the shear back and forwards?

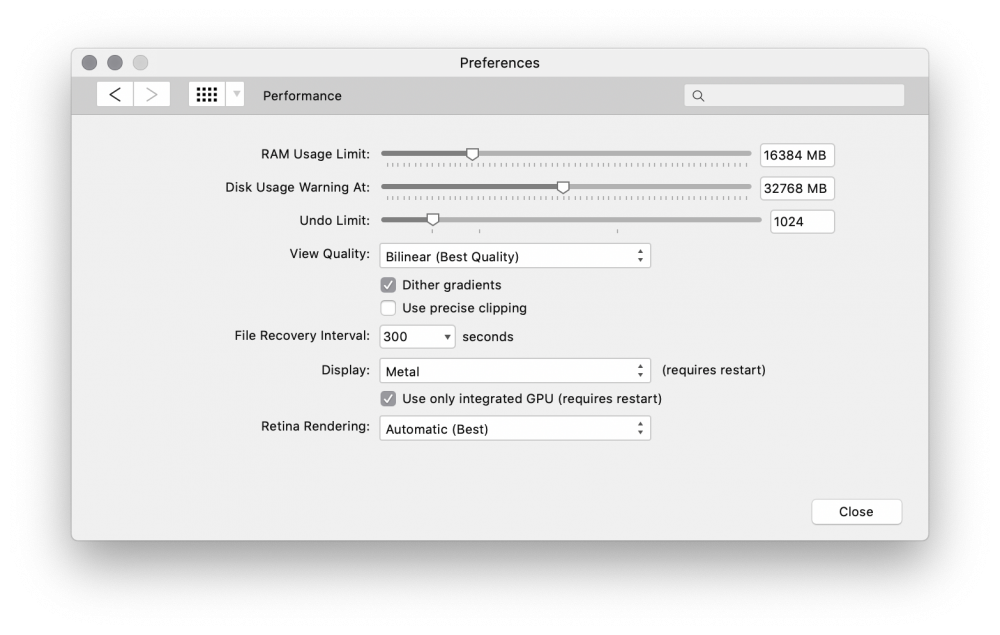

The fact that the artifacts are there is one thing but they are gone when the Square Cap is chosen. The screen shot is to show what my performance prefs are set to.


MacBook Pro (13-inch, Mid 2012) Mac OS 10.12.6 || Mac Pro (Late 2013) Mac OS 10.14.5

Affinity Designer 1.7.3 | Affinity Photo 1.7.3 | Affinity Publisher 1.7.3 | Affinity Designer Beta 1.7.x.x | Affinity Photo Beta 1.7.x.x | Affinity Publisher Beta 1.7.x.x
