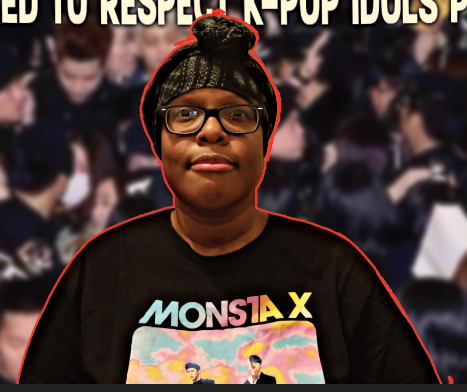

Copie Posted March 27 Share Posted March 27 Fans Need To Respect K-Pop Idols Privacy.ytn.afphotoHere is the source file. Hello, I'm Michelle. I'm having issues with Affinity Photo. So I'm having issues with Layer Effects. When I click; on Layer Effects(FX) panel and click on one of the effects, for example, 'Outline' and change the settings like 'Radius.' Blocks would show up around a cutout image of me. The same goes for the other Layer Effects as well. I have attached a screenshot; so you know what I mean. Quote Link to comment Share on other sites More sharing options...
v_kyr Posted March 27 Share Posted March 27 Are you still running MacOS Monterey and APh v.1.10.6? Quote ☛ Affinity Designer 1.10.6 ◆ Affinity Photo 1.10.6 ◆ Affinity Publisher 1.10.6 ◆ OSX El Capitan☛ Affinity V2 apps still not installed and thus momentary not in use under MacOS Link to comment Share on other sites More sharing options...
Copie Posted March 28 Author Share Posted March 28 @v_kyr No, I don't have MacOS Monterey anymore. I have MacOS Ventura (Version 13.2.1). Quote Link to comment Share on other sites More sharing options...
v_kyr Posted March 28 Share Posted March 28 8 hours ago, Copie said: No, I don't have MacOS Monterey anymore. I have MacOS Ventura (Version 13.2.1). Then you have to go through the same route as you've done before with Monterey here for Ventura, try to adjust the APh performance settings under preferences in terms of "metal" computing etc. Try to disable "Hardware Acceleration: Metal" and setup instead "OpenGL" restart APh and compare if it makes any difference here in contrast to "Metal". Quote ☛ Affinity Designer 1.10.6 ◆ Affinity Photo 1.10.6 ◆ Affinity Publisher 1.10.6 ◆ OSX El Capitan☛ Affinity V2 apps still not installed and thus momentary not in use under MacOS Link to comment Share on other sites More sharing options...
Pšenda Posted March 28 Share Posted March 28 15 hours ago, Copie said: Blocks would show up around a cutout image of me. And aren't these the remains of an inconsistently deleted image background? Some parts look like relics from background erasure. Try inserting a Fill layer (white) under the image, and provide a screenshot. Quote Affinity Store (MSI/EXE): Affinity Suite (ADe, APh, APu) 2.1.1. Dell OptiPlex 7060, i5-8500 3.00 GHz, 16 GB, Intel UHD Graphics 630, Dell P2417H 1920 x 1080, Windows 11 Pro, Version 22H2, Build 22621.2215. Dell Latitude E5570, i5-6440HQ 2.60 GHz, 8 GB, Intel HD Graphics 530, 1920 x 1080, Windows 11 Pro, Version 22H2, Build 22621.2215. Intel NUC5PGYH, Pentium N3700 2.40 GHz, 8 GB, Intel HD Graphics, EIZO EV2456 1920 x 1200, Windows 10 Pro, Version 21H1, Build 19043.2130. Link to comment Share on other sites More sharing options...
Copie Posted March 29 Author Share Posted March 29 On 3/28/2023 at 5:25 AM, v_kyr said: Then you have to go through the same route as you've done before with Monterey here for Ventura, try to adjust the APh performance settings under preferences in terms of "metal" computing etc. Try to disable "Hardware Acceleration: Metal" and setup instead "OpenGL" restart APh and compare if it makes any difference here in contrast to "Metal". I disabled 'Metal' and changed to 'OpenGL.' And I'm still having the same issue. I have attached a screenshot. Quote Link to comment Share on other sites More sharing options...

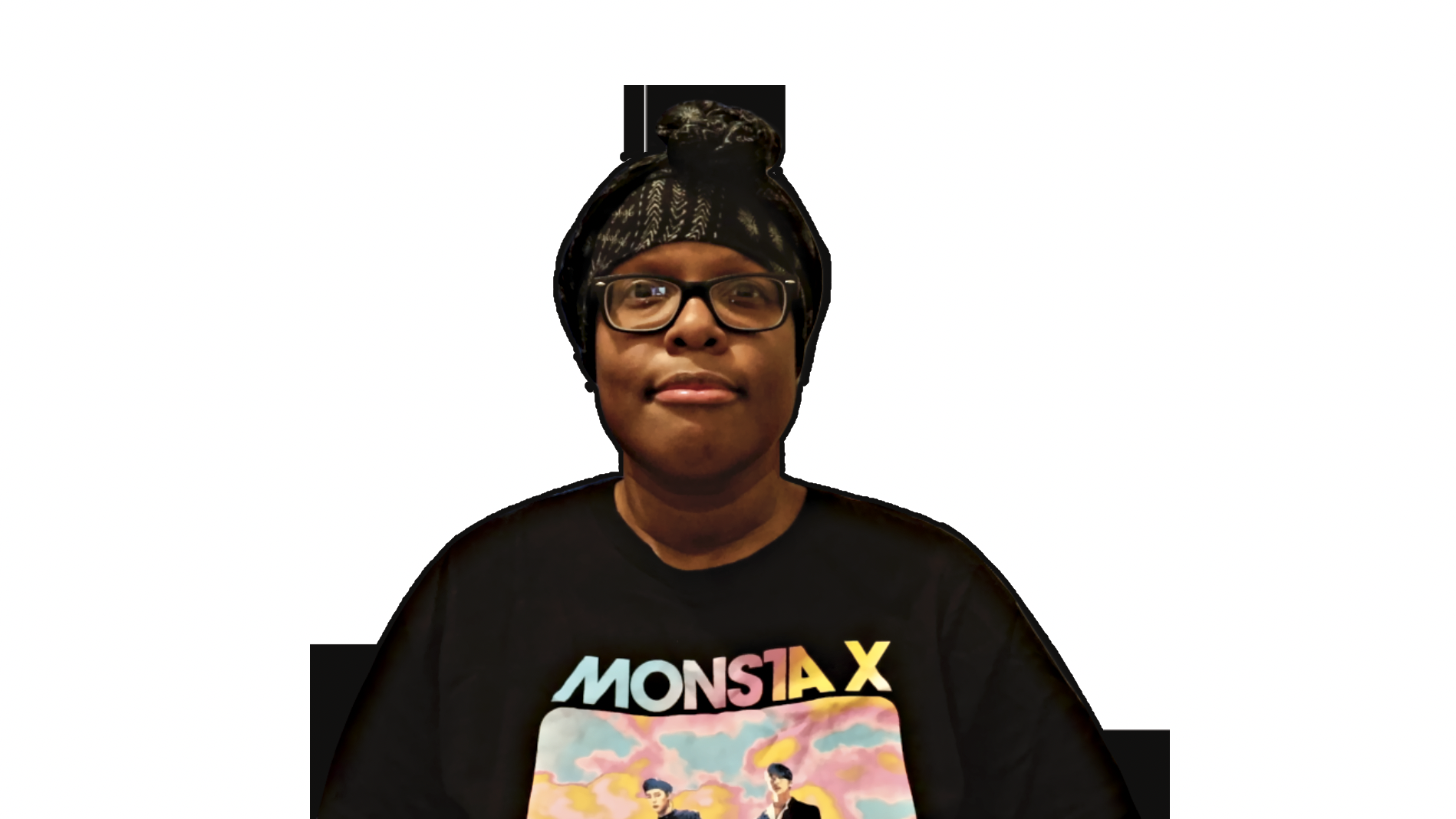

Copie Posted March 29 Author Share Posted March 29 On 3/28/2023 at 6:59 AM, Pšenda said: And aren't these the remains of an inconsistently deleted image background? Some parts look like relics from background erasure. Try inserting a Fill layer (white) under the image, and provide a screenshot. Here is a screenshot. Is this what you want? Quote Link to comment Share on other sites More sharing options...
v_kyr Posted March 29 Share Posted March 29 Make and show some APh usage screenshots, which also show your fx panel settings and the layers panel contents (if possible). Or make a little screenrecording which shows the whole behavior here as an MP4 and post it here. See ... How to record your screen on the Mac ... or use some other dedicated third party screenrecording software. Quote ☛ Affinity Designer 1.10.6 ◆ Affinity Photo 1.10.6 ◆ Affinity Publisher 1.10.6 ◆ OSX El Capitan☛ Affinity V2 apps still not installed and thus momentary not in use under MacOS Link to comment Share on other sites More sharing options...
Pšenda Posted March 29 Share Posted March 29 ... or source file for checking. Quote Affinity Store (MSI/EXE): Affinity Suite (ADe, APh, APu) 2.1.1. Dell OptiPlex 7060, i5-8500 3.00 GHz, 16 GB, Intel UHD Graphics 630, Dell P2417H 1920 x 1080, Windows 11 Pro, Version 22H2, Build 22621.2215. Dell Latitude E5570, i5-6440HQ 2.60 GHz, 8 GB, Intel HD Graphics 530, 1920 x 1080, Windows 11 Pro, Version 22H2, Build 22621.2215. Intel NUC5PGYH, Pentium N3700 2.40 GHz, 8 GB, Intel HD Graphics, EIZO EV2456 1920 x 1200, Windows 10 Pro, Version 21H1, Build 19043.2130. Link to comment Share on other sites More sharing options...
Pšenda Posted March 29 Share Posted March 29 1 hour ago, Copie said: Here is a screenshot. Is this what you want? This is source image with or without fx? Quote Affinity Store (MSI/EXE): Affinity Suite (ADe, APh, APu) 2.1.1. Dell OptiPlex 7060, i5-8500 3.00 GHz, 16 GB, Intel UHD Graphics 630, Dell P2417H 1920 x 1080, Windows 11 Pro, Version 22H2, Build 22621.2215. Dell Latitude E5570, i5-6440HQ 2.60 GHz, 8 GB, Intel HD Graphics 530, 1920 x 1080, Windows 11 Pro, Version 22H2, Build 22621.2215. Intel NUC5PGYH, Pentium N3700 2.40 GHz, 8 GB, Intel HD Graphics, EIZO EV2456 1920 x 1200, Windows 10 Pro, Version 21H1, Build 19043.2130. Link to comment Share on other sites More sharing options...
Copie Posted March 29 Author Share Posted March 29 35 minutes ago, Pšenda said: This is source image with or without fx? The source image is with FX. So you want the file of the project?? Quote Link to comment Share on other sites More sharing options...
Copie Posted March 29 Author Share Posted March 29 1 hour ago, v_kyr said: Make and show some APh usage screenshots, which also show your fx panel settings and the layers panel contents (if possible). Or make a little screenrecording which shows the whole behavior here as an MP4 and post it here. See ... How to record your screen on the Mac ... or use some other dedicated third party screenrecording software. Ok, I will try this and get back to you. Quote Link to comment Share on other sites More sharing options...
Pšenda Posted March 29 Share Posted March 29 1 hour ago, Copie said: The source image is with FX. It is important to see the image before the fx application, which will only highlight any errors in the erased background. It is not yet clear whether the problem is in the display (HW Acceleration) or in the image and its incorrectly/incompletely erased background. A source file would be helpful for this, so that it can be tested and verified by someone else. Quote Affinity Store (MSI/EXE): Affinity Suite (ADe, APh, APu) 2.1.1. Dell OptiPlex 7060, i5-8500 3.00 GHz, 16 GB, Intel UHD Graphics 630, Dell P2417H 1920 x 1080, Windows 11 Pro, Version 22H2, Build 22621.2215. Dell Latitude E5570, i5-6440HQ 2.60 GHz, 8 GB, Intel HD Graphics 530, 1920 x 1080, Windows 11 Pro, Version 22H2, Build 22621.2215. Intel NUC5PGYH, Pentium N3700 2.40 GHz, 8 GB, Intel HD Graphics, EIZO EV2456 1920 x 1200, Windows 10 Pro, Version 21H1, Build 19043.2130. Link to comment Share on other sites More sharing options...
carl123 Posted March 30 Share Posted March 30 6 hours ago, Copie said: So you want the file of the project?? Yes, please upload the Affinity Photo document Quote Link to comment Share on other sites More sharing options...
Copie Posted March 30 Author Share Posted March 30 5 hours ago, Pšenda said: It is important to see the image before the fx application, which will only highlight any errors in the erased background. It is not yet clear whether the problem is in the display (HW Acceleration) or in the image and its incorrectly/incompletely erased background. A source file would be helpful for this, so that it can be tested and verified by someone else. Fans Need To Respect K-Pop Idols Privacy.ytn.afphoto Here is the source file. I hope this is what you are asking for. If you are not asking for this file. Can you be more specific? Quote Link to comment Share on other sites More sharing options...
Copie Posted March 30 Author Share Posted March 30 20 minutes ago, carl123 said: Yes, please upload the Affinity Photo document I have uploaded the file to my post. Just so you know. Quote Link to comment Share on other sites More sharing options...
carl123 Posted March 30 Share Posted March 30 Your problem appears to be due to the Noise Reduction filter attached to the image of you (see below) Activating that filter, in the Layers panel, and selecting Merge resolves the issue (not shown below) Note: This bug appears fixed in Version 2 Copie 1 Quote Link to comment Share on other sites More sharing options...

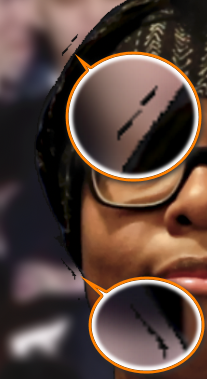

Pšenda Posted March 30 Share Posted March 30 (edited) 3 hours ago, carl123 said: Note: This bug appears fixed in Version 2 Yes, it looks better in V2. But still there are certain inaccuracies - artifacts after inconsistent background deletion. Edit: your image background. Edited March 30 by Pšenda Copie 1 Quote Affinity Store (MSI/EXE): Affinity Suite (ADe, APh, APu) 2.1.1. Dell OptiPlex 7060, i5-8500 3.00 GHz, 16 GB, Intel UHD Graphics 630, Dell P2417H 1920 x 1080, Windows 11 Pro, Version 22H2, Build 22621.2215. Dell Latitude E5570, i5-6440HQ 2.60 GHz, 8 GB, Intel HD Graphics 530, 1920 x 1080, Windows 11 Pro, Version 22H2, Build 22621.2215. Intel NUC5PGYH, Pentium N3700 2.40 GHz, 8 GB, Intel HD Graphics, EIZO EV2456 1920 x 1200, Windows 10 Pro, Version 21H1, Build 19043.2130. Link to comment Share on other sites More sharing options...
Copie Posted March 30 Author Share Posted March 30 13 hours ago, carl123 said: Your problem appears to be due to the Noise Reduction filter attached to the image of you (see below) Activating that filter, in the Layers panel, and selecting Merge resolves the issue (not shown below) Note: This bug appears fixed in Version 2 I have tried this method and it worked. Thanks for the help. Quote Link to comment Share on other sites More sharing options...
Copie Posted March 30 Author Share Posted March 30 10 hours ago, Pšenda said: Yes, it looks better in V2. But still there are certain inaccuracies - artifacts after inconsistent background deletion. Edit: your image background. I have tried this method and it worked. I also fixed or erase the artifacts. Thanks for the help. Quote Link to comment Share on other sites More sharing options...
