Wrong sizes - Copy - New From Clipboard

Recommended Posts

Make the file A4 - later make the second object and copy to New Document for plotter cutting.

Make like that - A4 new document - make the countour cut - COPY TO CLIPBOARD and Make New From Clipboard - sizes its from a.....

Every its in mm :(. Whats happend.

Zrzut ekranu 2021-05-11 o 15.36.01.png

Zrzut ekranu 2021-05-11 o 15.35.51.png

Zrzut ekranu 2021-05-11 o 15.35.45.png

Affinity Suite PDP; macOS Catalina - MacBook Pro (13-inch, 2017)
Affinity Photo
& Affinity Designer for iPad; iPad Pro 2 gen. 64 GB; Apple Pencil; iPadOS 13


Link to comment
Share on other sites

I'm using Affinity Designer 1.9.3 which is the current version at this time. I'm using MacOS 11.2.3.


I have a second monitor.

I'm pretty new to Affinity Designer, but not new to vector software. Perhaps I am overlooking something about the way Affinity Designer works.

My problem is that I cannot get "New From Clipboard" to work the way that I expect.

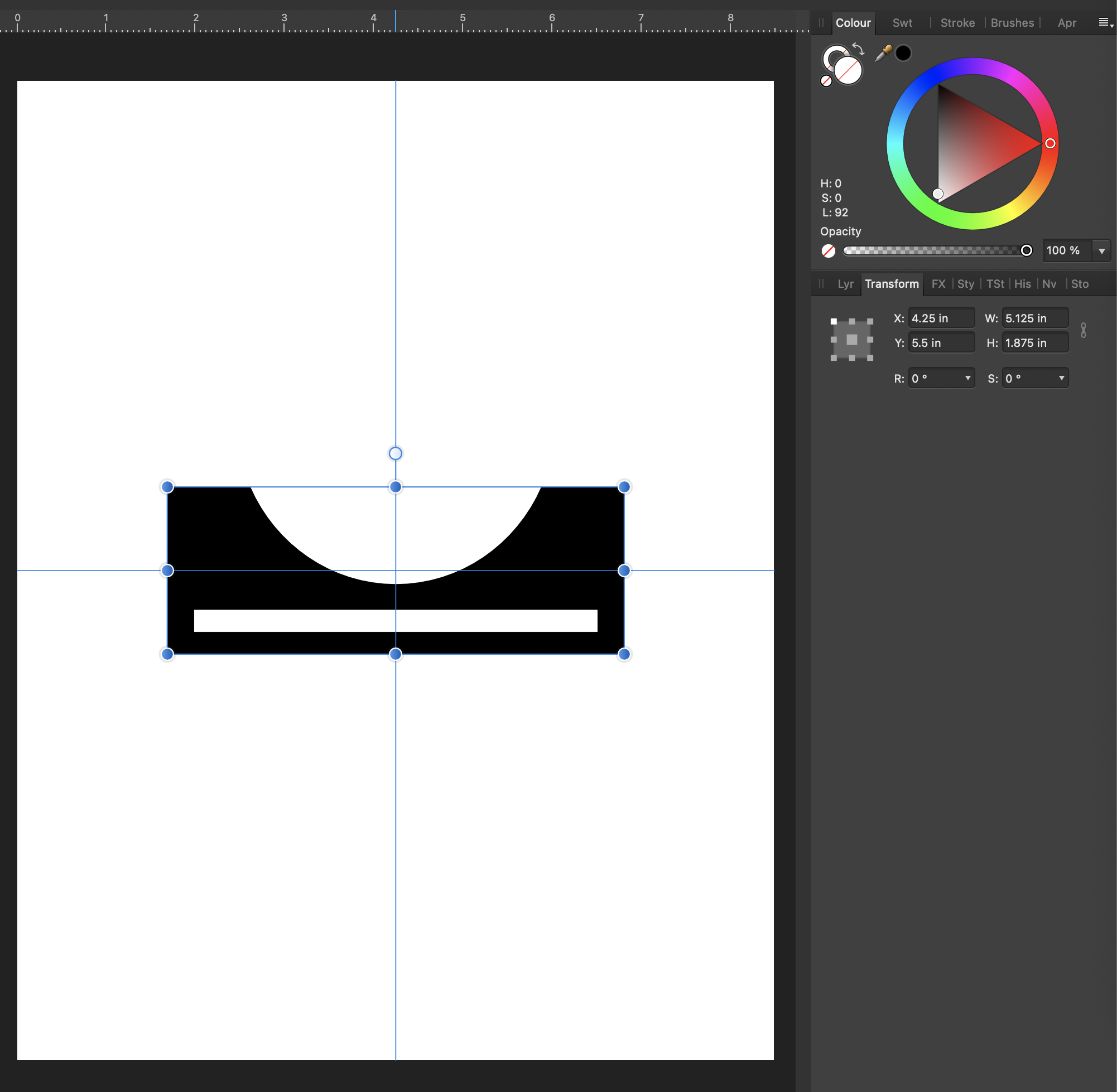

In this screen capture you can see my original drawing. I have the drawing selected and you can see that it is 5.125" wide and 1.875" tall. With everything in that drawing selected I type command-C to copy the drawing.



In the File menu I select "New From Clipboard." You can see that the new document is made up of only the drawing I copied. That is exactly what I hoped for. I have the drawing selected in the screen capture and you can see that the Transform Panel Lists the size as 1537.5 px wide by 562.5 px high. That is not at all what I wanted. I want to be able to move the file to a cutting device at exactly the size that I had in the original drawing. Why is it suddenly in pixels instead of inches?

02_New From Clipboard.png


The next screen capture shows what Document Setup shows for the New From Clipboard document.

03_New From Clipboard Document Setup_A.png


The next screen capture shows that when I change the Document Units to Inches, the Dimensions change to something else, but not what I want.

04_New From Clipboard Document Setup_B.png

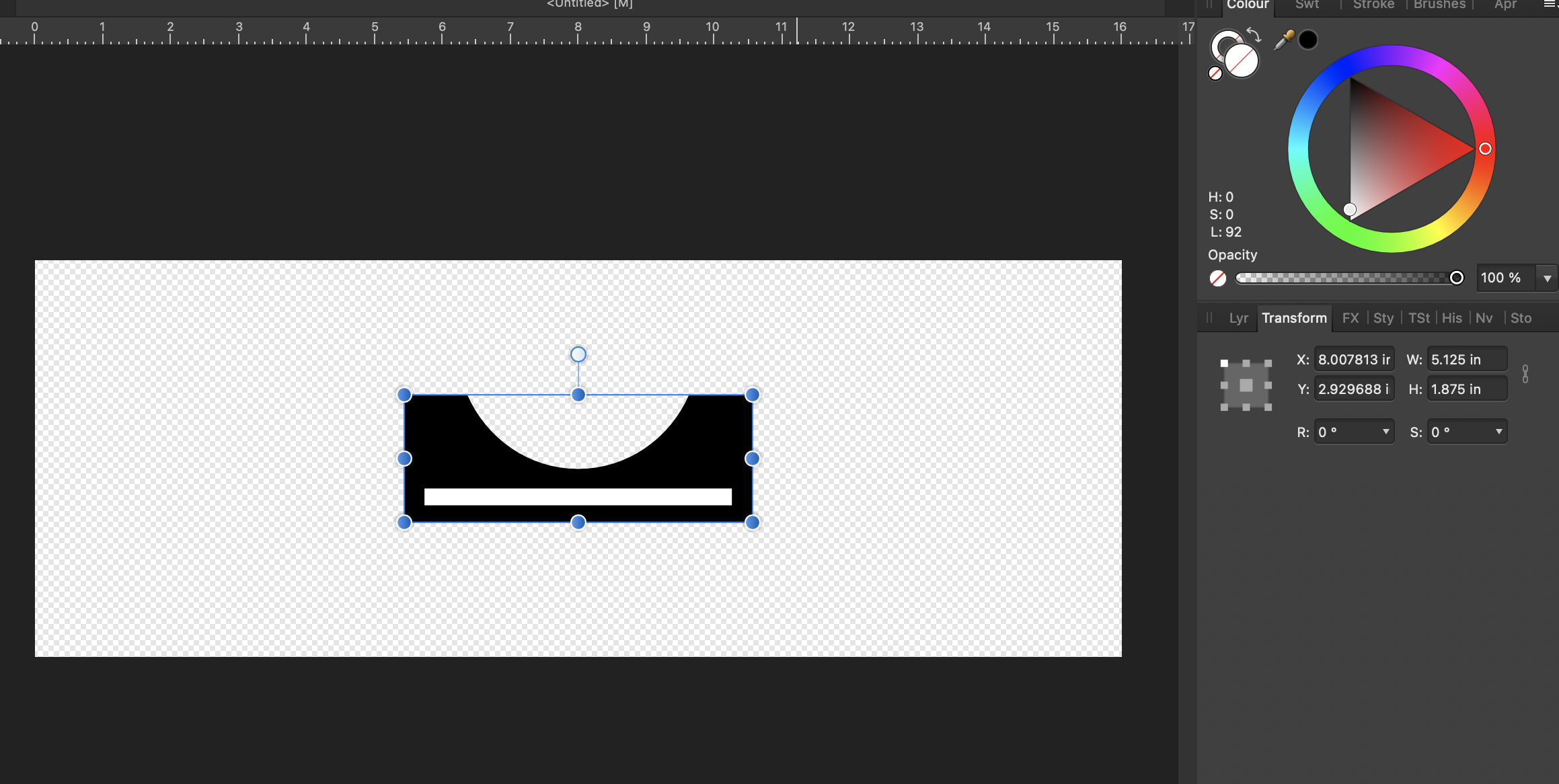

If I change the Document Units to Inches, and the DPI from 96 to 300, suddenly the drawing is the correct size, except that there is now extra space around the drawing. What I was hoping for was a way to replicate InkScape's "Resize page to drawing or selection." I want to be able to send my file to the cutting device with no extra space around the drawing.

05_New From Clipboard After DPI set to 300.png



I get similar results with whatever file I use. It is not a problem unique to this drawing.

Thanks for any help you can give me with this.


Link to comment
Share on other sites

Hi @whit Welcome to the Affinity forums! I think the issue you are seeing with the additional space is a side-effect of the original issue. Once Copy from Clipboard is correct there will not be any need to resize. I am adding this post to the original bug so the development team will see these comments.

Link to comment
Share on other sites

  • 3 weeks later...
On 5/17/2021 at 10:33 AM, whit said:

If I change the Document Units to Inches, and the DPI from 96 to 300, suddenly the drawing is the correct size, except that there is now extra space around the drawing.

Once you've initiated New from Clipboard, and you have your file showing as 1537.5 px x 562.5 px, change the document resolution first, i.e. change the resolution for the file from 96dpi to 300dpi whilst the document is still set in px and then change the document units to inches and it will do want you want it to.

Affinity Designer | Affinity Photo | Affinity Publisher
Affinity Designer 1.7.3 | Affinity Photo 1.7.3 | Affinity Publisher 1.10.8
MacBook Pro 16GB, macOS Monterey 12.6.8

Link to comment
Share on other sites
