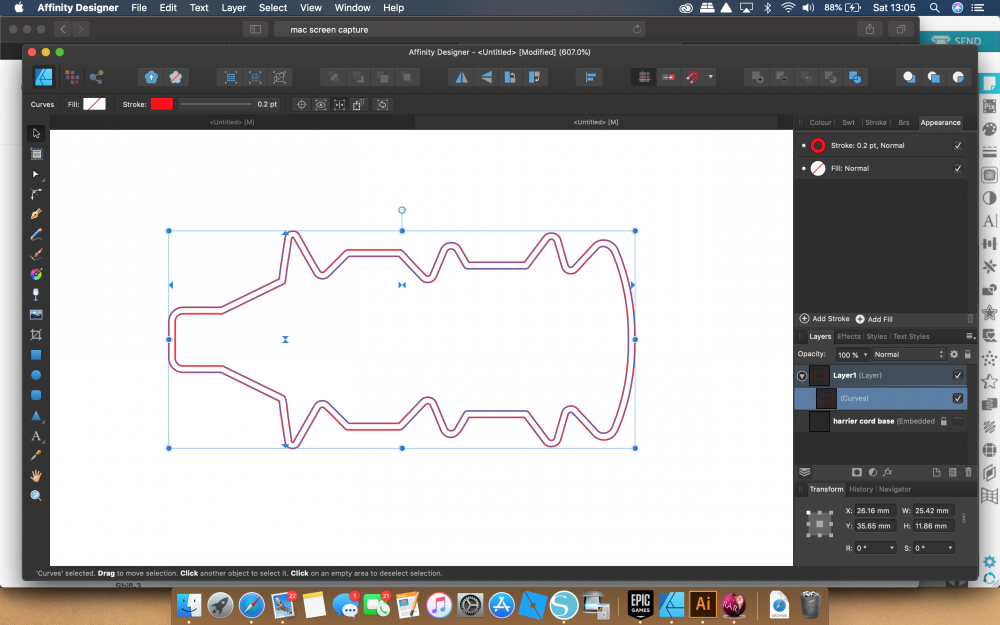

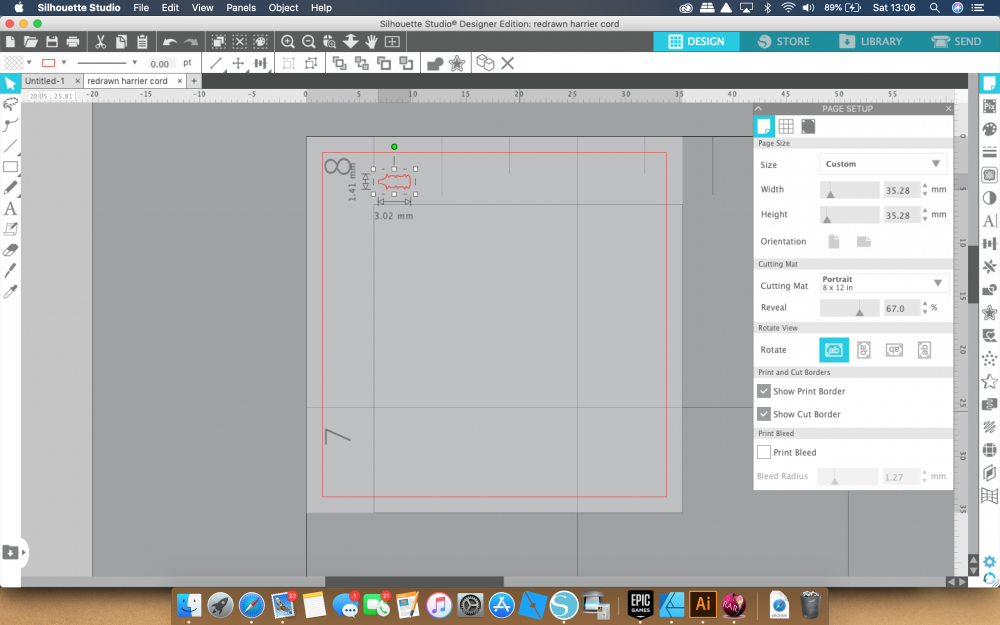

Cop9885 Posted June 15, 2019 Share Posted June 15, 2019 You can always tell a new user, a flurry of basic questions. So onto scaling issues. I use a Silhouette cutter, with AI there was a plug in so you could cut directly to it. So scaling was never an issue, draw it up, send it, done. Even saving the artwork as a svg file, opening it in the dedicated Silhouette software was no issue, with regards scaling. An object which is drawn up at 25.47mm x 11.83mm in Affinity is opening in Silhouette as 3.02mm x 1.40mm. And nothing I do so seems to make any difference. What am I doing wrong? I've added some screenshots to assist, working my issue. Thanks. Quote Link to comment Share on other sites More sharing options...

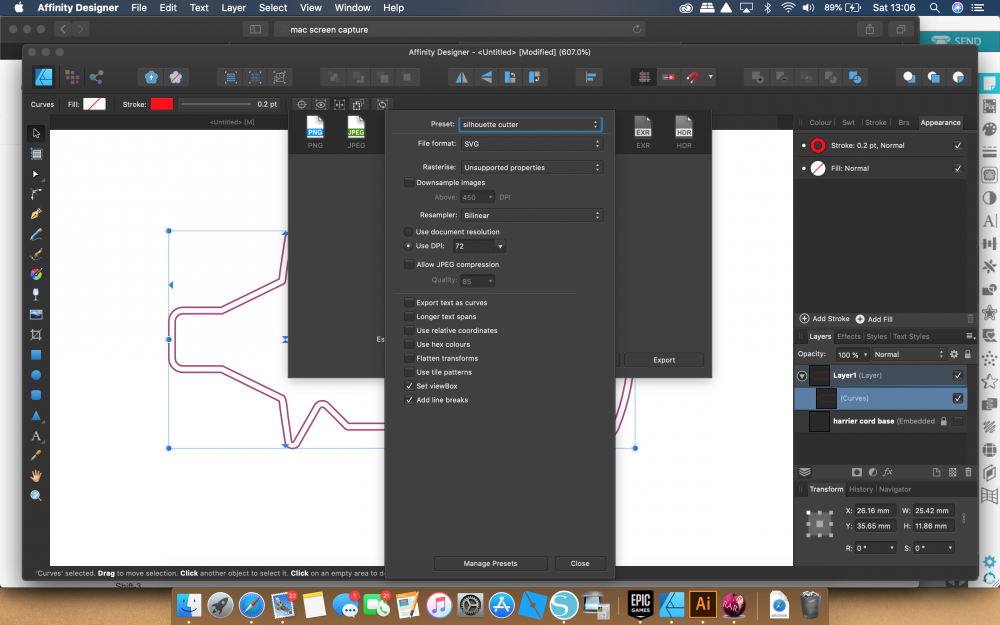

dutchshader Posted June 15, 2019 Share Posted June 15, 2019 When i create a file for silhouette, the file is created at 72 dpi and on export the " set viewbox " is unchecked. No size problems this way Alfred 1 Quote intel core i5, 16GB 128Gb ssd win10 Pro Huion new 1060plus. philips 272p 2560x1440px on intel HD2500 onboard graphics Razer Tartarus Chroma Link to comment Share on other sites More sharing options...
Cop9885 Posted June 15, 2019 Author Share Posted June 15, 2019 Perfect! Thanks so much! Quote Link to comment Share on other sites More sharing options...
