Greetings Community!

I have to work on an isometric design. I've learned that AD offers custom grid lines, so I wanted to explore these.

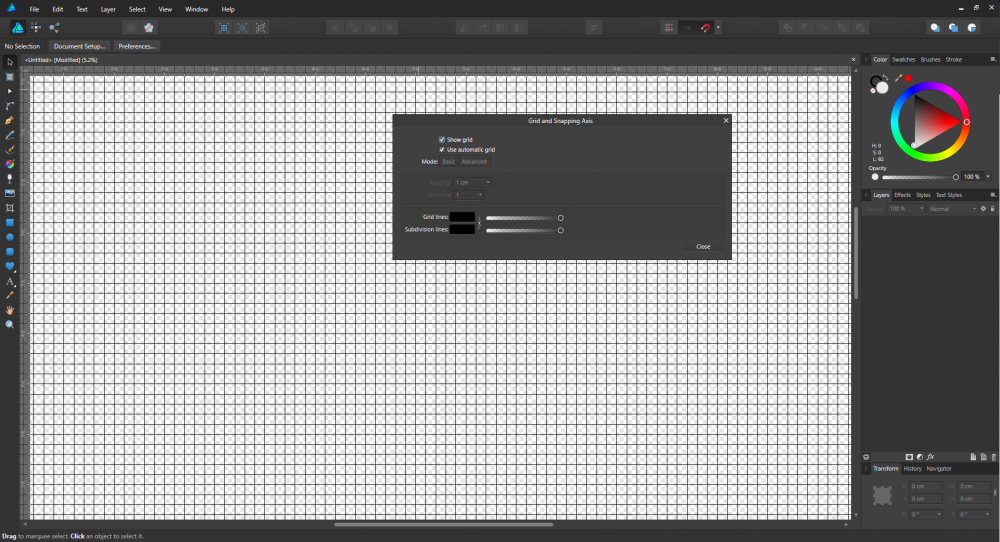

When I go to "View" --> "Grid and Axis Manager..." and have "Show grid" & "Use automatic grid" checked, I see the standart grid being visible. Nice.

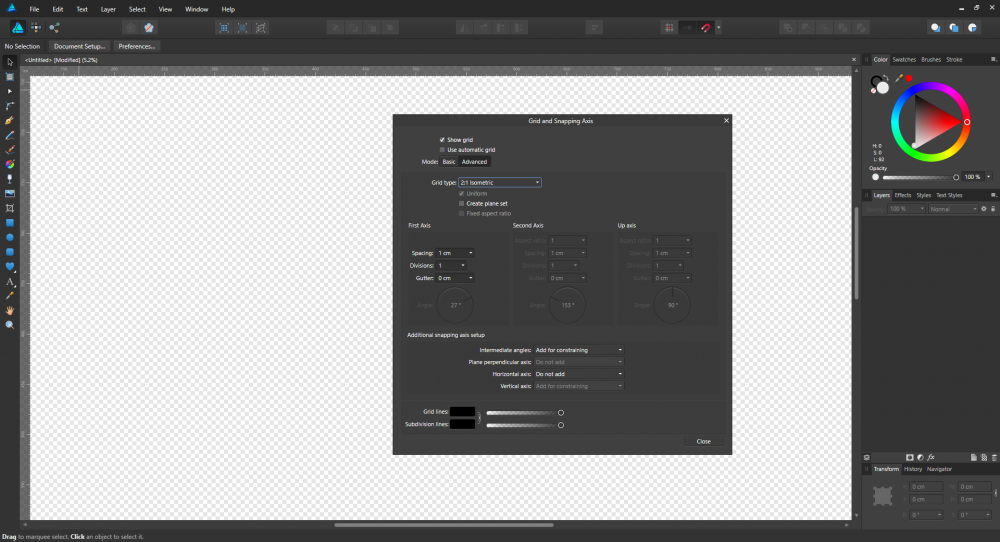

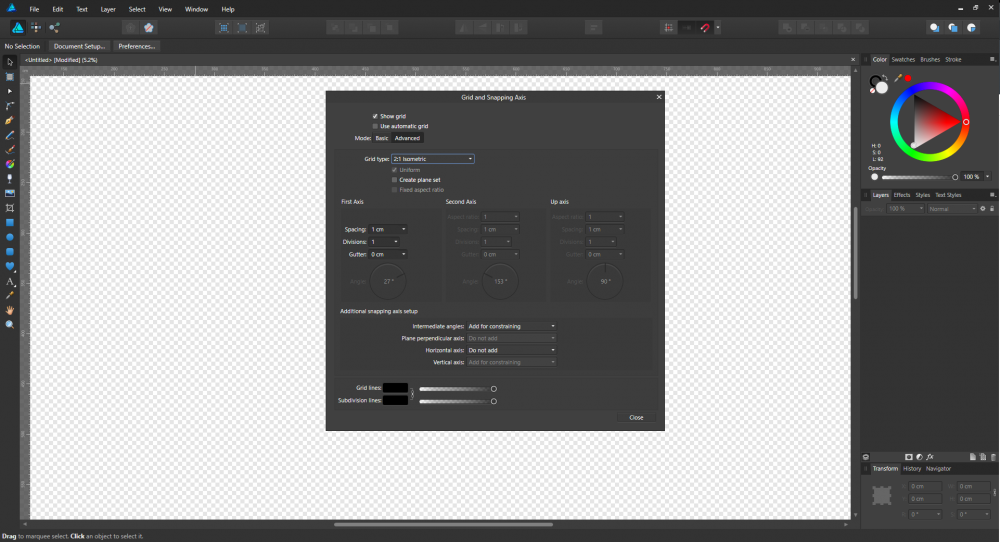

However, when I uncheck "Use automatic grid" and choose "Mode: Advanced", the grid goes invisible and no matter what grid type I select, I don't get back any grid / visual feedback.

I followed a youtuber doing this and he got instant results, based on the Grid type. I can't see why it wouldn't work for me. What did I miss?

Cheers!




  • Staff
Posted

Hi Burian,

I think this is because your spacing is set to 1 please could you try increasing this value?

Thanks

C
