Exporting EPS files

[Humarte]

I use the Affinity Designer app on the ipad pro (2017 version) and I'm having trouble exporting my EPS files to google drive and drop box. I'ts letting me export it, but it's not an EPS vectored file. It exports as a pixelated file even though it's exported as an EPS. Please help.

[stokerg]

Hi Humarte and Welcome to the Forums,

Can you attach the .afdesign file and this can be looked into further.



[Humarte]

Ok. Here it is, thank you.

nation kreation blue.afdesign

[stokerg]

Hi Humarte and thanks for the file.

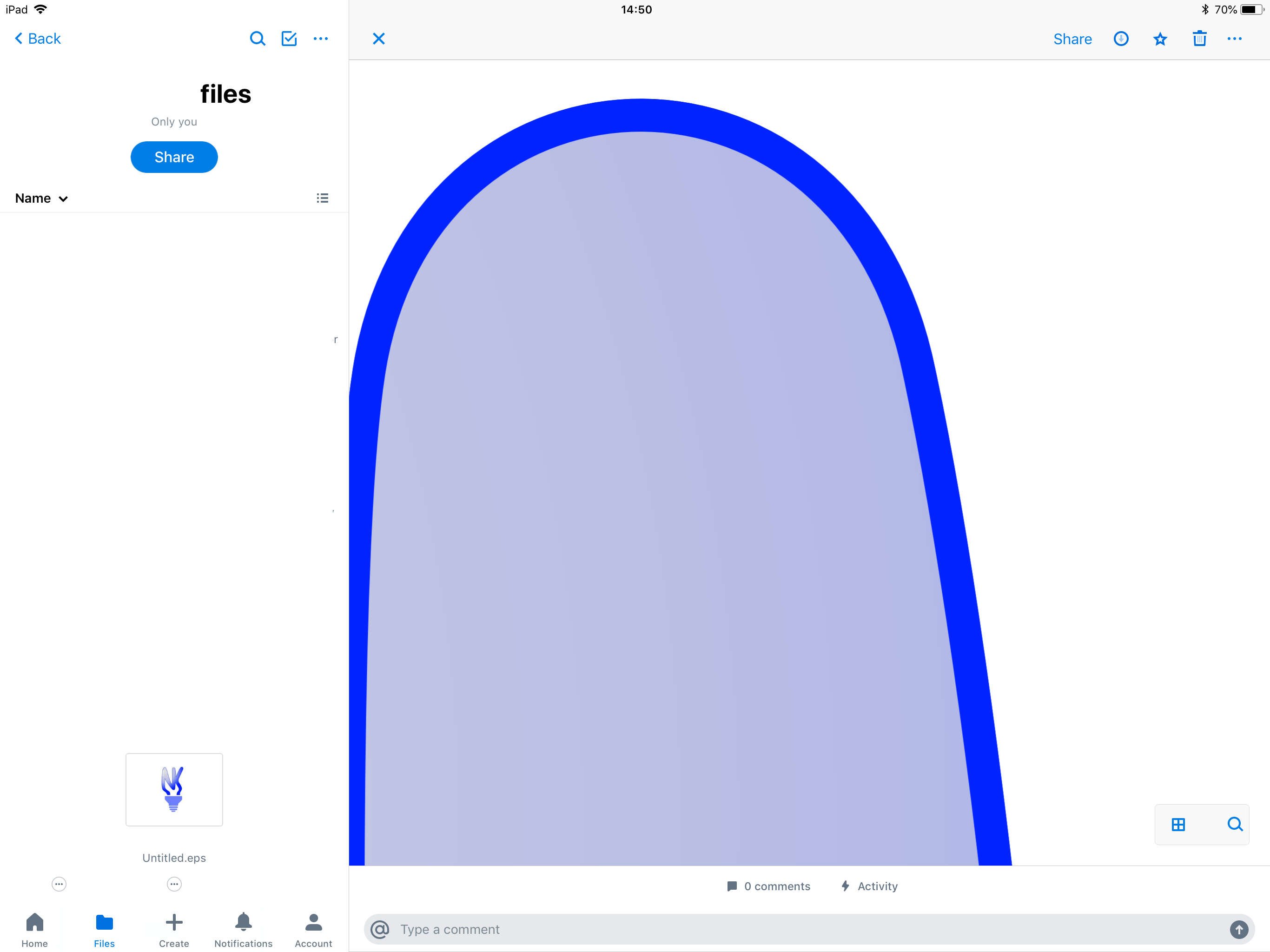

It's exported out fine for myself to Dropbox, i've attached a screenshot of it reopened in Designer and it's opened fine.

Are you taking the file into another app, after you've exported it, if so which app?

[Humarte]

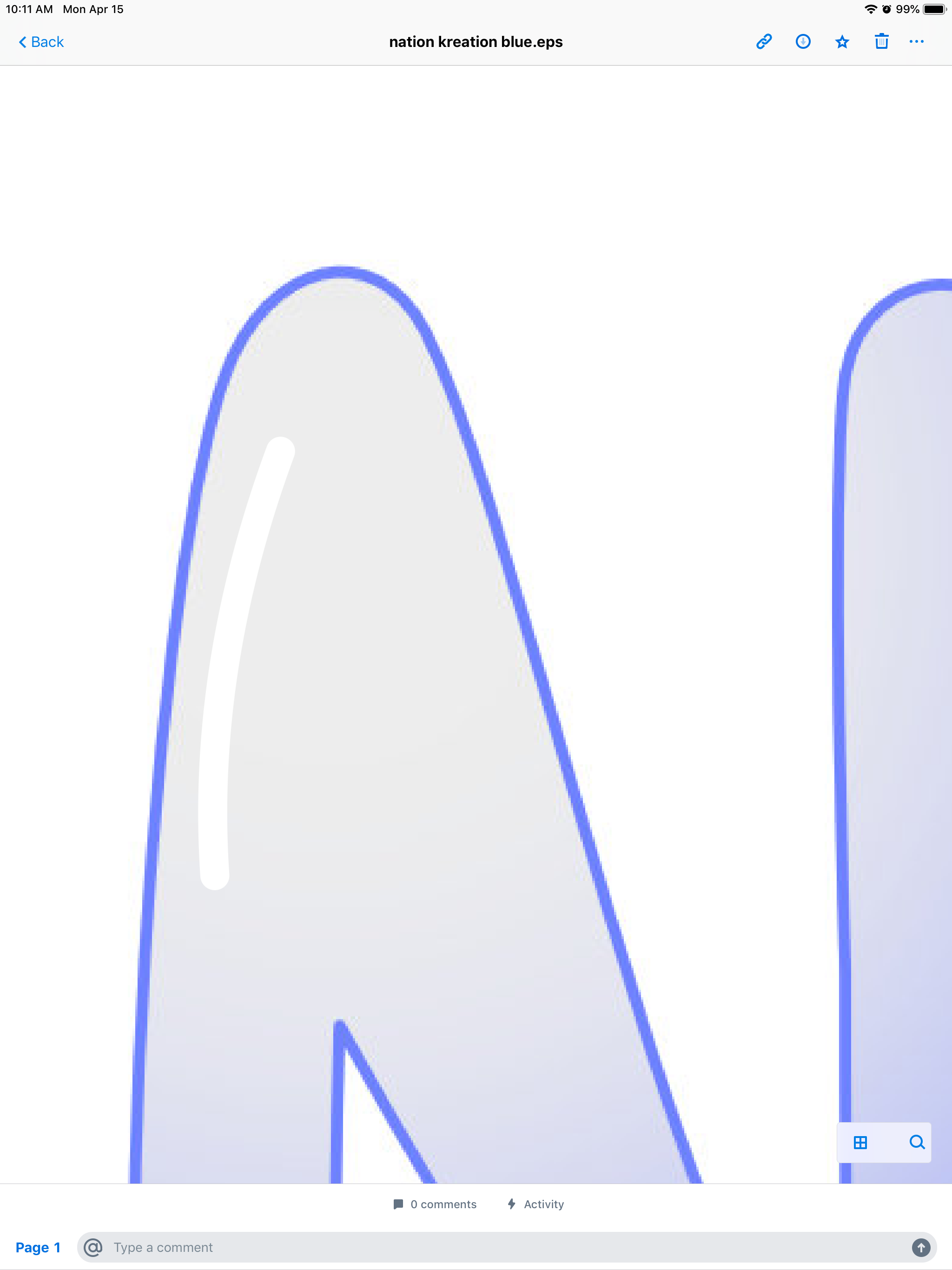

Well I have the drop box app. So when it I go to export, click on EPS. Then I add it to a folder in my dropbox app. Once I open it in the dropboz app, I  can instantly see that's its not EPS because of the pixels.

[stokerg]

10 minutes ago, Humarte said:

Well I have the drop box app. So when it I go to export, click on EPS. Then I add it to a folder in my dropbox app. Once I open it in the dropboz app, I  can instantly see that's its not EPS because of the pixels.

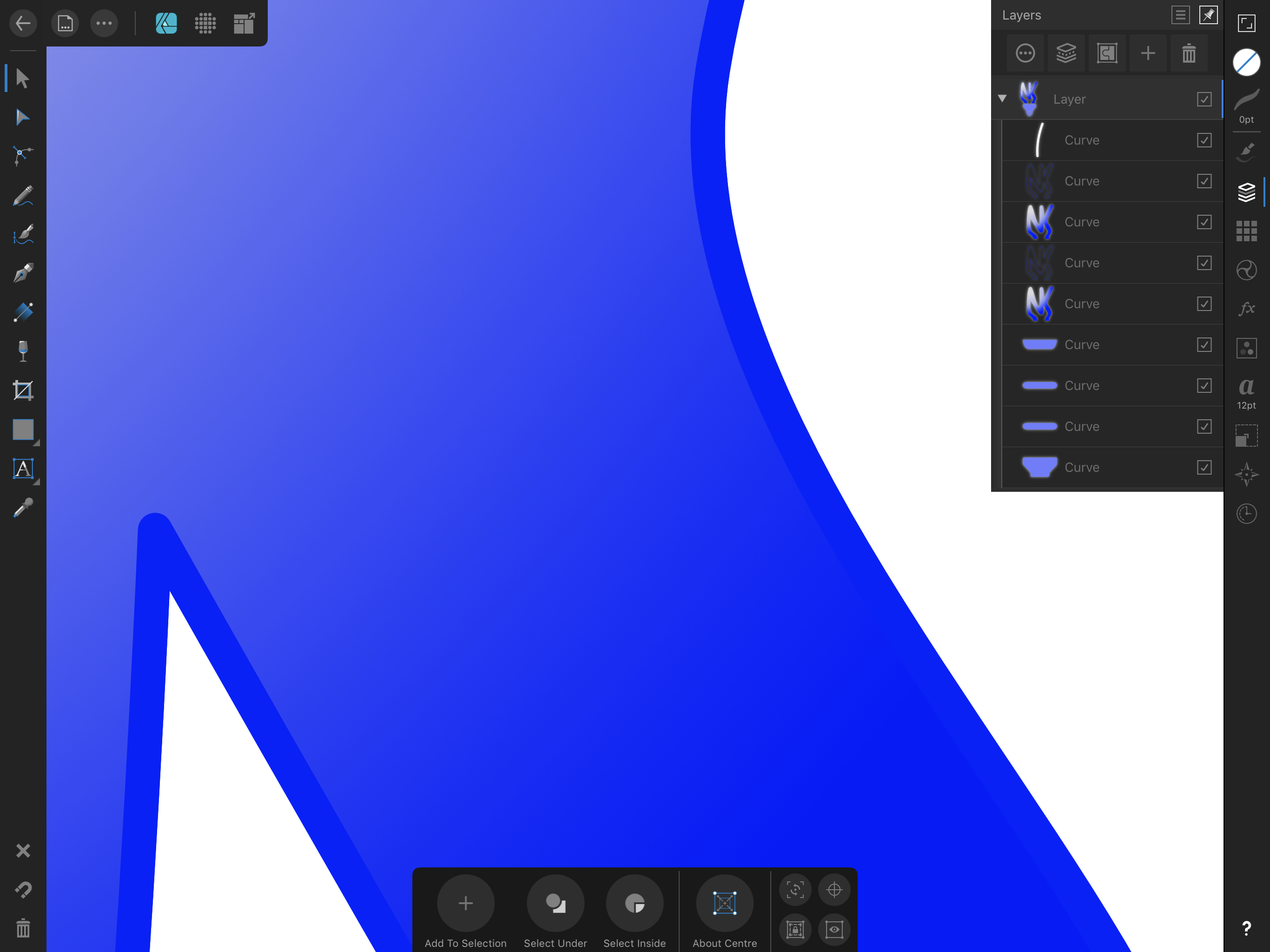

Again, not seeing that here.  See attached screenshot.  I've zoomed in and no sign of pixelation (might not look as clear on the screenshot as it does on the iPad i'm using)...

[Humarte]

SMH, ok thanks. I'll try it again.



[Humarte]

OK I've realized that only part that's being pixelated on my end is the outline off the "N" and the "K".

[DM1]

I see same with default export. I tried instead Export for Print, then turned off minimise file size, set Rasterize to Nothing, and turned off Downsample and turned off allow jpg compression. No more pixelated edges. Tried again with normal export but set Rasterize to Nothing. No more pixelated edges. I suspect part of your image is being rasterised causing the pixelated edges.

[Humarte]

Thanks a ton!
