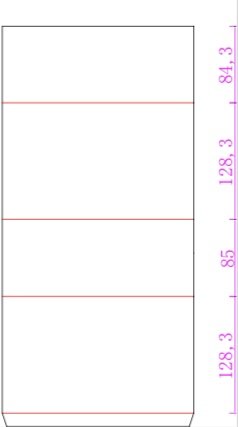

I am looking to design a product sleeve and therefore create a four sided design to a specific size for production (example attached). Appreciate any advice on how to insert a template or guidelines to a sheet? TIA


Posted

Hi @DanCasey and welcome to the forums.

I'd just create a page that's as tall as all four sides and then add horizontal guides using View > Guides. This command allows you to create guides with precise measurements instead of dragging them out of the ruler which wouldn't be as accurate.

Cheers

Posted
2 hours ago, MikeTO said:

I'd just create a page that's as tall as all four sides...

Plus the height of the flap, I would think.

All 3 1.10.8, & all 3 V2.6 Mac apps; 2020 iMac 27"; 3.8GHz i7, Radeon Pro 5700, 32GB RAM; macOS 10.15.7
A
ll 3 V2 apps for iPad; 6th Generation iPad 32 GB; Apple Pencil; iPadOS 15.7

Posted
12 hours ago, DanCasey said:

I am looking to design a product sleeve

Only for interest - why is the first (top) part only 84.3 wide?
If I understand the shape and principle of the package correctly, I would expect this upper part (A) to be 85 wide, and the last part (D) to be narrower (i.e. 128,3 - 0,7), because from it you need to subtract the thickness of the flap that will be glued to the back part A.
