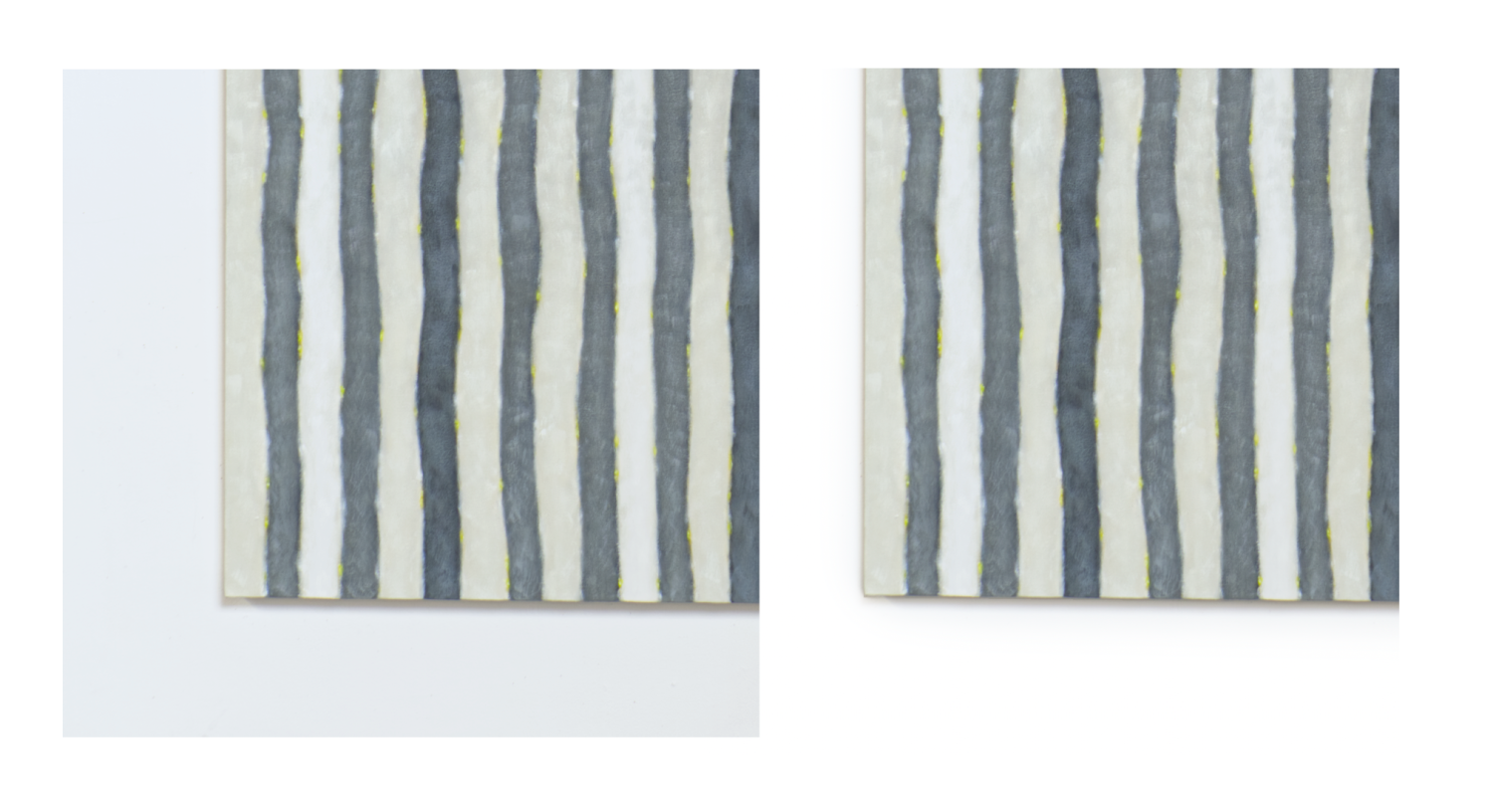

harryjsaddler Posted June 21, 2023 Share Posted June 21, 2023 I photograph images of paintings and drawings and prepare them for publishing on the web. I prefer to have the image edges pure white so that the image doesn't appear to have a border on a white web page, but I do want to preserve their shadows against the wall they're photographed on, without resorting to fake drop shadows. See the before and after pix attached. My technique is to hand-select the edges of the artwork – just barely 'cropping' the edge; invert the selection to select just the wall; create a pure white levels layer; then use different paintbrushes to reveal the edge and the shadow (it usually takes 4 different custom brushes). Note that in the final (rightmost) image, there appears to be no wall, but the shadows are (more or less) accurate. The question is: is there an easier way to do this, especially the selection part? Unfortunately, I usually can't use the flood select tool to select the wall, since it and the artwork are usually too close in value / color. I considered shooting against a green screen (for easier selection), but then I'd have green shadows Any ideas? Quote Link to comment Share on other sites More sharing options...

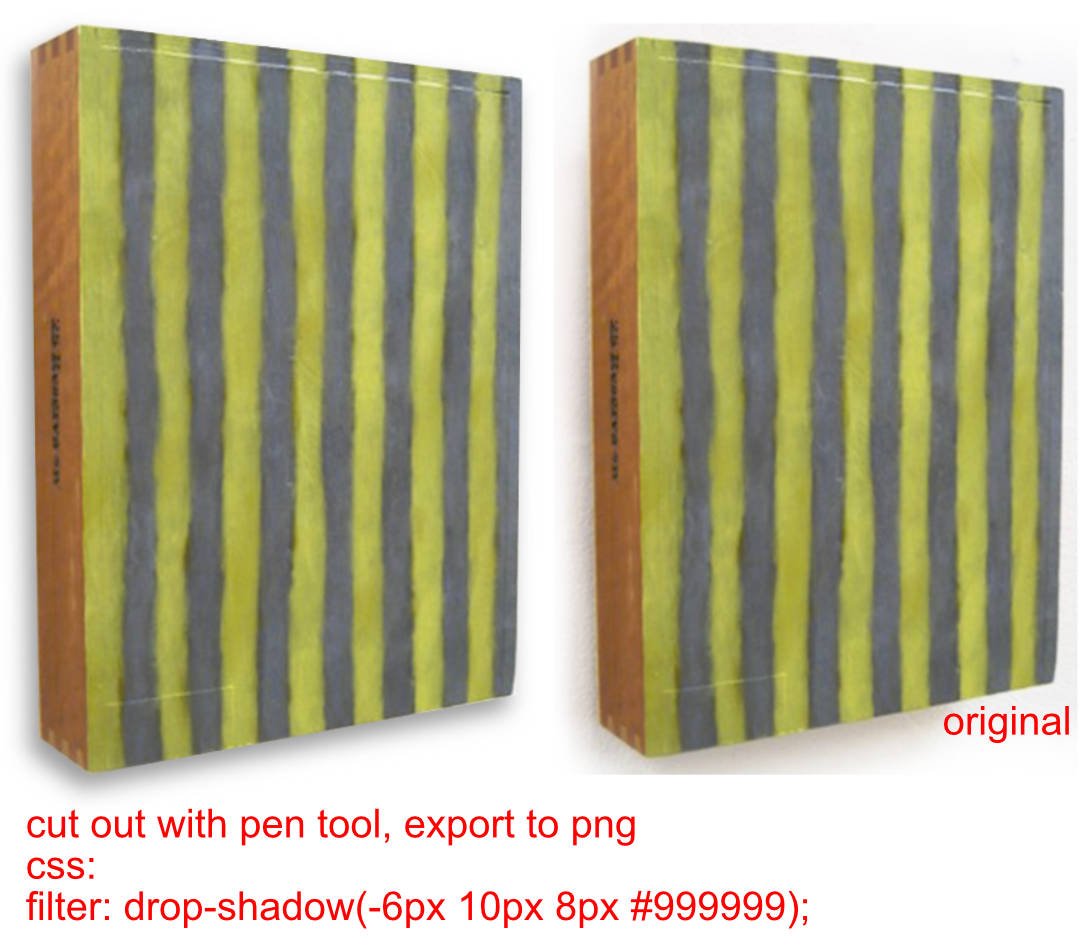

David in Яuislip Posted June 21, 2023 Share Posted June 21, 2023 1 hour ago, harryjsaddler said: without resorting to fake drop shadows Your call but some of the fakes can look pretty good and it's a darn sight easier with a hard crop and css shadows Quote Microsoft Windows 11 Home, Intel i7-1360P 2.20 GHz, 32 GB RAM, 1TB SSD, Intel Iris Xe Affinity Photo - 24/05/20, Affinity Publisher - 06/12/20, KTM Superduke - 27/09/10 Link to comment Share on other sites More sharing options...
harryjsaddler Posted June 21, 2023 Author Share Posted June 21, 2023 Thanks, David! I agree, that looks pretty good. How about this one? This painting is on a 2" deep stretcher, so the shadow makes that evident to the viewer. This one is on a cigar box… And then there are works on paper with ragged edges, which are a pain to select: d Quote Link to comment Share on other sites More sharing options...

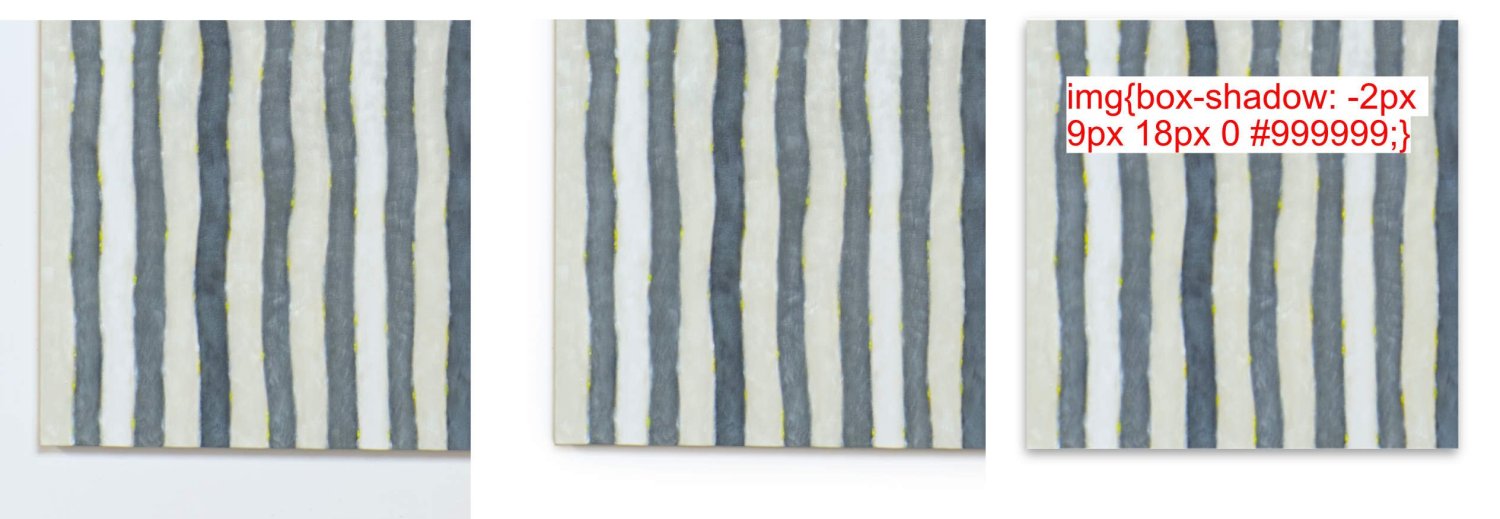

David in Яuislip Posted June 22, 2023 Share Posted June 22, 2023 I don't see why the first image can't have a box shadow like the one above it, the cigar box is a cinch to cut out with the pen, no idea about wobbly edges. At the end of the day, images on a web page are only going to approximate what you'd see in a gallery. It's a case of experimentation but I prefer speed using a hard crop and css rather than struggling to select the flamin' thing. Patience is a virtue I'm a bit short of. Actually I've scanned the bottom edge, a couple of ideas in the svg. The screenshot shows a hard crop with the bottom edge replaced. Needs more work but might be an idea WobblyEdges.svg Quote Microsoft Windows 11 Home, Intel i7-1360P 2.20 GHz, 32 GB RAM, 1TB SSD, Intel Iris Xe Affinity Photo - 24/05/20, Affinity Publisher - 06/12/20, KTM Superduke - 27/09/10 Link to comment Share on other sites More sharing options...
