[1.8.3 and earlier] Broken blending of clipping object

[Guest]

AP, AD and APub 1.8.3 and earlier

macOS 10.13.6



A vector object is incorrectly rendered (to the view and to exported image) when the object contains a clip-nested child: the app does an extra blend of the object with the background.



object with no child

  expected result: object blend with background

  actual result: object blend with background

parent with clipped child

  expected result: (child blendC with parent) blendP with background

  actual result: (child blendC with (parent blendP with background)) blendP with background



[Sean P]

Hi anon2,

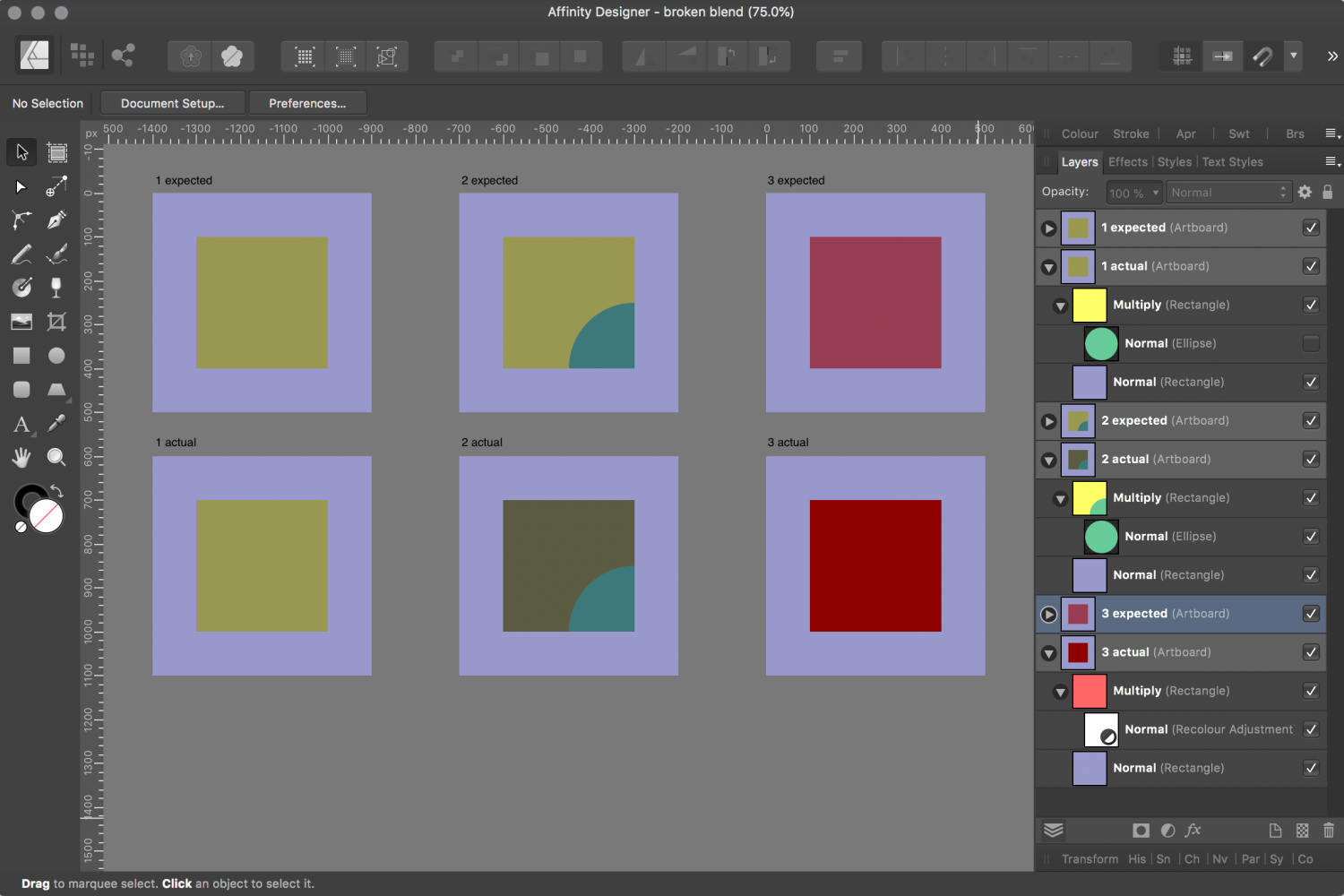

Would you mind attaching the document shown in the screenshot please? I can replicate the number 2 artboard, but cannot seem to replicate the issue with the Recolour Adjustment.

Thanks

[Guest]

broken blend.afdesign

[Sean P]

Thanks for the file - I've passed it on to development to be investigated.
