Celestient Posted October 31, 2019 Share Posted October 31, 2019 Hello all, I've been looking for an answer to this through searching around but haven't found a clear answer, so I decided to bring my concerns here before I tear my hair out. Forgive me if the answer is simple or if I missed something obvious here. I've been interested in doing some simple, line and trim animations in After Effects based on pre-done and similar vector element in Affinity Designer. However, I'm encountering a problem in that, while I am able to export the shapes and elements to use for this process, I am unable to do the same with paths, which makes the trim path function... rather awkward to use. When I researched this, it seemed like there is a way to do this, but it was not explained clearly, so I don't know where I am making any errors. Any help would be appreciated. Quote Link to comment Share on other sites More sharing options...
Staff DWright Posted October 31, 2019 Staff Share Posted October 31, 2019 This article has some good advice on saving vector drawings from Designer to use within After Effects https://www.schoolofmotion.com/blog/save-affinity-designer-vector-files-after-effects Quote Link to comment Share on other sites More sharing options...

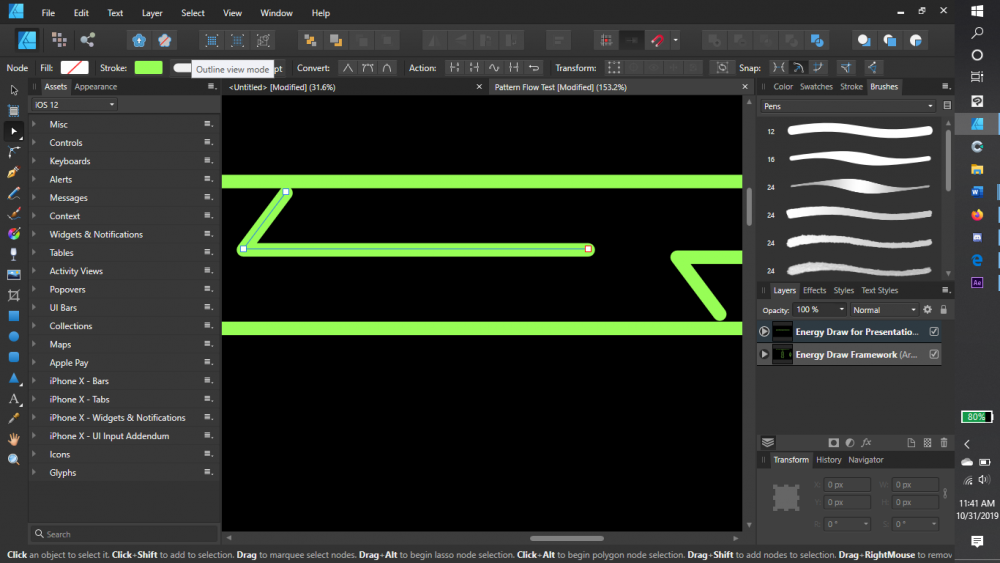

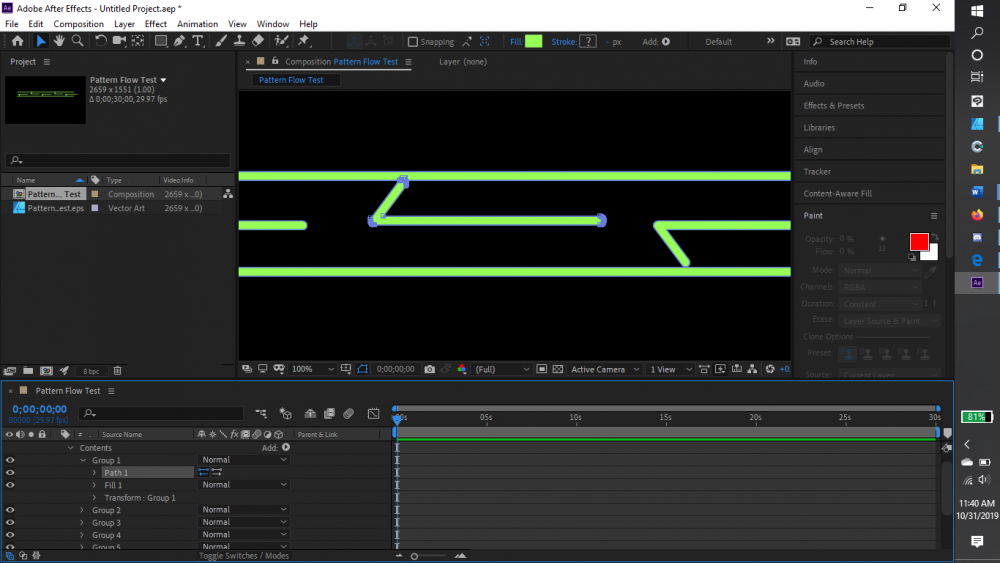

Celestient Posted October 31, 2019 Author Share Posted October 31, 2019 (edited) 24 minutes ago, DWright said: This article has some good advice on saving vector drawings from Designer to use within After Effects https://www.schoolofmotion.com/blog/save-affinity-designer-vector-files-after-effects Thank you for the response. I am familiar with this article, and have tried to work with the instructions it presents. The issue is that, when I used the method described here with the EPS file type, including copying the format precepts and export information, as well as the script to 'explode' shape layers, the path lines that I drew out in Affinity Designer still came out as shapes. Here is a link demonstrating just an example of what I'm trying to do in After Effects. Link The same school of motion group presented a different article here wherein the first tip implies that there is a method by which the user can preserve paths when sending files to AE. It is unclear, as mentioned before, where i am going wrong in this process. I will edit this post to add examples of what I'm dealing with. Edit: The EPS file in Affinity Designer, with the path highlighted to show that it is in fact a line. The same file highlighted in AE, showing how it no longer has the path information, and is now fully a shape. Again, I'm not sure what I'm doing wrong here. Edited October 31, 2019 by Celestient Additional Picture Information Quote Link to comment Share on other sites More sharing options...
Celestient Posted November 1, 2019 Author Share Posted November 1, 2019 I've come to my wits end as to why this process is not working correctly. If I am unable to get this to work it forces me to purchase Adobe Illustrator as well, which I am trying to avoid. Quote Link to comment Share on other sites More sharing options...
Celestient Posted November 2, 2019 Author Share Posted November 2, 2019 On 10/31/2019 at 11:22 AM, DWright said: This article has some good advice on saving vector drawings from Designer to use within After Effects https://www.schoolofmotion.com/blog/save-affinity-designer-vector-files-after-effects At this point, I have exhausted all options as it pertains to what is presented in this article. I have exported in all formats that retain vectors. I have tried different document setups, arrangements, splices I have tried different brushes, different arrangements. Nothing is working. Without clear instructions I find myself forced to go to illustrator to try and work from this angle. It appears that, at least for the time being, I cannot use Affinity for this specific type of animation. Thank you for the suggestion, it is unfortunate that it does not work for me. Quote Link to comment Share on other sites More sharing options...
JimmyJack Posted November 2, 2019 Share Posted November 2, 2019 @Celestient afaik Affinity will always export to EPS with expanded strokes when a brush is used in the stroke panel. Even a basic brush. It's hard to be positive, but that's what your screen shots (and statements) suggest you've used. Use the simple stroke icon (solid line) in the stroke panel instead. Should work. (edit: pressure profiles will also expand even when using the simple stroke type and will rasterize when using image based brushes) Quote Link to comment Share on other sites More sharing options...
Celestient Posted November 2, 2019 Author Share Posted November 2, 2019 (edited) 4 hours ago, JimmyJack said: @Celestient afaik Affinity will always export to EPS with expanded strokes when a brush is used in the stroke panel. Even a basic brush. It's hard to be positive, but that's what your screen shots (and statements) suggest you've used. Use the simple stroke icon (solid line) in the stroke panel instead. Should work. Thank you so much! Since I use the pen tool a lot and then make brush adjustments, I didn't realize that it would affect it that way. thank you for the insight Edited November 2, 2019 by Celestient Quote Link to comment Share on other sites More sharing options...
