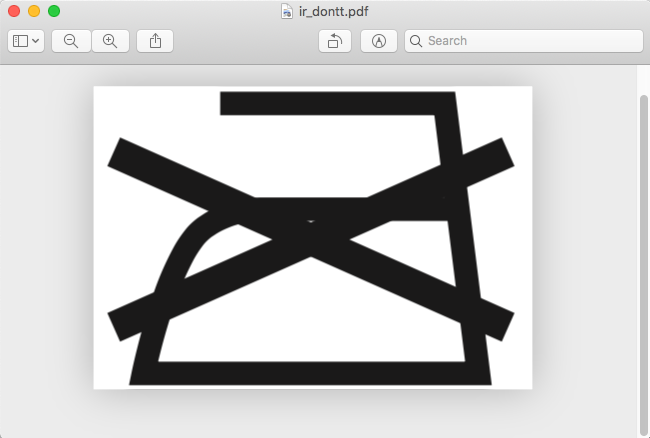

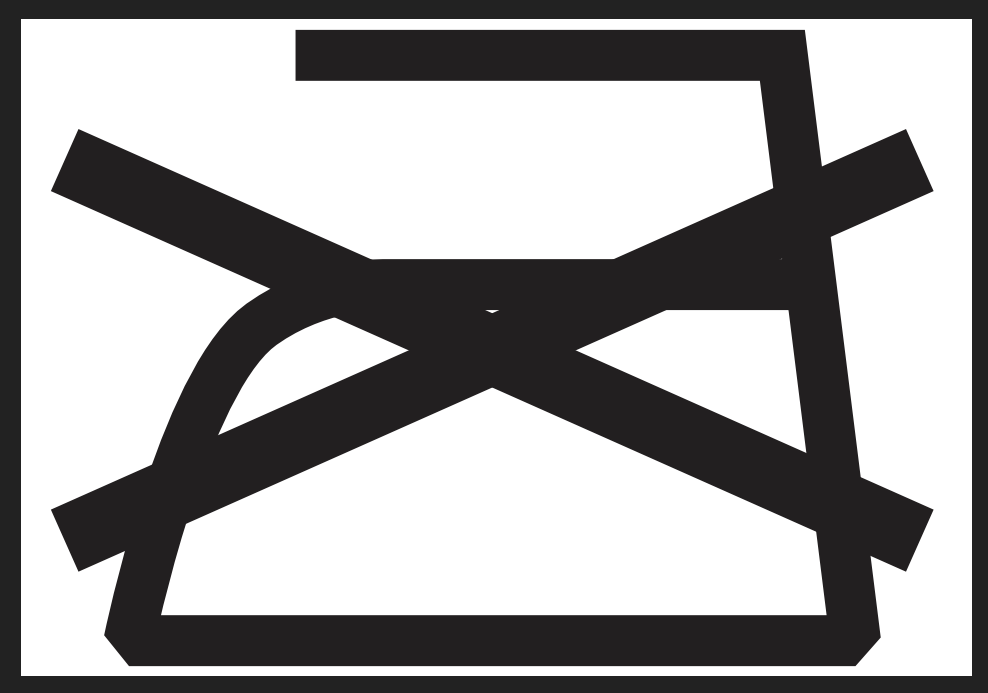

lucidlife Posted March 6, 2019 Share Posted March 6, 2019 I have a EPS file for a care label icon that opened up in Affinity Designer fine. But when I try to make the corners of the object's strokes sharp rather than bevelled, I can't seem to do it. I have tried changing the stroke alignment and the join type, but I can't seem to get the corners sharp. I have attached a screenshot of the issue as well as the original file. You can see in the Mac Preview screenshot that the bottom corners are sharp, but in the Affinity Designer screenshots, they are bevelled. If someone is able to provide some assistance, I'd very much appreciate it. Thanks! ir_dontt.eps Quote Link to comment Share on other sites More sharing options...
Thiagarajan Posted March 6, 2019 Share Posted March 6, 2019 Step 1: Make it a Mitre Join Step 2: Change the Mitre to around 2 lucidlife 1 Quote Link to comment Share on other sites More sharing options...
Pšenda Posted March 6, 2019 Share Posted March 6, 2019 50 minutes ago, Thiagarajan said: around 2 This feature would be useful here: Quote Affinity Store (MSI/EXE): Affinity Suite (ADe, APh, APu) 2.4.0.2301 Dell OptiPlex 7060, i5-8500 3.00 GHz, 16 GB, Intel UHD Graphics 630, Dell P2417H 1920 x 1080, Windows 11 Pro, Version 23H2, Build 22631.3155. Dell Latitude E5570, i5-6440HQ 2.60 GHz, 8 GB, Intel HD Graphics 530, 1920 x 1080, Windows 11 Pro, Version 23H2, Build 22631.3155. Intel NUC5PGYH, Pentium N3700 2.40 GHz, 8 GB, Intel HD Graphics, EIZO EV2456 1920 x 1200, Windows 10 Pro, Version 21H1, Build 19043.2130. Link to comment Share on other sites More sharing options...
lucidlife Posted March 6, 2019 Author Share Posted March 6, 2019 3 hours ago, Thiagarajan said: Step 1: Make it a Mitre Join Step 2: Change the Mitre to around 2 Thanks heaps. That did the trick. Quote Link to comment Share on other sites More sharing options...
