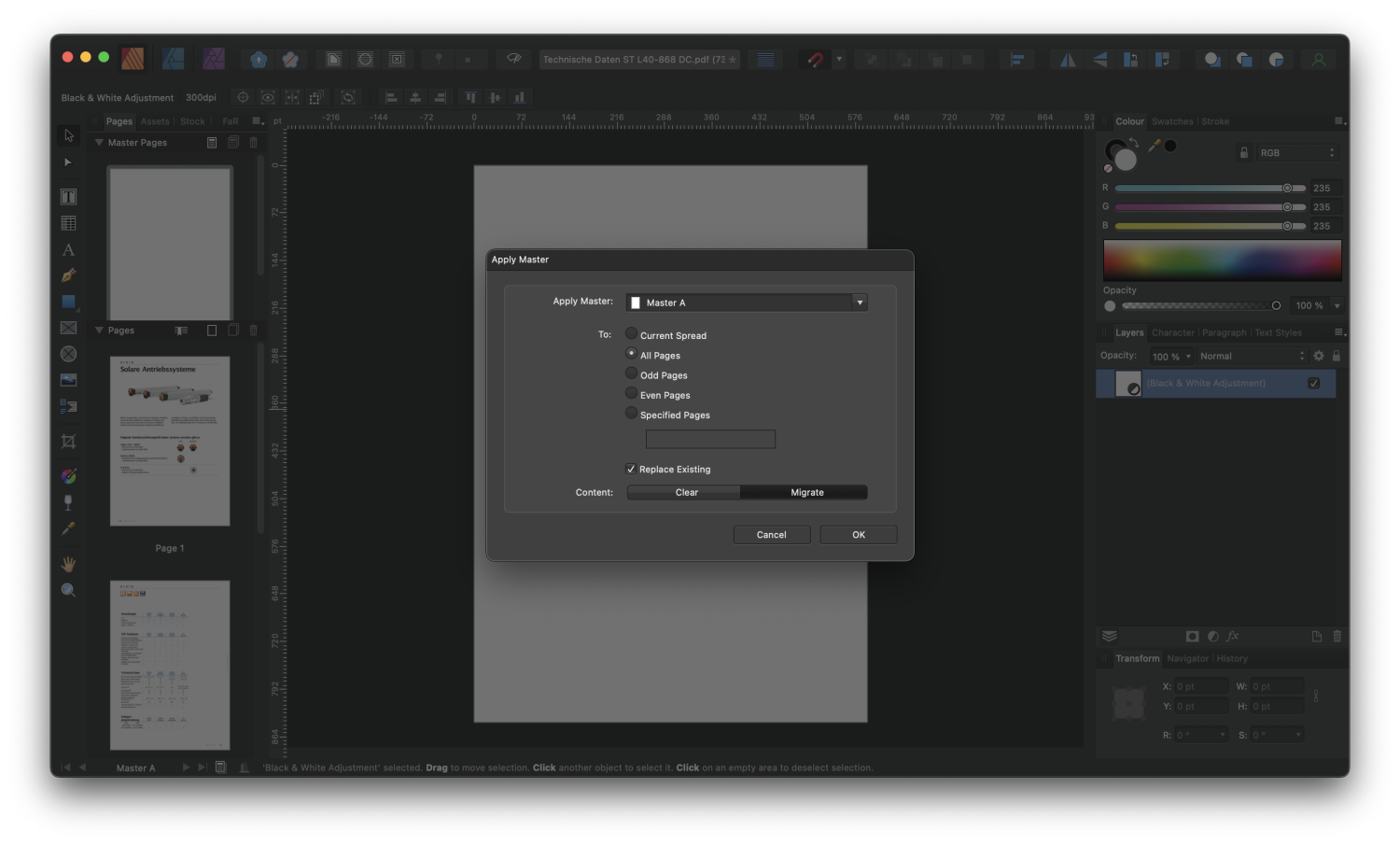

Hi, I have a multipage PDF, wisht o open it in Affinity Publisher and convert it to Black & White. For that I add a Master Page with the required settings, and then apply it to ALL PAGES. But nothing happens.

If applying the same settings to each page individually, the desired result happens.

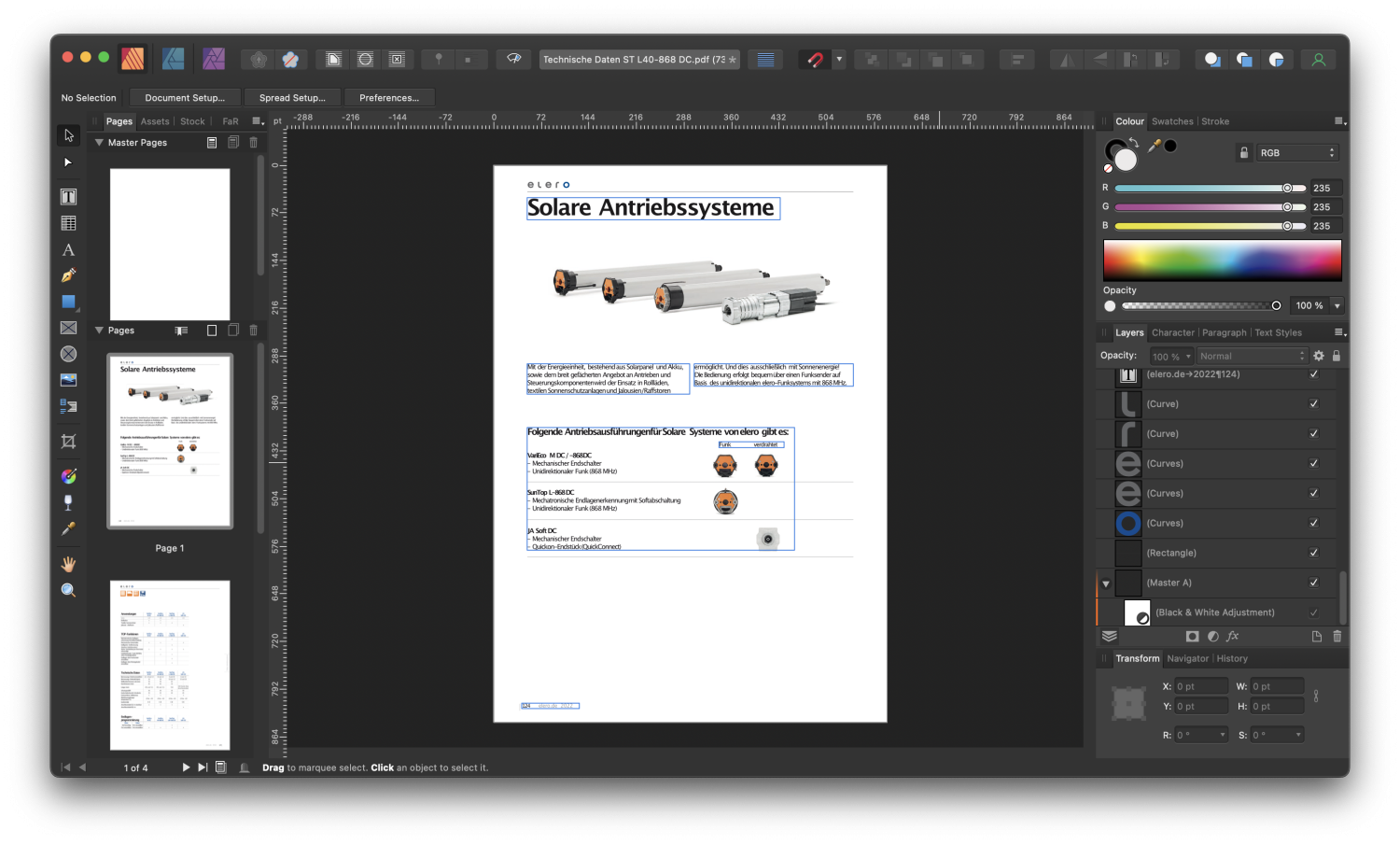

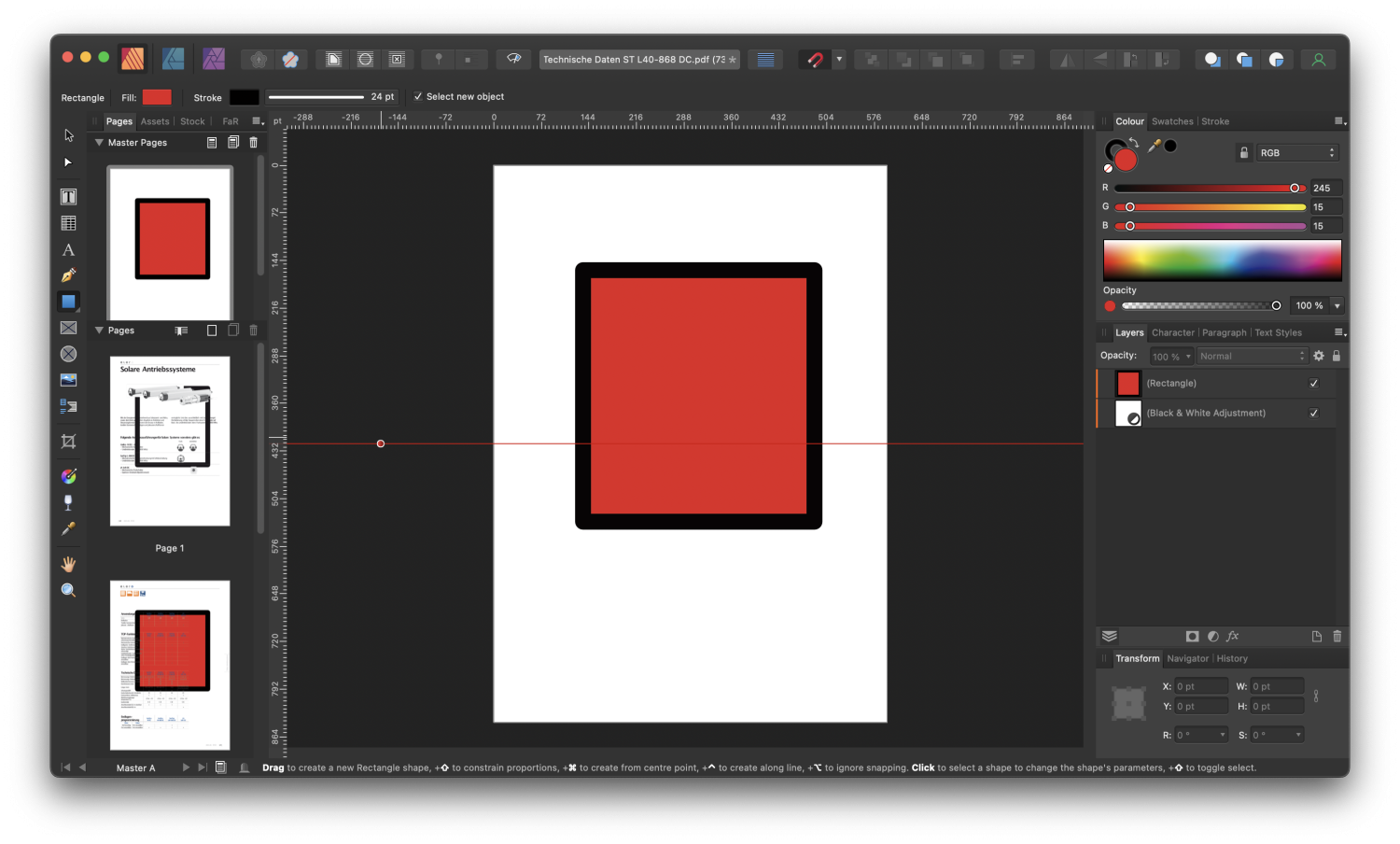

Strangely, when drawing a SHAPE in the MASTER, the Shape appears on all pages, but not the same...

see attached screen-shots...

Can anybody help / instruct how to proceed? Am I Missing something fundamental?



Thank you,

JPC

Screenshot 2023-09-12 at 17.52.59.png

Screenshot 2023-09-12 at 17.53.55.png

Screenshot 2023-09-12 at 17.54.27.png

Screenshot 2023-09-12 at 17.56.12.png

Posted

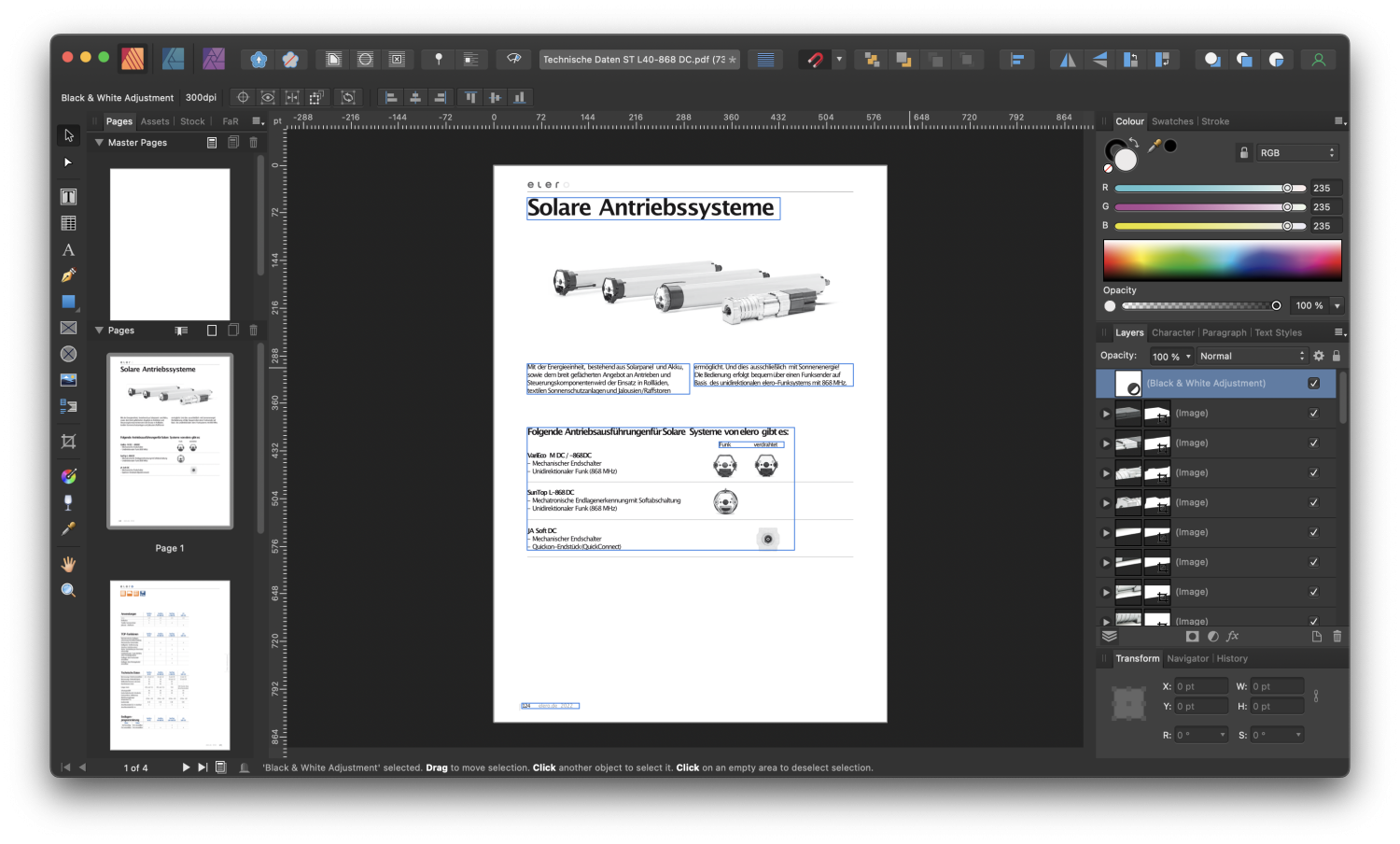

When applied via a Master Page, the Adjustment is at the bottom of the layer stack (see your Layers panel in the first screenshot) and therefore doesn't apply to anything that is directly on the document page (above the Master Page layer).

You could apply the Adjustment as you did, and then:

  1. Pick one document page.
  2. Right-click on the Master A layer and choose Edit Linked.
  3. Select the Adjustment layer.
  4. Then, from the menu, something like Layer > Arrange > Move to Front. (I'm away from the computer at the moment, so I can't confirm the exact wording or location.)
  5. Then click Finish.

Alternatively, perhaps you could simply use Document Setup and change the Color to Grayscale?

-- Walt
Designer, Photo, and Publisher V1 and V2 at latest retail and beta releases
PC:
    Desktop:  Windows 11 Pro 23H2, 64GB memory, AMD Ryzen 9 5900 12-Core @ 3.00 GHz, NVIDIA GeForce RTX 3090

    Laptop:  Windows 11 Pro 23H2, 32GB memory, Intel Core i7-10750H @ 2.60GHz, Intel UHD Graphics Comet Lake GT2 and NVIDIA GeForce RTX 3070 Laptop GPU.
    Laptop 2: Windows 11 Pro 24H2,  16GB memory, Snapdragon(R) X Elite - X1E80100 - Qualcomm(R) Oryon(TM) 12 Core CPU 4.01 GHz, Qualcomm(R) Adreno(TM) X1-85 GPU
iPad:  iPad Pro M1, 12.9": iPadOS 18.3.1, Apple Pencil 2, Magic Keyboard
Mac:  2023 M2 MacBook Air 15", 16GB memory, macOS Sequoia 15.0.1

Posted

Thank you, I just saw your other post form 2021 where you explained the steps in detail. It worked.

I want to use Black & White, not Grayscale, and in the layers section, there are plenty of different B&W settings where I can choose the most suitable one...



Appreciate your quick response!

  • 1 year later...
Posted
On 9/12/2023 at 6:13 PM, walt.farrell said:

When applied via a Master Page, the Adjustment is at the bottom of the layer stack (see your Layers panel in the first screenshot) and therefore doesn't apply to anything that is directly on the document page (above the Master Page layer).

You could apply the Adjustment as you did, and then:

  1. Pick one document page.
  2. Right-click on the Master A layer and choose Edit Linked.
  3. Select the Adjustment layer.
  4. Then, from the menu, something like Layer > Arrange > Move to Front. (I'm away from the computer at the moment, so I can't confirm the exact wording or location.)
  5. Then click Finish.

Alternatively, perhaps you could simply use Document Setup and change the Color to Grayscale?

Hi Walt.Farrell,



can you help me find you post from 2021 where you described all steps in Detail? I am again at a point where I can't do it, and also can't find your older post.



Thank you,

JPC

Posted
4 hours ago, JP-C said:

can you help me find you post from 2021 where you described all steps in Detail? I am again at a point where I can't do it, and also can't find your older post.

I think you probably mean this one (and I see that my instructions above omit the grouping step):

If that's not it, here's a search for similar posts I've made: https://forum.affinity.serif.com/index.php?/search/&q=Layer arrange front&quick=1&author=walt.farrell&search_and_or=and&sortby=relevancy

-- Walt
Designer, Photo, and Publisher V1 and V2 at latest retail and beta releases
PC:
    Desktop:  Windows 11 Pro 23H2, 64GB memory, AMD Ryzen 9 5900 12-Core @ 3.00 GHz, NVIDIA GeForce RTX 3090

    Laptop:  Windows 11 Pro 23H2, 32GB memory, Intel Core i7-10750H @ 2.60GHz, Intel UHD Graphics Comet Lake GT2 and NVIDIA GeForce RTX 3070 Laptop GPU.
    Laptop 2: Windows 11 Pro 24H2,  16GB memory, Snapdragon(R) X Elite - X1E80100 - Qualcomm(R) Oryon(TM) 12 Core CPU 4.01 GHz, Qualcomm(R) Adreno(TM) X1-85 GPU
iPad:  iPad Pro M1, 12.9": iPadOS 18.3.1, Apple Pencil 2, Magic Keyboard
Mac:  2023 M2 MacBook Air 15", 16GB memory, macOS Sequoia 15.0.1

Posted

Thank you - I could not find your instructions from the past, but I could solve it with the help of your comments to the other posts.

All pages are now adjusted as to get the best contrast.

Appreciate your help.

JCP

Screenshot 2024-12-23 at 17.23.29.png

Posted

You're welcome, @JP-C. Good to see you got it working.
