New Olympus lens profile file not loading


Recommended Posts

With the stock version of Affinity, there was no profile for my Olympus 12-45 F4 Pro.   I have downloaded the latest database from Github, installed mil-olympus.xml in the lens profile folder via Preferences and restarted Affinity.  I have confirmed that mil-olympus.xml contains a profile for my lens (it is the last one).   Despite this, opening a RAW file does not select a profile for this, and neither does it appear in the drop-down list.

I think I have followed the correct process.  What might be going on?

mil-olympus.xml

Link to comment
Share on other sites

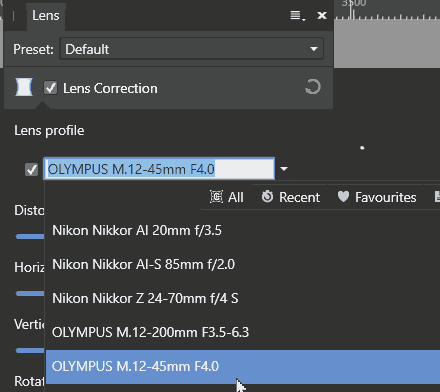

Very strange, I can see it using your xml file, the entry <model>OLYMPUS M.12-45mm F4.0</model> matches the second Olympus lens listed. I can't comment on auto selection though

The attached file contains only the data for your lens which might be worth a try


olympus12-45.xml

Microsoft Windows 10 Home, Intel i7-9750H CPU @ 2.60GHz, 16 GB RAM, 500GB SSD, 1TB Whirlygig, NVIDIA GeForce RTX 2060
Affinity Photo - 24/05/20, Affinity Publisher - 06/12/20, KTM Superduke - 27/09/10

Link to comment
Share on other sites

The problem with this database is that the Metadata Lens name do not always match with the Lens name in the database. I have a Panasonic lens where I after a lot of trial and errors was successful after renaming the File name in the database to its full Panasonic name, despite a much shorter name in Matadata.

My suggestion is that you play around with the file name in the Lens name in the Lens Profile database.

Link to comment
Share on other sites

1 hour ago, Lars Nordberg said:

The problem with this database is that the Metadata Lens name do not always match with the Lens name in the database.

Yep. I managed to find a raw file using this lens:

Exif
<model lang="en">Olympus M.Zuiko Digital ED 12-45mm F4.0 Pro</model>


Lensfun
<model lang="en">Olympus M.Zuiko ED 12-45mm f/4.0 Pro</model>

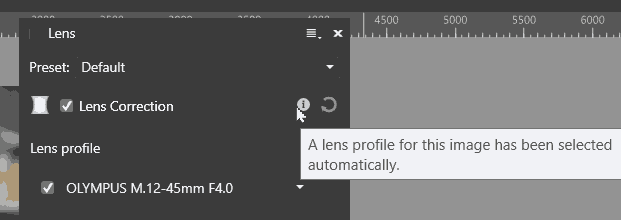

It works now


olympus12-45.xml

Microsoft Windows 10 Home, Intel i7-9750H CPU @ 2.60GHz, 16 GB RAM, 500GB SSD, 1TB Whirlygig, NVIDIA GeForce RTX 2060
Affinity Photo - 24/05/20, Affinity Publisher - 06/12/20, KTM Superduke - 27/09/10

Link to comment
Share on other sites

  • 1 year later...

I've just bought the OM-5 camera with this lens & Affinity wasn't recognising it. The metadata created in the image files uses a different lens name. So I assume that while the older lenses of this type work with the custom lens profile the newer ones don't.

I've created a modified version of David's file, which works for my lens...attached.

BTW, lensfun seem to have two XML files featuring this lens: mil-olympus.xml and another file with om in the name & just a single entry for this lens. I'm sorry to be vague, but I find it difficult to navigate the lensfun sites so although I saw & looked at the XML file last night I can't find it today. Having two XML files with slightly different entries for effectively the same lens might cause confusion.

om12-45.xml
