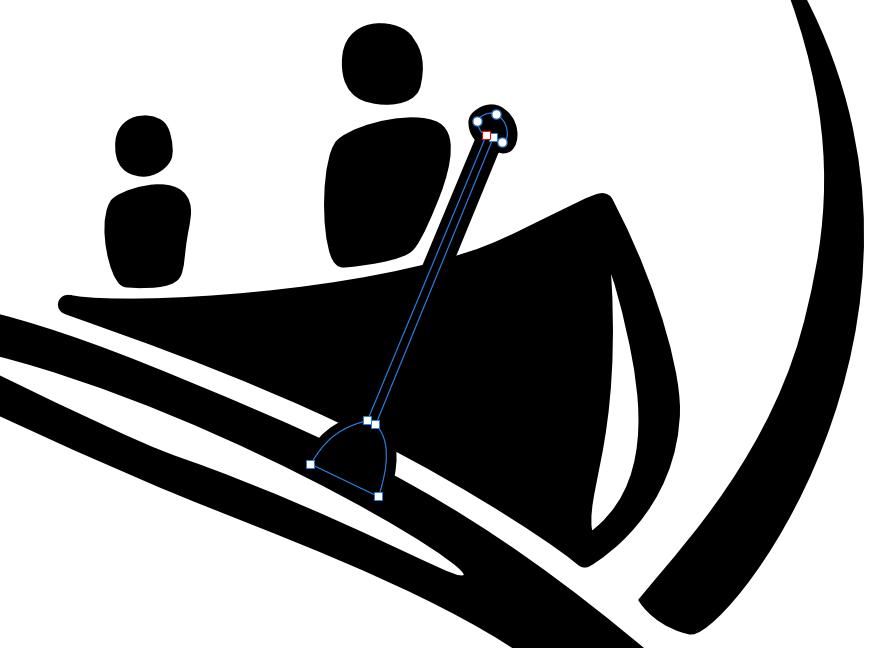

AnnN Posted May 5, 2021 Share Posted May 5, 2021 Hi, I need the part of the paddle that is lying on black background (boat) to be visible (=be white). But just that one part. I dont want a round end of the curve, thats why I dont want to start a new one. How to achieve that? Quote Link to comment Share on other sites More sharing options...

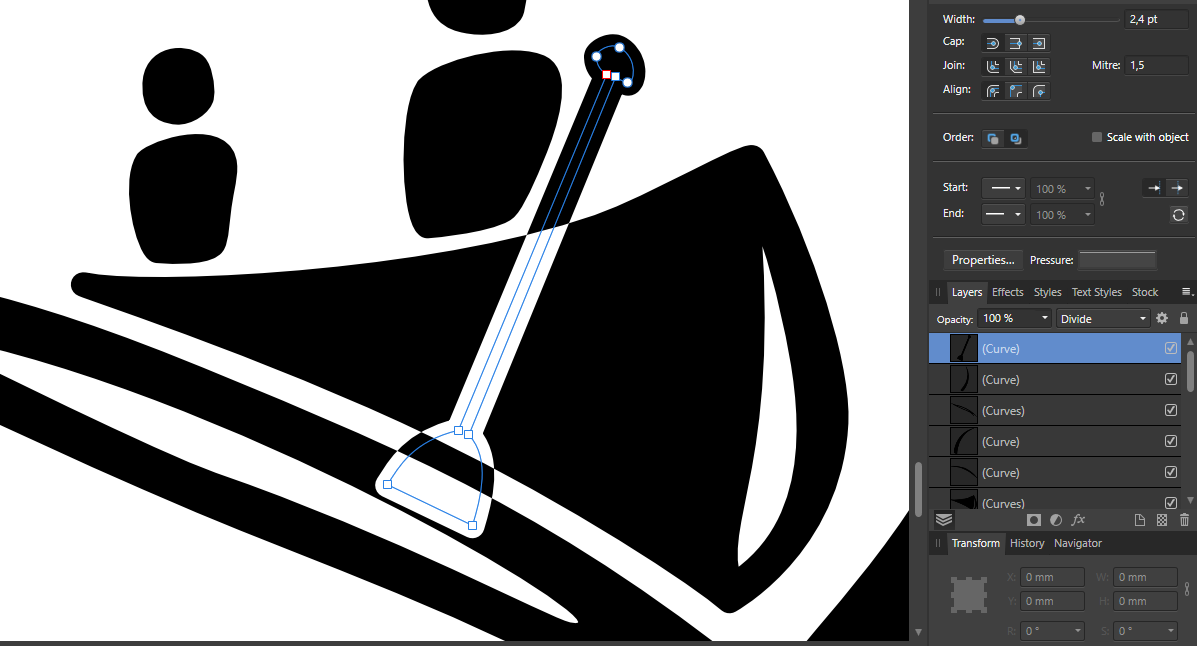

GarryP Posted May 5, 2021 Share Posted May 5, 2021 Welcome to the forums @AnnN If you don’t mind the exported result being rasterised then, in this case, you could set the Blend Mode for the paddle to Divide, see attached image. If you need the exported result to be in vectors then you will probably have to resort to more labour-intensive measures such as expanding the stroke on the paddle and then using various geometry functions. Quote Link to comment Share on other sites More sharing options...
AnnN Posted May 5, 2021 Author Share Posted May 5, 2021 Hi and thanks! so when I use Divide it will be in raster right? I'd like it to be in vector, so it probably gonna get complicated, but I will manage. Also, how can I tell right away that its been rasterized? It looks same to me. Quote Link to comment Share on other sites More sharing options...

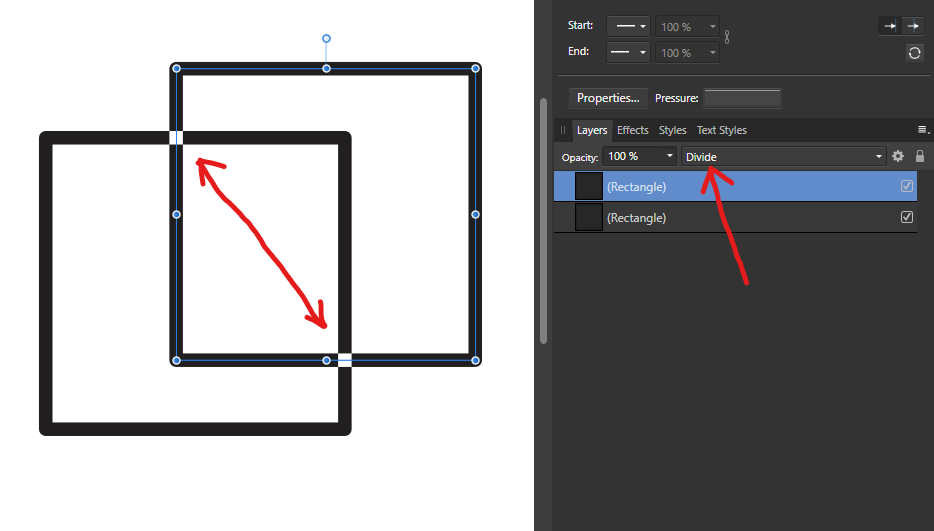

GarryP Posted May 5, 2021 Share Posted May 5, 2021 Using a blend mode will usually (maybe always, I can’t remember off the top of my head) cause the software to rasterise the things, upon export, that are affected by the blend mode. The software can display them in vectors while it has control of the vectors and the blend but once they go to be exported the software has less control over them and it has to rasterise some things to be safe. It’s a good rule-of-thumb to remember that: Blend Modes; Adjustments; Effects; Filters; and some others; all cause things to be rasterised (as of version 1.9.2/3). Quote Link to comment Share on other sites More sharing options...
loukash Posted May 5, 2021 Share Posted May 5, 2021 3 hours ago, AnnN said: I'd like it to be in vector Create a compound object, use the Xor mode: Quote MacBookAir 15": MacOS Ventura > Affinity v1, v2, v2 beta // MacBookPro 15" mid-2012: MacOS El Capitan > Affinity v1 / MacOS Catalina > Affinity v1, v2, v2 beta // iPad 8th: iPadOS 16 > Affinity v2 Link to comment Share on other sites More sharing options...
