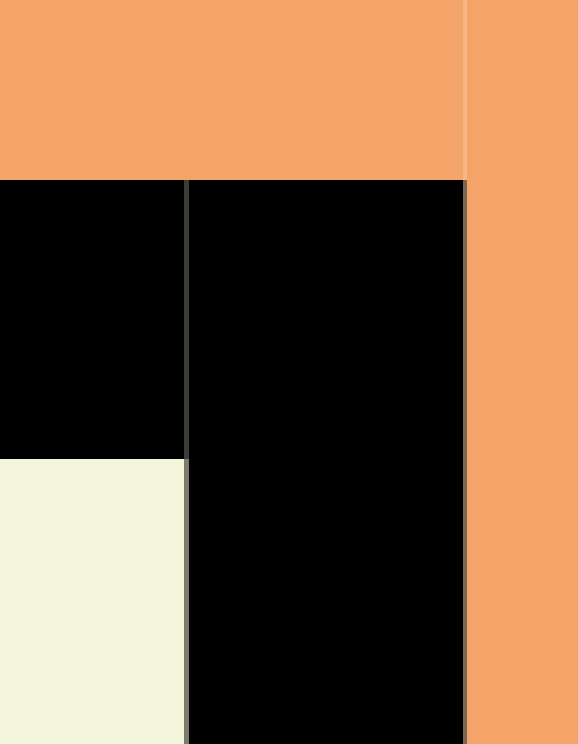

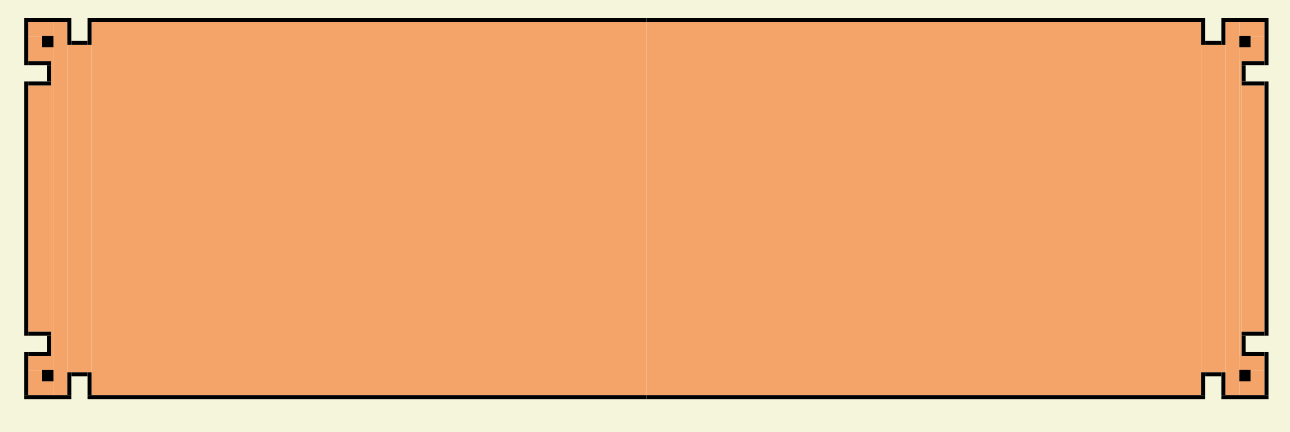

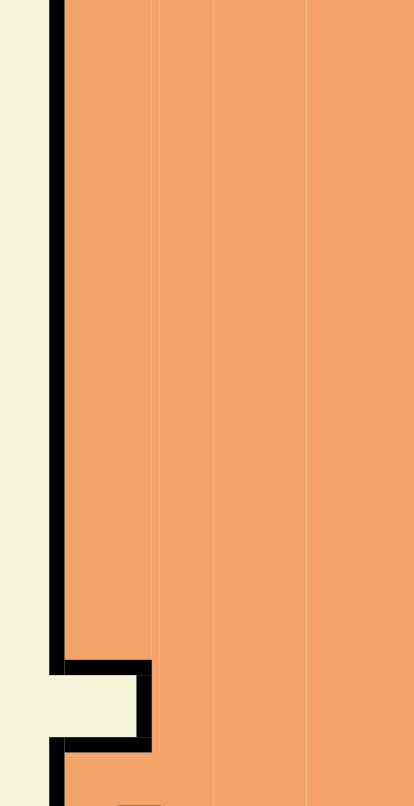

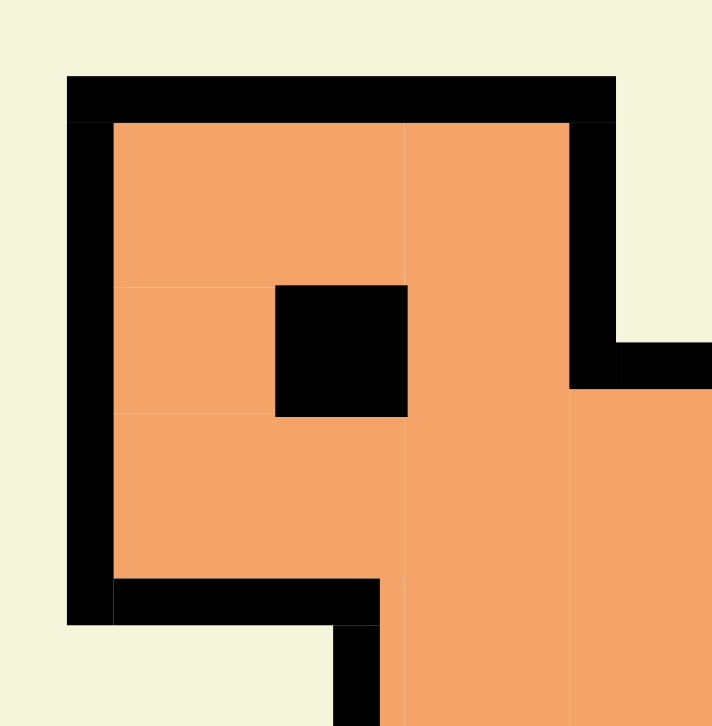

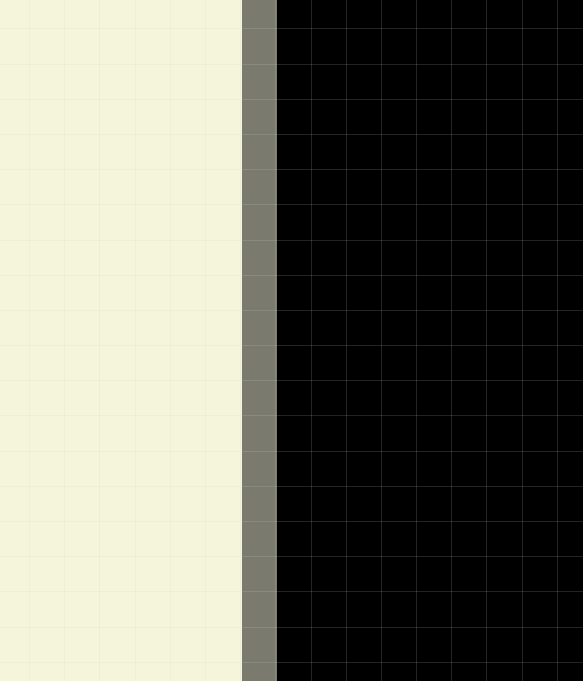

Picard06 Posted January 7 Posted January 7 Hi there! I've been using rectangles to make a border for an image (see screenshots). However, for some reason the shapes all have a "semi transparant" outline around them, sometimes only at 1 side, sometimes on multiple sides (see screenshot). This is very annoying, I just want 1 color and nothing else. I am not using a stroke or anything like that, just a basic (either black or orange) rectangle. To show what I mean, I'll add a couple of screenshots so you can see my problem. Something that might be worth to know; whenever I export it as a normal PNG, the lines don't show up, however when I export it as TIFF (Lanczos 3 non separable - CMYK 8 bit - no compression) the lines do show up. For what it's worth; the project is 19370 px by 9922 px with a PPI of 300 as I want to print it. I'd love to get some help with this, as I don't have much knowledge about Affinity Photo (2). Kind regards, Luke Quote PC 1: Ryzen 9 7950X3D | 64 GB DDR5-6000 | RTX 4070 Ti SUPER PC 2: Intel Core i9 14900K | 32 GB DDR5-4800 | RTX 3060 Professional video editor who likes to work with Affinity Photo from time to time. I love to watch Avatar: The Last Airbender, the original, but also the movie and the live action.
NotMyFault Posted January 7 Posted January 7 Check position and size in transform panel. (Use move tool) activate pixel grid. the layer is misaligned, meaning fractional digits for coordinates Picard06 1 Quote Mac mini M1 A2348 | MBP M3 Windows 11 - AMD Ryzen 9 5900x - 32 GB RAM - Nvidia GTX 1080 LG34WK950U-W, calibrated to DCI-P3 with LG Calibration Studio / Spider 5 | Dell 27“ 4K iPad Air Gen 5 (2022) A2589 Special interest into procedural texture filter, edit alpha channel, RGB/16 and RGB/32 color formats, stacking, finding root causes for misbehaving files, finding creative solutions for unsolvable tasks, finding bugs in Apps. I use iPad screenshots and videos even in the Desktop section of the forum when I expect no relevant difference.
Picard06 Posted January 7 Author Posted January 7 Thank you very much! You are a legend NotMyFault 1 Quote PC 1: Ryzen 9 7950X3D | 64 GB DDR5-6000 | RTX 4070 Ti SUPER PC 2: Intel Core i9 14900K | 32 GB DDR5-4800 | RTX 3060 Professional video editor who likes to work with Affinity Photo from time to time. I love to watch Avatar: The Last Airbender, the original, but also the movie and the live action.
