adding layer to synced artboard doesn't appear correctly in live preview.

[Rhonturn]

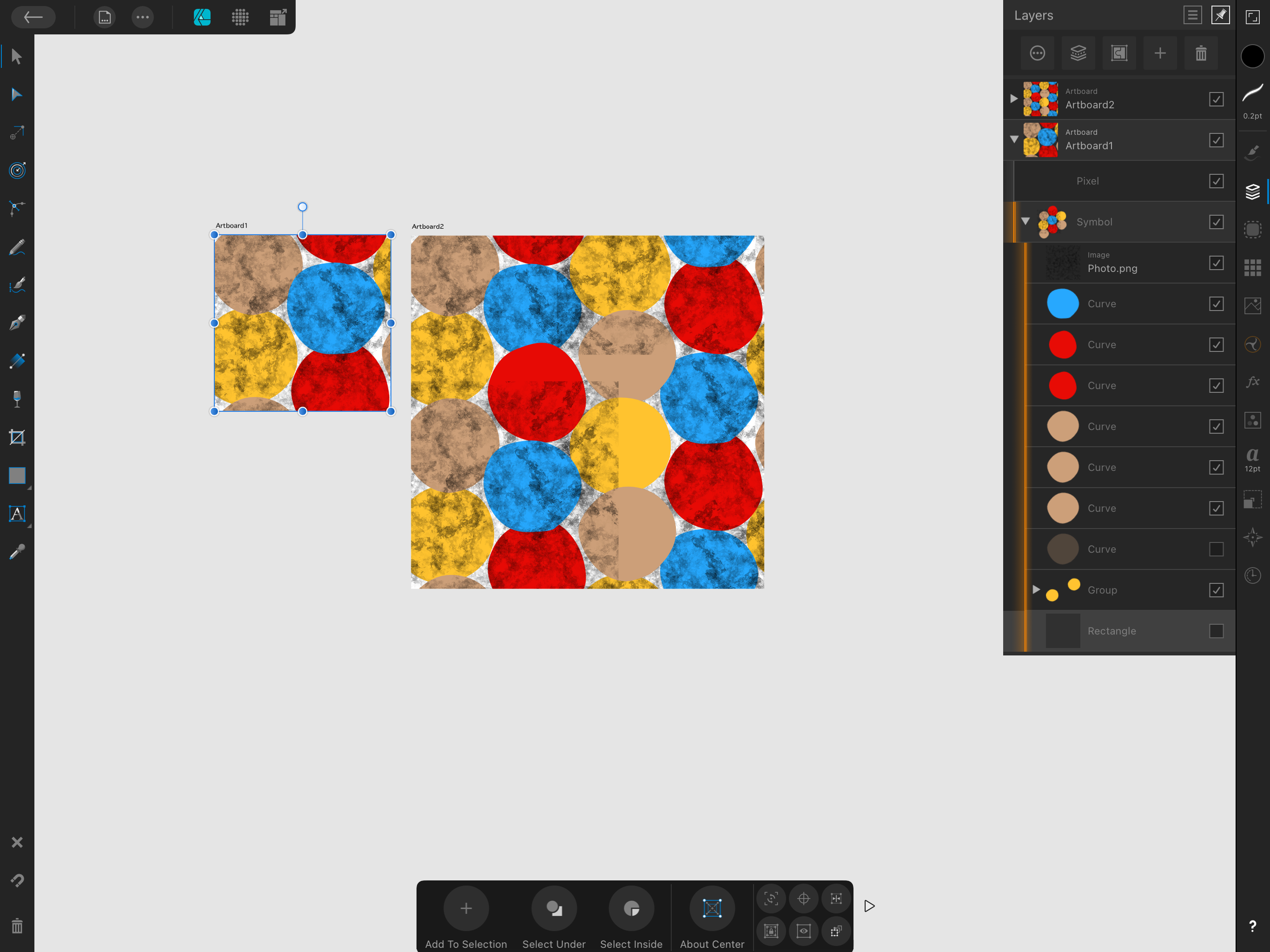

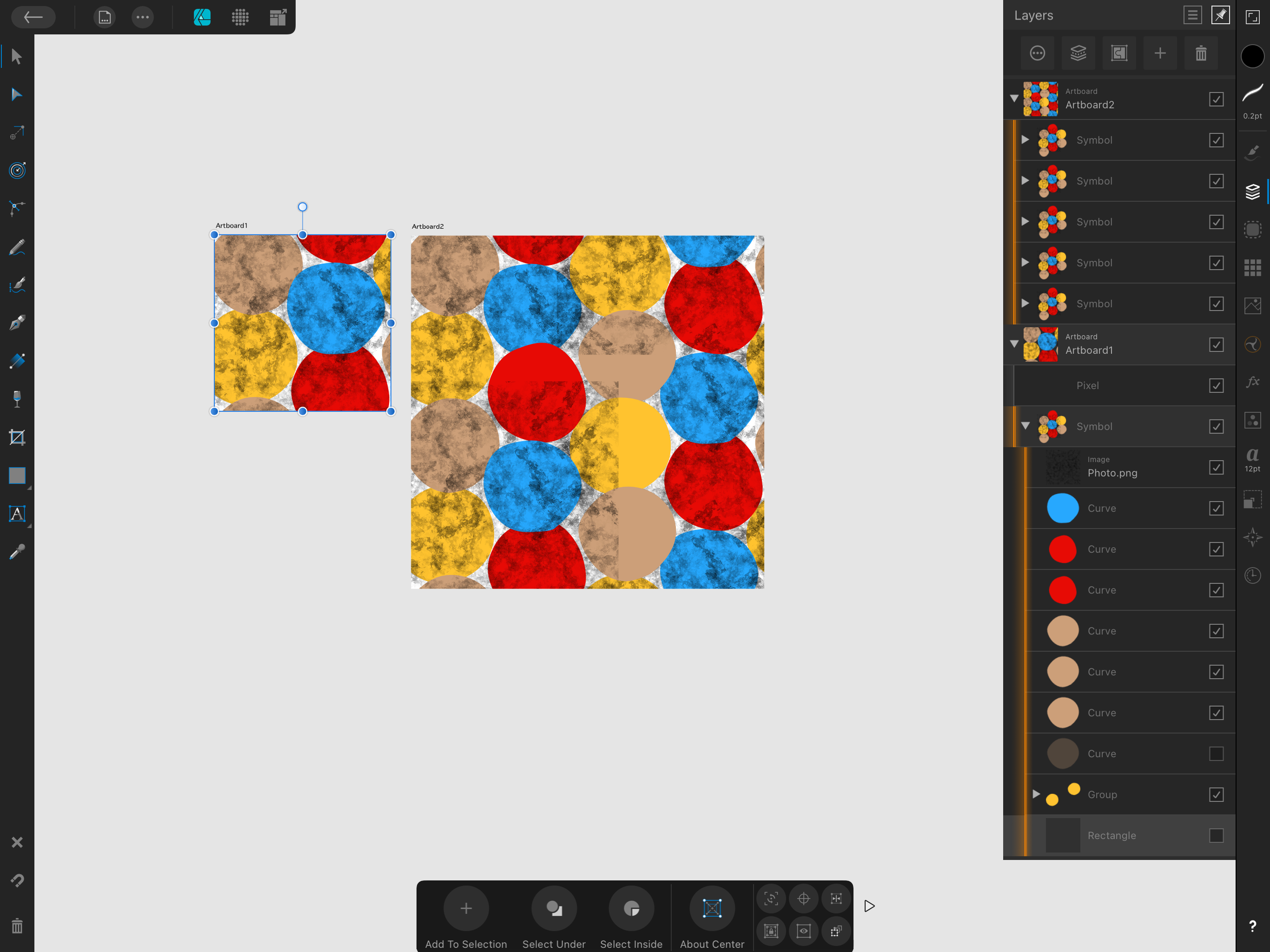

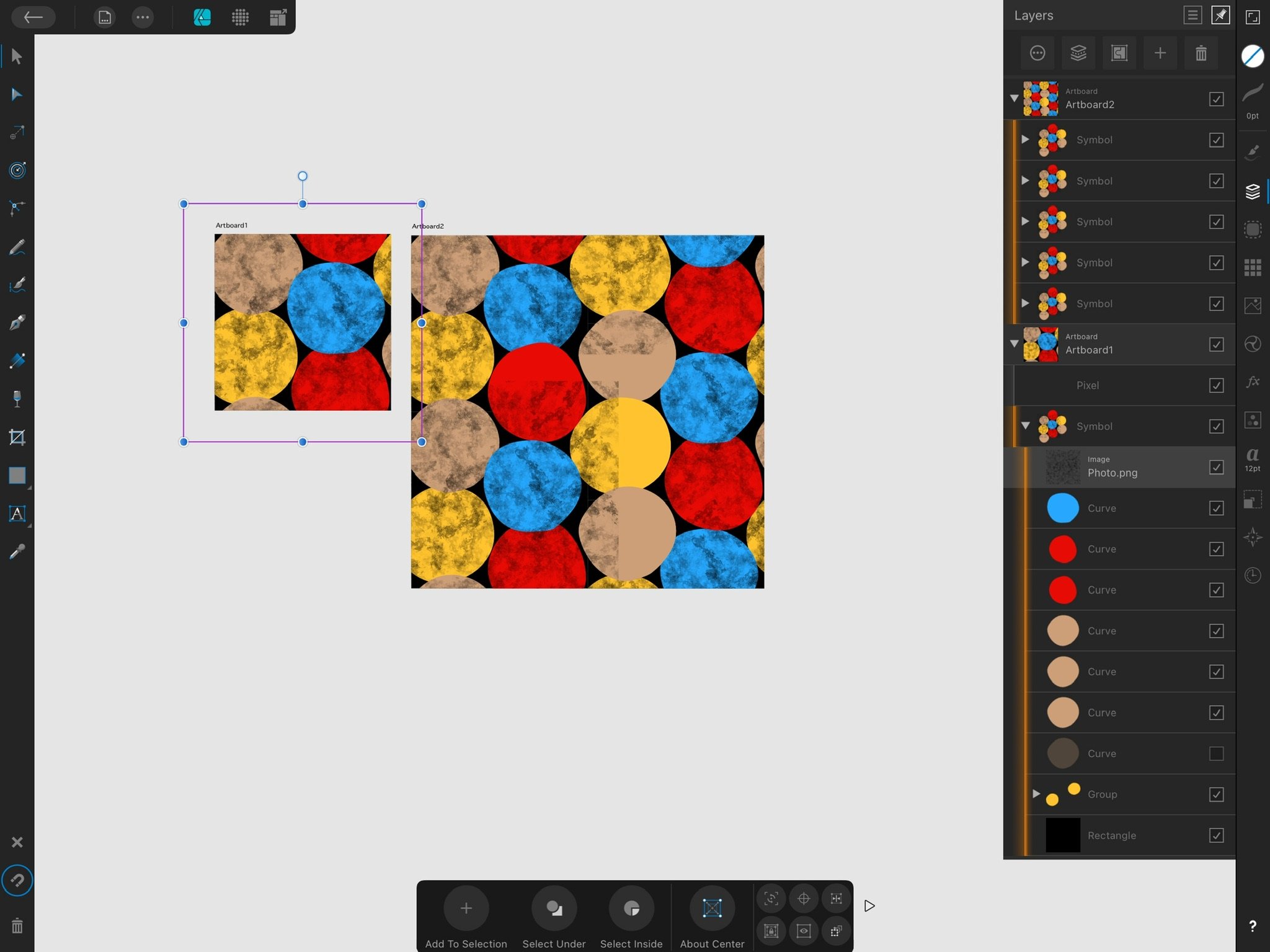

Hello! As you can see in my screenshots, I am attempting to add a raster layer of texture on to my vector image. Since I am making a repeat pattern, I have artboard 1 synced up to artboard 2 and all of the vector layers appear in the live preview. I added a layer of texture to artboard 1 which completely covers the artboard. It appears on artboard 2 but is missing some parts. I have checked to see that everything is synced up and I believe it is. As you can see, all of the vector elements are placed below the texture layer. I turned off the black background and the texture is visible behind the elements. Just can't figure this one out. I'm also experiencing this on another document doing the same thing. Perhaps my master document is the issue (although all the vector layers have been synced properly.) Thank you!

specific document info:

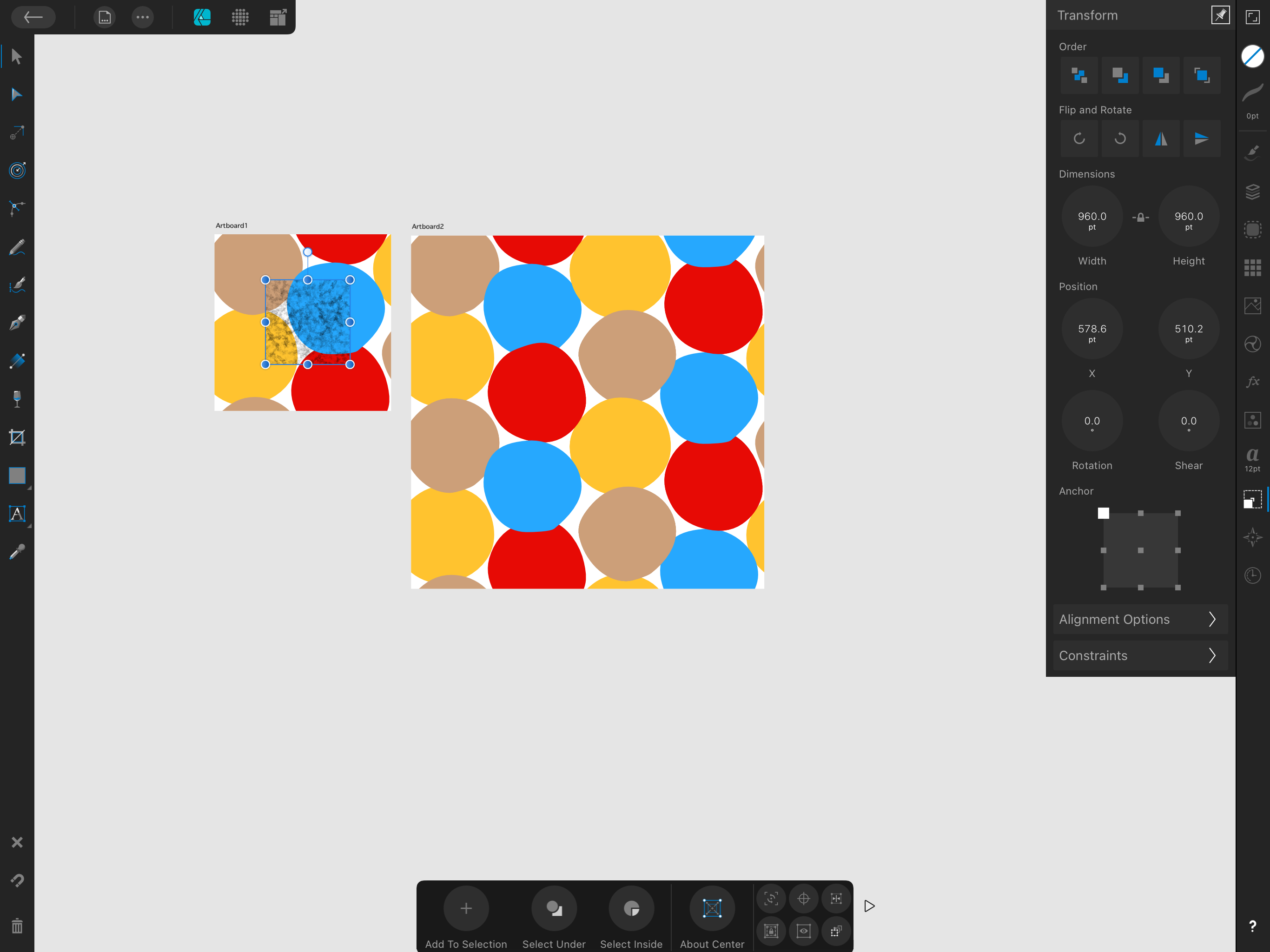

artboard 1 is 2000x2000 at 300 dpi. artboard 2 is 4000x4000 at 300 dpi. the texture file is 4000x4000 dpi. when I tap rather than drag to import the file, it SHOULD appear larger than artboard 1 but it appears smaller. In fact it imports as only 960 pt x 960 pt.

mamma mia save me!

[stokerg]

Hi @Rhonturn,

Could you attached your afdesign file for this?

The main problem from what i can tell, is that your document is using points and placing a raster image, which is using Pixels, this causes the image to resize based on the DPI of the document and in this case, 4000pt document at 300DPI will make a 4000px image at 72dpi be placed at 960pt.  If you set your document DPI to 72DPI and place the image, it would be shown at the correct size.



[Rhonturn]

I think you are correct! I'm going to go fix it now but I'm attaching the file so you can take a look and see if your idea was right. I really appreciate you taking the time to help me. Thank you so much! I'll report back if the problem has been solved

overlappingdots_black.afdesign
