Mexie7

I am using the line tool. I want to make sure all is my dots line up. I know that I can change the phase and that moves the location of the dots. Is there a way to ensure my dots line up as they should in a shape. Here are some pics.

I am using my ipad when I try to print it is off by like 10 mm. Sometimes it works and some times it does not. Any tips or tricks on how to fix it.

😅 that’s so annoying! You would think it would just do it automatically..

I am using the line tool. I want to make sure all is my dots line up. I know that I can change the phase and that moves the location of the dots. Is there a way to ensure my dots line up as they should in a shape. Here are some pics. Of what I am trying to get done.

When I add a shape like a square. I want to add 3 mm as an offset. when I do so the main line of the square disappears on me... Not sure how to make it show.

Nice that worked. 1mm and then entering 4 in the box gave me the spacing I needed.

Nice! now how am I able to get the spacing to 4 mm? I tried that and still when I put the number 4 in the second box or also the first and second box it does not measure it accurately. My Document is also set up in mm. All I need is to when I make a square shape. for the - - - - - to be exactly at 4 mm apart.

Ok, So I have a couple of questions. First off I am a leatherworker and most of the stuff I am trying to do is pretty simple. I use Adobe illustrator and it works out great. You guys almost offer the same things. First question. Do you offer something like the pathfinder in adobe illustrator.? Second, I am having such a hard time with the stoke tool. or the dashed line ------. Everything is in Pt (measurements) I want it to be in (MM) So for example, if I want my dashes to be 4mm apart (- - - - - - -) What adjustments do I do to the dashed line? There are four boxes that all do something. and then to the far right, there is a phase option not sure if that matters or not. In adobe, I am just able to set my document to MM size. And then enter the number I want in the first box and it does the trick. basically, is there a way to change the pt measurements to mm.?

I am trying to create a new brush with the following measurements. 1mm 1 mm spacing 4 mm with a 45 degree angle. Should look something like this. / / / / / / I am so close. I was able to get it figured out but it is still not there. Not sure what to put for the following things. brush width size variance opacity variance pressure head offset tail offset. I will attach some pictures.

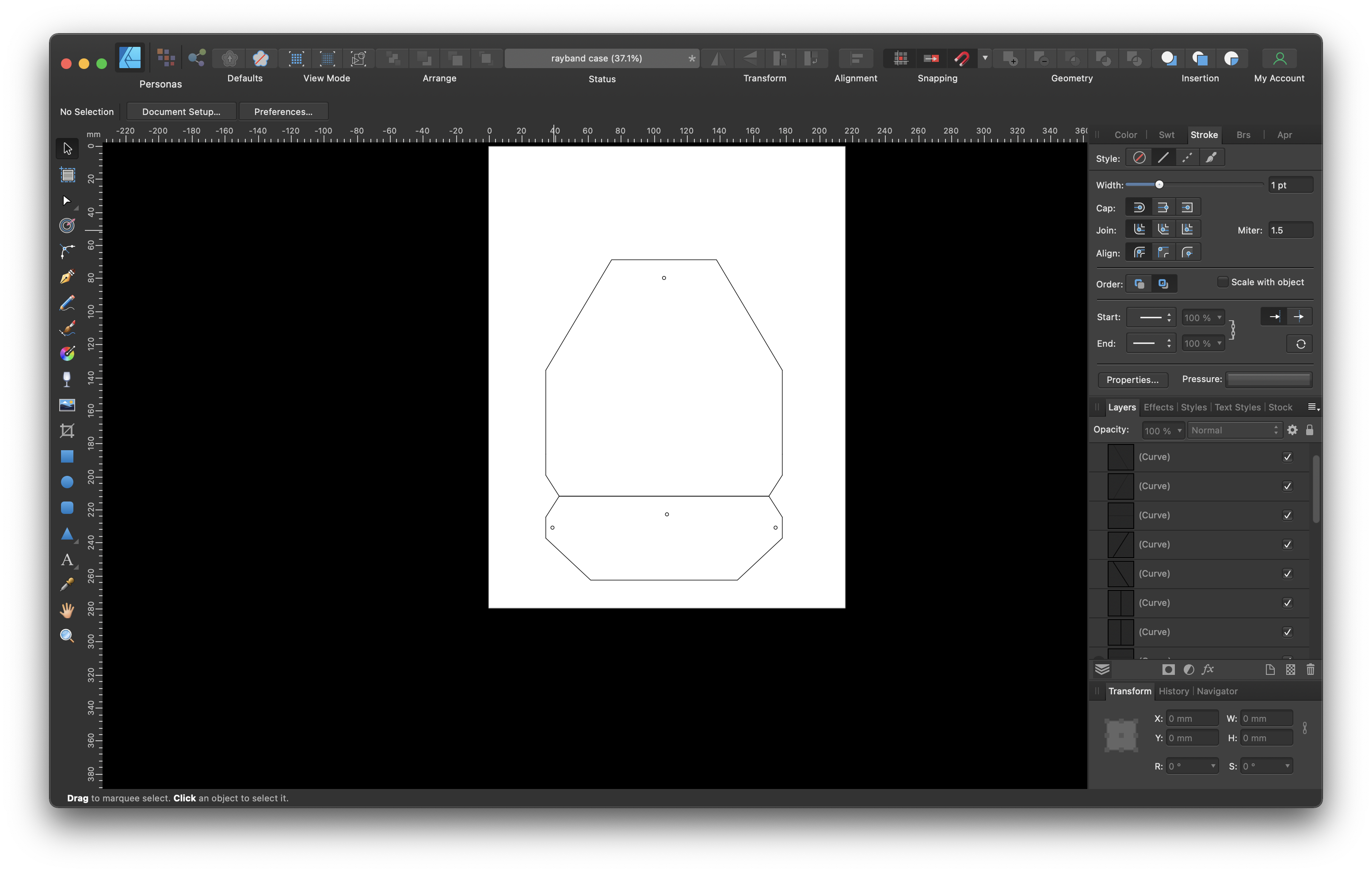

I have created some shapes using only the pen tool. I am trying to figure out how to round the corners using the corner tool. I can figure it out. I have toreid to group all over the lines and then converted them to curves still does not seem to work. I have attached what I am working on down below. I simply just want to round off some of the corners.

I am trying to open a pdf and this is what keeps coming up.

The second thing was it thanks.

I not sure what happen. The icons are all grey and no longer have color to them. Is there a way to get the color back or reset it?

I use affinity designer to make leather patterns. My question is can I use a different style for the line? I would like to use the (Oblique style) (/) I have a european style pricking irons. I see there is only a sold line option and then a dash option. I am trying to make a stitch line. I want to make / all around the square shape.

I see, that works! Now can I use a different style for the line? I would like to use the (Oblique style) (/) I have a european style pricking irons. I see there is only a sold line option and then a dash option.
