Another small voice asking for DXF support, plaintively battling the 7-ish years of requests :)

Thanks @dutchshader, that is getting there! I just don't know if this is asking too much from Affinity products. The attached file from another forum post did it, but I have no idea how that works....the Origami product is perfect, but that requires Illustrator as well as the Origami license ($100 plus Adobe which is $600/yr...or the main boxshot product which is $200) Honestly, the attached file does what I need, but I don't know how to re-create it with my own template, with regions in the main artboard spilling over mostly properly to other sides. I could completely do this with images, and then apply them to 3D models (I am in the mechanical engineering world), but that does not allow live updates. Thanks @firstdefence for the pointer to Boxshot, I many end up going that route. box_symbol_isometric.afdesign

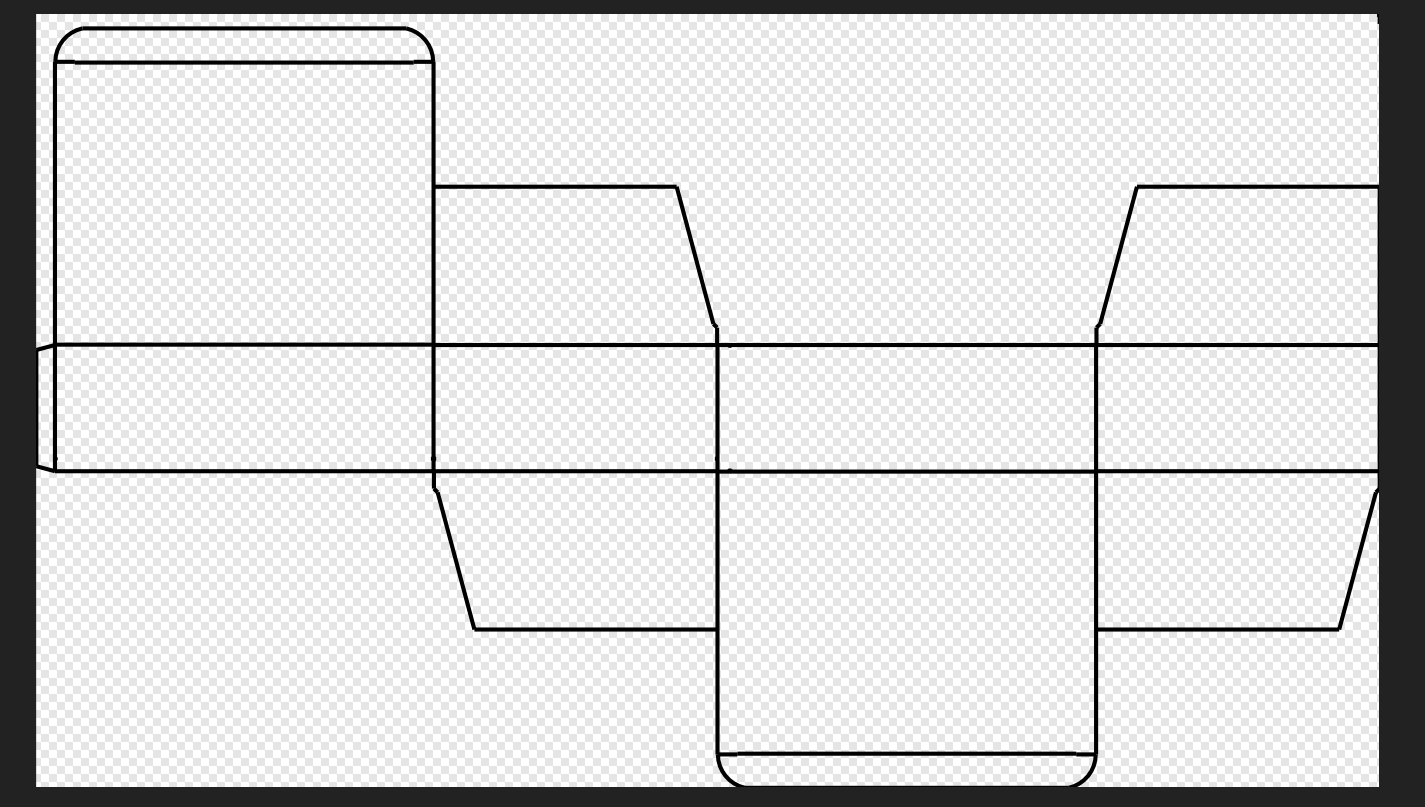

Hi all! I am trying to create a box design based on a flat-pack die-cut template. The actual "print-readiness" of this is not critical, I just want to show my client what a sample box design would look like. Can this be done in any Affinity program? Start with a flat pack design like that attached layout.PNG. Have associated "front" "back" "left side" "right side" views show up, where if I create a colored bar that stretches across different regions in the flat-pack file, those bars/graphics are appropriately shown on the "real world" views. I don't need anything isometric done (like what was shown here: https://forum.affinity.serif.com/index.php?/topic/32968-ad-only-isometric-mock-up-with-symbols/) ...but along the same lines....with "views" being updated when the main file is updated. I have all three Affinity products...does anyone know of a way to "link" views so I can update the flat design and show the client in real time what their box faces would look like? BECF-111.svg
