Affinity Designer Ipad v2 - How To Draw A Diagonal Line In Specific Lenth And Angle

[Mainecoon364]



Let’s say the angle (Rotation) in the transform tool will be 40 degrees.

And the length will be10 cm.



How can I draw this line?



[Paul Mudditt]

8 hours ago, Mainecoon364 said:





Let’s say the angle (Rotation) in the transform tool will be 40 degrees.

And the length will be10 cm.



How can I draw this line?



Draw it horizontal or vertical at 10cm long then rotate it using the transform studio.

[Mainecoon364]

Is there a faster way to do this?



The 10 cm line with the 40 degrees angle.

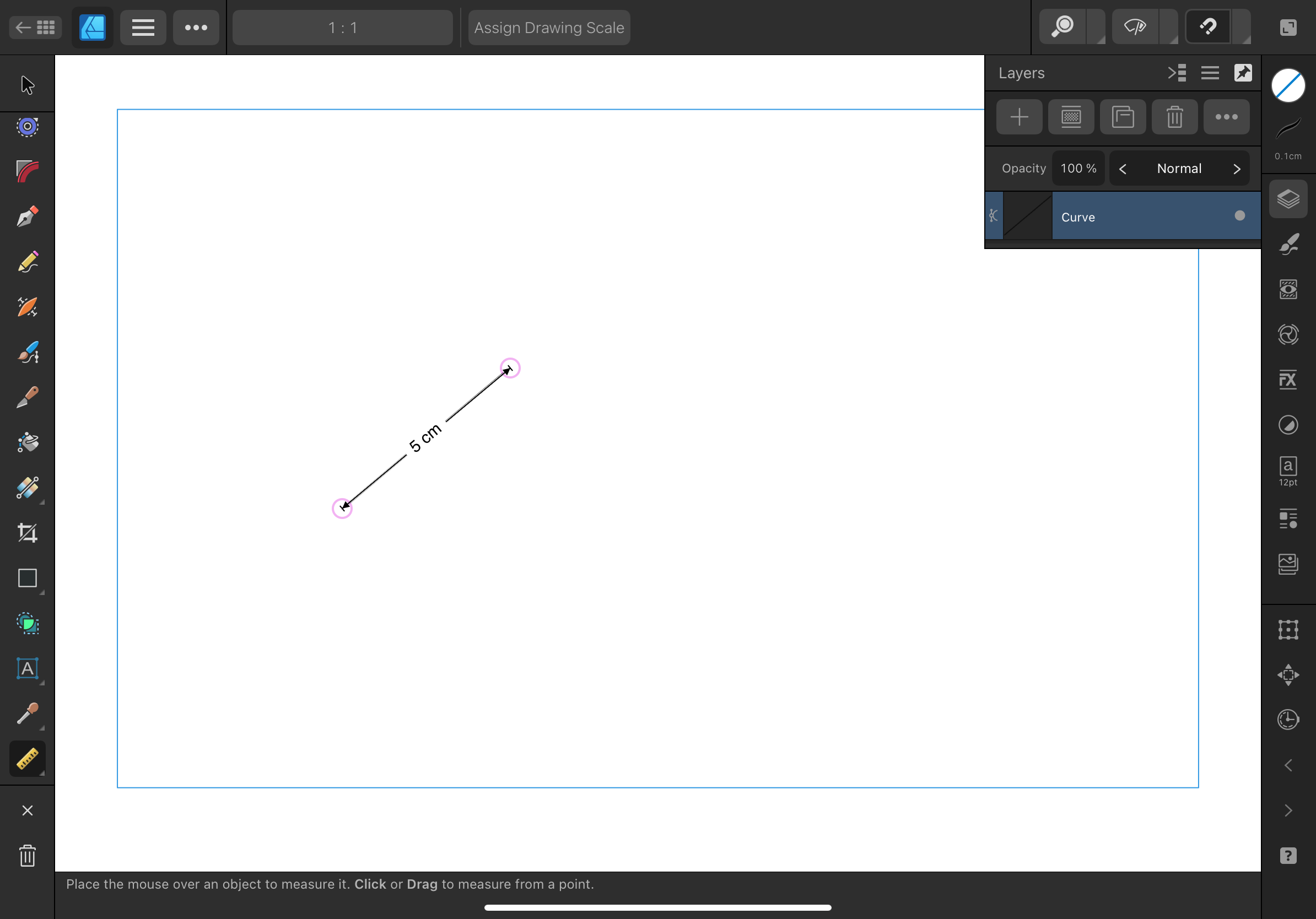

I want to make It 5 cm line with the 40 degrees angle.



Normally I have to create a new line and apply angle to do this. Because there is X and Y coordinates. Not combined length.





[GarryP]

11 minutes ago, Mainecoon364 said:

The 10 cm line with the 40 degrees angle.



I want to make It 5 cm line with the 40 degrees angle.

I don’t know if it’s the same on iPad but on Desktop, for a straight line Curve layer comprising of two nodes, or with the Node Tool and two adjacent nodes selected, in the Transform Panel there should be a (L)ength field which can be modified.

[Alfred]

42 minutes ago, GarryP said:

I don’t know if it’s the same on iPad but on Desktop, for a straight line Curve layer comprising of two nodes, or with the Node Tool and two adjacent nodes selected, in the Transform Panel there should be a (L)ength field which can be modified.

The Transform Studio is simplified in the iPad version, with the Height control greyed out to leave the Width control serving as the Length control, but the same basic operations are available.

[Mainecoon364]

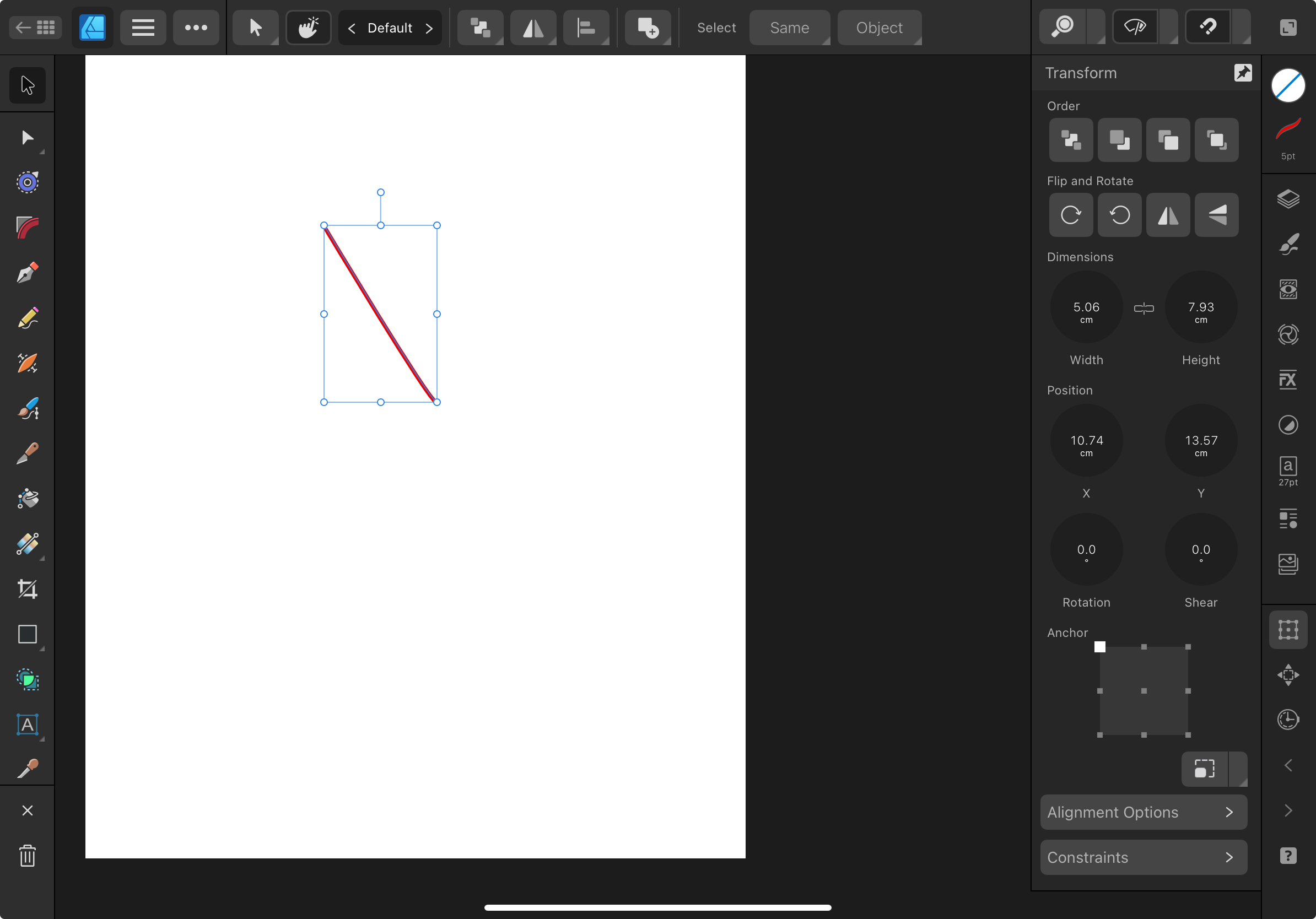

It does not show the measure of the diagonal line. (Hypotenuse)



It shows the measure of the adjacent side and the opposite side of the triangle.



As you see on my screenshot.

[Paul Mudditt]

As I said the only way is as I stated, draw horizontal or vertical, in transform studio set length then set angle.

Perhaps add a feature request to change it, autocad it isn’t.

[Mainecoon364]

Yes.



Thank you very much.
