Cannot find a tutorial on how to (draw/create) a curved arrow headed rule, anyone?

[blackxacto]

19,1 iMac Sequoia 15.4, AP2:

I can draw a path w the path tool and curve it, but how to turn it into a 8pt thick curved rule line with one arrow head?

[Old Bruce]

Is this the sort of thing you need?

9 minutes ago, blackxacto said:

how to turn it into a 8pt thick curved rule line with one arrow head?

like this.afdesign

[blackxacto]

The path of the arrow needs to be thicker, with no hash marks, BUT YES, this is what I can't figure out how to convert a pen tool path like yours with your arrow head in Affinity Photo 2.



additional query: what is the $20 a month I see Affinity is now charging? Why do we need to pay additionally just like (yuk) Photoshop?

[R C-R]

3 hours ago, blackxacto said:

additional query: what is the $20 a month I see Affinity is now charging? Why do we need to pay additionally just like (yuk) Photoshop?

Where do you see that? Do you have a screenshot showing a message or some such to that effect?

[user_0815]

Not sure whether I understood that correctly. This is how I'd do that.

In the context bar (top) there is the drop down thingy to change the path however you need it.







[blackxacto]

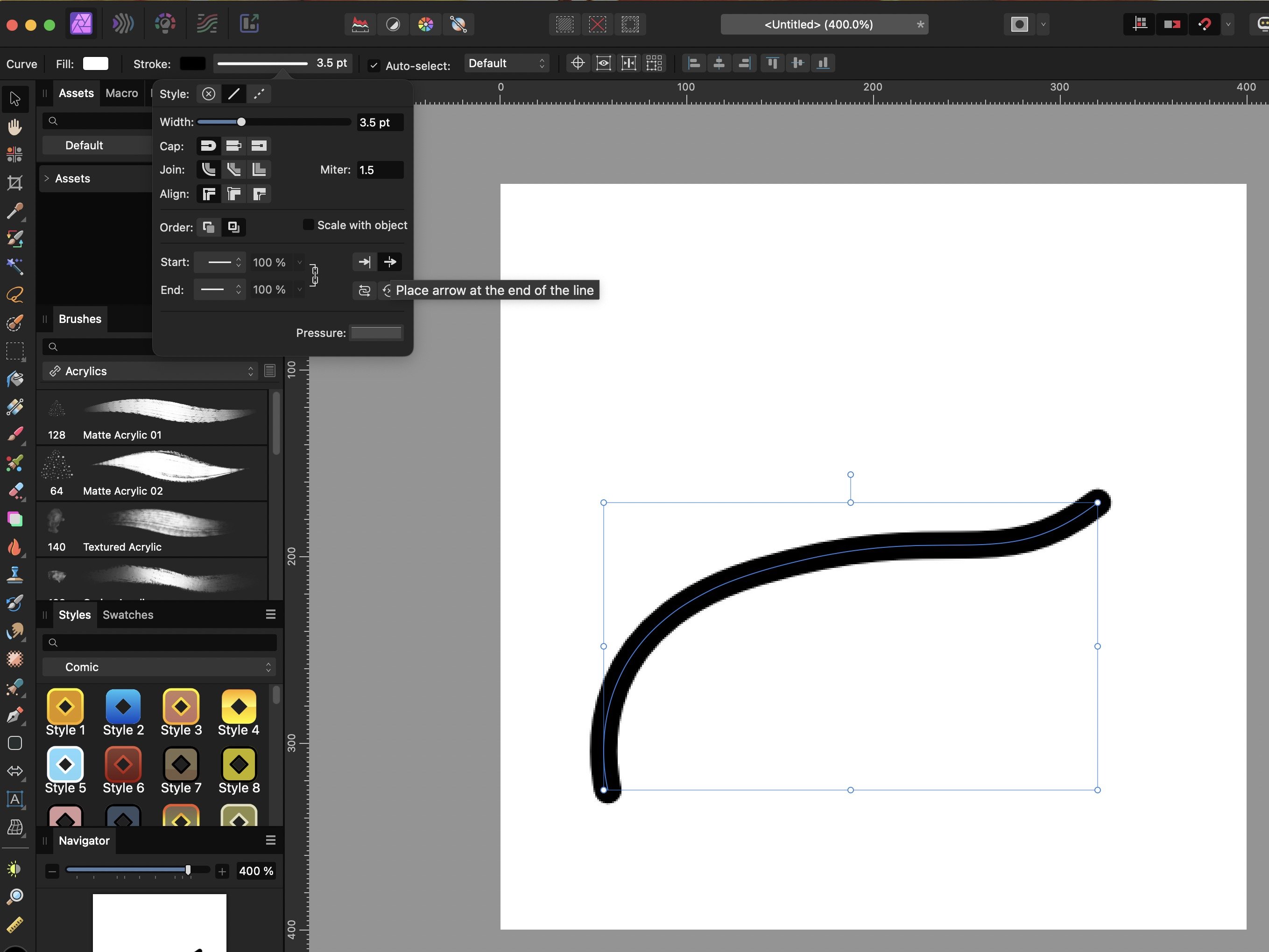

👍 Thank you so much. You revealed the answer to me. I kept clicking the arrow at right side icon and nothing happened. I have to select from the END selection. What do the two icons for arrowheads accomplish, if I have to select in the left side "END" of the menu? See my screenshot.

Does Affinity provide tutorials for these basic moves anywhere?

[user_0815]

These two arrow buttons define whether the tip of the arrow ends exactly where the line ends OR the arrow head is placed on top / additionally to the line.

I'm not aware of any tutorials on this.

[R C-R]

32 minutes ago, user_0815 said:

I'm not aware of any tutorials on this.

FWIW if one hovers the pointer over either button a tooltip pops up explaining what they do.
