Stroke Incorrect After Export

[J_a_k_e]

Stroke is incorrect after export.

Grouped objects do not retain their stroke properties after export. I have reproduced this error in a new document.

These are ellipses that have been converted to curves and one line drawn with the pen tool. Their stroke width is adjusted after grouping together.

AD version 2.6.0

MacOS Ventura Version 13.5.2 (22G91)

Chip: Apple M1 Pro

System Firmware Version: 8422.141.2

OS Loader Version: 8422.141.2

No affect with/without hardware acceleration

RSS2.svg RSS_V2.svg

Edited March 10 by J_a_k_e
more details

[Hangman]

Hi @J_a_k_e and welcome to the forums,

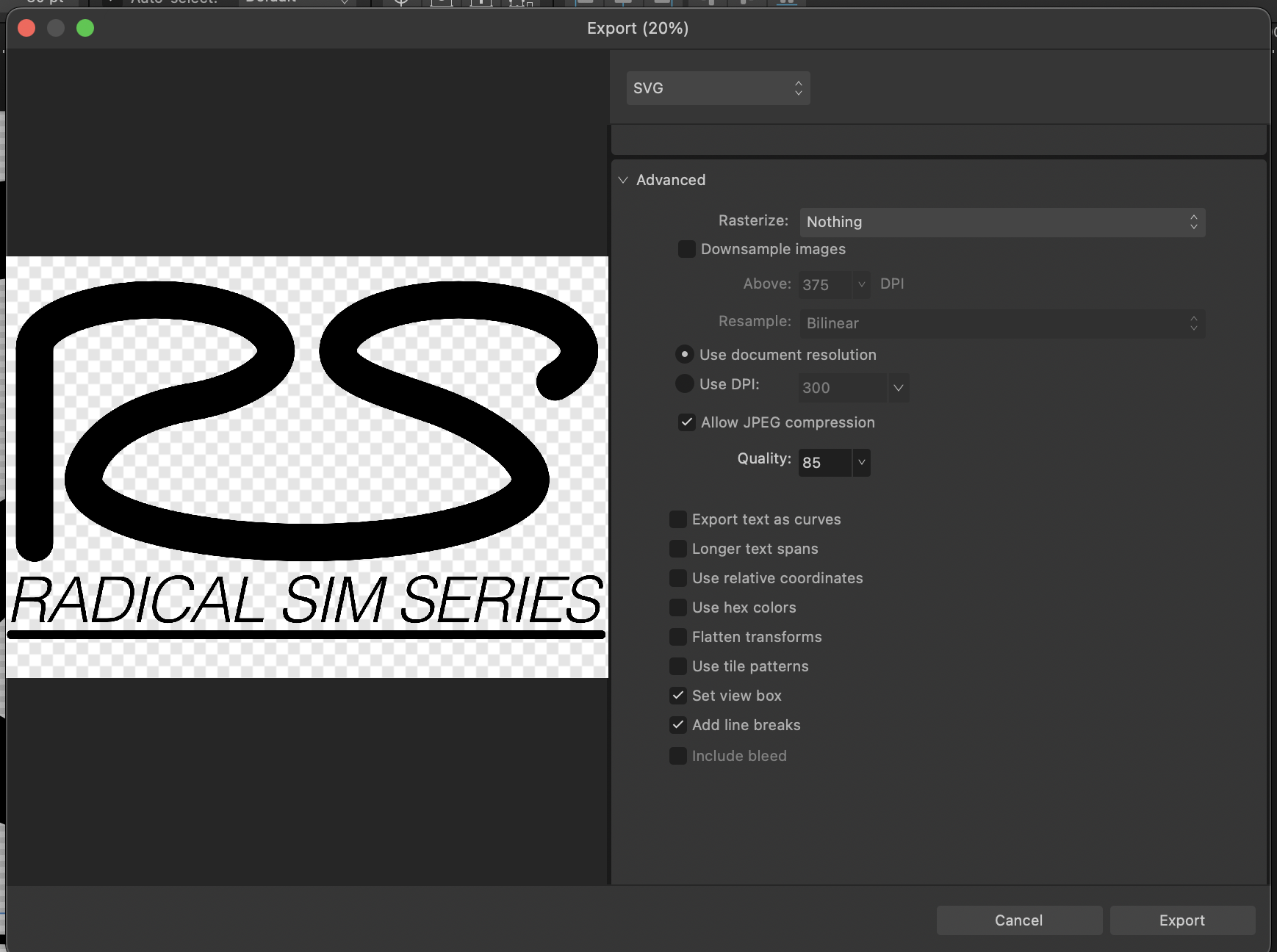

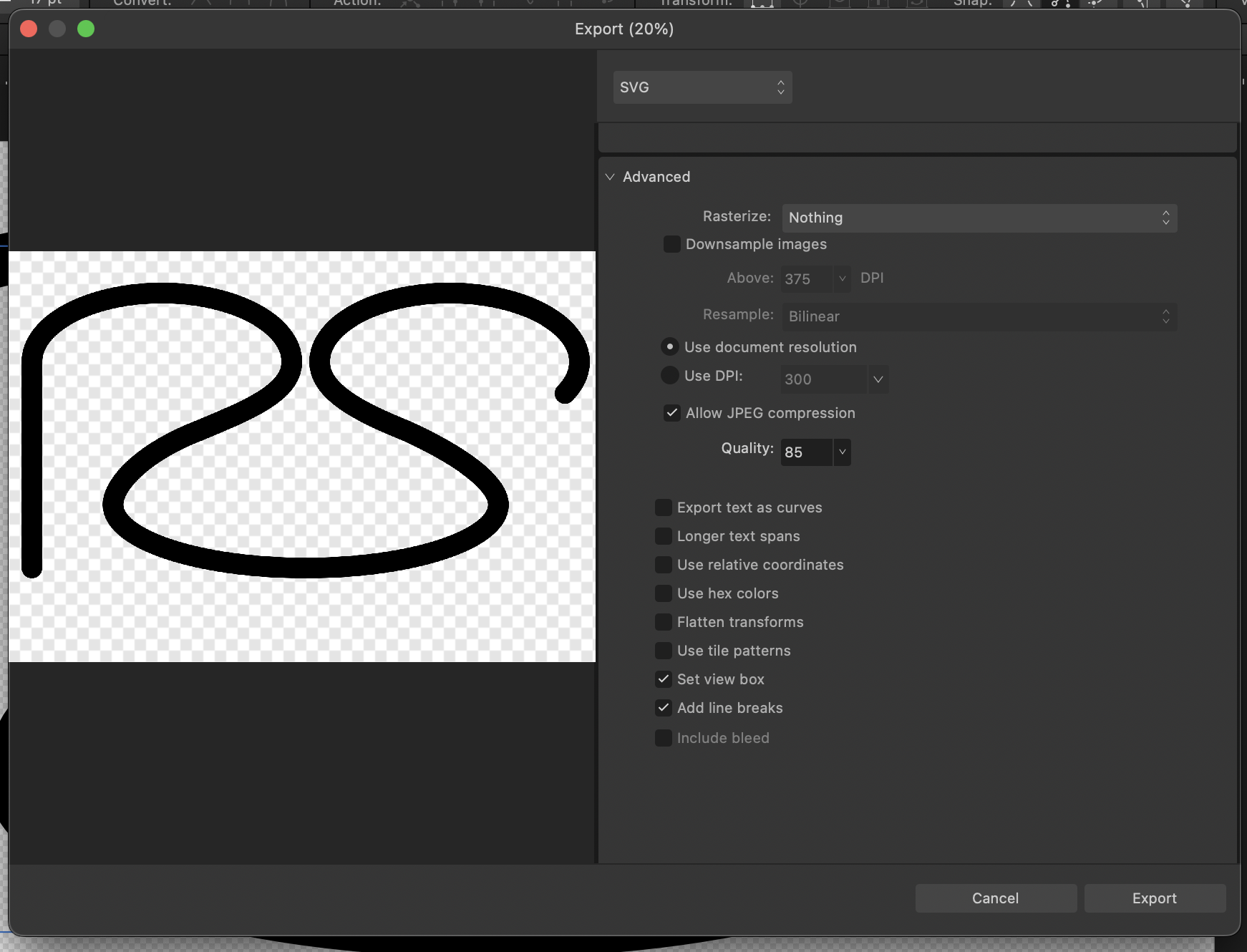

I've not been able to replicate the issue, your RSS2.svg file is exporting as per your first screenshot.... I'm assuming you're seeing the export as per your second screenshot, is that correct?

[J_a_k_e]

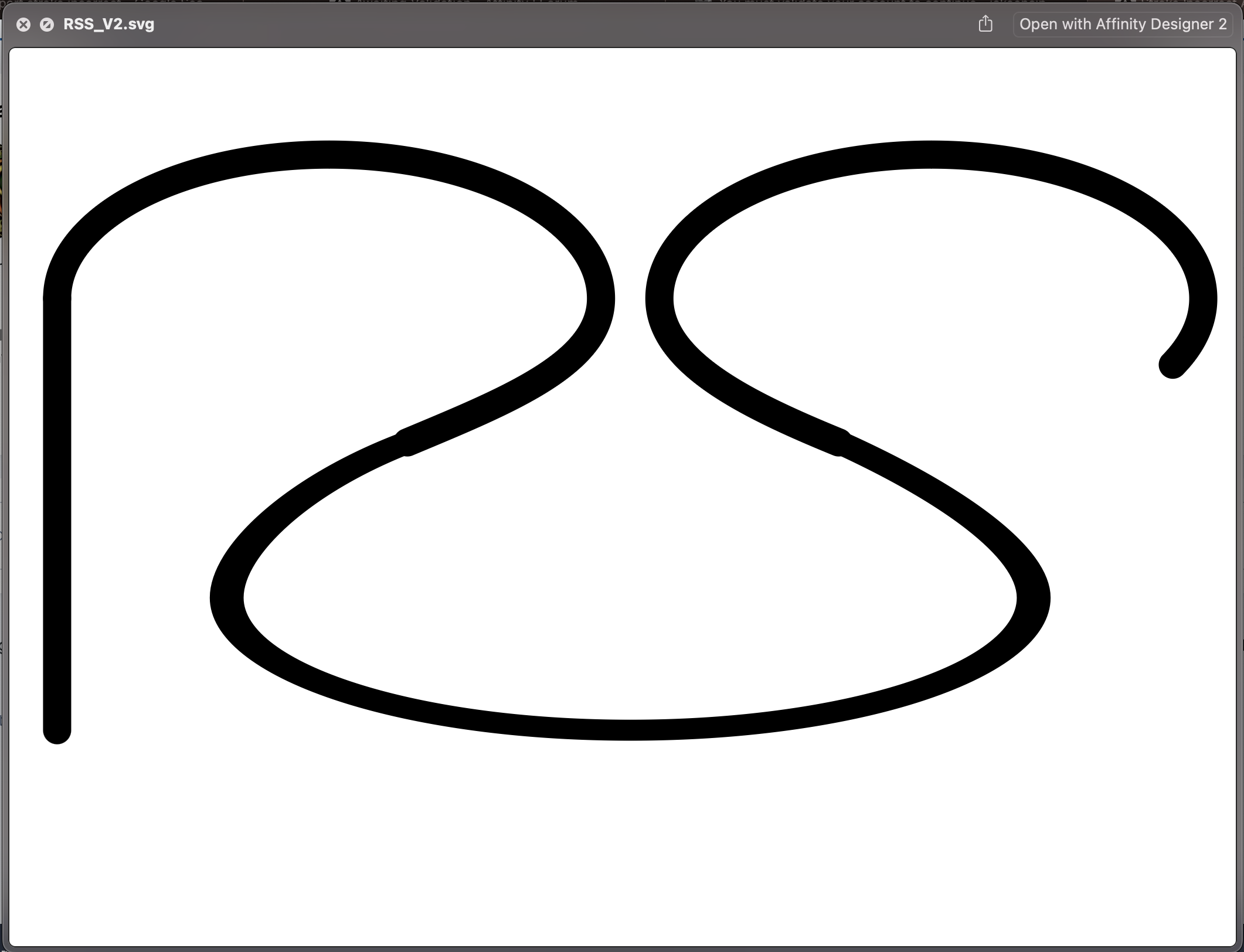

When I open the RSS2.svg it appears correct, but when I preview in Finder or open in Chrome, it is still incorrect

[Hangman]

Hi @J_a_k_e,

I see what you mean...

I'm slightly unsure why the SVG previews like this in Finder and Web Browsers, but there are two options:

1. If you wish to maintain the lines as Stokes, add an additional node to the pressure graph for each stroke...
2. Expand the Stokes...

[NathanC]

Hi @J_a_k_e,

Enable 'Flatten Transforms' in the SVG export settings and this should prevent this distortion in certain apps and web browsers. There is a known issue relating to this logged with the developers which can be triggered by object re-sizes.

[J_a_k_e]

Thanks @NathanC, this worked for me!

RSS2.svg

Edited March 31 by J_a_k_e
