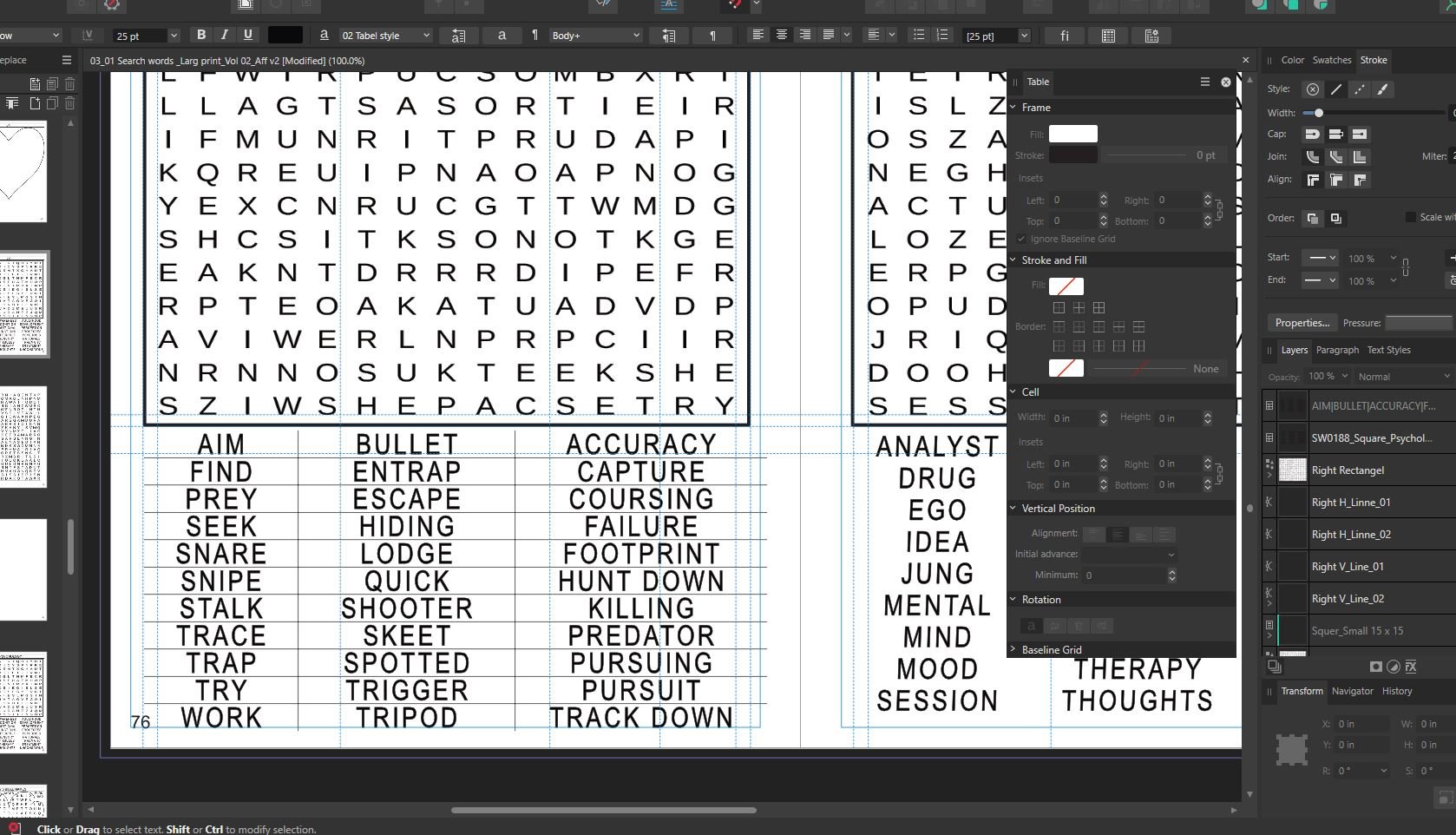

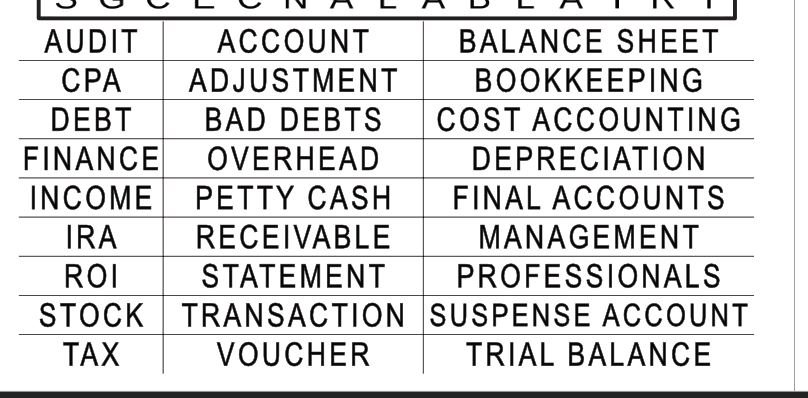

Chris Cros Posted January 7 Posted January 7 How to remove inner lines from the table? If I select the whole table, I can't remove them. I can remove the lines if I go into each cell separately. But even this doesn't work for the whole table. Some I can remove, some I can't. I add a table with Table tool. Quote
Hangman Posted January 7 Posted January 7 Hi @Chris Cros, Select all cells and then select the third icon in the top row in the Stroke and Fill section and change the stroke width to None... Quote Affinity Designer 2.6.0 | Affinity Photo 2.6.0 | Affinity Publisher 2.6.0 MacBook Pro M3 Max, 36 GB Unified Memory, macOS Sonoma 14.6.1, Magic Mouse HP ENVY x360, 8 GB RAM, AMD Ryzen 5 2500U, Windows 10 Home, Logitech Mouse
Chris Cros Posted January 8 Author Posted January 8 This I was done before. But the inner line still stands. Quote
Hangman Posted January 9 Posted January 9 Hi @Chris Cros, If this doesn't work can you upload a document containing just the table so we can a look... Table.mp4 Quote Affinity Designer 2.6.0 | Affinity Photo 2.6.0 | Affinity Publisher 2.6.0 MacBook Pro M3 Max, 36 GB Unified Memory, macOS Sonoma 14.6.1, Magic Mouse HP ENVY x360, 8 GB RAM, AMD Ryzen 5 2500U, Windows 10 Home, Logitech Mouse
Hangman Posted January 9 Posted January 9 1 minute ago, Chris Cros said: Is this public or private? How do you mean, public or private? The forum is public but feel free to DM a file if you'd prefer not to upload here... Quote Affinity Designer 2.6.0 | Affinity Photo 2.6.0 | Affinity Publisher 2.6.0 MacBook Pro M3 Max, 36 GB Unified Memory, macOS Sonoma 14.6.1, Magic Mouse HP ENVY x360, 8 GB RAM, AMD Ryzen 5 2500U, Windows 10 Home, Logitech Mouse
R C-R Posted January 9 Posted January 9 37 minutes ago, Hangman said: The forum is public but feel free to DM a file if you'd prefer not to upload here... Or just create a small table with non-sensitive info you don't mind everyone seeing. It doesn't even have to use real words. Quote All 3 1.10.8, & all 3 V2.6 Mac apps; 2020 iMac 27"; 3.8GHz i7, Radeon Pro 5700, 32GB RAM; macOS 10.15.7 All 3 V2 apps for iPad; 6th Generation iPad 32 GB; Apple Pencil; iPadOS 15.7

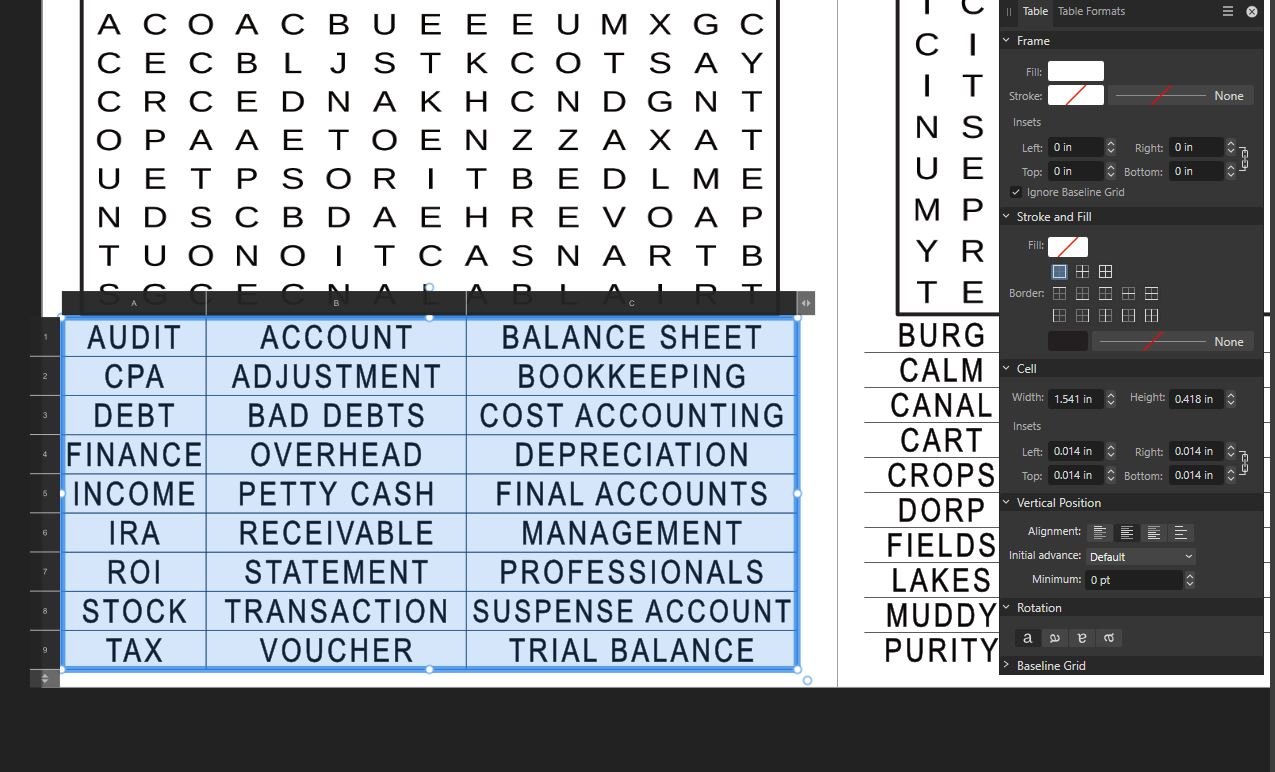

R C-R Posted January 9 Posted January 9 19 minutes ago, Chris Cros said: OK. I send just one page. Select all cells (so they are all highlighted. Click the second button in the top row if the Border: section, the one that looks like a cross & has a tooltip that says "inside." Note that it shows a 1 pt inside border applied to each cell. Set that to "No line style" (the X in a circle in the popup) Does that do what you want? Quote All 3 1.10.8, & all 3 V2.6 Mac apps; 2020 iMac 27"; 3.8GHz i7, Radeon Pro 5700, 32GB RAM; macOS 10.15.7 All 3 V2 apps for iPad; 6th Generation iPad 32 GB; Apple Pencil; iPadOS 15.7
Chris Cros Posted January 9 Author Posted January 9 Thanks. This is now working. I didn't know that you must choose "inside". Thank you very much. Quote
R C-R Posted January 9 Posted January 9 15 minutes ago, Chris Cros said: I didn't know that you must choose "inside". It is not the most intuitive implementation, is it? I think it would be better if there was an "all borders" button in addition to the provided ones so we could easily set or change every border to the same (or no) size, but I have seen in some other app something similar to the Affinity implementation so I guess it isn't all that uncommon. Quote All 3 1.10.8, & all 3 V2.6 Mac apps; 2020 iMac 27"; 3.8GHz i7, Radeon Pro 5700, 32GB RAM; macOS 10.15.7 All 3 V2 apps for iPad; 6th Generation iPad 32 GB; Apple Pencil; iPadOS 15.7
GarryP Posted January 10 Posted January 10 12 hours ago, R C-R said: I think it would be better if there was an "all borders" button in addition to the provided ones so we could easily set or change every border to the same (or no) size Isn’t that what this is for in my attached screenshot, or have I missed the point? R C-R 1 Quote
R C-R Posted January 10 Posted January 10 5 hours ago, GarryP said: Isn’t that what this is for in my attached screenshot, or have I missed the point? You are right! I don't know how I missed that. Quote All 3 1.10.8, & all 3 V2.6 Mac apps; 2020 iMac 27"; 3.8GHz i7, Radeon Pro 5700, 32GB RAM; macOS 10.15.7 All 3 V2 apps for iPad; 6th Generation iPad 32 GB; Apple Pencil; iPadOS 15.7
Hangman Posted January 10 Posted January 10 1 minute ago, R C-R said: You are right! I don't know how I missed that. Haha, you didn't spot it in my screen recording then... Quote Affinity Designer 2.6.0 | Affinity Photo 2.6.0 | Affinity Publisher 2.6.0 MacBook Pro M3 Max, 36 GB Unified Memory, macOS Sonoma 14.6.1, Magic Mouse HP ENVY x360, 8 GB RAM, AMD Ryzen 5 2500U, Windows 10 Home, Logitech Mouse
