I am looking for information on export settings for Affinity publisher to be able to reliably export to CMYK print press for a small circulation newspaper. Recomendations and suggestions are appreciated

Posted

Assuming the newspaper is doing the printing why not ask them for details of what they want?

All 3 1.10.8, & all 3 V2.6 Mac apps; 2020 iMac 27"; 3.8GHz i7, Radeon Pro 5700, 32GB RAM; macOS 10.15.7
A
ll 3 V2 apps for iPad; 6th Generation iPad 32 GB; Apple Pencil; iPadOS 15.7

Posted

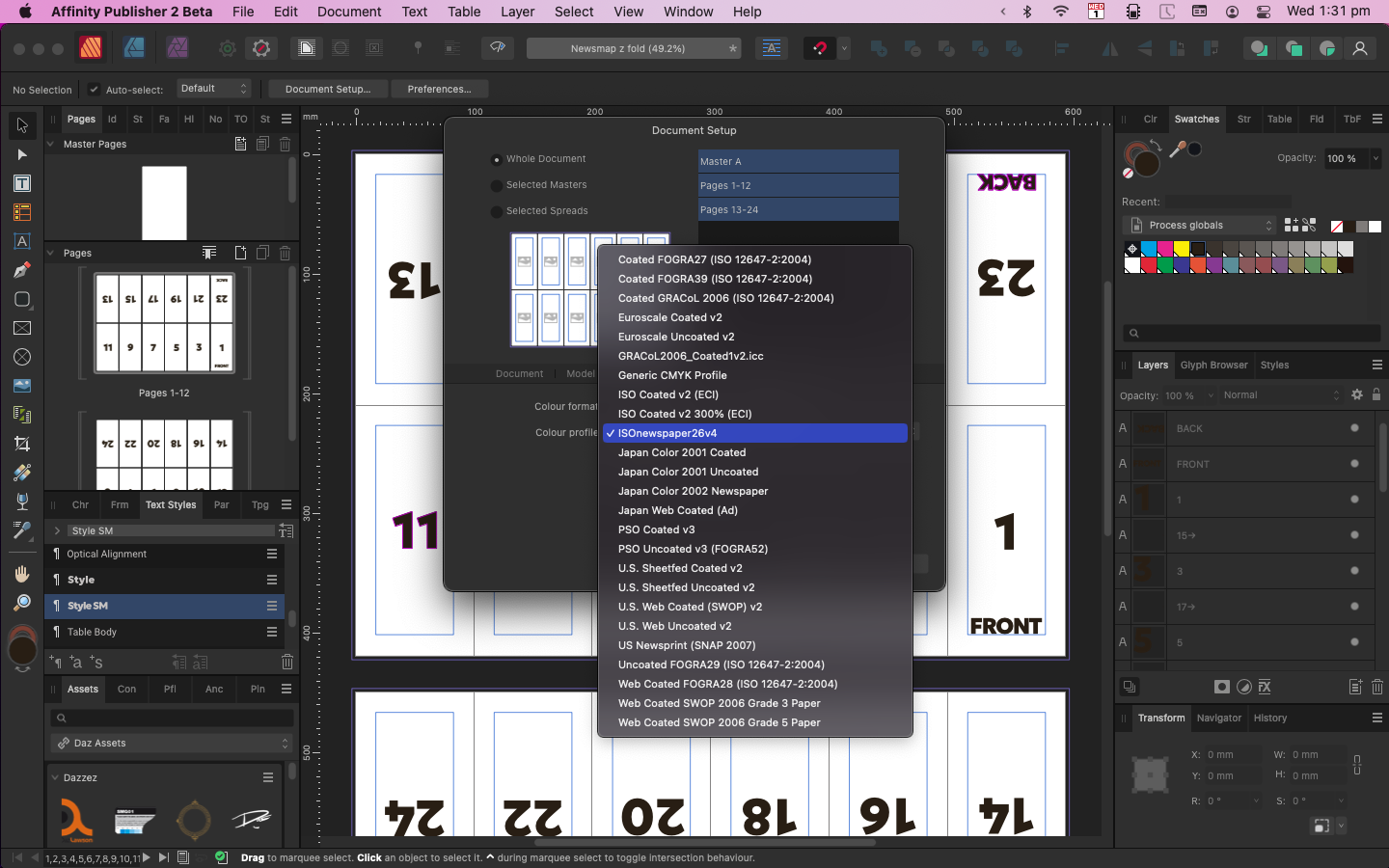

Newspapers will use a different icc profile based on country, here in the UK the majority of newspapers use ISOnewspaper26v4.icc which will need to be downloaded and placed in your colour profiles folder, on Mac will be /Library/ColorSync/Profiles, (not sure about pc) - quit & restart Pub and the profile will show up in document setup/colour/colour profiles dropdown, although its better to ask your print provider to send you the profile they use - note that once you change a colour profile, and if your solid black text is not set up in text styles, to use a global black, your black text will become a four colour black, so will need to be changed back to solid black (I always start all my jobs with a global palette to save grief)

Screen Grab 2025-01-01 at 1.31.23 pm.png

ISOnewspaper26v4.icc


Mac Pro Cheese-grater (Early 2009) 2.93 GHz 6-Core Intel Xeon 48 GB 1333 MHz DDR3 ECC Ram, Sapphire Pulse Radeon RX 580 8GB GDDR5, Ugee 19" Graphics Tablet Monitor Triple boot via OCLP 2.2.0 - Mac OS Monterey 12.7.6, Sonoma 14.7.3 and Mojave 10.14.6

Affinity Publisher, Designer and Photo 1.10.5 - 2.5.7 Betas 2.6.0(3125)

www.bingercreative.co.uk











  • 2 weeks later...
Posted

I printed an 11x14 newspaper out of Jacksonville, fl. from April to October 2024. My printers specs only addressed Indesign with no clue about APUB so I took a change and used PRESS READY on the PDF export, 300 DPI. They also "required text to be 100% Black. (C-0, M-0, Y-O- K-100) as well as CMYK & 300 dpi for images. I had to use PHOTO for that, and adjusted the written text in APUB for black. They gave me a sheet just for this (again Indesign-centric). But we talked on the phone and muddled through it.

The results came out fine for pulp, which is like a sponge to ink.
