After setting aside the first three pages of a new 8.5x11 document for title, copyright and TOC, I placed a 14-page DOCX file on page 4.


I successfully flowed the entire text. However, I was dismayed to discover that the content of the very last partial page is centered instead of starting at the top left and flowing to the middle of the page.



I tried playing with the align commands under the layer tab, but the entire last frame then moved upward, thereby making the first few lines float off into space. I tried to search for a solution in Mike Loader's Expert Guide to AffPub, but I didn't find anything helpful.

What am I doing wrong? I would appreciate suggestions on what to adjust.

Posted

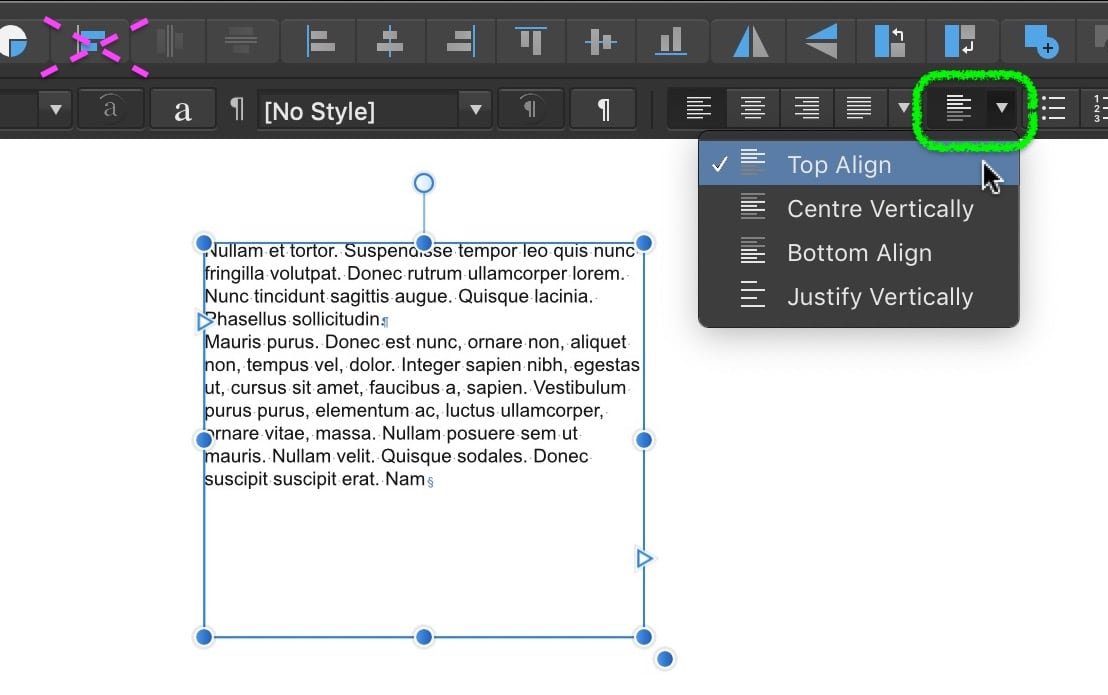

Don't use object alignment (<- Toolbar) but text alignment (<- Context Toolbar).


Nevertheless, your text does not look just aligned "Centre vertically", so you might need to show "Special Characters" (<- menu Text) to detect possible break characters and/or check the "Space before/after" in the paragraph style (<- Paragraph Panel > Spacing) .

macOS 10.14.6 | MacBookPro Retina 15" | Eizo 27" | Affinity V1

Posted
2 hours ago, thomaso said:

Don't use object alignment (<- Toolbar) but text alignment (<- Context Toolbar).


Nevertheless, your text does not look just aligned "Centre vertically", so you might need to show "Special Characters" (<- menu Text) to detect possible break characters and/or check the "Space before/after" in the paragraph style (<- Paragraph Panel > Spacing) .

Thank you. I tried Top Align, too. My text flowed up above the top margin.


Posted
3 minutes ago, pagelayoutt said:

My text flowed up above the top margin.

The top of your Frame Text layer has a higher vertical position than the top margin, just move the Frame Text layer down to suit.
