Removing Intersecting lines

[Ryanlab]

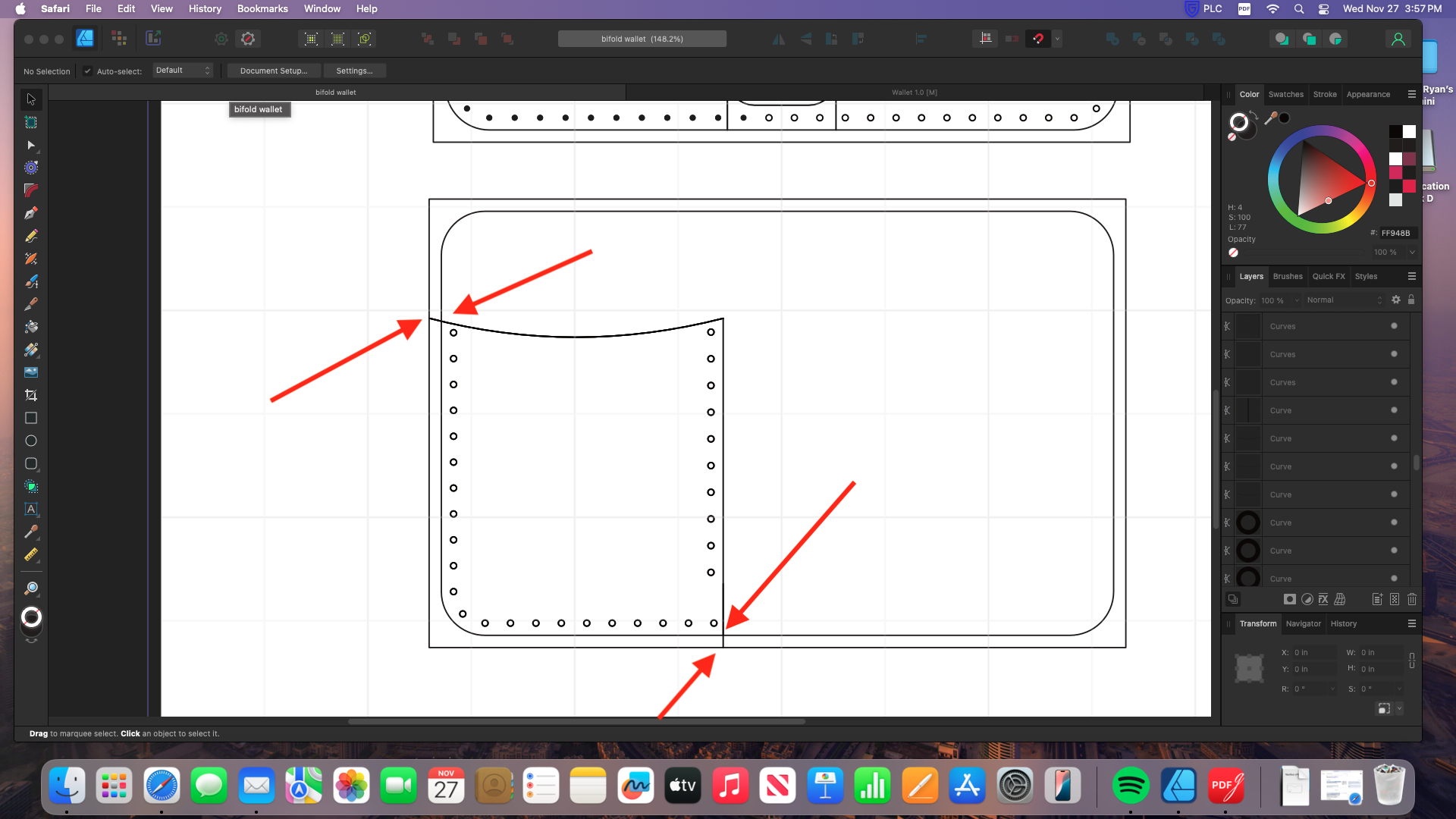

Looking for some help on removing the intersecting lines where the red arrows are on the image attached. This is a leather pattern pocket so that what I am looking to keep. I've tried numerous ways of doing it but no success. Any help is appreciated.



Remove lines above the top arrows and remove lines to the right of the bottom arrows.

[NotMyFault]

It looks like a vector drawing, and assuming you want to keep it vector.

• you must find the layer (curve) containing the segment you want to remove.
• select the layer
• use node tool
• add a node at the intended cutting point
• break curve at that new node
• delete the unwanted nodes

[Pšenda]

1 hour ago, NotMyFault said:

add a node at the intended cutting point

... set Snapping (maybe Object geometry) to precisely position the node at the intersection of the curves.

[George-Frazee]

58 minutes ago, Pšenda said:

... set Snapping (maybe Object geometry) to precisely position the node at the intersection of the curves.

Just did a quick test an Object Geometry is what OP wants here. Object Bounding Box would also work in this instance given the layout of the shapes.

[Ryanlab]

Thanks everyone !

I actually used the knife tool and it worked relatively quick. These suggestions got my mind going.
