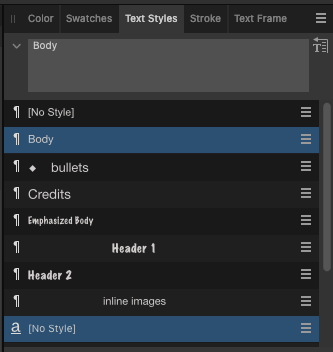

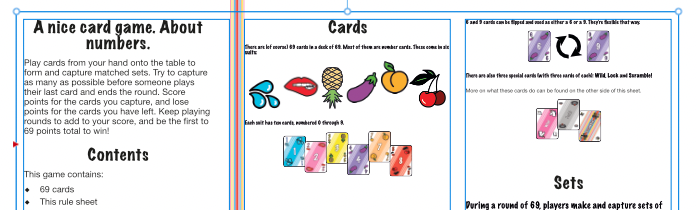

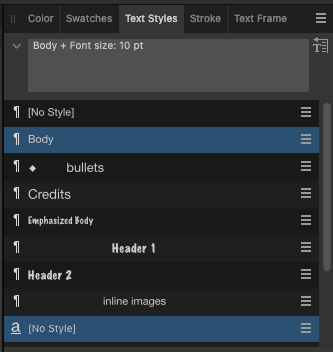

Rich R Posted November 17, 2024 Posted November 17, 2024 I have a document with multiple text frames and multiple text styles. All text in the document belongs to at least a paragraph style, and some has both a paragraph and character style. When I edit a paragraph style, that change affects all text with that style and any styles based on it that preserve that property in every frame except one (which also happens to be the largest text frame on my first page). After I edit the style, the text style in the problem frame now shows as [Paragraph style] + [previous formatting]. As an example, I've updated my Body style from 10pt font to 6pt and show some before & afters. The text on the left of the image is my problem frame, and the text on the right is one that works as expected (containing some text with the Body style and some with styles based on Body that preserve font size). The first two images are the problem frame text before the change, and the formatting shown in the Text Styles pane. The second two images are after the change. I assume there's a property of the problem frame itself that causes this, though Nothing I've looked at seems to indicate this as a property. Quote
walt.farrell Posted November 18, 2024 Posted November 18, 2024 It would help to see screenshots with more detail. For example, we need to see the Context Toolbar as well as the complete frame, with the Frame Text Tool active and the cursor in the problem text. Or if you could provide a sample document, that would also be helpful. Quote -- Walt Designer, Photo, and Publisher V1 and V2 at latest retail and beta releases PC: Desktop: Windows 11 Pro 23H2, 64GB memory, AMD Ryzen 9 5900 12-Core @ 3.00 GHz, NVIDIA GeForce RTX 3090 Laptop: Windows 11 Pro 23H2, 32GB memory, Intel Core i7-10750H @ 2.60GHz, Intel UHD Graphics Comet Lake GT2 and NVIDIA GeForce RTX 3070 Laptop GPU. Laptop 2: Windows 11 Pro 24H2, 16GB memory, Snapdragon(R) X Elite - X1E80100 - Qualcomm(R) Oryon(TM) 12 Core CPU 4.01 GHz, Qualcomm(R) Adreno(TM) X1-85 GPU iPad: iPad Pro M1, 12.9": iPadOS 18.5, Apple Pencil 2, Magic Keyboard Mac: 2023 M2 MacBook Air 15", 16GB memory, macOS Sequoia 15.5
Rich R Posted November 20, 2024 Author Posted November 20, 2024 Sure thing...I'm not in a good environment to be taking screenshots, but the document is here. I'll share screenshots after I'm back in a place where I can take them. rulesheetBoda-90x90.afpub Quote
MikeTO Posted November 21, 2024 Posted November 21, 2024 You have scaled the contents of the text frame by resizing the frame with the bottom-right outer handle (the content scaling handle) rather than the inner of those two handles. Double-click the solid blue outer handle to restore the frame's contents to 100%. You will then likely want to re-apply Body to all of the paragraphs formatted as such because they're all overridden with the font size. Once you've made those changes, editing the Body style should work as expected. Quote Download a free PDF manual for Affinity Publisher 2.6 Download a quick reference chart for Affinity's Special Characters Affinity 2.6 for macOS Sequoia 15.5, MacBook Pro (M4 Pro) and iPad Air (M2)
Rich R Posted November 21, 2024 Author Posted November 21, 2024 10 minutes ago, MikeTO said: You have scaled the contents of the text frame by resizing the frame with the bottom-right outer handle (the content scaling handle) rather than the inner of those two handles. Double-click the solid blue outer handle to restore the frame's contents to 100%. You will then likely want to re-apply Body to all of the paragraphs formatted as such because they're all overridden with the font size. Once you've made those changes, editing the Body style should work as expected. Thank you so much! This had me running in circles for like a whole day... I'll try it soon as I can and report back. Quote
