Rectangle border not drawn completely

[delpi767]

In the attached file, the magenta border at the bottom is not drawn completely.

When the border width is se to 204px it is drawn correctly.

When the border width is set to 228px it is drawn correctly

The problem seems to exist at all widths in between.

When opened on an older machine with Photo 2.4.1 it displays properly.

Beta 2.5.3.2516
Windows 11
AMD 7950X
Radeon 7900XT - Windows reports "best drivers installed"

Accleration on or off - same issue





funicular.afphoto

[NotMyFault]

Can you provide screenshots of incorrect rendering, including:

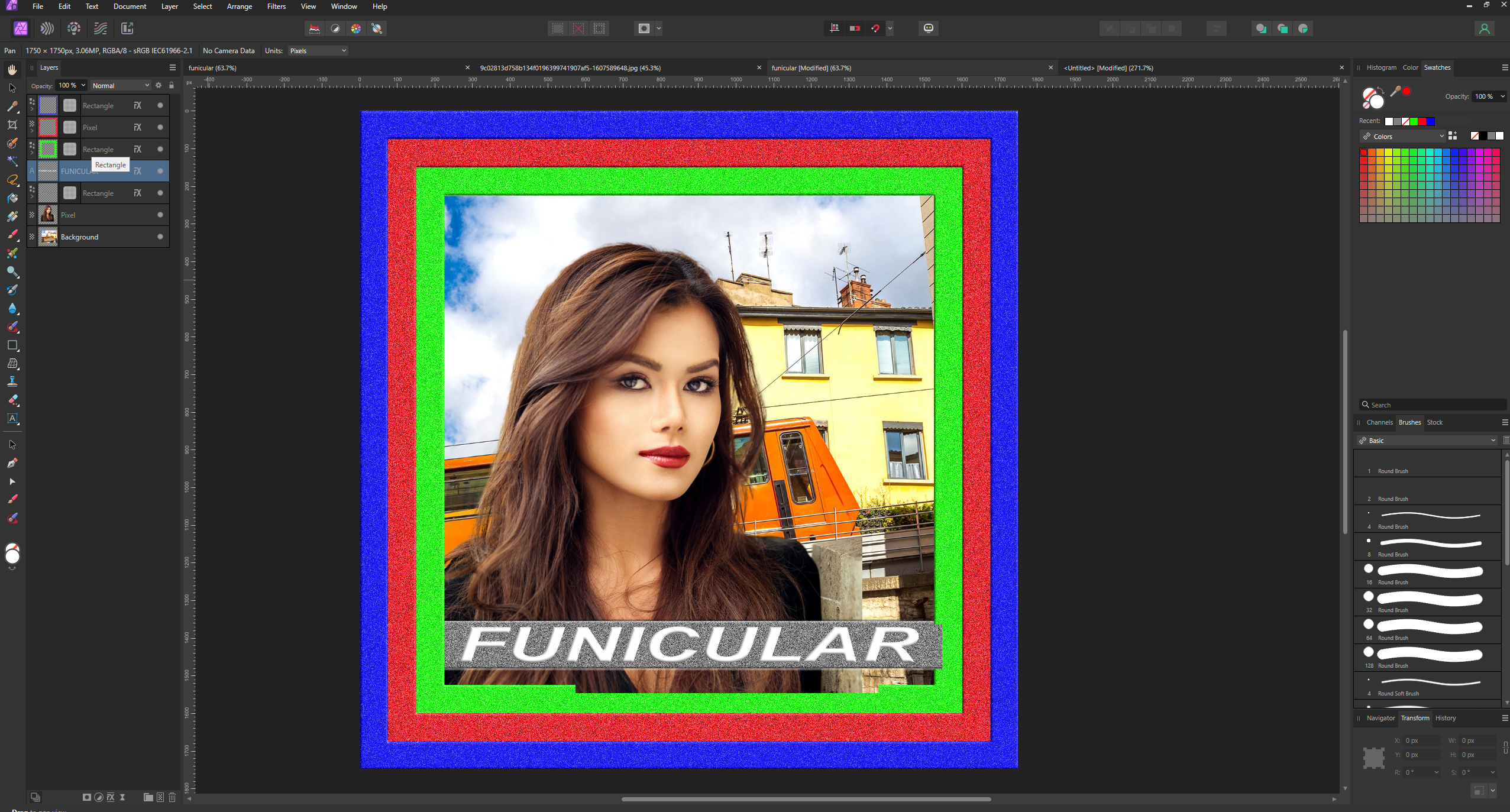

1. full app window

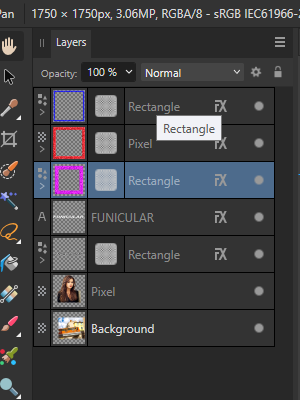

2. layer stack / thumbnails

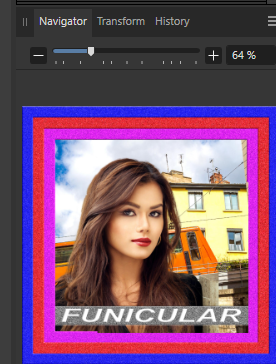

3. navigator panel
4. transform panel (magenta layer active and move tool)

ps: a empty pixel layer as background is sufficient to trigger this bug.

[delpi767]

I think this is what you want.

I've also noticed that when  I move the model around, the part of the magenta border that is affected changes.

[NotMyFault]

For a test: can you use the noise button for the colors (clicking on the opacity button), instead of using noise filters?
those are “heavy” and might cause the issue.

BTW noise looks correct only if zooming to 100%, when zooming out the noise effect is exaggerated and does not match exports.



Does the image looks correct when exported or when using merge visible?

[NotMyFault]

After playing with the file on iPad, I can reproduce the issue. Merge visible results in wrong result, cutting part of pink frame.

A combination of bevel/emboss and multiple noise filters seem to trigger the effect.

The 3d effects creates a kind of semi-transparent halo around the shapes which I rate as (additional) bug.

[NotMyFault]

Steps to reproduce:

• create new document 1750px both axis
• place image file, move image slightly off center so it doesn’t touch lower and right edge, and extends over left and upper edge
• add rectangle, no fill, stroke in any color 225px alignment to inside
• merge visible

the stroke misses a portion.

reproduced on iPad. 2.5.4 retail

225 stroke bug.afphoto

[delpi767]

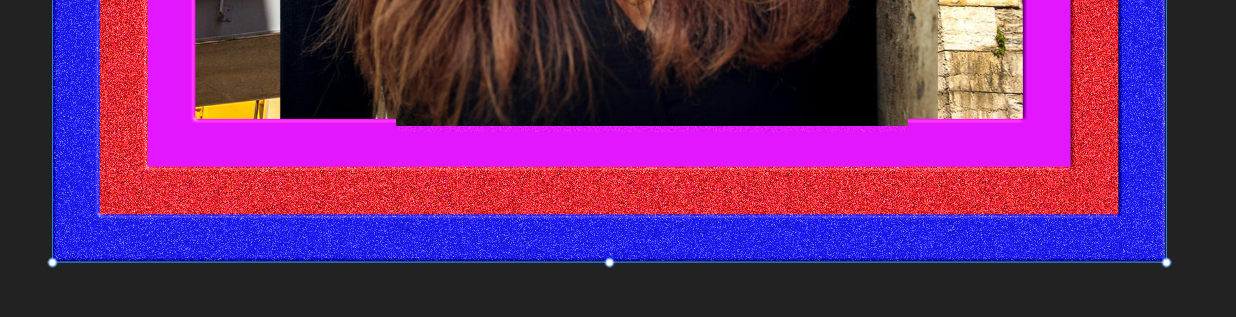

Removed all noise from magenta rectangle and merged visible.

the problem still exists.

[Hangman]

I think it's way more straightforward and simply a glitch with Stroke Inside across all three apps on Mac and Windows when exporting to raster-based file formats specific to a stroke width range between 215 px and 237 px for a 1750 px x 1750 px document regardless of the document dpi... It doesn't affect vector-based file formats...

When the stroke width is less than 215 px or greater than 237 px for the same document dimensions the stroke renders correctly for raster-based file formats...

[NathanC]

Hi @delpi767,

I've replicated and logged this issue with the developers.

[delpi767]

Thanks
