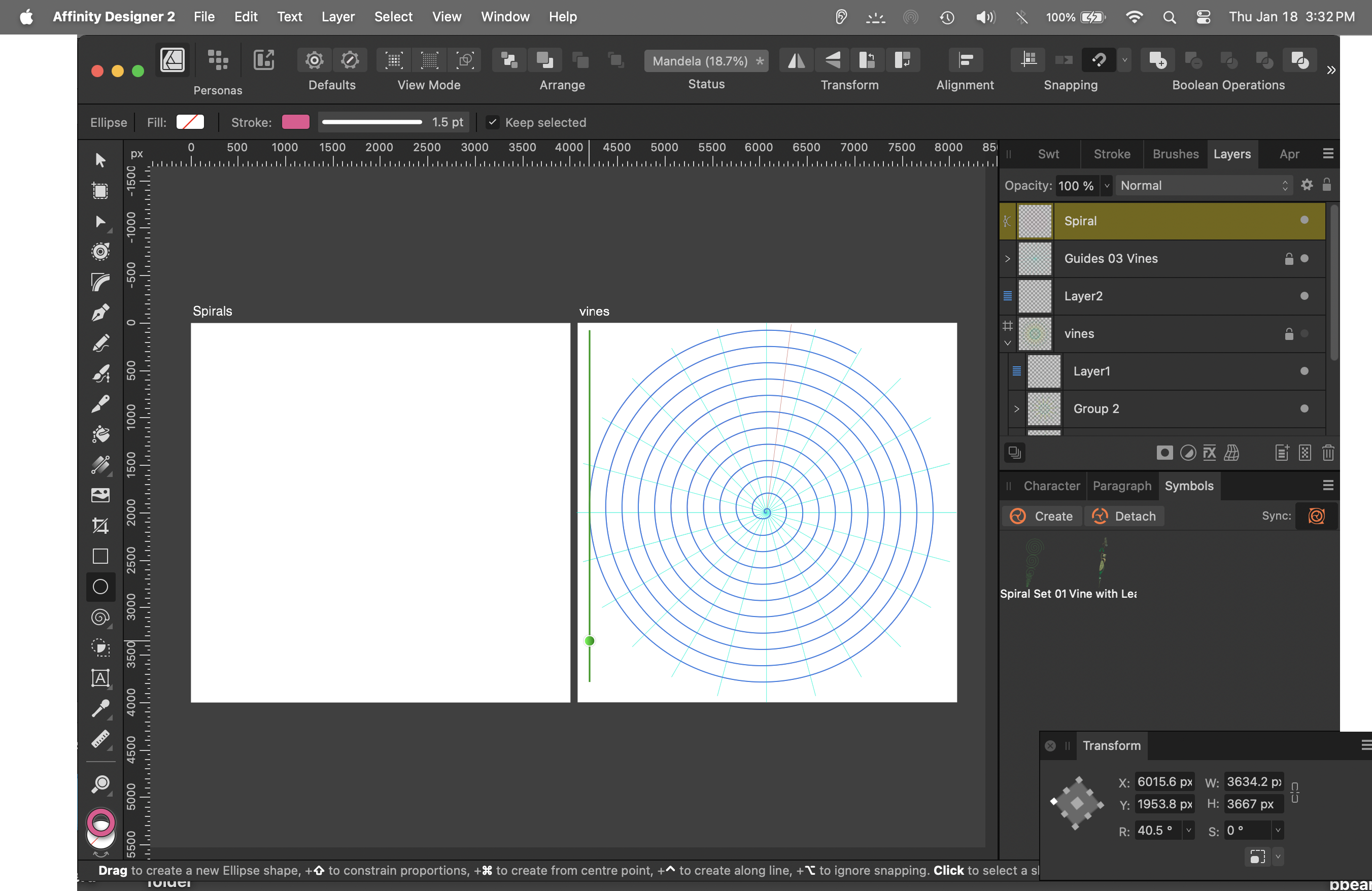

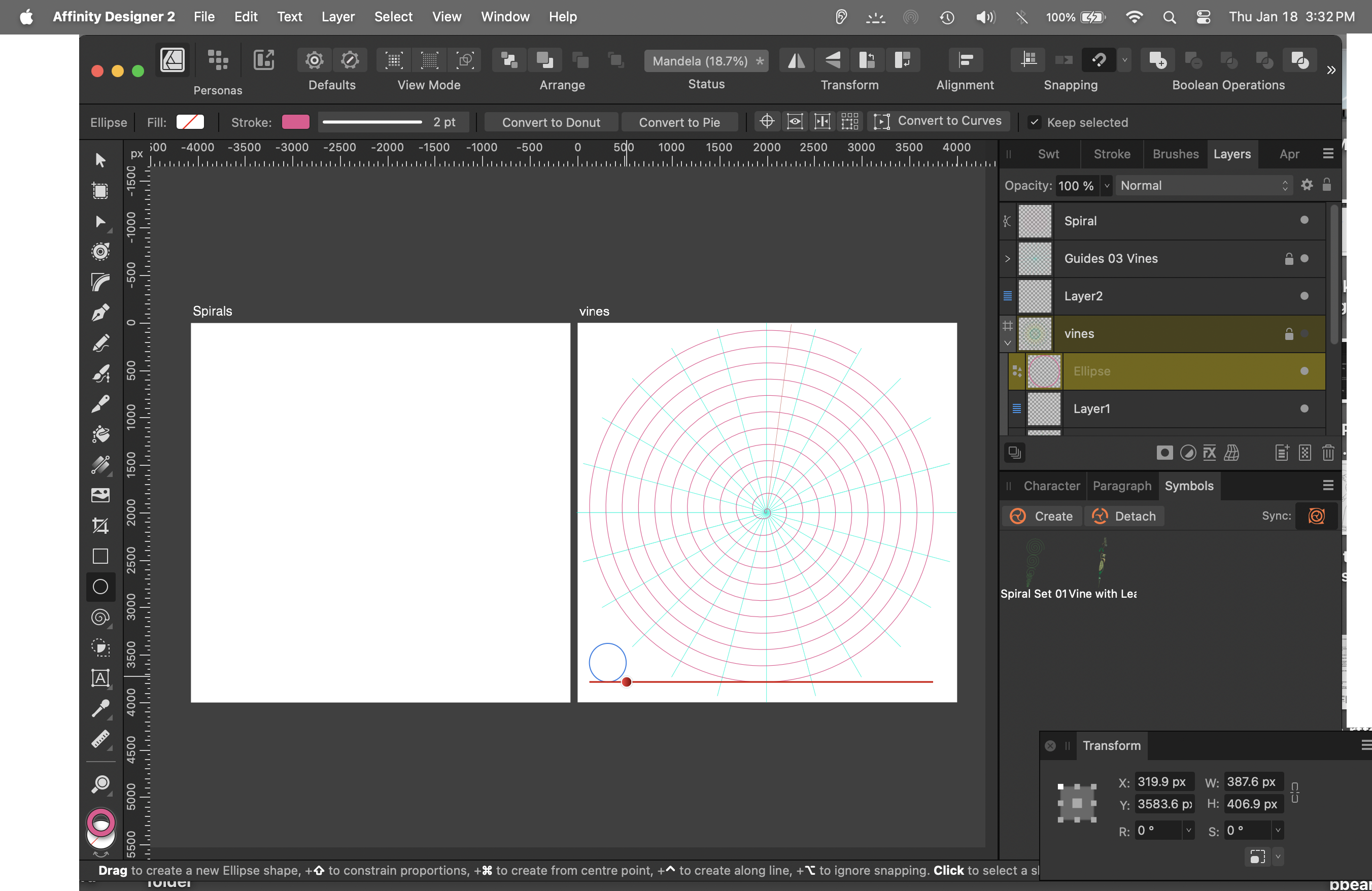

barbBear Posted January 18, 2024 Posted January 18, 2024 I am new to using artboards, so I may have interpreted this incorrectly... I have a document with artboards and layers (screen grabs attached). The Top layer (named Spiral in the attached example) is selected. I'm thinking, I'll create an ellipse and it will be above (or maybe below) the Spiral layer. When I create the object, it is located lower down, on the top layer of the Artboard set of objects. The artboard layer was locked and it still put the newly created ellipse inside. Is this how it is intended to work? Barb. Quote
walt.farrell Posted January 18, 2024 Posted January 18, 2024 I think it's working as designed. Objects you create that are physically overlapping an Artboard will become part of that Artboard. Quote -- Walt Designer, Photo, and Publisher V1 and V2 at latest retail and beta releases PC: Desktop: Windows 11 Pro 23H2, 64GB memory, AMD Ryzen 9 5900 12-Core @ 3.00 GHz, NVIDIA GeForce RTX 3090 Laptop: Windows 11 Pro 23H2, 32GB memory, Intel Core i7-10750H @ 2.60GHz, Intel UHD Graphics Comet Lake GT2 and NVIDIA GeForce RTX 3070 Laptop GPU. Laptop 2: Windows 11 Pro 24H2, 16GB memory, Snapdragon(R) X Elite - X1E80100 - Qualcomm(R) Oryon(TM) 12 Core CPU 4.01 GHz, Qualcomm(R) Adreno(TM) X1-85 GPU iPad: iPad Pro M1, 12.9": iPadOS 18.5, Apple Pencil 2, Magic Keyboard Mac: 2023 M2 MacBook Air 15", 16GB memory, macOS Sequoia 15.5
thomaso Posted January 18, 2024 Posted January 18, 2024 To work with objects outside of artboard layers you can deactivate the Layers Panel option "Edit All Layers". This prevents from auto-moves into the artboard layer hierarchy but also may make the ticked option "Auto-scroll" temporarily not working any more. Quote • MacBookPro Retina 15" | macOS 10.14.6 | Eizo 27" | Affinity V1 • iPad 10.Gen. | iOS 18.5. | Affinity V2.6
